GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 582646590 | |
| Trigger Time | June 19, 2019, 14:16:25 | |
| Data Timestamp | June 19, 2019, 17:03:22 | |
| Localization Timestamp | June 19, 2019, 17:13:49 | |
| Balrog Ra [deg] | 293.8 | 1.0 |
| Balrog Dec [deg] | 18.7 | 1.1 |
| Error radius 1 σ [deg] | 1.5 | |
| Error radius 2 σ [deg] | 2.6 | |
| Estimated systematic error [deg] | 1 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 3.5 | 0.46 |
| Spectral Parameter Index | -1.1 | 0.038 |
| Spectral Parameter XC [keV] | 5e+02 | 7e+01 |
| Satellite Phi [deg] | -172.39 | |
| Satellite Theta [deg] | -3.63 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 82%: GRB |
| Second most likely | 16%: CygX-1 |
GRB Location Alert
GRB 190619B: BALROG localization (Fermi Trigger 582646590 / GRB 190619595)
J. Burgess, B. Biltzinger, F. Kunzweiler, F. Berlato, & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
582646590 at 14:16:25 on 19 June 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 293.4+/-1.6 deg
Decl.(2000.0) = 14.3+/-1.8 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190619595/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190619595/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190619595/json
J. Burgess, B. Biltzinger, F. Kunzweiler, F. Berlato, & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
582646590 at 14:16:25 on 19 June 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 293.4+/-1.6 deg
Decl.(2000.0) = 14.3+/-1.8 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190619595/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190619595/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190619595/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame
Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

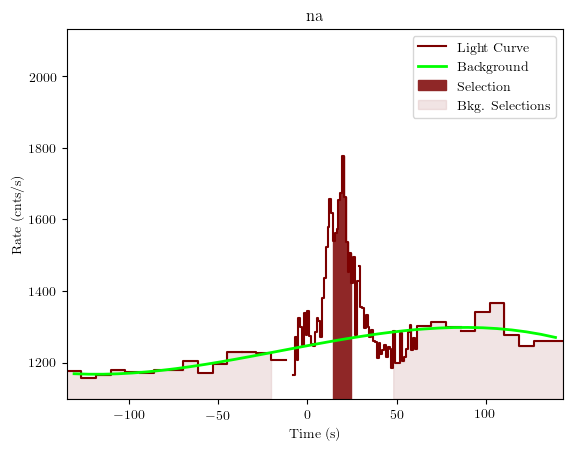

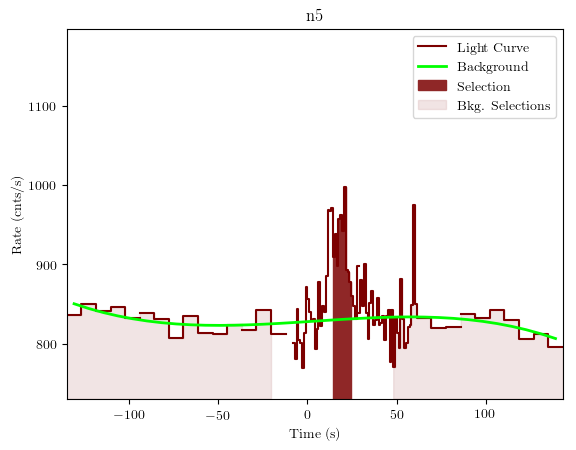

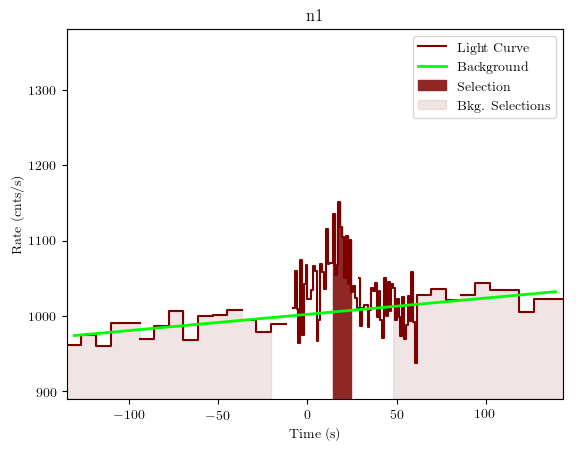

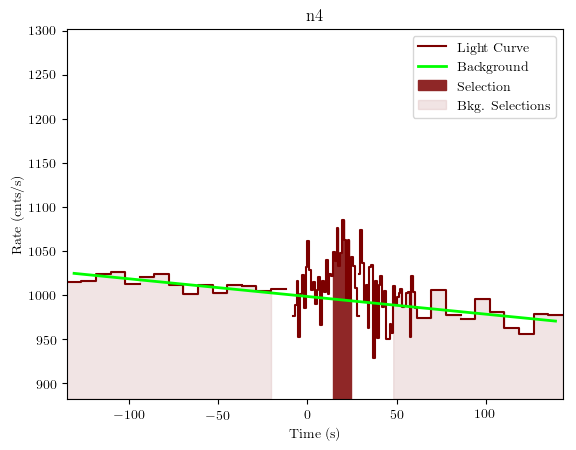

Light Curves
