GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 582886211 | |
| Trigger Time | June 22, 2019, 08:50:06 | |
| Data Timestamp | June 22, 2019, 09:33:45 | |
| Localization Timestamp | June 22, 2019, 09:41:31 | |
| Balrog Ra [deg] | 146.3 | 3.7 |
| Balrog Dec [deg] | -41.2 | 3.0 |
| Error radius 1 σ [deg] | 4.0 | |
| Error radius 2 σ [deg] | 6.3 | |
| Estimated systematic error [deg] | 1 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 6.3 | 3.3 |
| Spectral Parameter Index | -1.5 | 0.21 |
| Spectral Parameter XC [keV] | 1e+02 | 6e+01 |
| Satellite Phi [deg] | 10.58 | |
| Satellite Theta [deg] | 50.85 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 51%: GRB |
| Second most likely | 35%: GenericSGR |
GRB Location Alert
GRB 190622A: BALROG localization (Fermi Trigger 582886211 / GRB 190622368)
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
582886211 at 08:50:06 on 22 June 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 146.4+/-3.8 deg
Decl.(2000.0) = -41.1+/-3.0 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190622368/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190622368/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190622368/json
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
582886211 at 08:50:06 on 22 June 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 146.4+/-3.8 deg
Decl.(2000.0) = -41.1+/-3.0 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190622368/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190622368/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190622368/json
GRB Location
J2000 Coordinate Frame

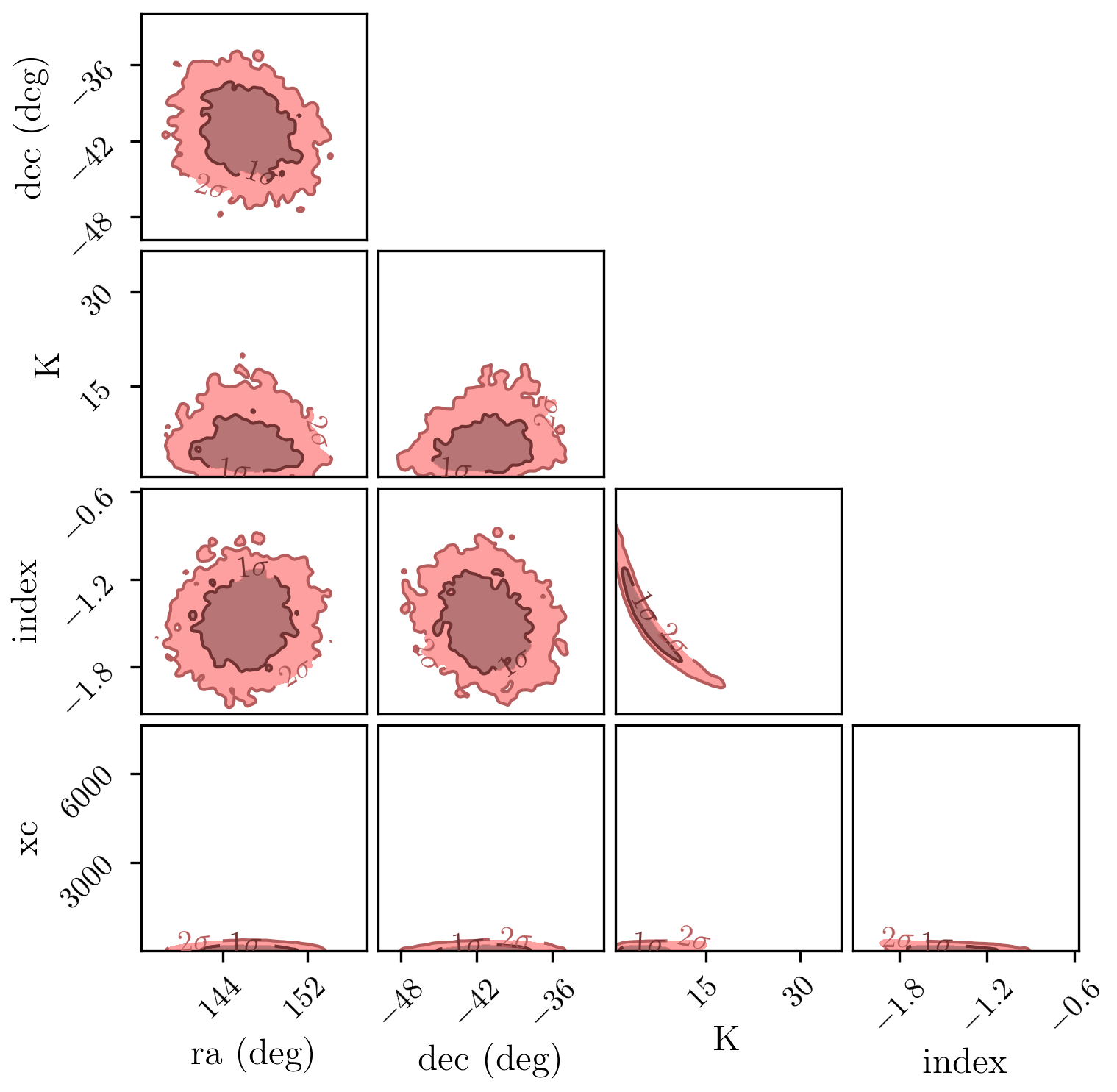

All Corner Plot
J2000 Coordinate Frame

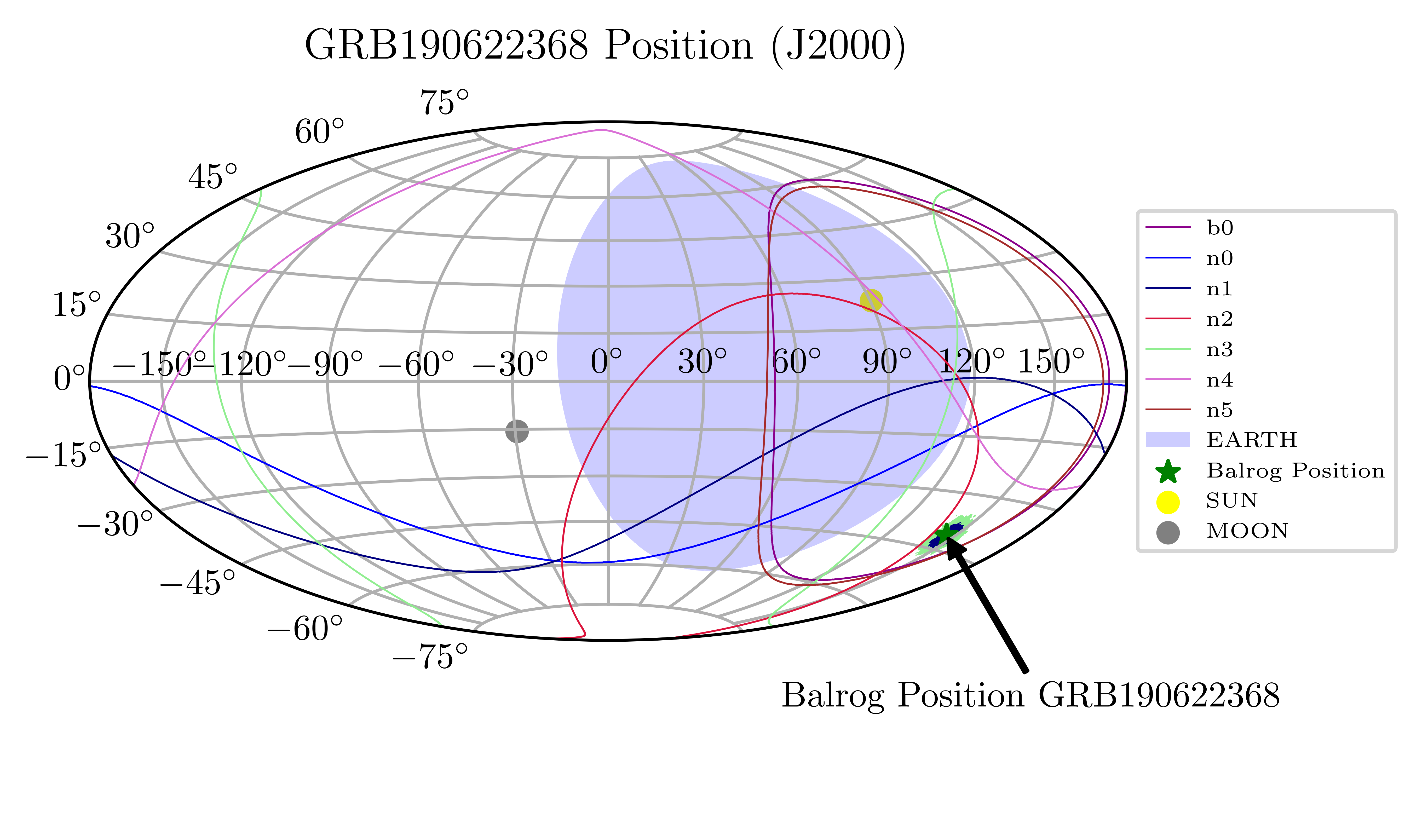

Moll Location Plot
J2000 Coordinate Frame

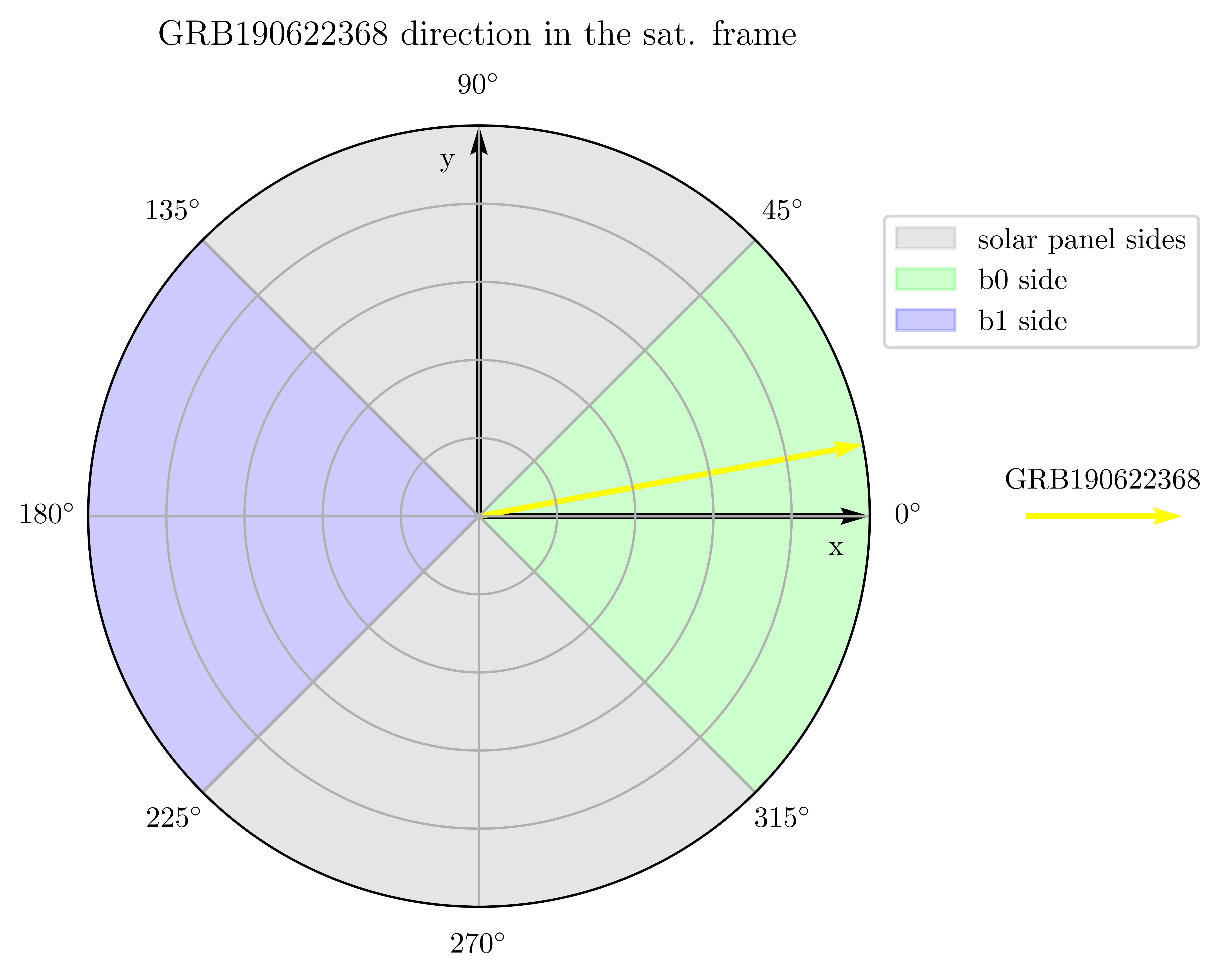

Satellite
3D - GRB Location Plot
Satellite Coordiante Frame

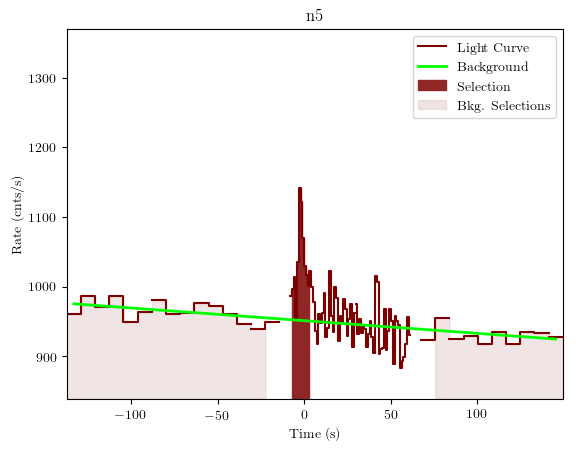

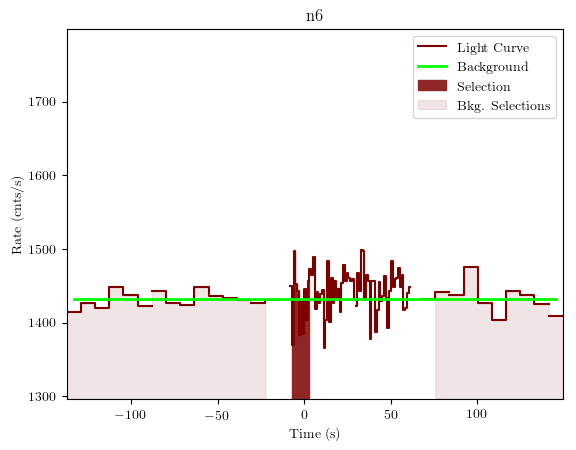

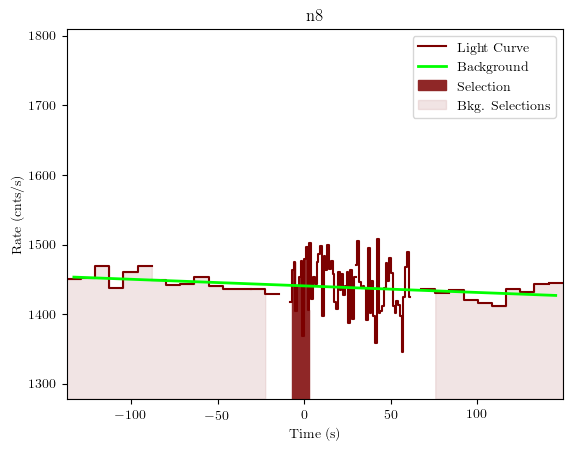

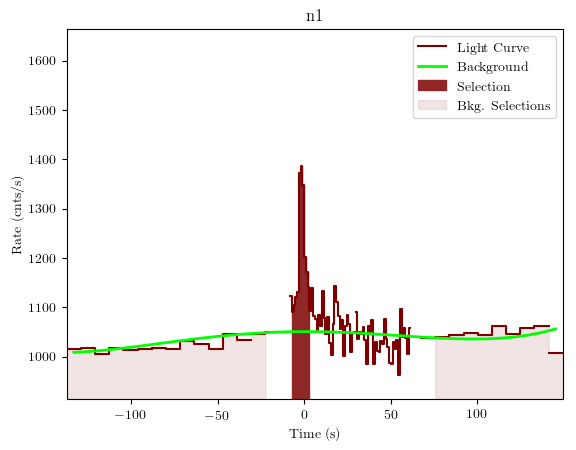

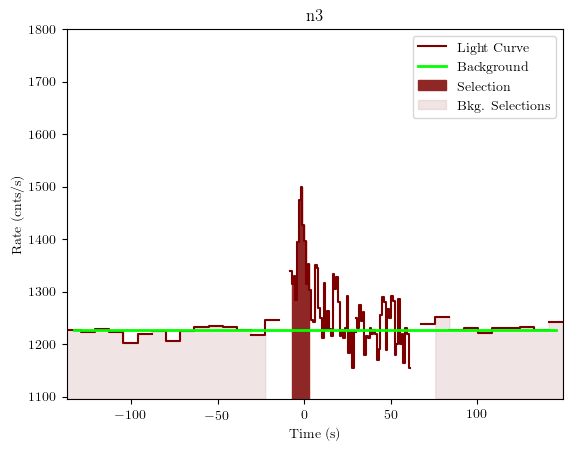

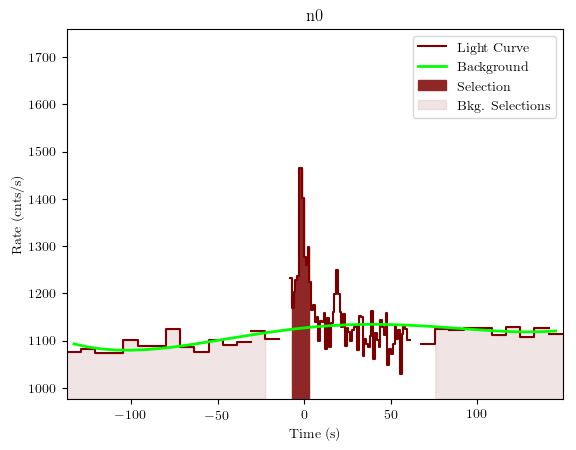

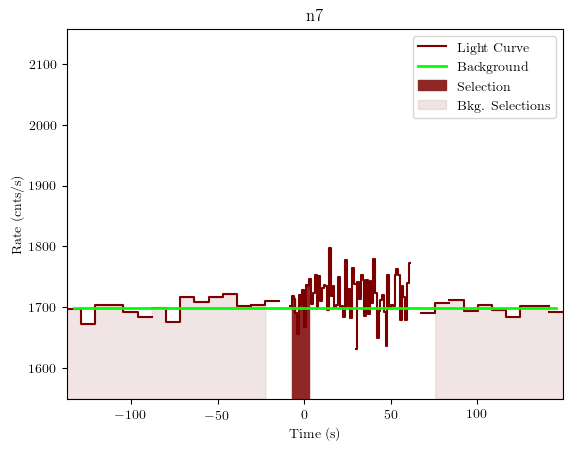

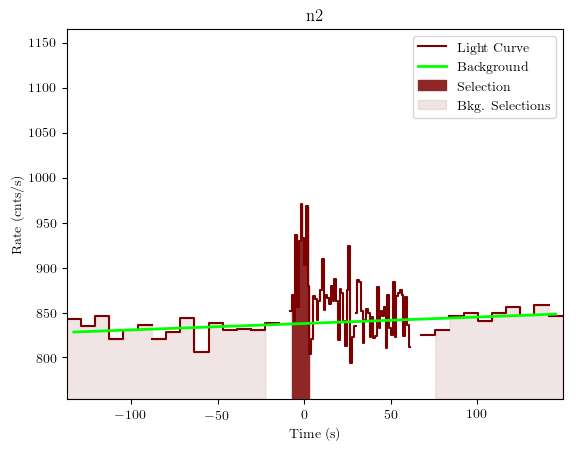

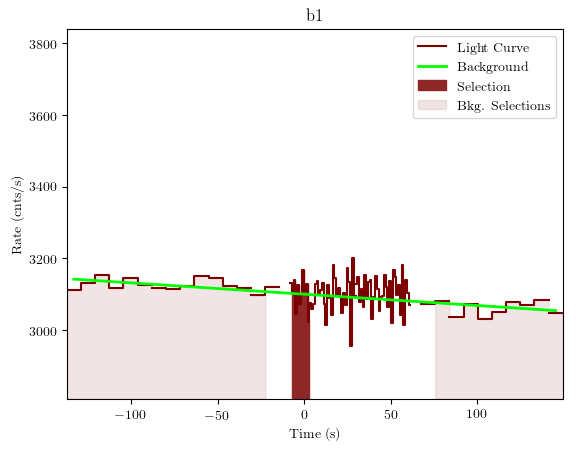

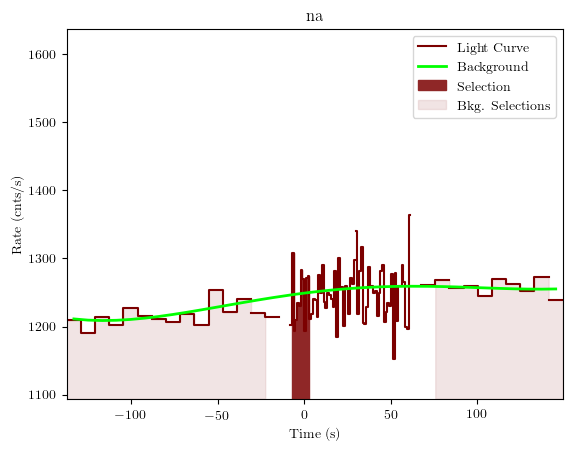

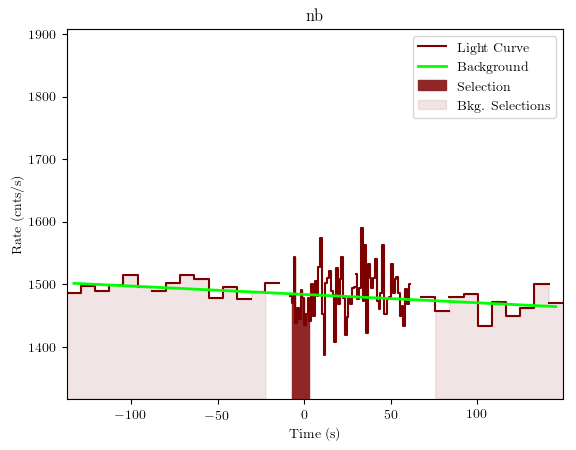

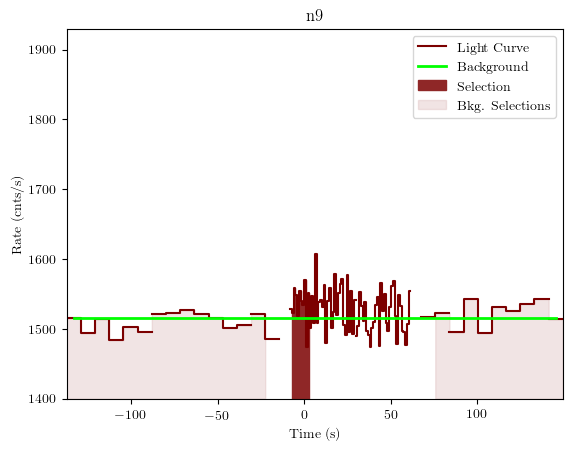

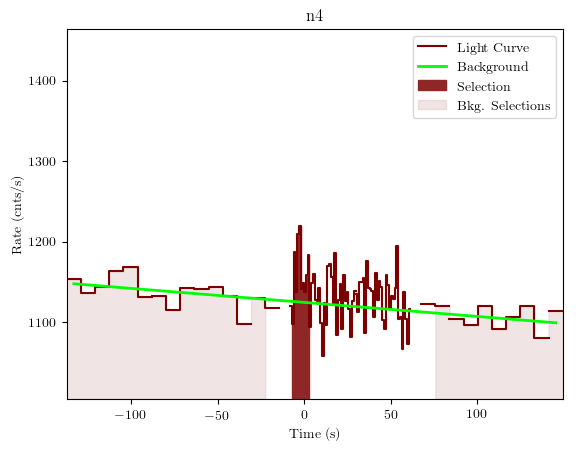

Light Curves
