GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 585847498 | |
| Trigger Time | July 26, 2019, 15:24:53 | |
| Data Timestamp | July 26, 2019, 17:37:29 | |
| Localization Timestamp | July 26, 2019, 17:47:40 | |
| Balrog Ra [deg] | 310.8 | 0.9 |
| Balrog Dec [deg] | 34.9 | 1.2 |
| Error radius 1 σ [deg] | 1.5 | |
| Error radius 2 σ [deg] | 2.9 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 6.6 | 0.68 |
| Spectral Parameter Index | -1.2 | 0.032 |
| Spectral Parameter XC [keV] | 4e+02 | 4e+01 |
| Satellite Phi [deg] | 134.67 | |
| Satellite Theta [deg] | 18.86 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 73%: GRB |
| Second most likely | 24%: CygX-1 |
GRB Location Alert
GRB 190726A: BALROG localization (Fermi Trigger 585847498 / GRB 190726642)
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
585847498 at 15:24:53 on 26 July 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 310.8+/-0.9 deg
Decl.(2000.0) = 34.9+/-1.2 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190726642/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190726642/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190726642/json
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
585847498 at 15:24:53 on 26 July 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 310.8+/-0.9 deg
Decl.(2000.0) = 34.9+/-1.2 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190726642/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190726642/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190726642/json

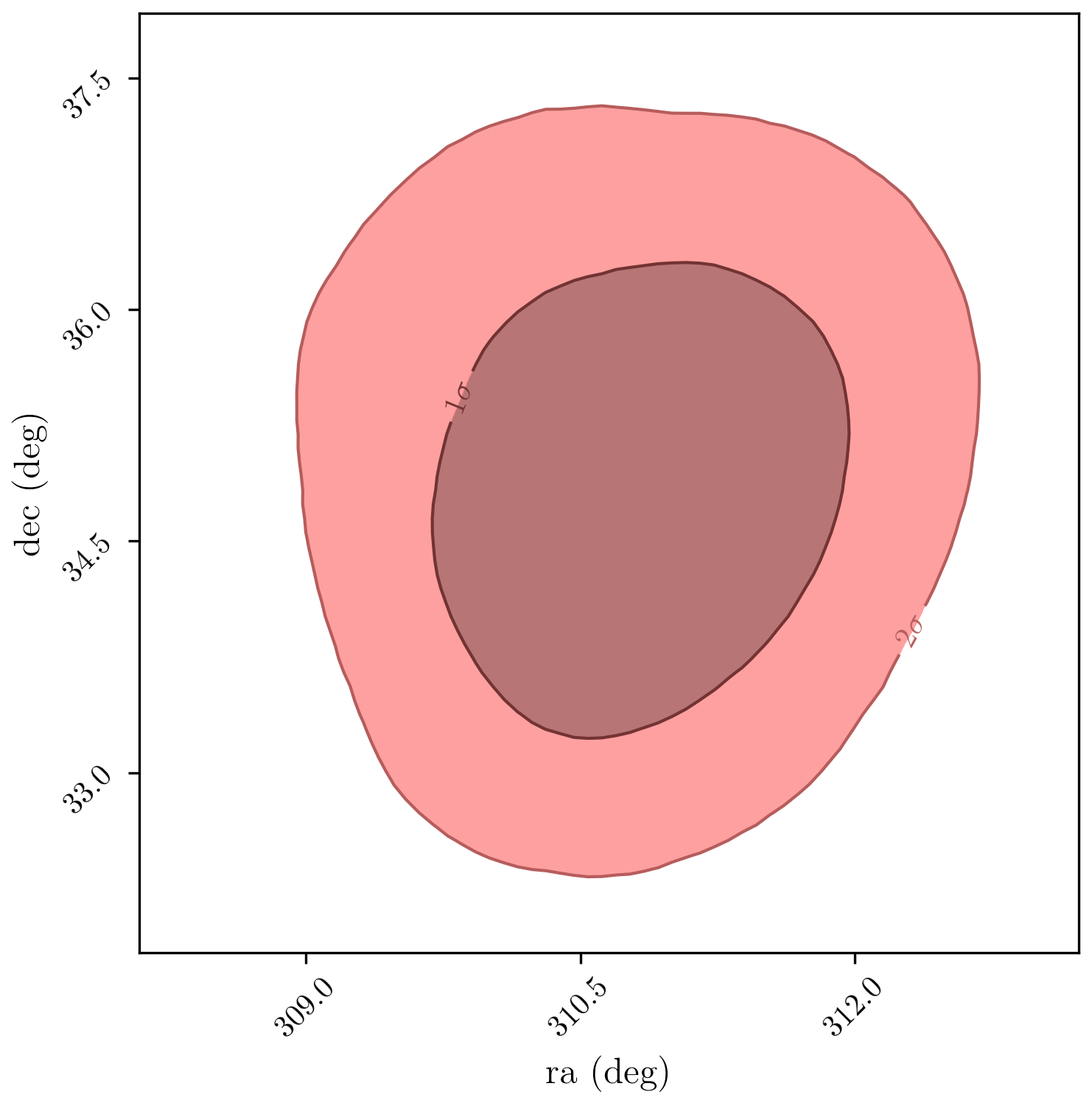

GRB Location
J2000 Coordinate Frame

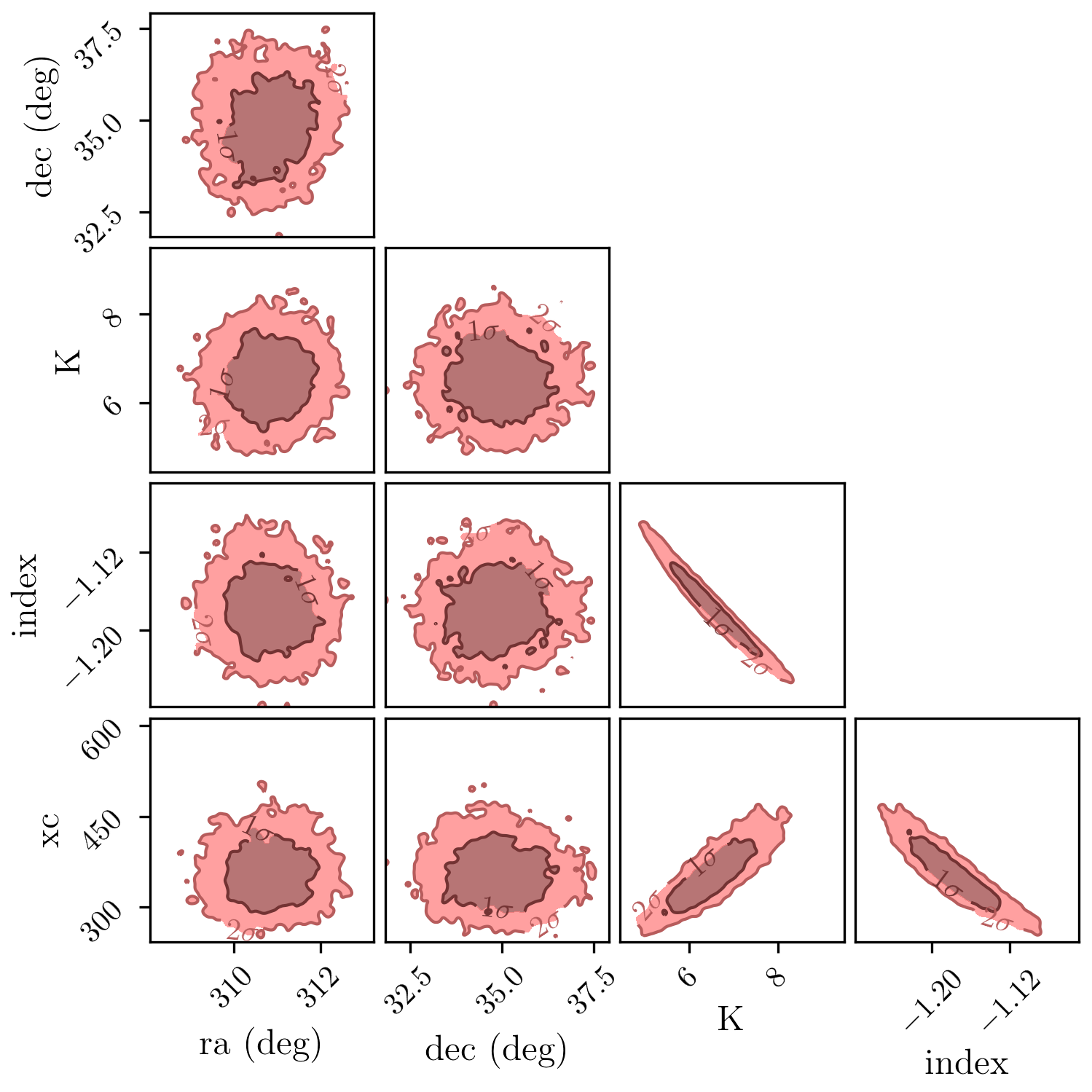

All Corner Plot
J2000 Coordinate Frame

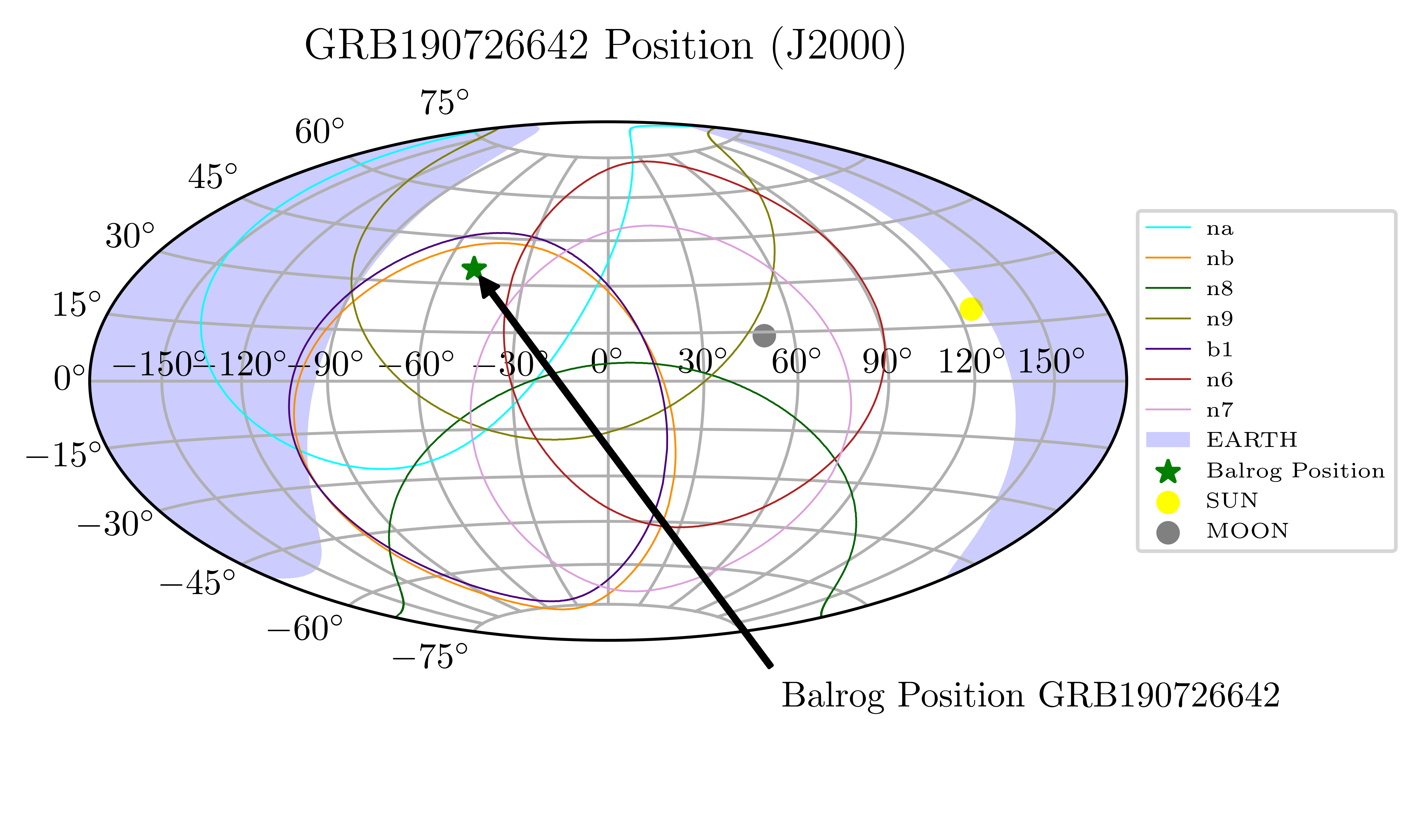

Moll Location Plot
J2000 Coordinate Frame
Satellite

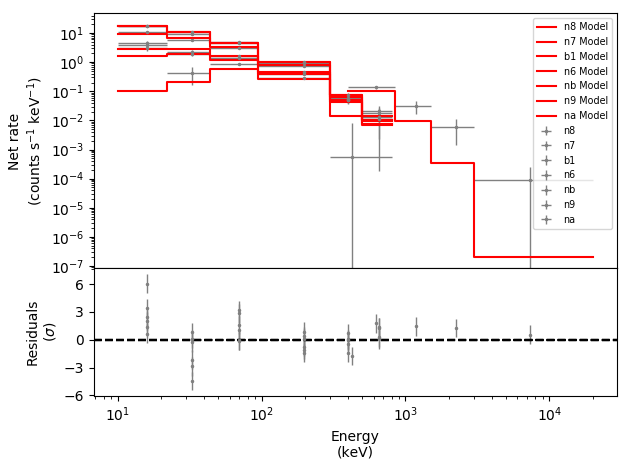

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

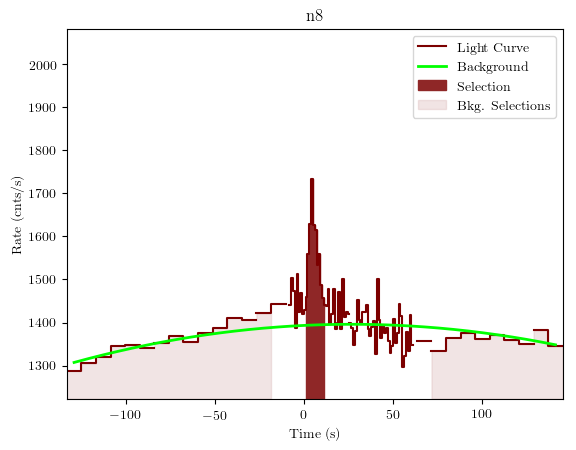

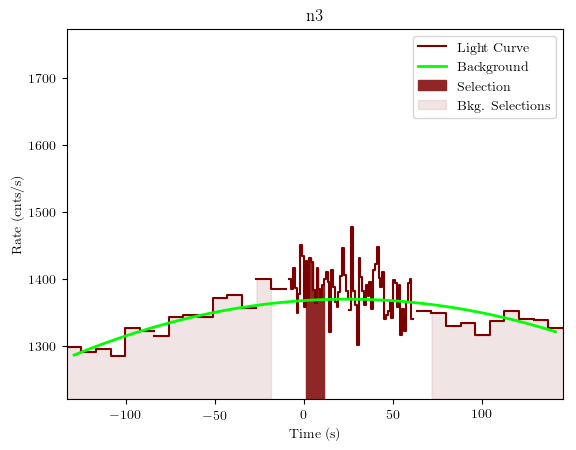

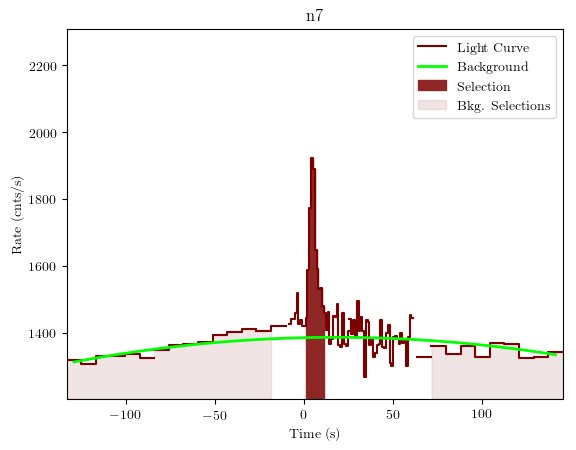

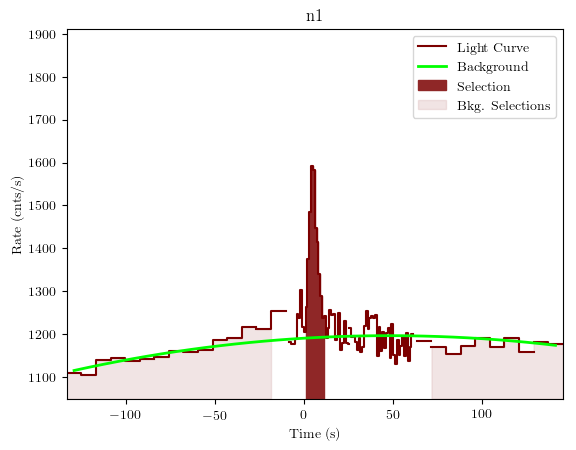

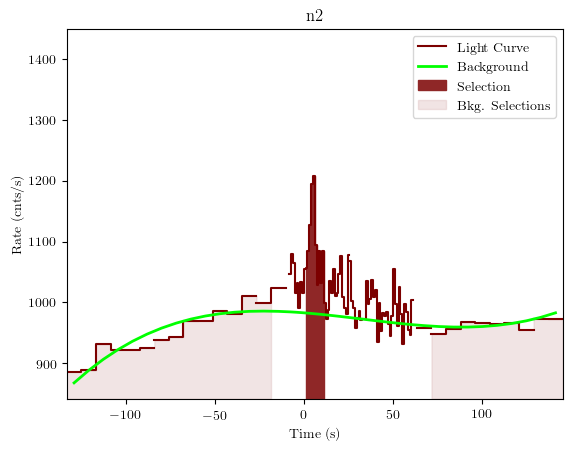

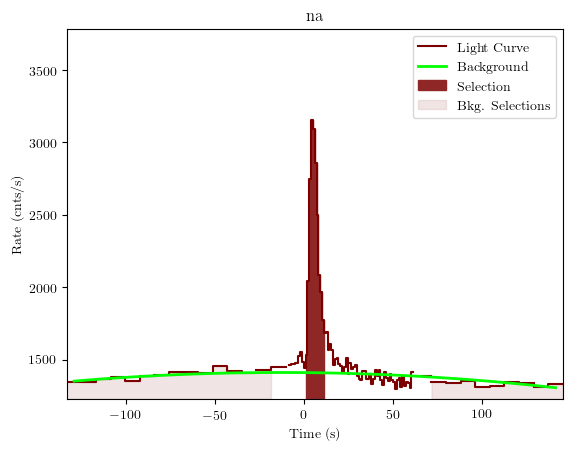

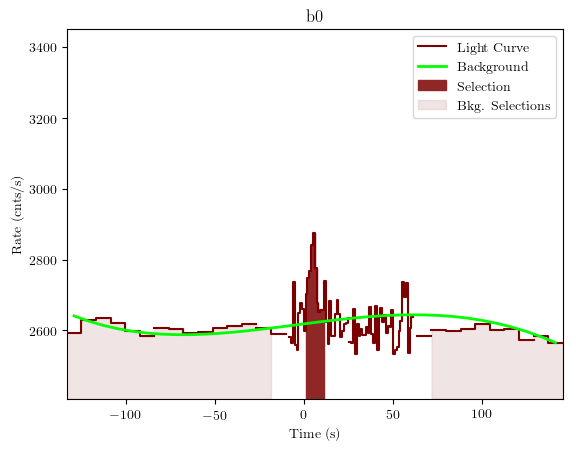

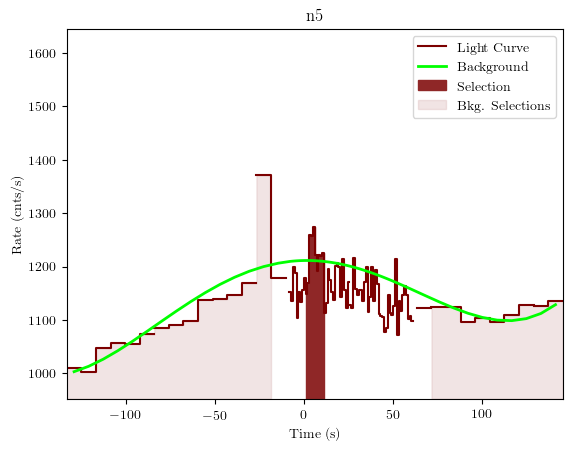

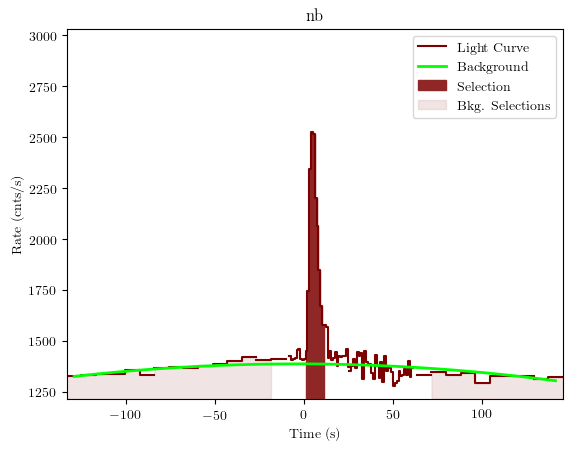

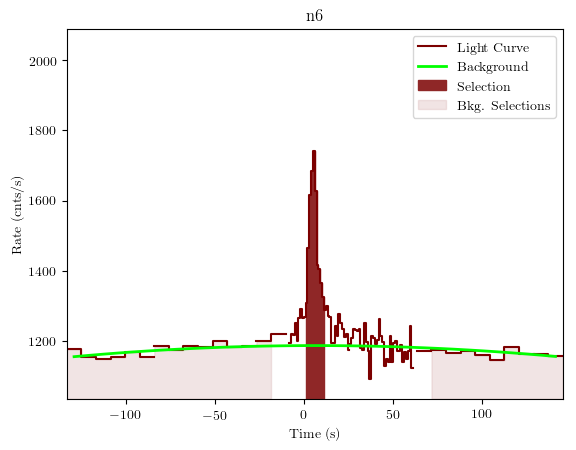

Light Curves
