GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 585864875 | |
| Trigger Time | July 26, 2019, 20:14:30 | |
| Data Timestamp | July 26, 2019, 21:11:55 | |
| Localization Timestamp | July 26, 2019, 21:20:39 | |
| Balrog Ra [deg] | 327.9 | 5.5 |
| Balrog Dec [deg] | -48.3 | 2.0 |
| Error radius 1 σ [deg] | 2.7 | |
| Error radius 2 σ [deg] | 3.7 | |
| Estimated systematic error [deg] | 1 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.85 | 0.32 |
| Spectral Parameter Index | -0.85 | 0.13 |
| Spectral Parameter XC [keV] | 2e+02 | 4e+01 |
| Satellite Phi [deg] | -149.90 | |
| Satellite Theta [deg] | 11.61 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 96%: GRB |
| Second most likely | 2%: GenericTransient |
GRB Location Alert
GRB 190726B: BALROG localization (Fermi Trigger 585864875 / GRB 190726843)
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
585864875 at 20:14:30 on 26 July 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 328.2+/-5.5 deg
Decl.(2000.0) = -48.3+/-1.9 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190726843/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190726843/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190726843/json
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
585864875 at 20:14:30 on 26 July 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 328.2+/-5.5 deg
Decl.(2000.0) = -48.3+/-1.9 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190726843/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190726843/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190726843/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame
Satellite

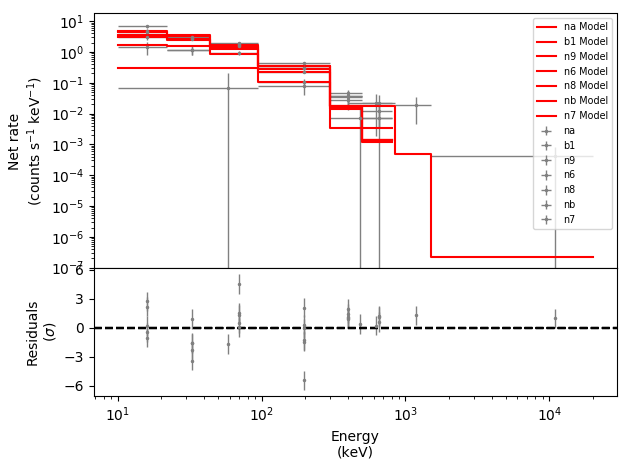

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

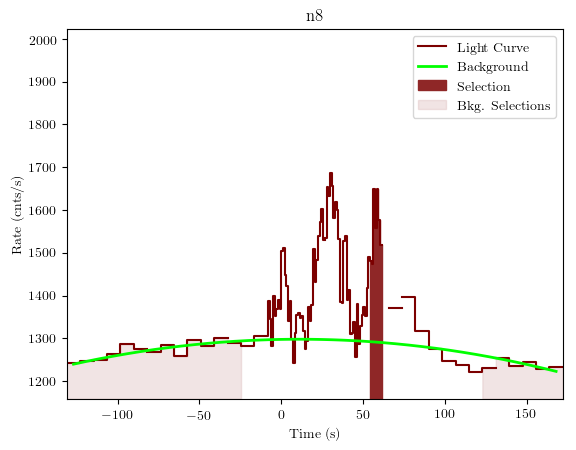

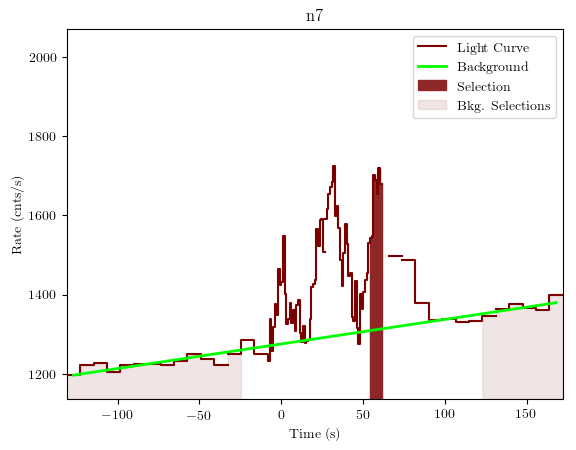

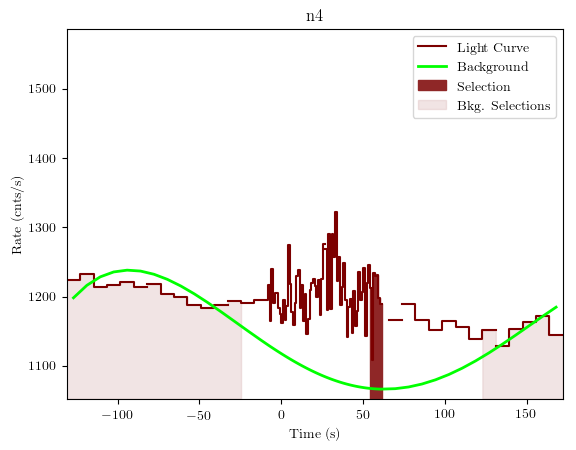

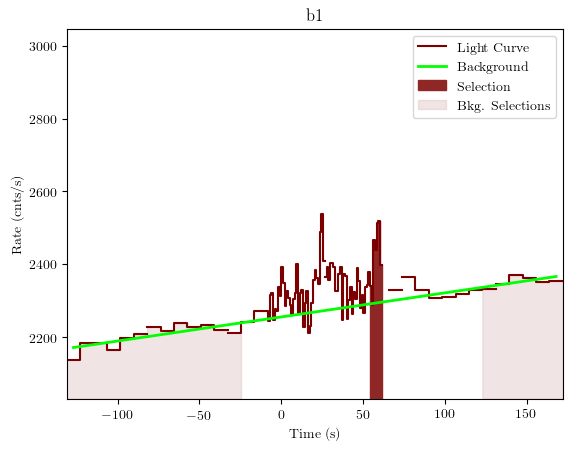

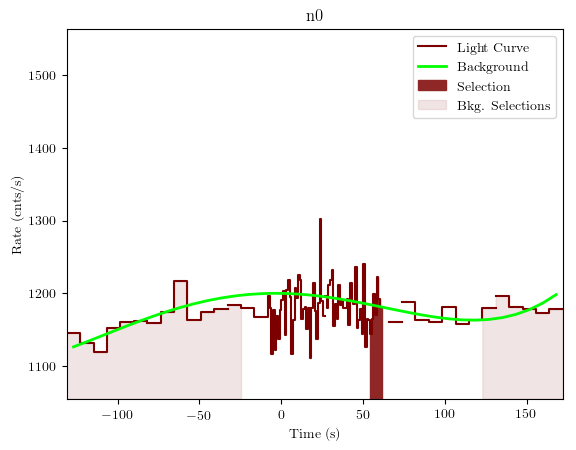

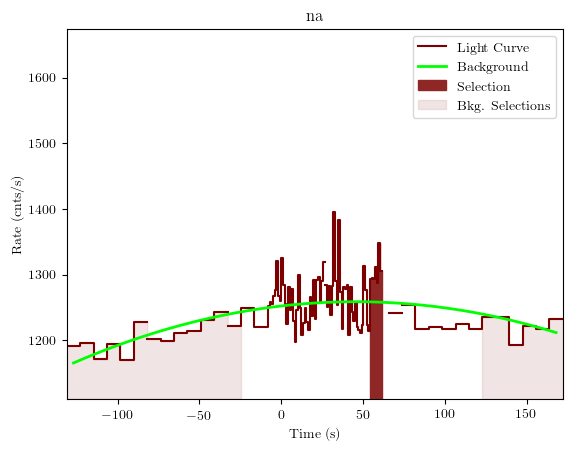

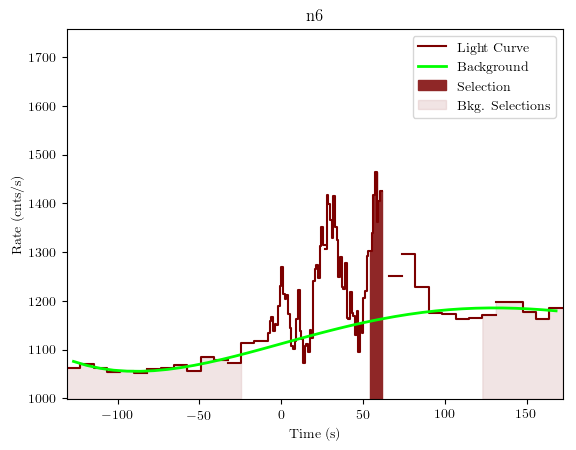

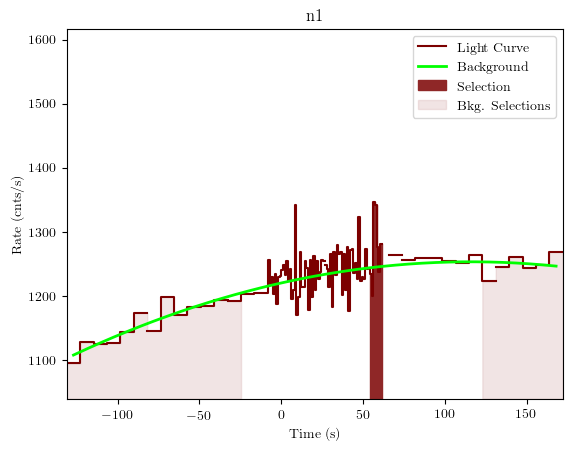

Light Curves
