GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 598988276 | |
| Trigger Time | Dec. 25, 2019, 17:37:51 | |
| Data Timestamp | Dec. 25, 2019, 17:49:07 | |
| Localization Timestamp | Dec. 25, 2019, 17:57:35 | |
| Balrog Ra [deg] | 144.1 | 1.7 |
| Balrog Dec [deg] | -7.2 | 0.8 |
| Error radius 1 σ [deg] | 1.1 | |
| Error radius 2 σ [deg] | 1.9 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 1.2e+02 | 12 |
| Spectral Parameter Index | -2.2 | 0.03 |
| Spectral Parameter XC [keV] | 6e+03 | 3e+03 |
| Satellite Phi [deg] | -126.36 | |
| Satellite Theta [deg] | 27.95 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 70%: GRB |
| Second most likely | 29%: GenericSGR |
GRB Location Alert
GRB 191225B: BALROG localization (Fermi Trigger 598988276 / GRB 191225735)
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
598988276 at 17:37:51 on 25 Dec. 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 144.1+/-1.7 deg
Decl.(2000.0) = -7.2+/-0.8 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB191225735/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB191225735/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB191225735/json
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
598988276 at 17:37:51 on 25 Dec. 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 144.1+/-1.7 deg
Decl.(2000.0) = -7.2+/-0.8 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB191225735/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB191225735/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB191225735/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame

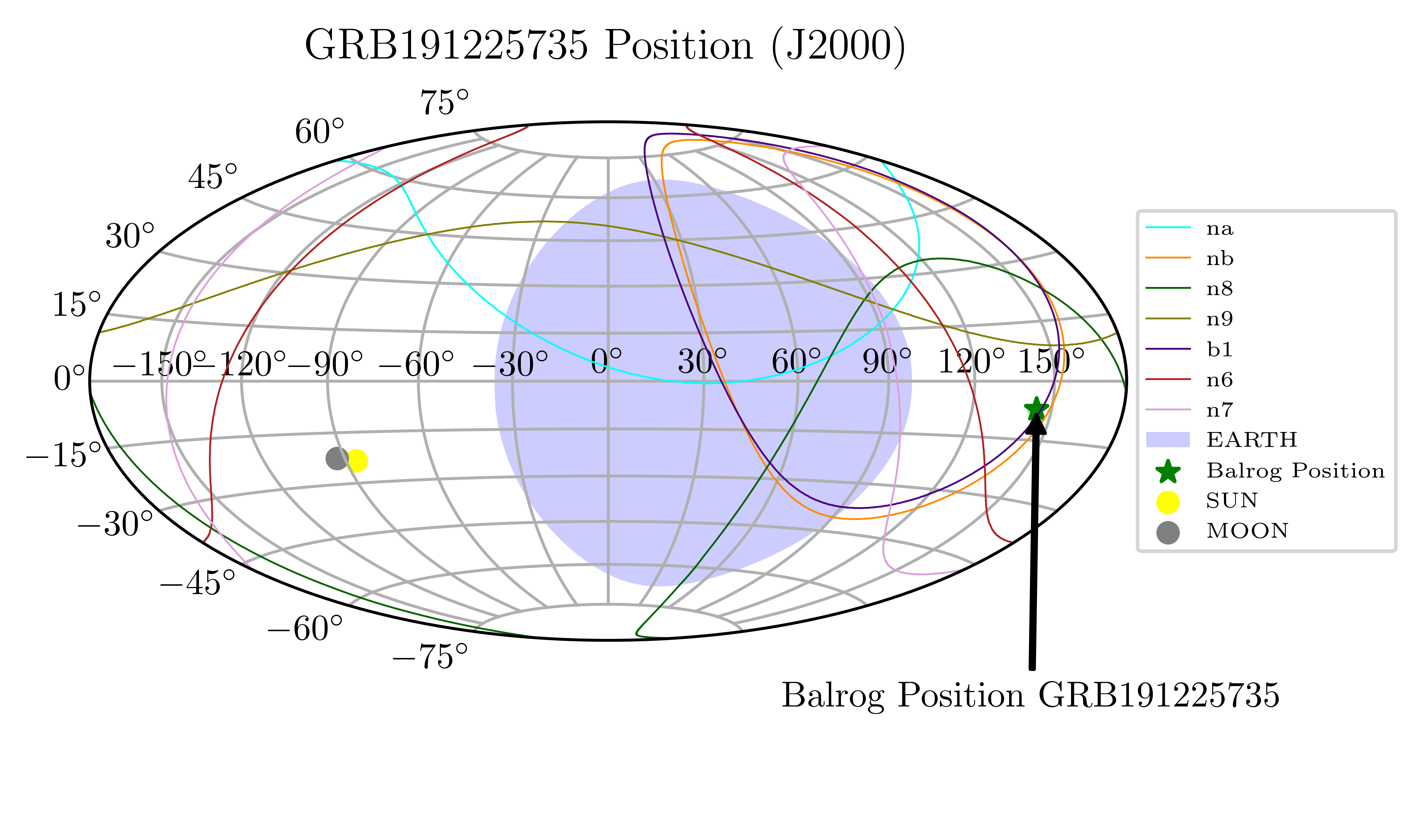

Moll Location Plot
J2000 Coordinate Frame
Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

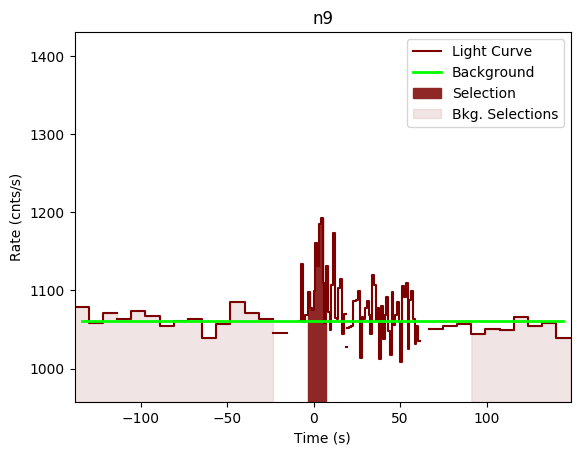

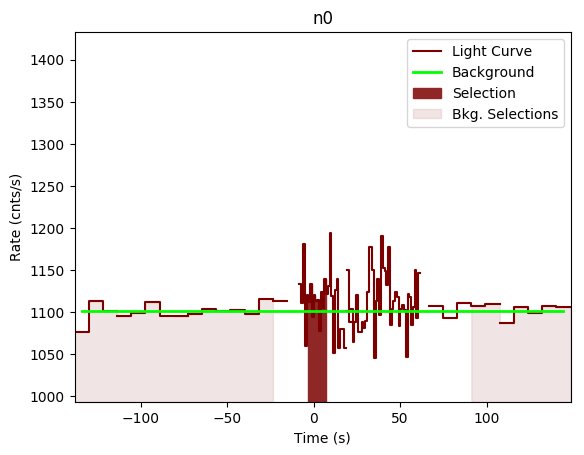

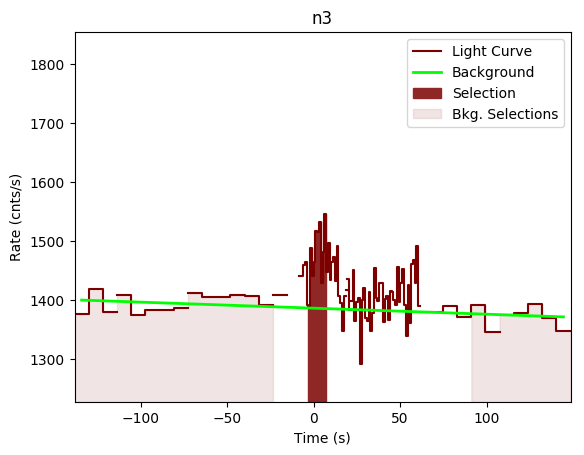

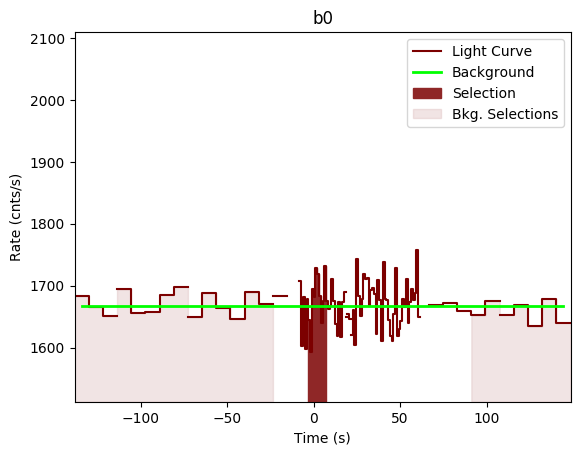

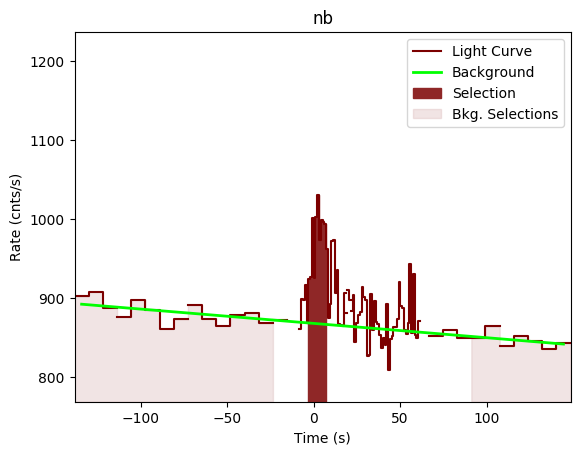

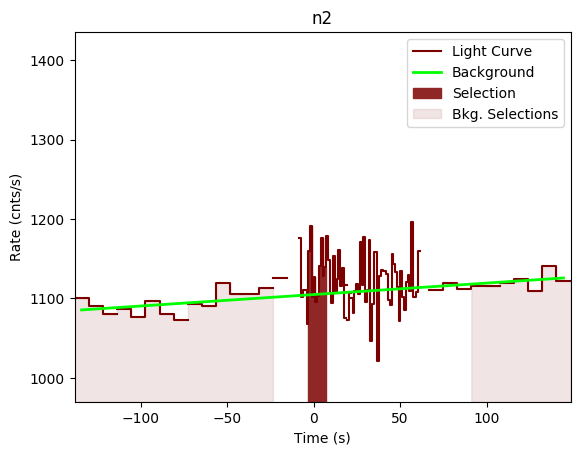

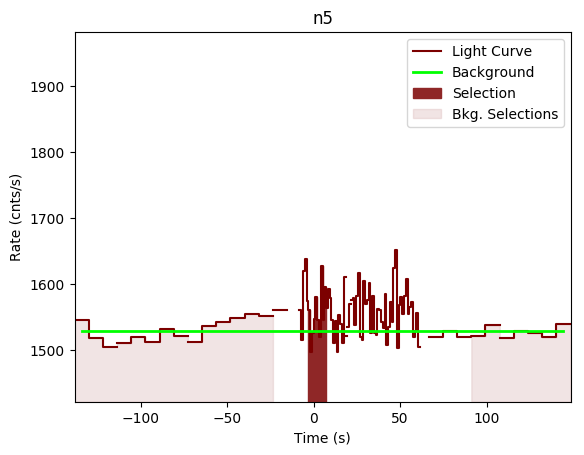

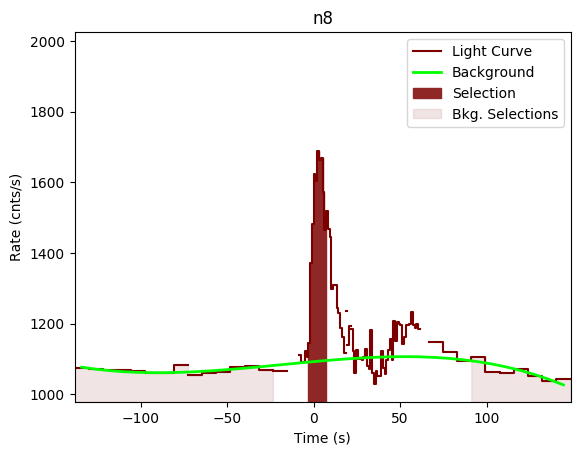

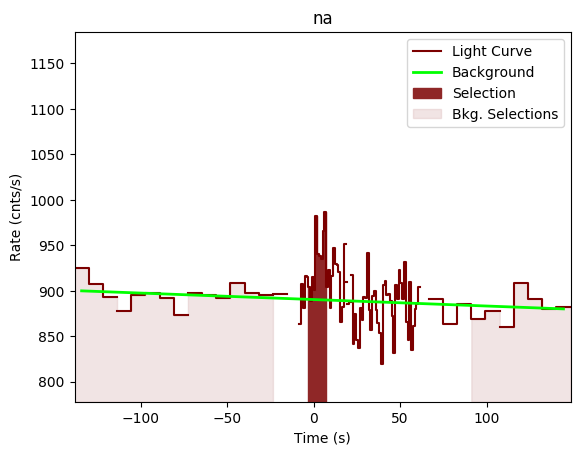

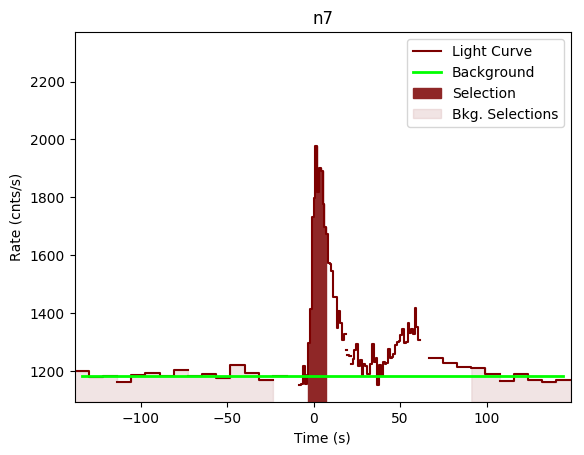

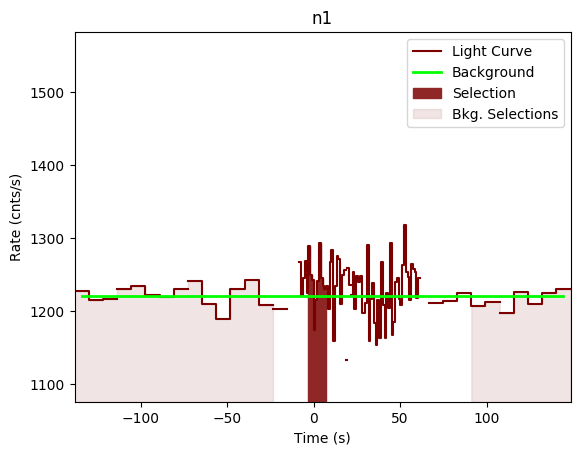

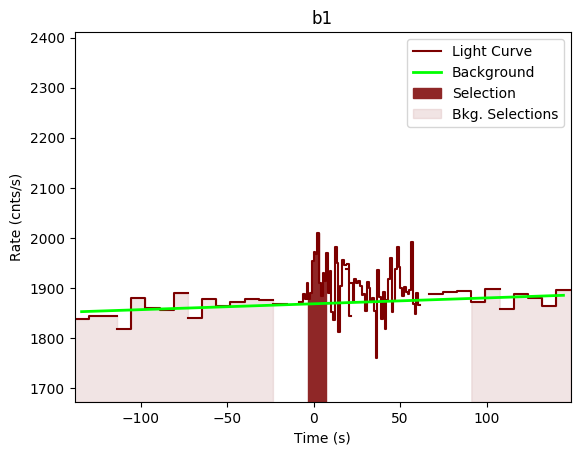

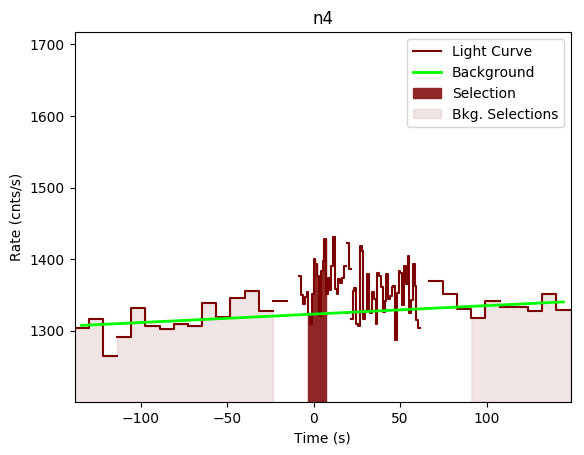

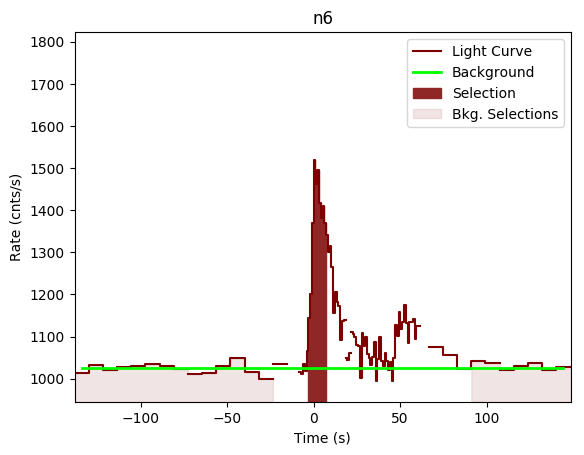

Light Curves
