GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 600666048 | |
| Trigger Time | Jan. 14, 2020, 03:40:43 | |
| Data Timestamp | Jan. 14, 2020, 05:25:59 | |
| Localization Timestamp | Jan. 14, 2020, 05:37:05 | |
| Balrog Ra [deg] | 203.8 | 1.7 |
| Balrog Dec [deg] | -2.4 | 1.7 |
| Error radius 1 σ [deg] | 2.8 | |
| Error radius 2 σ [deg] | 4.7 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 44 | 9.6 |
| Spectral Parameter Index | -1.9 | 0.078 |
| Spectral Parameter XC [keV] | 8e+02 | 5e+02 |
| Satellite Phi [deg] | 79.71 | |
| Satellite Theta [deg] | 15.43 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 96%: GRB |
| Second most likely | 2%: DistantParticles |
GRB Location Alert
GRB 200114A: BALROG localization (Fermi Trigger 600666048 / GRB 200114153)
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
600666048 at 03:40:43 on 14 Jan. 2020 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 203.7+/-1.8 deg
Decl.(2000.0) = -2.4+/-1.7 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB200114153/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB200114153/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB200114153/json
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
600666048 at 03:40:43 on 14 Jan. 2020 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 203.7+/-1.8 deg
Decl.(2000.0) = -2.4+/-1.7 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB200114153/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB200114153/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB200114153/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame

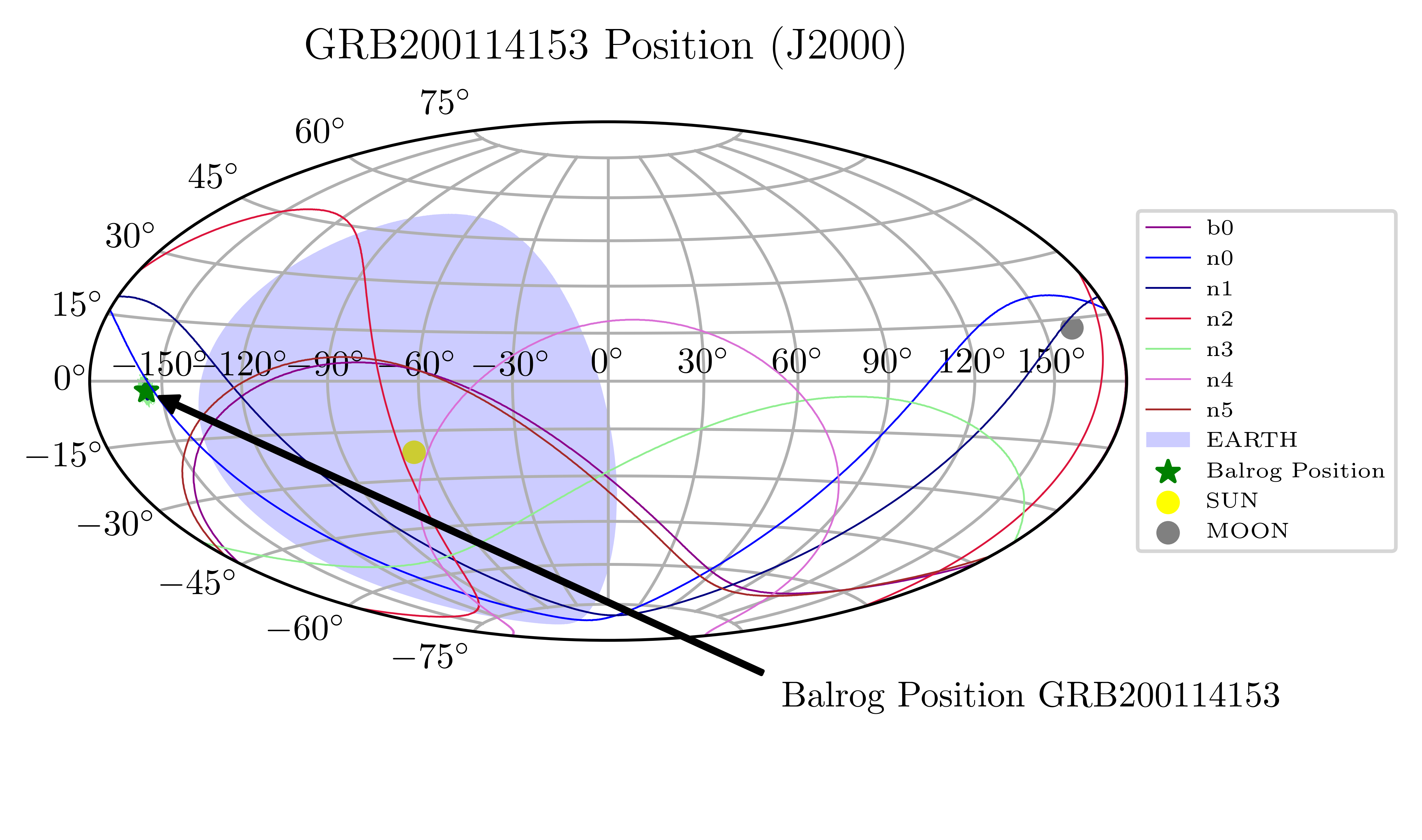

Moll Location Plot
J2000 Coordinate Frame

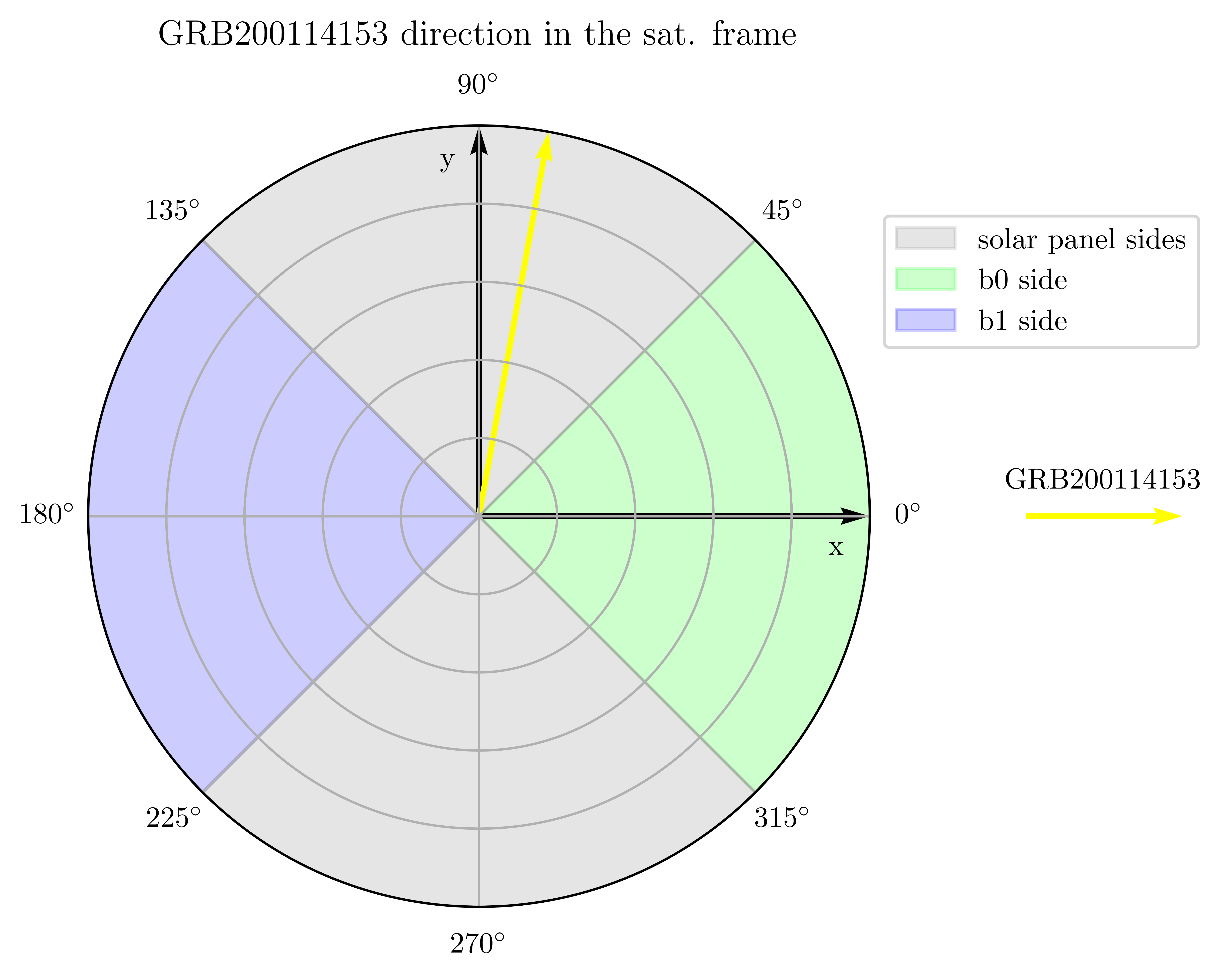

Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

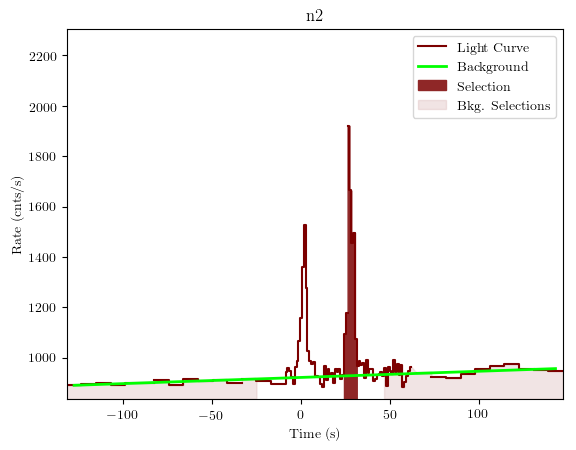

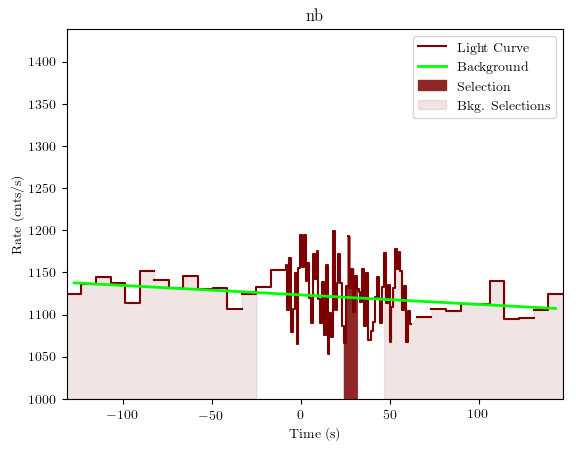

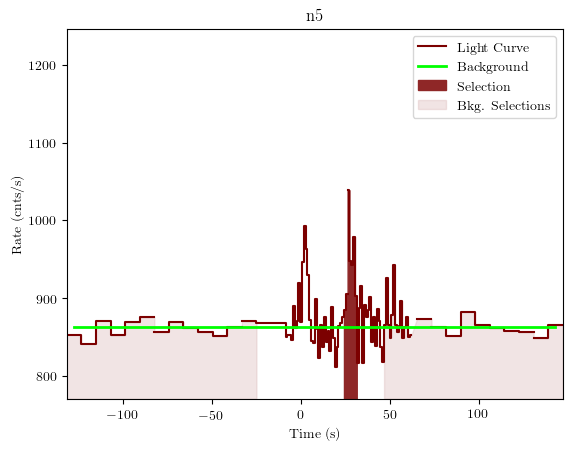

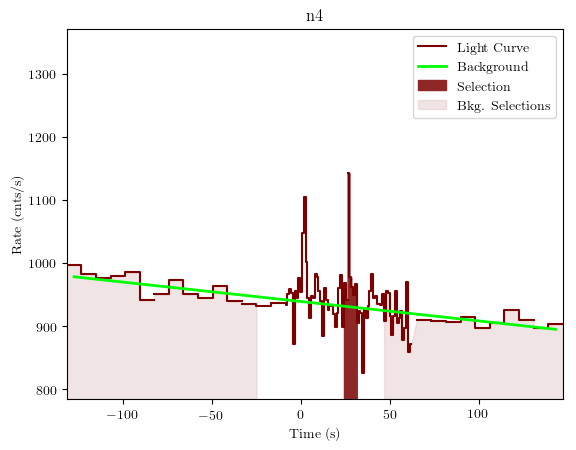

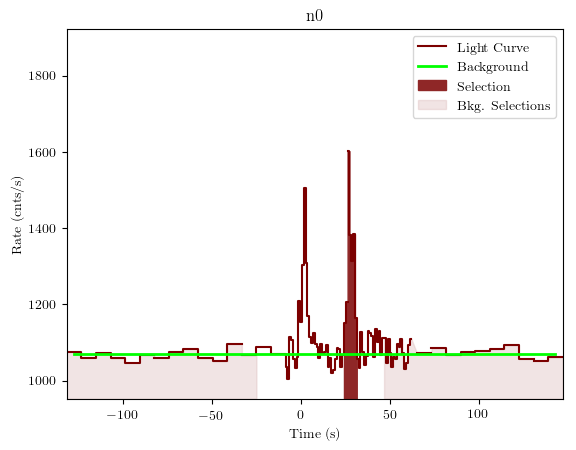

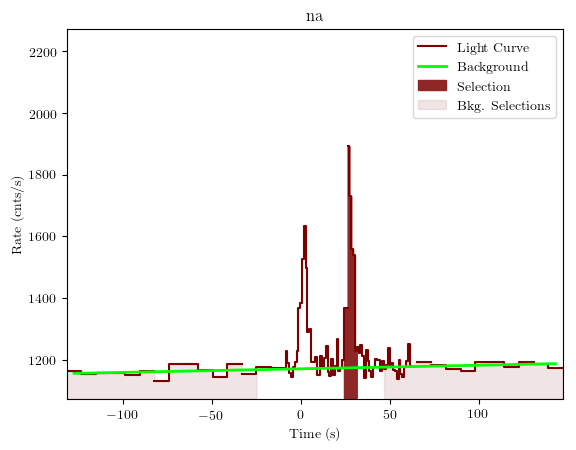

Light Curves
