GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | ||
| Trigger Time | April 11, 2022, 07:20:00 | |
| Data Timestamp | April 11, 2022, 07:28:11 | |
| Localization Timestamp | April 11, 2022, 08:07:31 | |
| Balrog Ra [deg] | 176.5 | 1.5 |
| Balrog Dec [deg] | 24.0 | 2.6 |
| Error radius 1 σ [deg] | 2.1 | |
| Error radius 2 σ [deg] | 18.2 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.94 | 0.33 |
| Spectral Parameter Index | -0.83 | 0.1 |
| Spectral Parameter XC [keV] | 2e+02 | 4e+01 |
| Satellite Phi [deg] | 70.54 | |
| Satellite Theta [deg] | 82.38 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | None None% |
| Second most likely | None None% |
GRB Location Alert
GRB 220411A: BALROG localization (Fermi Trigger 671354405/ GRB 220411306)
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
671354405 at 07:20:00 on 11 April 2022 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 176.5+/-1.5 deg
Decl.(2000.0) = 24.0+/-2.6 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB220411306/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB220411306/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB220411306/json
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
671354405 at 07:20:00 on 11 April 2022 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 176.5+/-1.5 deg
Decl.(2000.0) = 24.0+/-2.6 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB220411306/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB220411306/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB220411306/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame

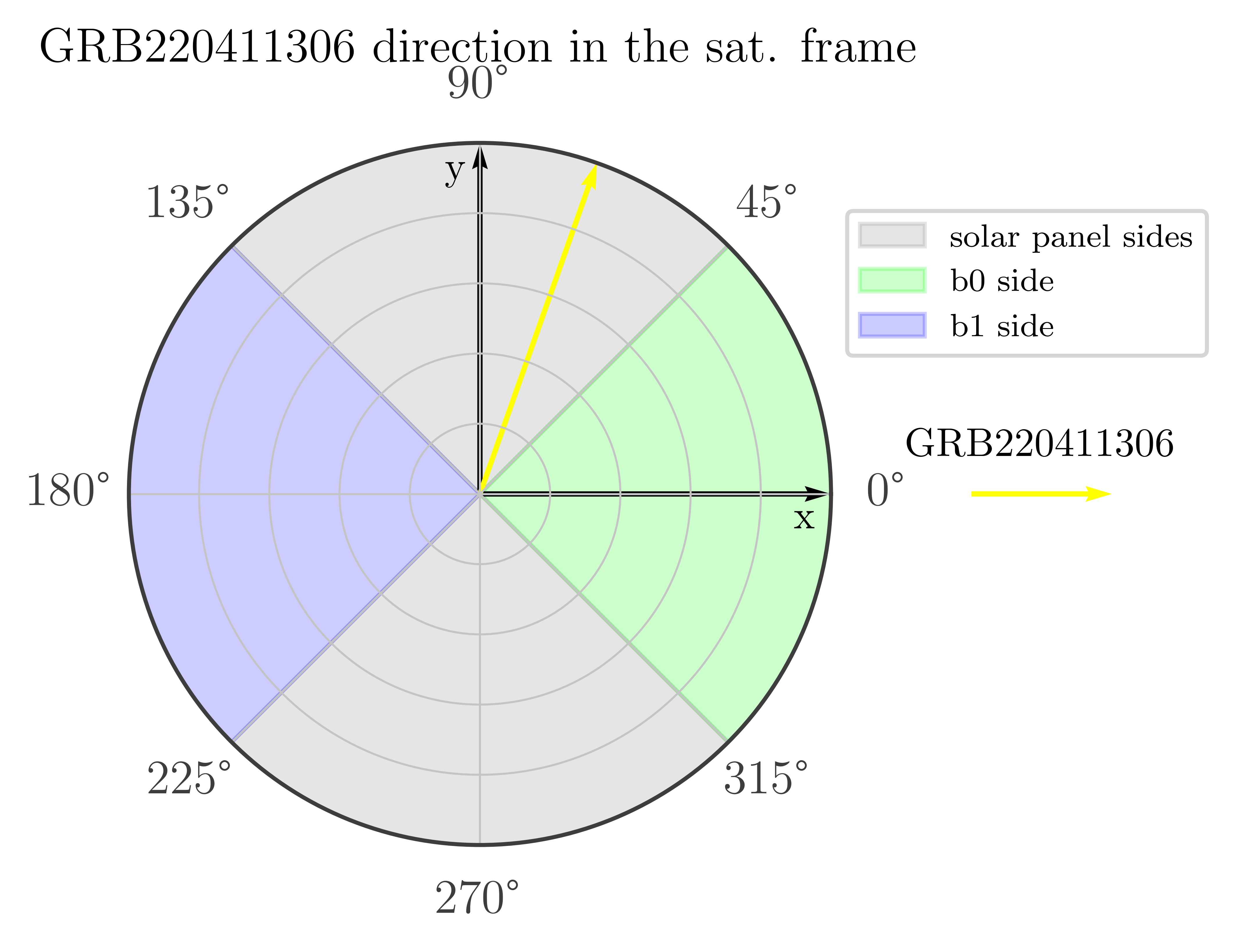

Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

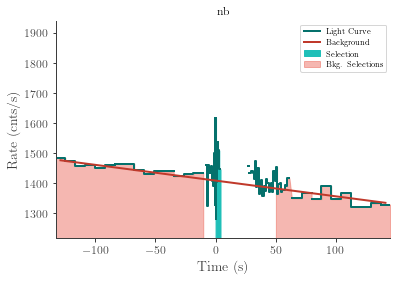

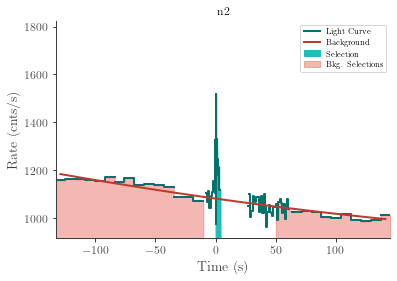

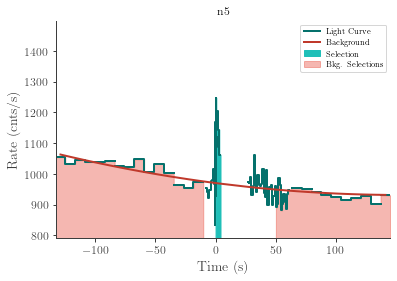

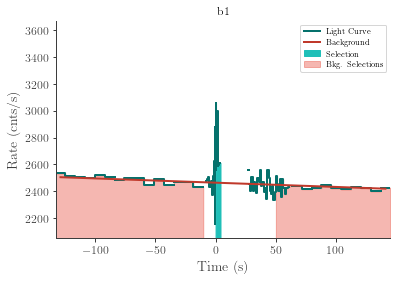

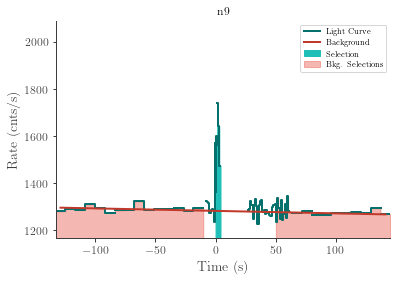

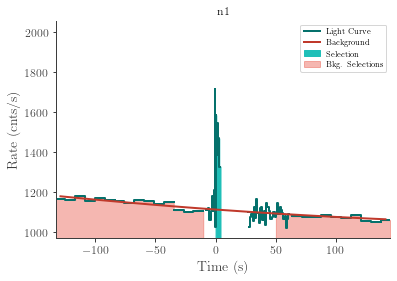

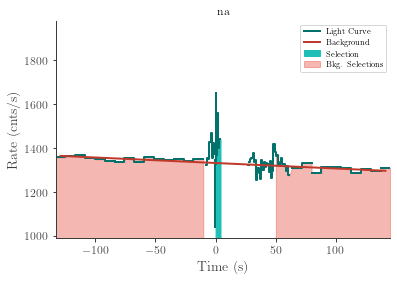

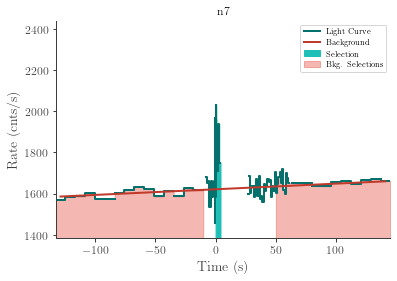

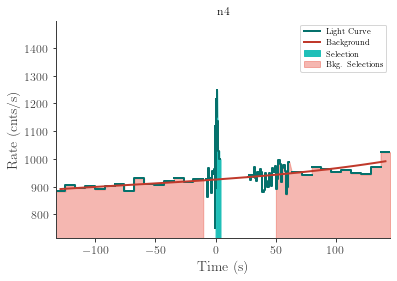

Light Curves
