GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 714853077 | |
| Trigger Time | Aug. 27, 2023, 18:17:52 | |
| Data Timestamp | Aug. 27, 2023, 18:27:11 | |
| Localization Timestamp | Aug. 27, 2023, 18:44:16 | |
| Balrog Ra [deg] | 320.6 | 3.8 |
| Balrog Dec [deg] | -21.5 | 3.1 |
| Error radius 1 σ [deg] | 5.1 | |
| Error radius 2 σ [deg] | 7.9 | |
| Estimated systematic error [deg] | 1 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 1.9 | 0.92 |
| Spectral Parameter Index | -1.1 | 0.1 |
| Spectral Parameter XC [keV] | 1e+03 | 1e+03 |
| Satellite Phi [deg] | -173.57 | |
| Satellite Theta [deg] | -8.41 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 95.0% |
| Second most likely | GENERIC_TRANSIENT 4.0% |
GRB Location Alert
To circulars@gcn.nasa.gov
GRB 230827A: BALROG localization (Fermi Trigger / GRB 230827762)
B. Biltzinger, T. Preis, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
at 18:17:52 on 27 Aug. 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 320.1+/-0.9 deg
Decl.(2000.0) = -20.3+/-0.9 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230827762/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230827762/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230827762/json
GRB 230827A: BALROG localization (Fermi Trigger / GRB 230827762)
B. Biltzinger, T. Preis, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
at 18:17:52 on 27 Aug. 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 320.1+/-0.9 deg
Decl.(2000.0) = -20.3+/-0.9 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230827762/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230827762/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230827762/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame

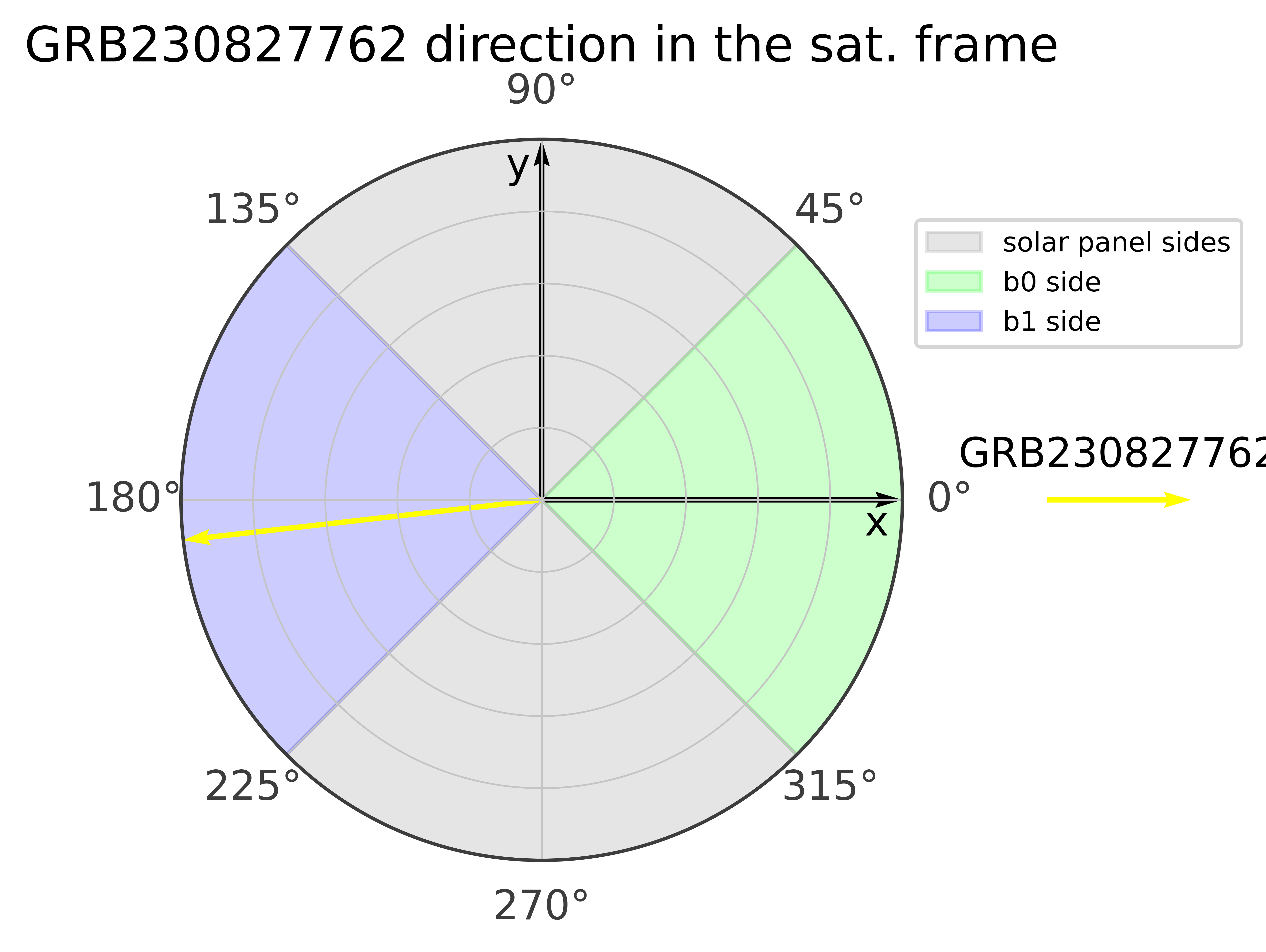

Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

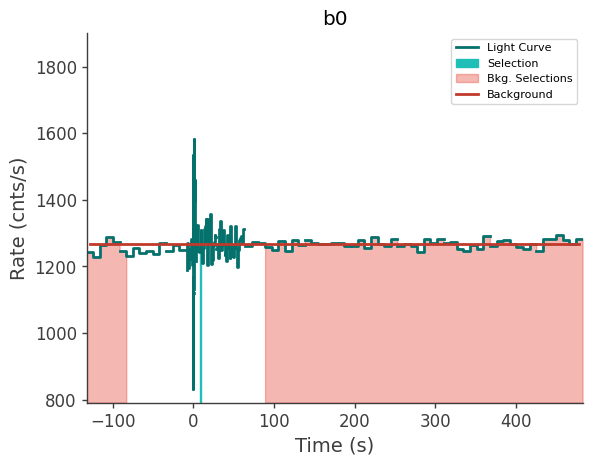

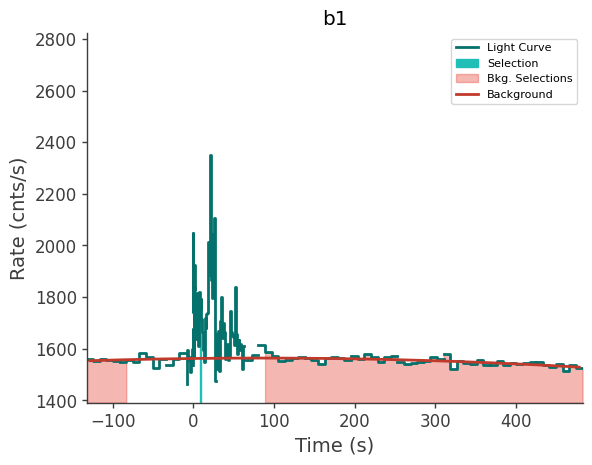

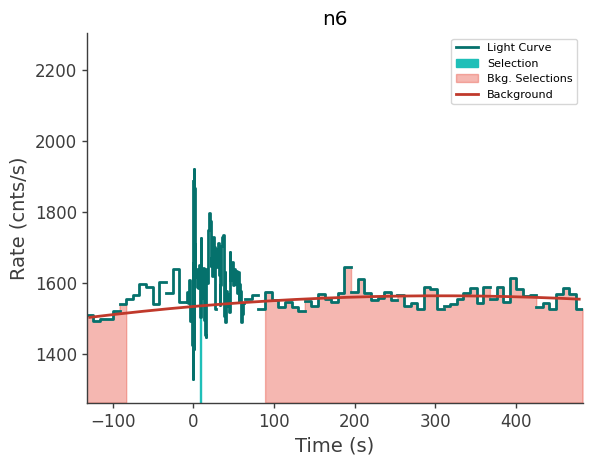

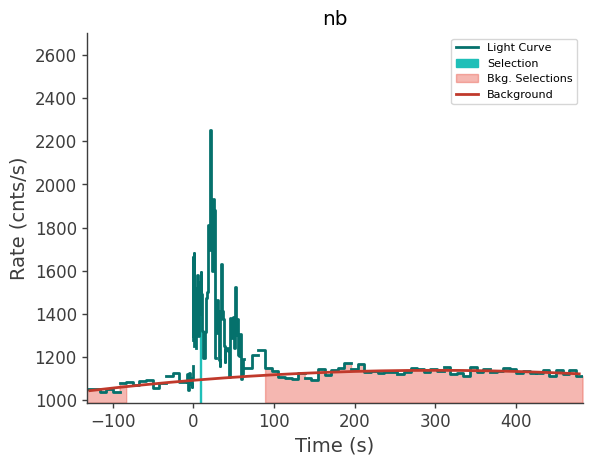

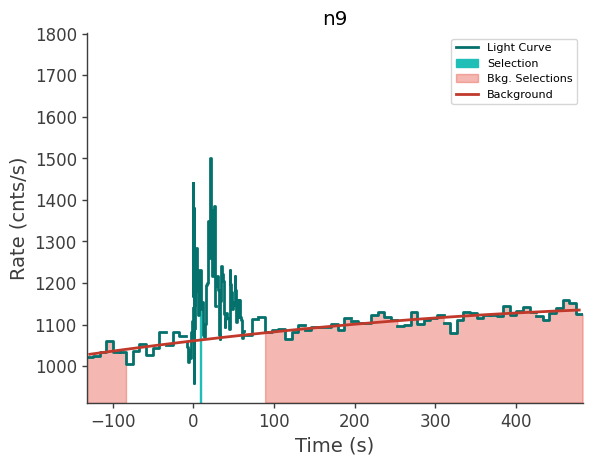

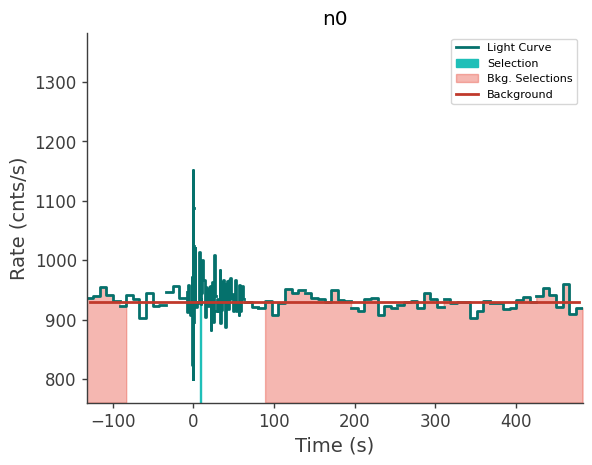

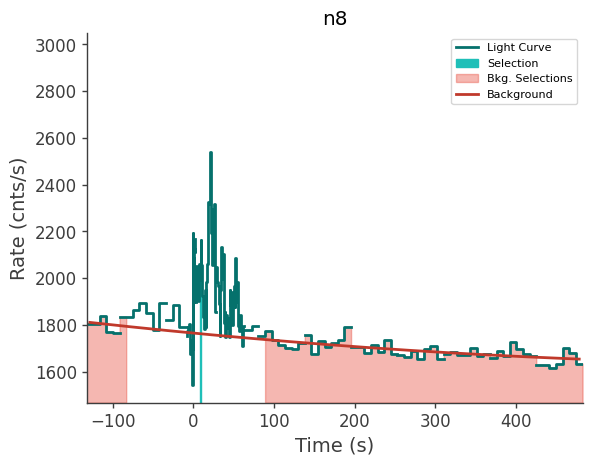

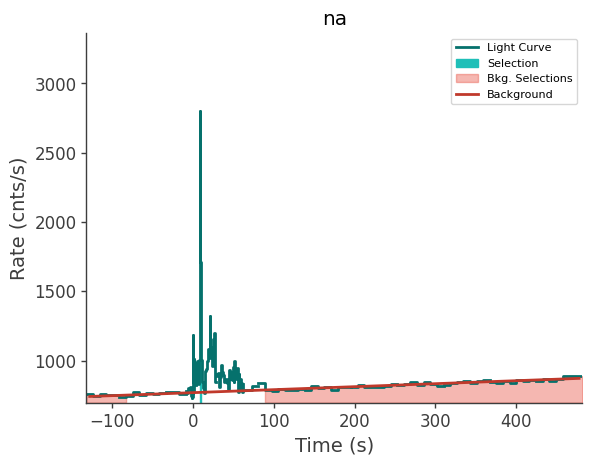

Light Curves
