GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 578462495 | |
| Trigger Time | May 02, 2019, 04:01:30 | |
| Data Timestamp | May 02, 2019, 04:37:56 | |
| Localization Timestamp | May 02, 2019, 04:45:45 | |
| Balrog Ra [deg] | 94.0 | 2.9 |
| Balrog Dec [deg] | 12.4 | 2.4 |
| Error radius 1 σ [deg] | 2.9 | |
| Error radius 2 σ [deg] | 5.1 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 20 | 6.3 |
| Spectral Parameter Index | -1.9 | 0.11 |
| Spectral Parameter XC [keV] | 2e+03 | 3e+03 |
| Satellite Phi [deg] | -61.03 | |
| Satellite Theta [deg] | 48.97 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 98%: GRB |
| Second most likely | 1%: GenericSGR |
GRB Location Alert
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
578462495 at 04:01:30 on 02 May 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 94.0+/-2.9 deg
Decl.(2000.0) = 12.4+/-2.4 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190502168/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190502168/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190502168/json
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
578462495 at 04:01:30 on 02 May 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 94.0+/-2.9 deg
Decl.(2000.0) = 12.4+/-2.4 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190502168/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190502168/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190502168/json

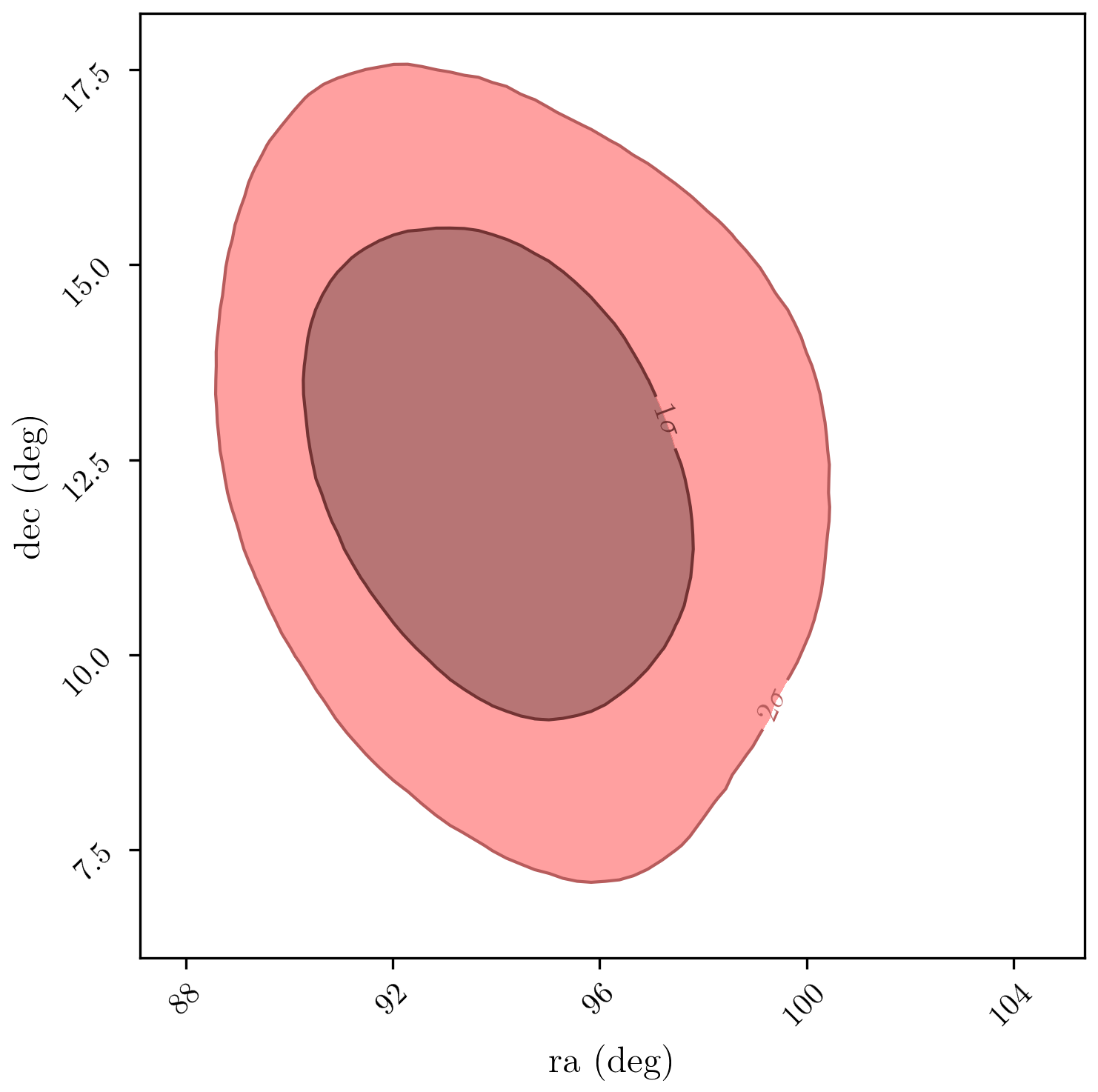

GRB Location
J2000 Coordinate Frame

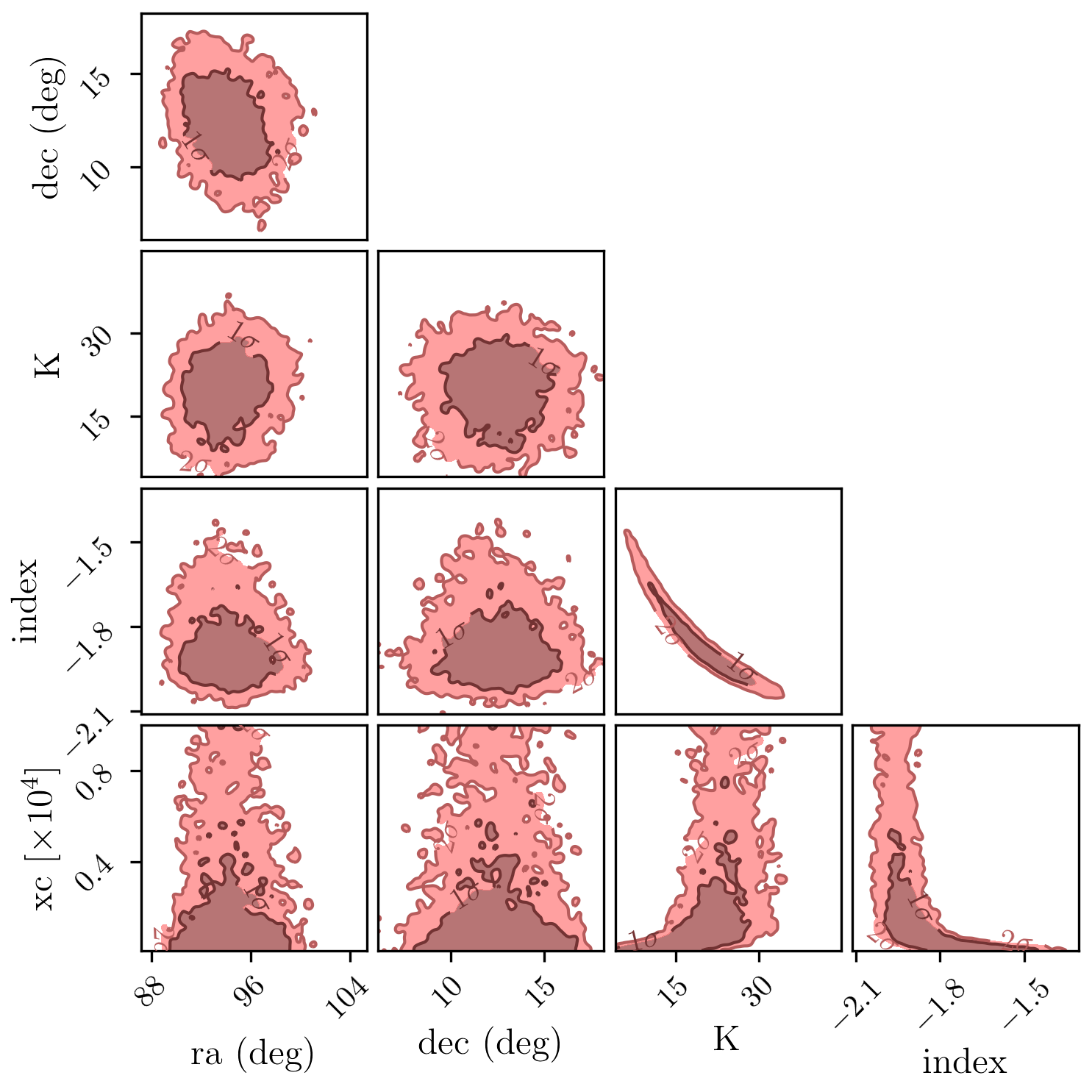

All Corner Plot
J2000 Coordinate Frame

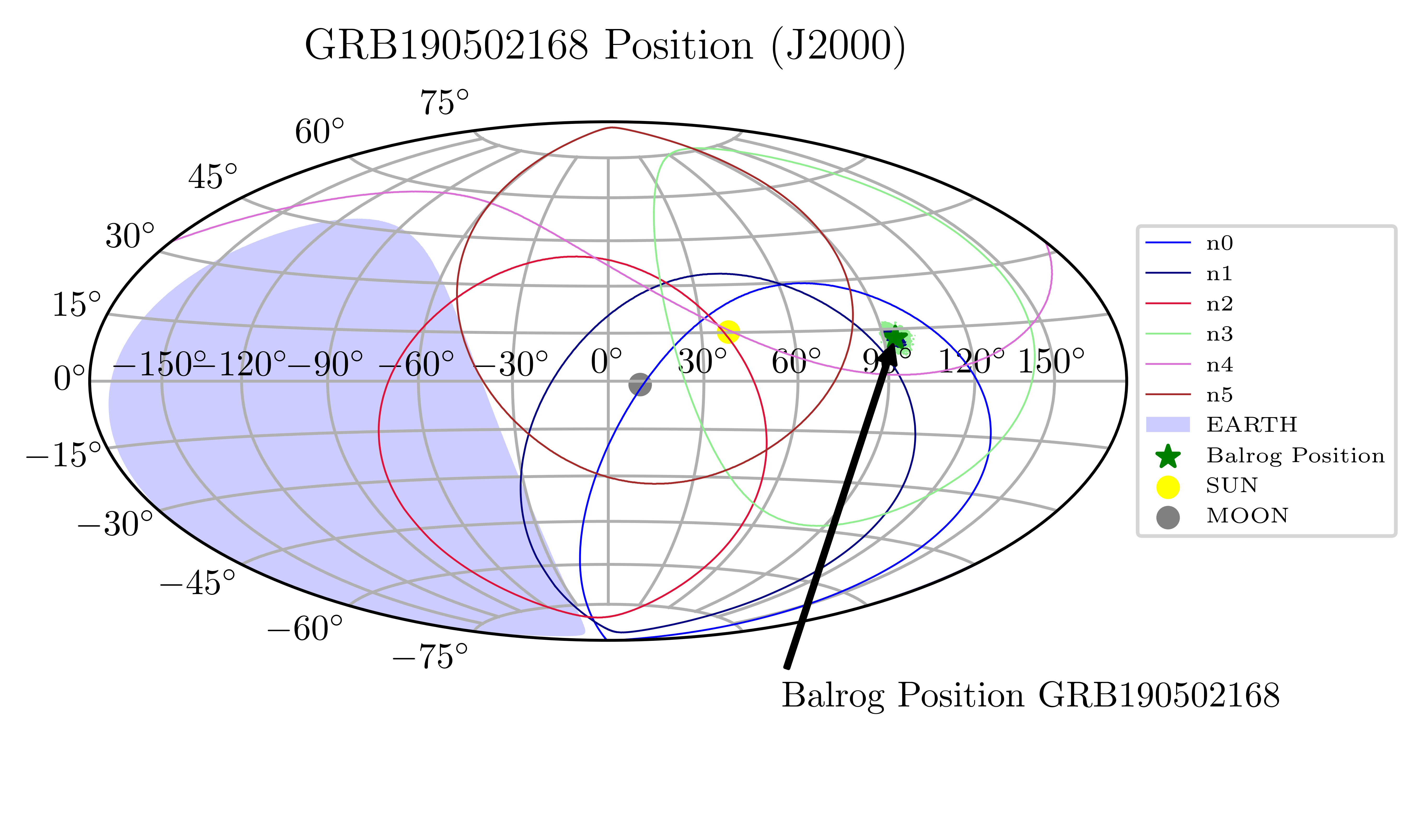

Moll Location Plot
J2000 Coordinate Frame
Satellite

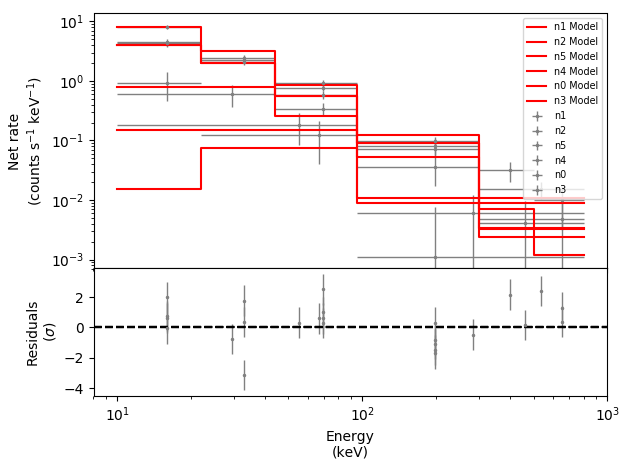

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

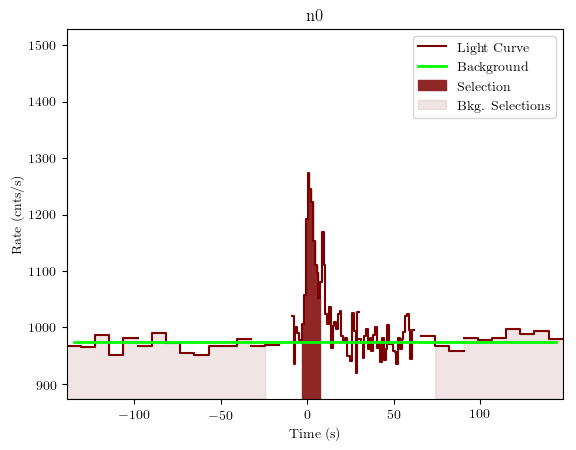

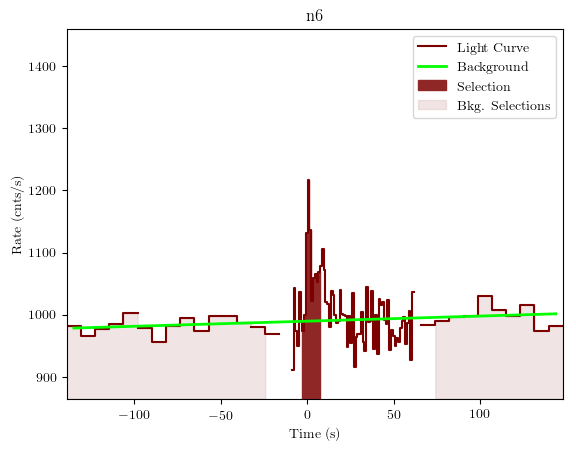

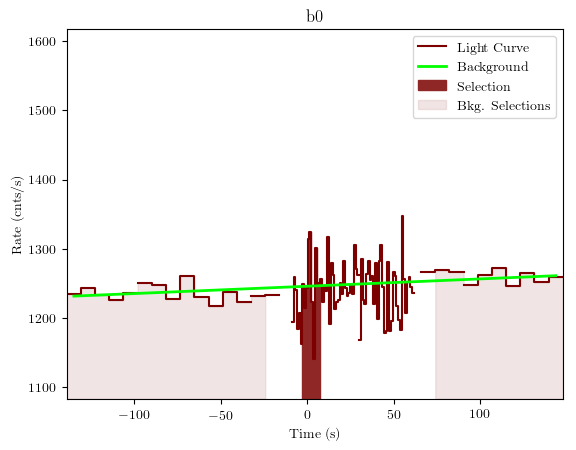

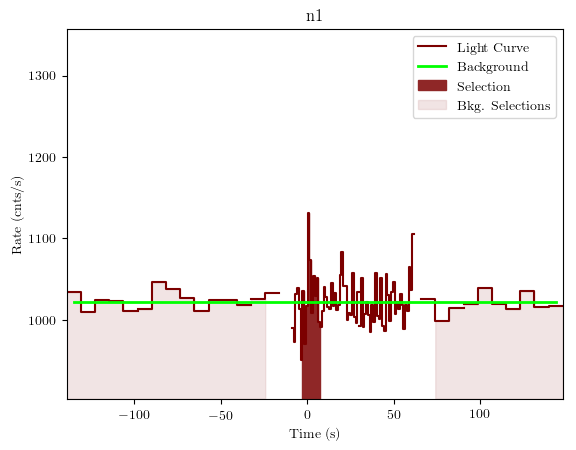

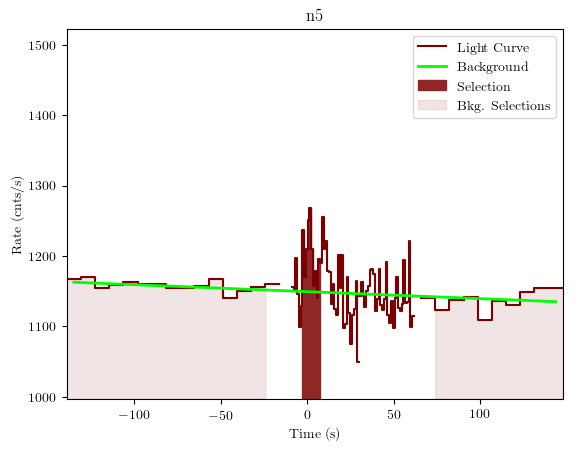

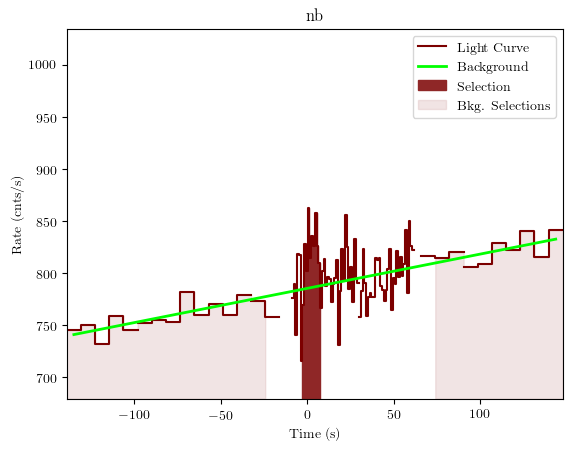

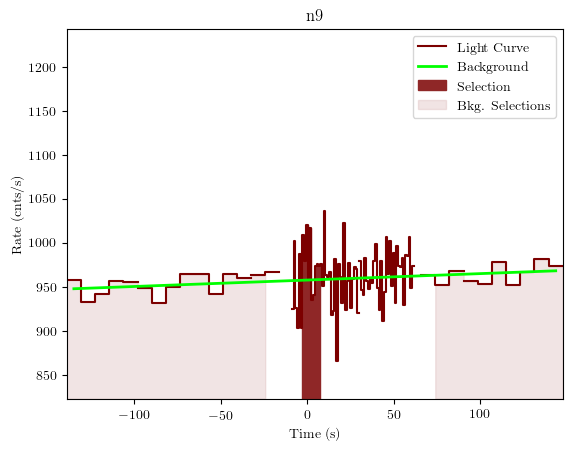

Light Curves
