GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 578462495 | |
| Trigger Time | May 02, 2019, 04:01:30 | |
| Data Timestamp | May 02, 2019, 05:06:28 | |
| Localization Timestamp | May 02, 2019, 14:58:12 | |
| Balrog Ra [deg] | 100.5 | 4.4 |
| Balrog Dec [deg] | 5.9 | 3.5 |
| Error radius 1 σ [deg] | 5.5 | |
| Error radius 2 σ [deg] | 7.0 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.005 | 0.00022 |
| Spectral Parameter Alpha | -3 | 1.3 |
| Spectral Parameter Beta | -1.4 | 0.034 |
| Spectral Parameter XP | 8.8e+03 | 1e+03 |
| Satellite Phi [deg] | -73.09 | |
| Satellite Theta [deg] | 54.12 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 98%: GRB |
| Second most likely | 1%: GenericSGR |
GRB Location Alert
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
578462495 at 04:01:30 on 02 May 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 94.0+/-2.9 deg
Decl.(2000.0) = 12.4+/-2.4 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190502168/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190502168/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190502168/json
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
578462495 at 04:01:30 on 02 May 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 94.0+/-2.9 deg
Decl.(2000.0) = 12.4+/-2.4 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190502168/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190502168/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190502168/json
GRB Location
J2000 Coordinate Frame

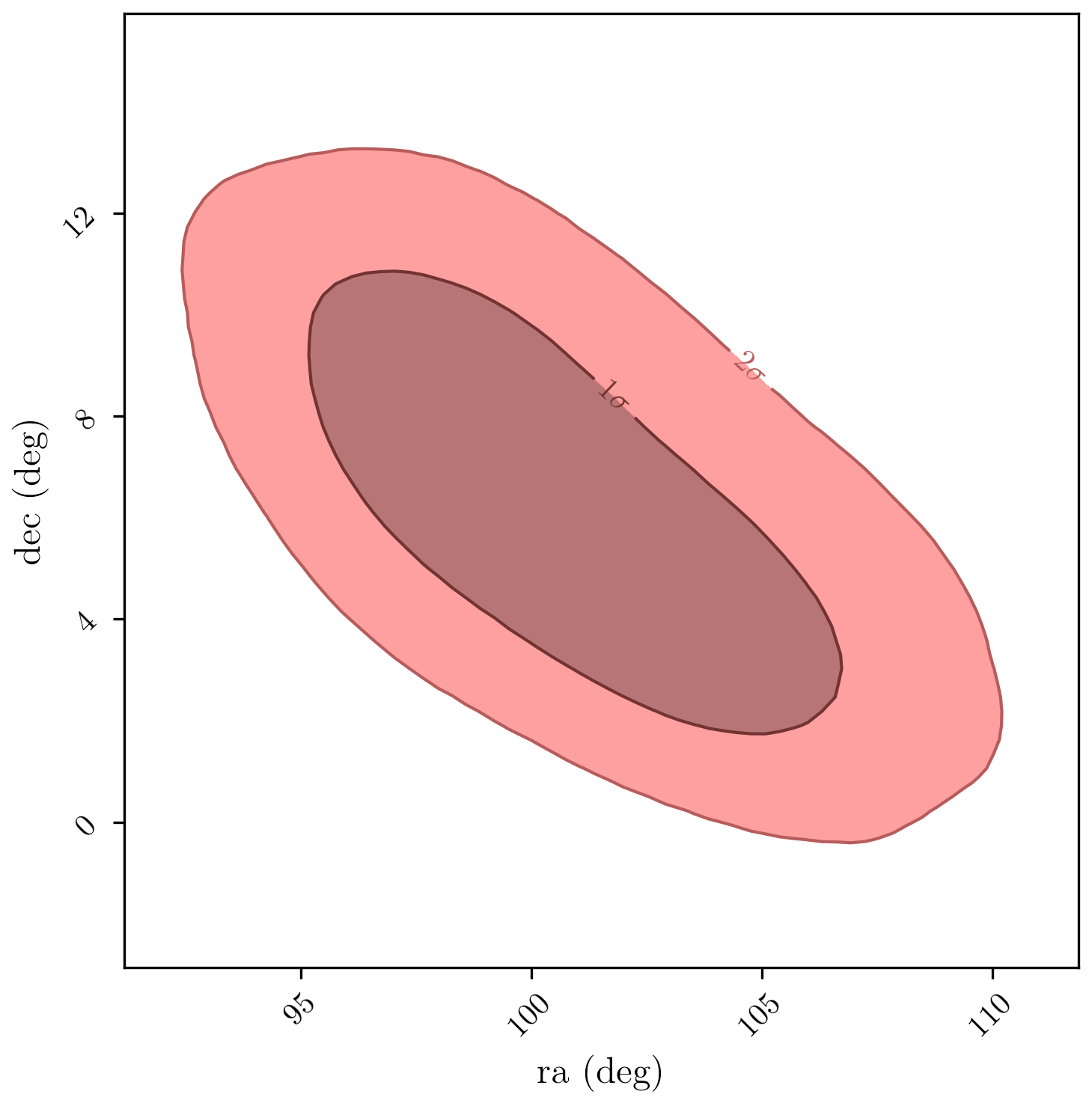

All Corner Plot
J2000 Coordinate Frame

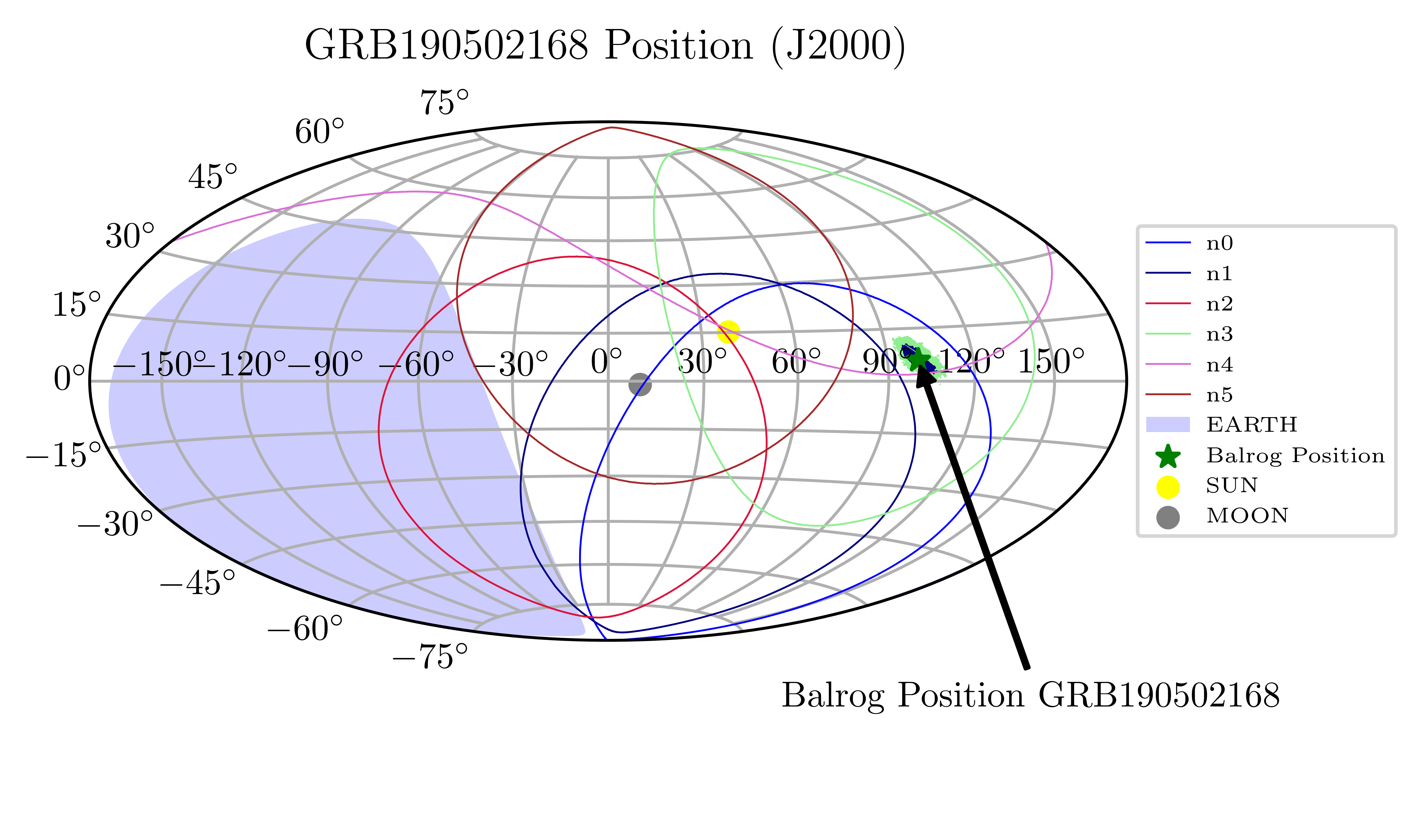

Moll Location Plot
J2000 Coordinate Frame
Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame
Light Curves
