GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 581758450 | |
| Trigger Time | June 09, 2019, 07:34:05 | |
| Data Timestamp | June 09, 2019, 12:17:08 | |
| Localization Timestamp | June 10, 2019, 06:52:56 | |
| Balrog Ra [deg] | 165.1 | 6.2 |
| Balrog Dec [deg] | -42.6 | 3.8 |
| Error radius 1 σ [deg] | 6.9 | |
| Error radius 2 σ [deg] | 10.6 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.0054 | 0.00045 |
| Spectral Parameter Alpha | -1.7 | 0.067 |
| Spectral Parameter Beta | -0.32 | 0.11 |
| Spectral Parameter XP | 9.2e+02 | 1.7e+02 |
| Satellite Phi [deg] | -111.57 | |
| Satellite Theta [deg] | 53.38 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 86%: GRB |
| Second most likely | 12%: DistantParticles |
GRB Location Alert
J. Burgess, B. Biltzinger, F. Kunzweiler, F. Berlato & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
581758450 at 07:34:05 on 09 June 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 177.6+/-6.9 deg
Decl.(2000.0) = -46.4+/-3.9 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190609315/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190609315/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190609315/json
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
581758450 at 07:34:05 on 09 June 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 177.6+/-6.9 deg
Decl.(2000.0) = -46.4+/-3.9 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB190609315/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB190609315/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB190609315/json
GRB Location
J2000 Coordinate Frame

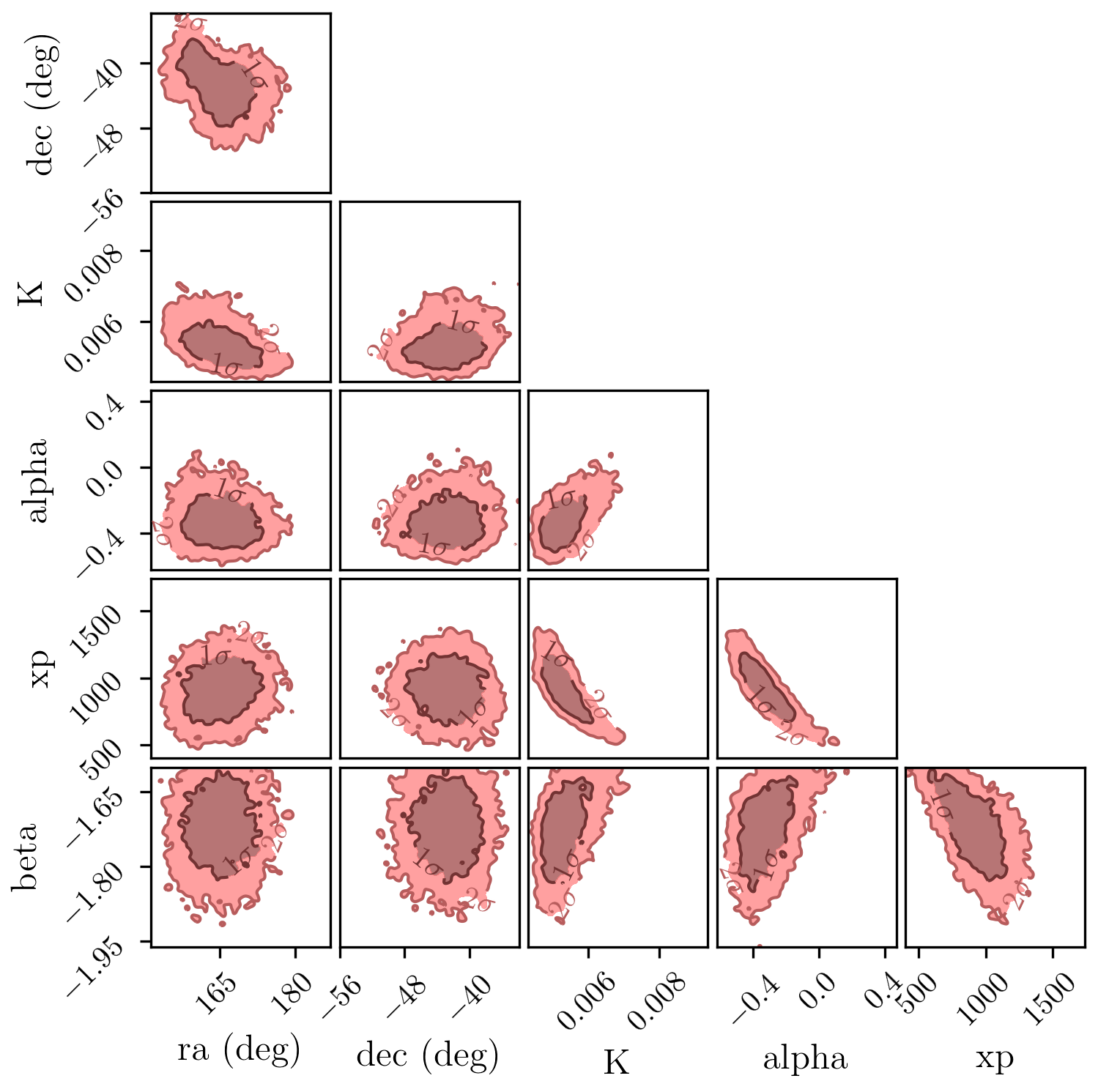

All Corner Plot
J2000 Coordinate Frame

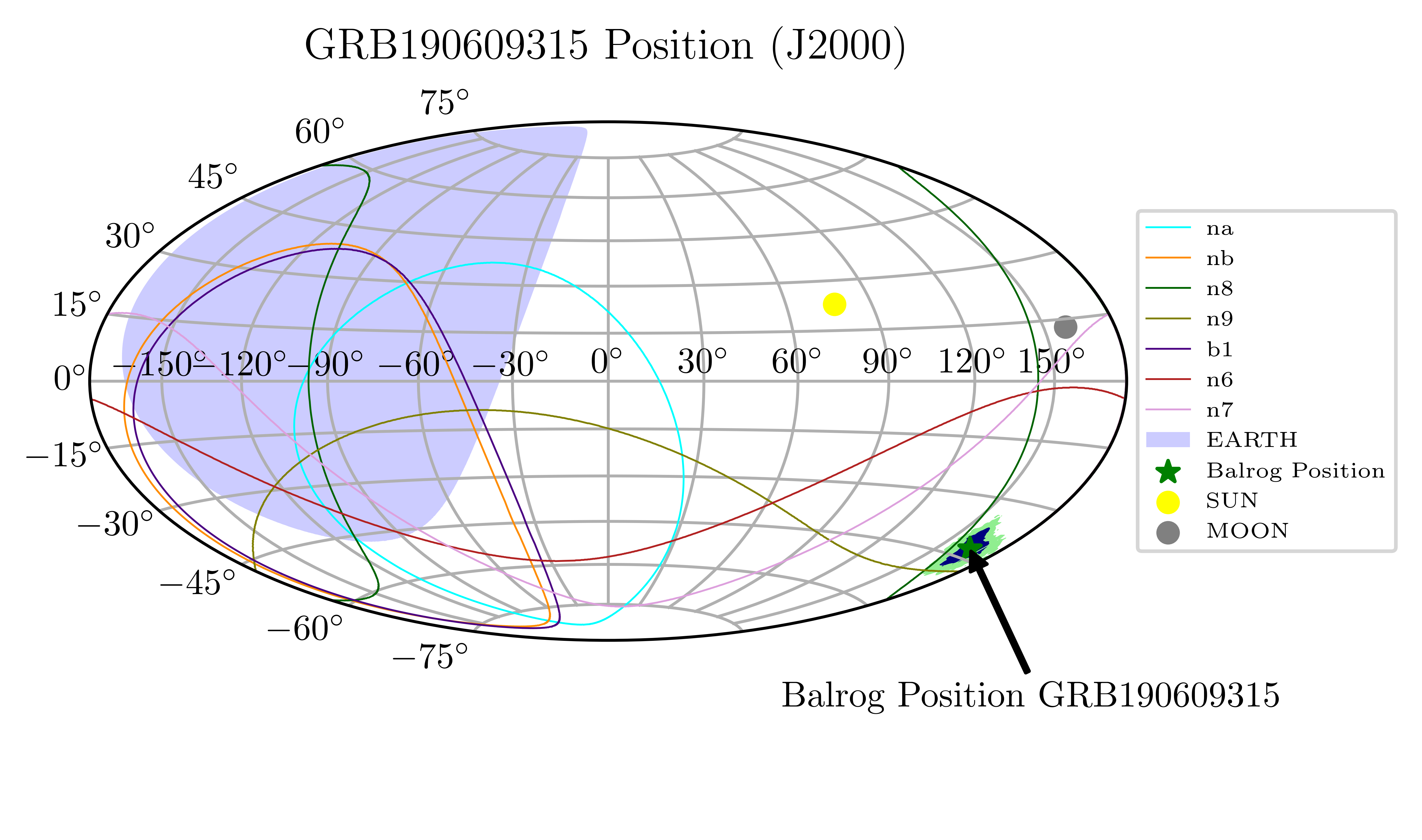

Moll Location Plot
J2000 Coordinate Frame

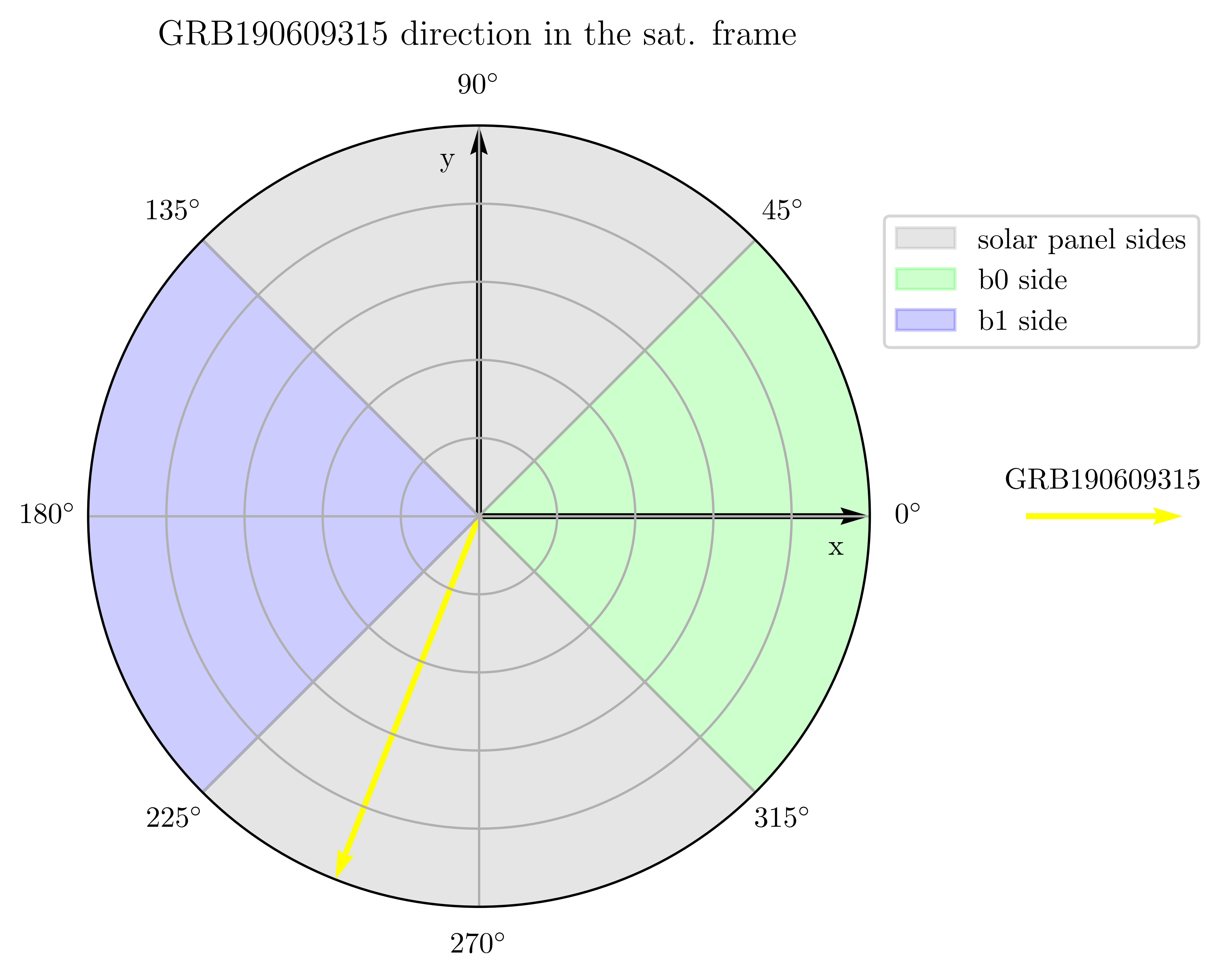

Satellite

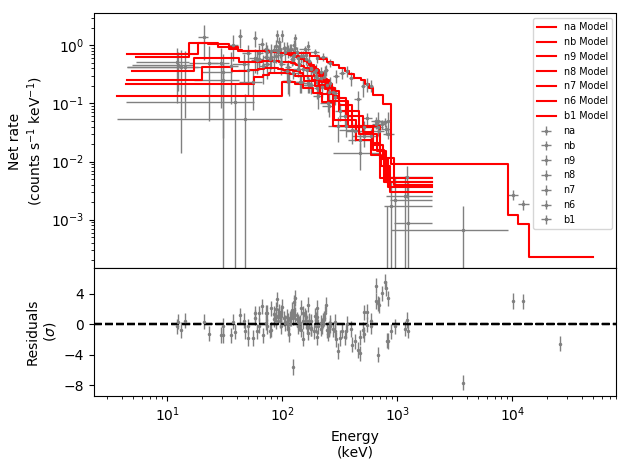

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

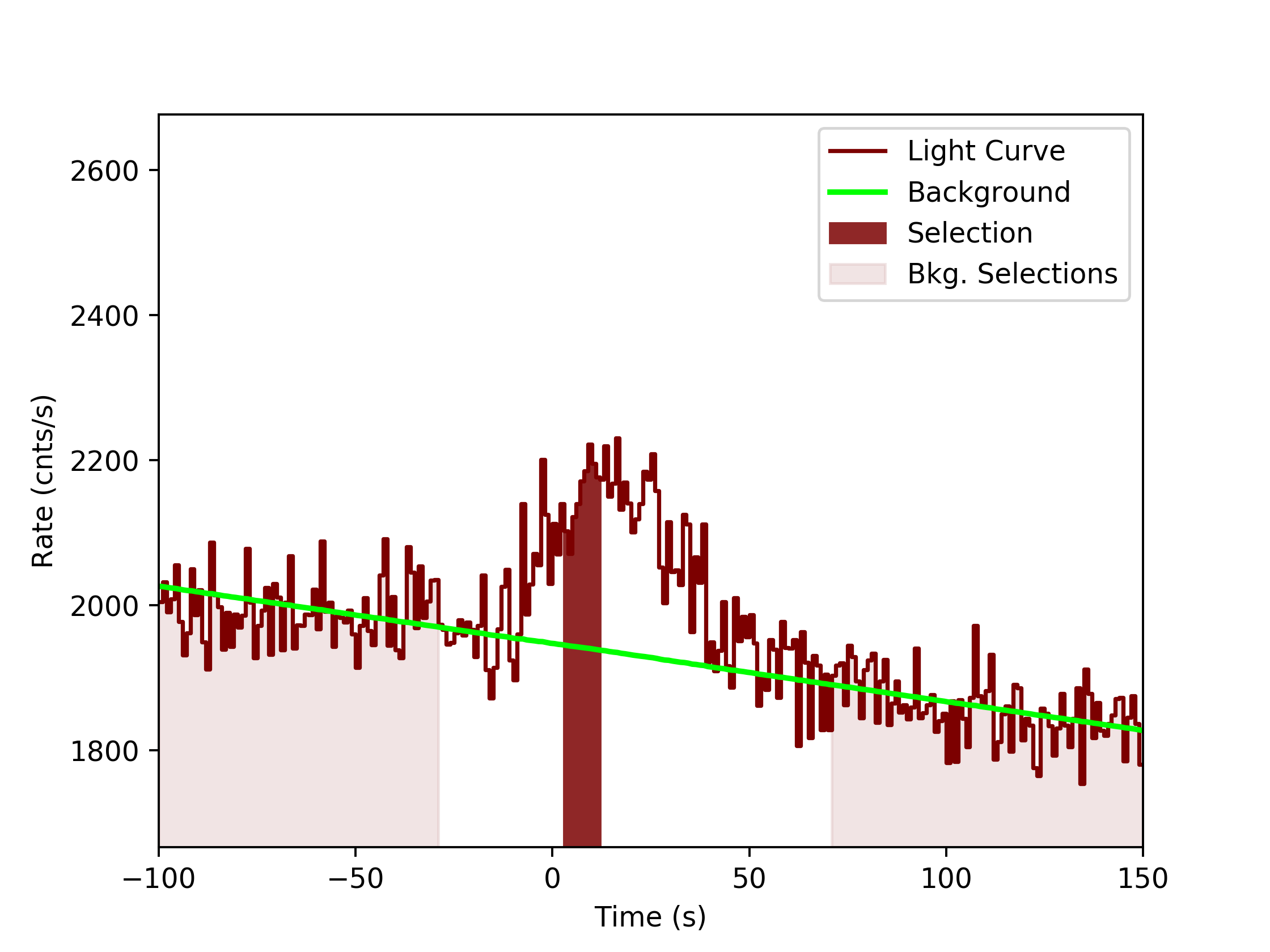

Light Curves
