GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 592297741 | |
| Trigger Time | Oct. 09, 2019, 07:08:56 | |
| Data Timestamp | Oct. 09, 2019, 09:34:16 | |
| Localization Timestamp | Oct. 09, 2019, 13:24:22 | |
| Balrog Ra [deg] | 27.7 | 10.4 |
| Balrog Dec [deg] | 69.8 | 3.0 |
| Error radius 1 σ [deg] | 3.1 | |
| Error radius 2 σ [deg] | 4.9 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 1 | 0.92 |
| Spectral Parameter Alpha | -1.6 | 0.0042 |
| Spectral Parameter Beta | 0.99 | 0.67 |
| Spectral Parameter XP | 1.3e+02 | 65 |
| Satellite Phi [deg] | 121.90 | |
| Satellite Theta [deg] | 51.99 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 96%: GRB |
| Second most likely | 2%: GenericTransient |
GRB Location Alert
GRB 191009A: BALROG localization (Fermi Trigger 592297741 / GRB 191009298)
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
592297741 at 07:08:56 on 09 Oct. 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 30.0+/-5.9 deg
Decl.(2000.0) = 67.1+/-2.1 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB191009298/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB191009298/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB191009298/json
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
592297741 at 07:08:56 on 09 Oct. 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 30.0+/-5.9 deg
Decl.(2000.0) = 67.1+/-2.1 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB191009298/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB191009298/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB191009298/json

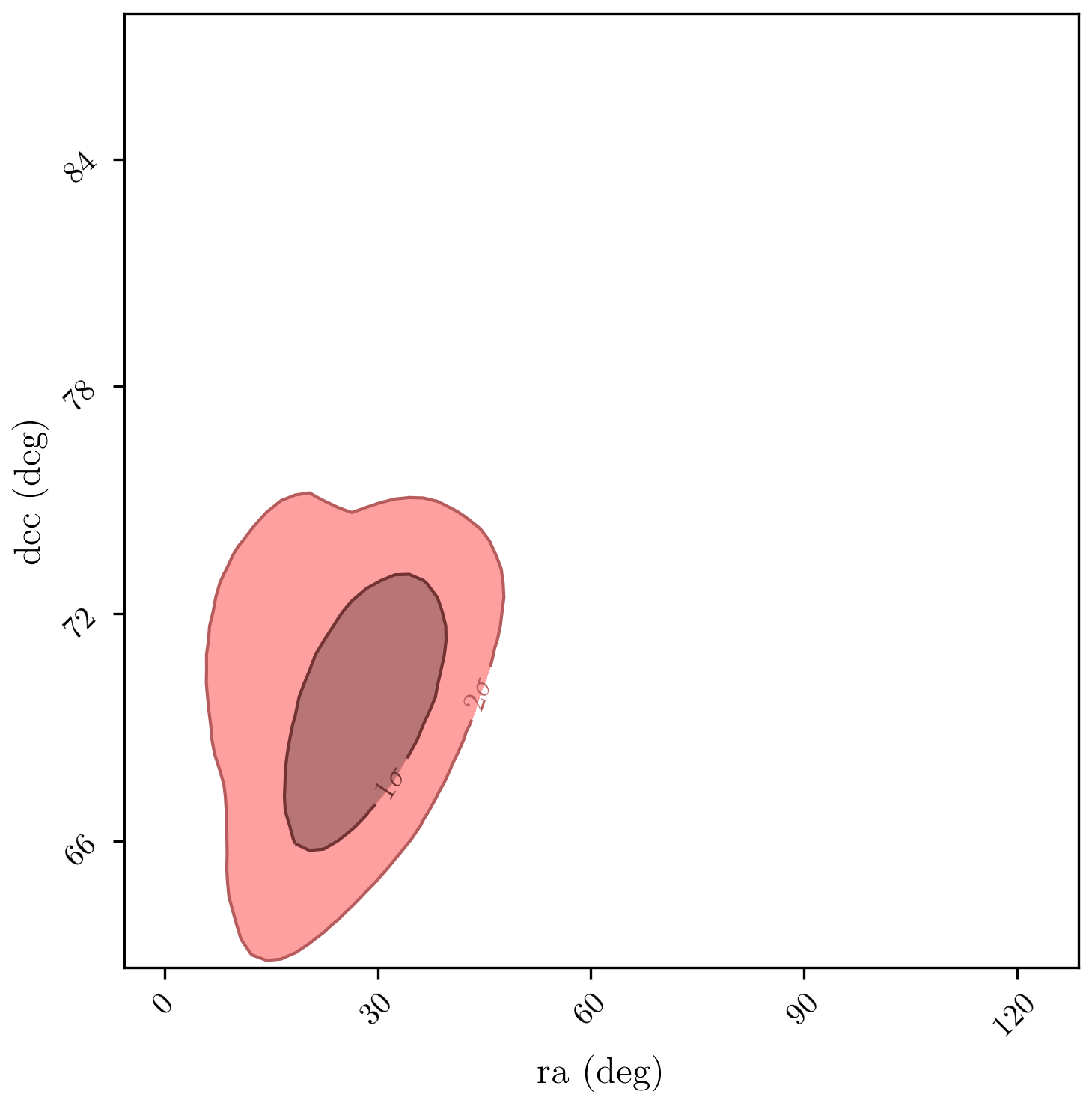

GRB Location
J2000 Coordinate Frame

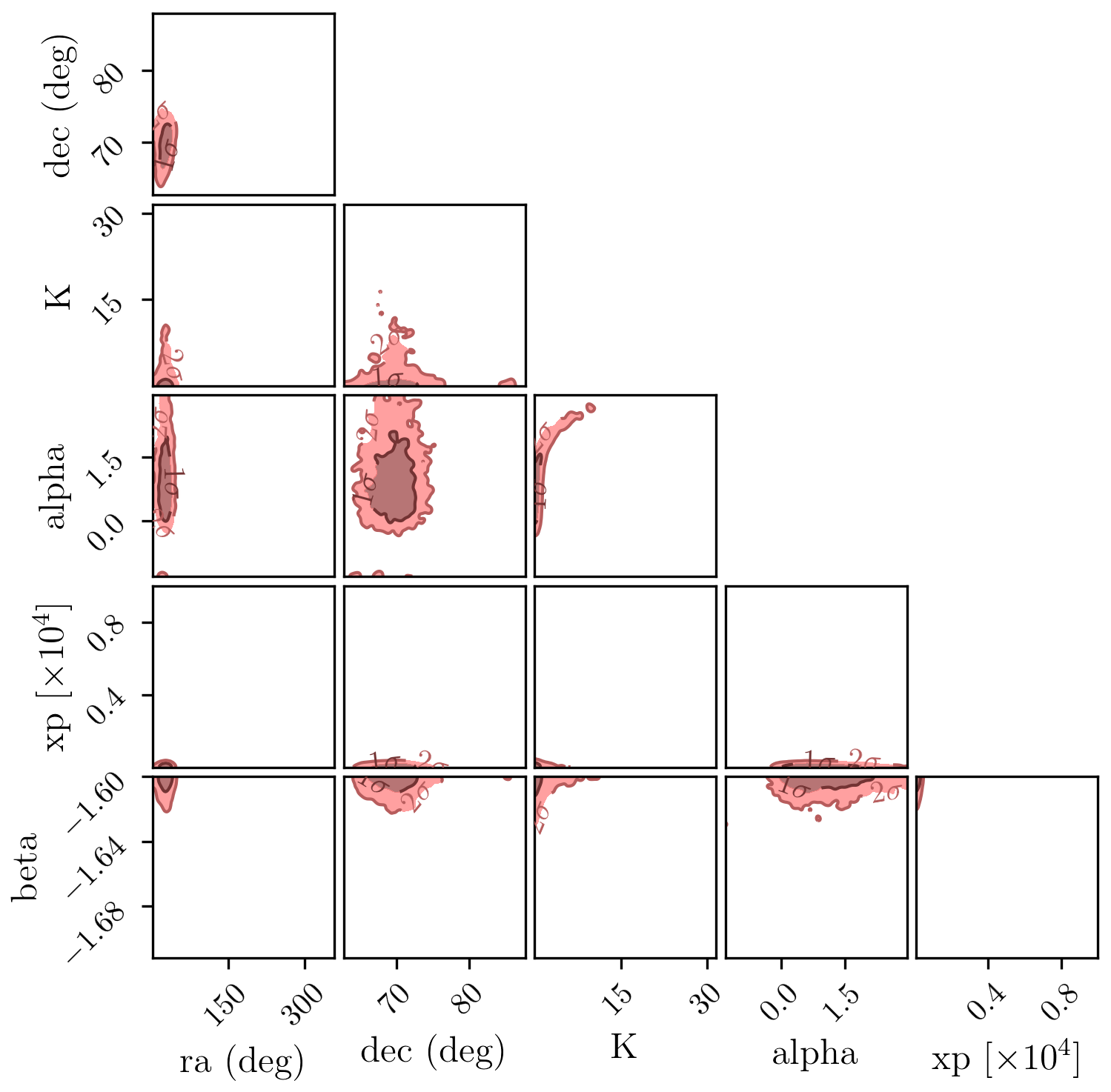

All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame
Satellite

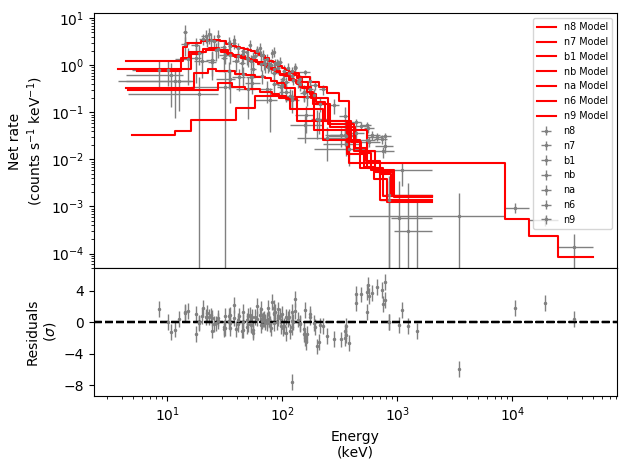

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

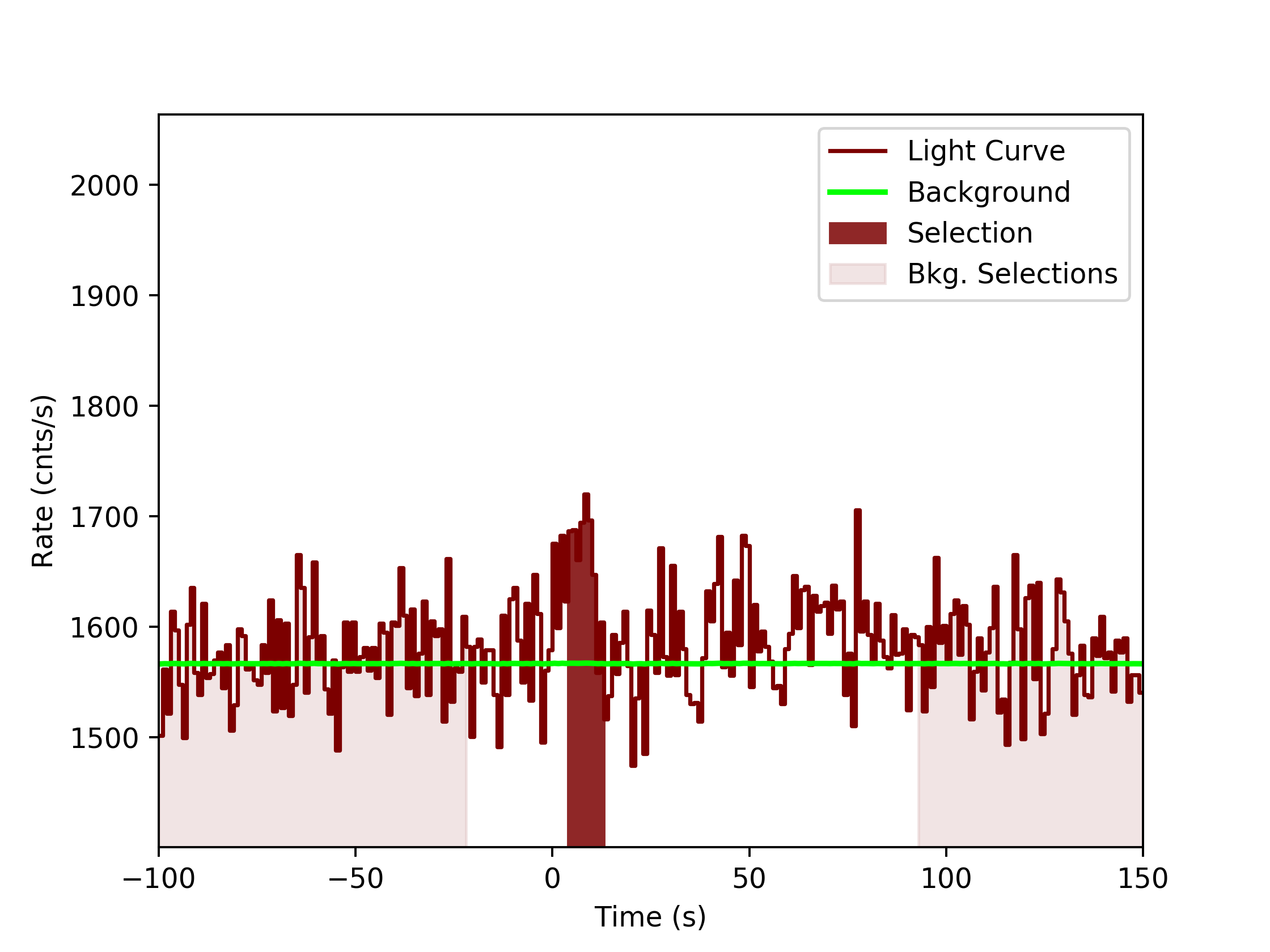

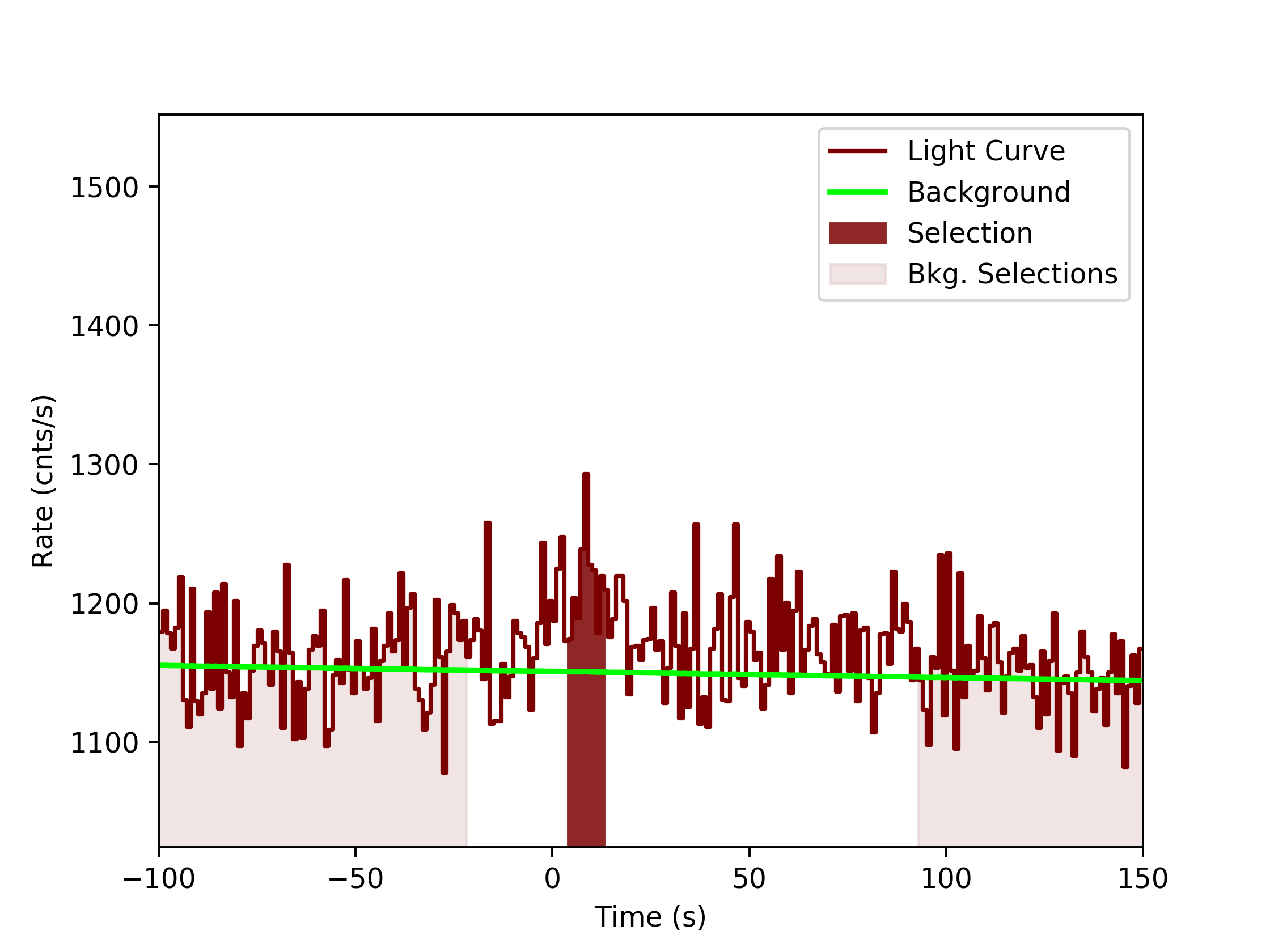

Light Curves
