GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 595170435 | |
| Trigger Time | Nov. 11, 2019, 13:07:10 | |
| Data Timestamp | Nov. 11, 2019, 15:27:10 | |
| Localization Timestamp | Nov. 12, 2019, 00:33:48 | |
| Balrog Ra [deg] | 241.1 | 3.6 |
| Balrog Dec [deg] | -69.3 | 1.5 |
| Error radius 1 σ [deg] | 2.1 | |
| Error radius 2 σ [deg] | 3.6 | |
| Estimated systematic error [deg] | 1 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.031 | 0.0088 |
| Spectral Parameter Alpha | -2 | 0.068 |
| Spectral Parameter Beta | -1.1 | 0.13 |
| Spectral Parameter XP | 70 | 9.8 |
| Satellite Phi [deg] | -23.30 | |
| Satellite Theta [deg] | 54.77 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | 53%: GRB |
| Second most likely | 45%: DistantParticles |
GRB Location Alert
GRB 191111B: BALROG localization (Fermi Trigger 595170435 / GRB 191111547)
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
595170435 at 13:07:10 on 11 Nov. 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 239.4+/-3.3 deg
Decl.(2000.0) = -68.8+/-1.4 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB191111547/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB191111547/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB191111547/json
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
595170435 at 13:07:10 on 11 Nov. 2019 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 239.4+/-3.3 deg
Decl.(2000.0) = -68.8+/-1.4 deg
We estimate an additional systematic error of 1 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB191111547/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB191111547/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB191111547/json

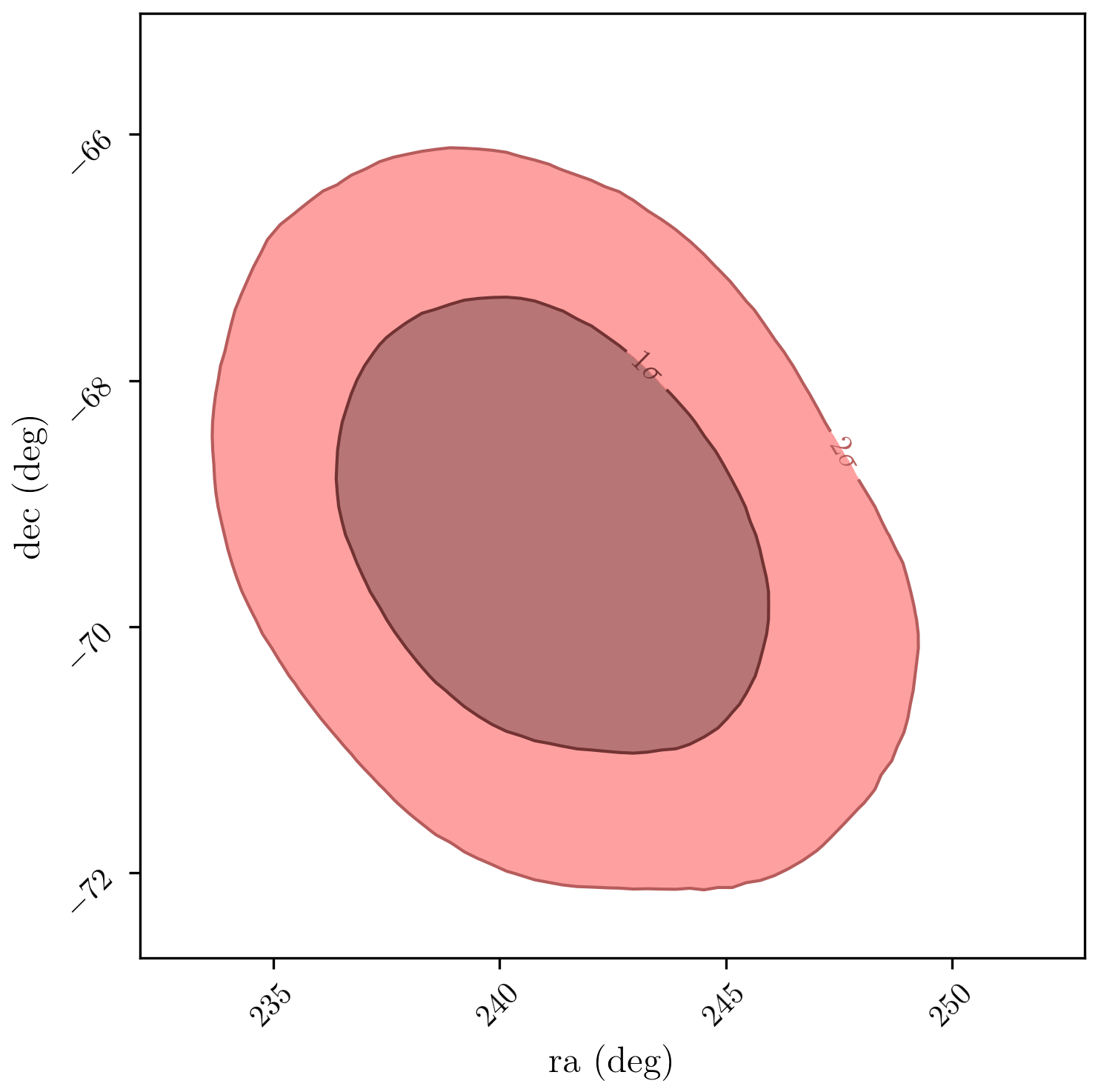

GRB Location
J2000 Coordinate Frame

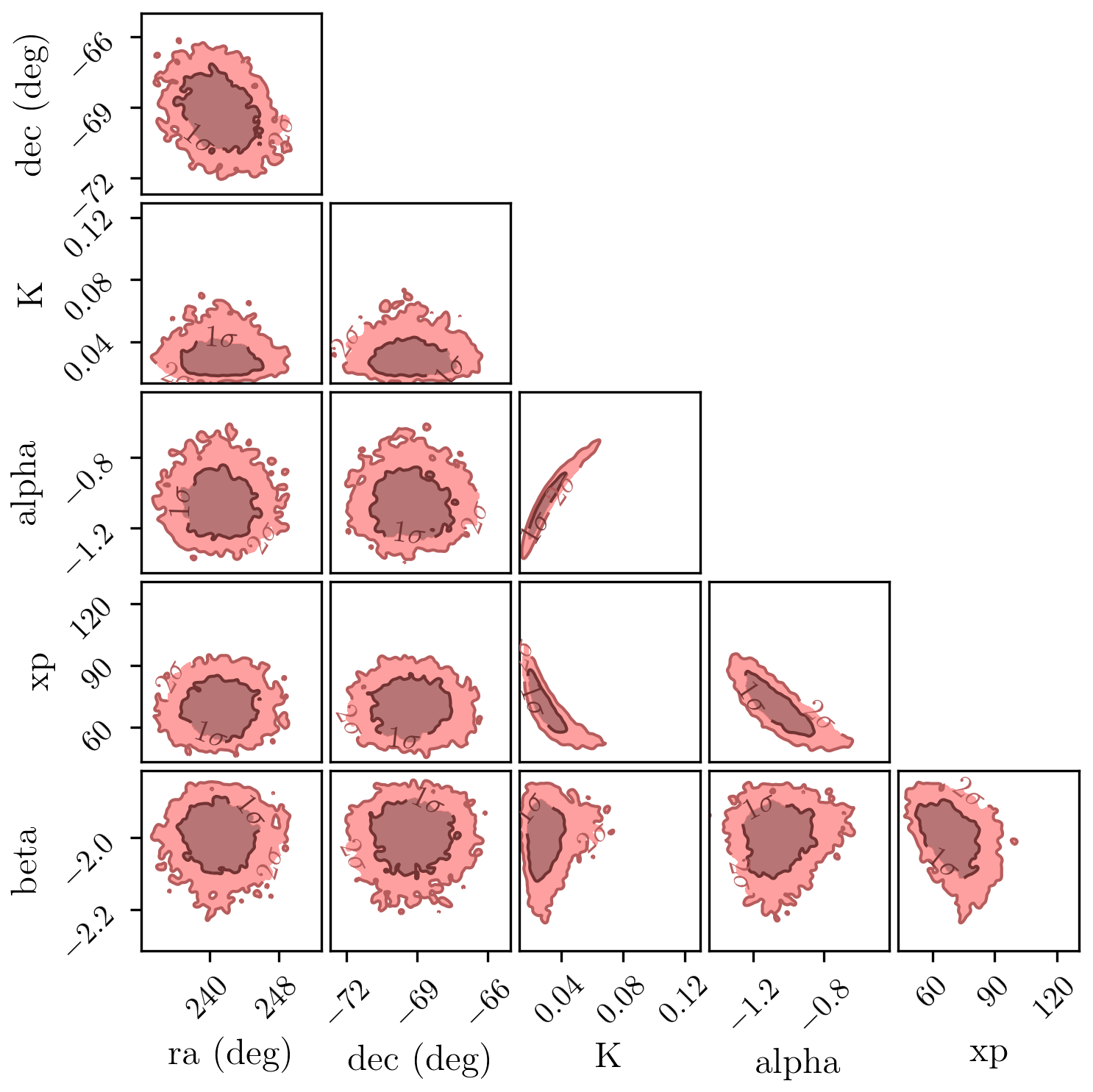

All Corner Plot
J2000 Coordinate Frame

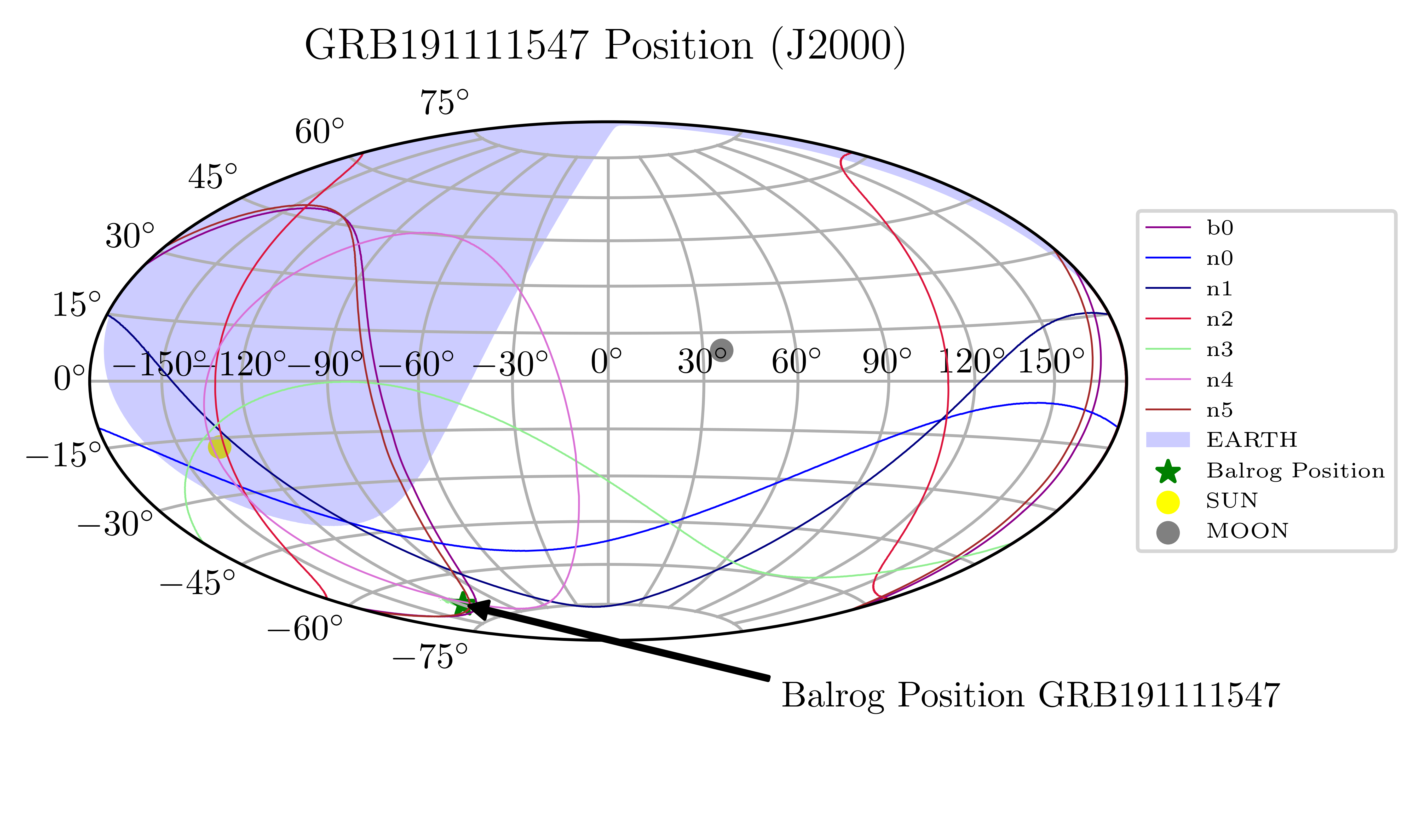

Moll Location Plot
J2000 Coordinate Frame
Satellite

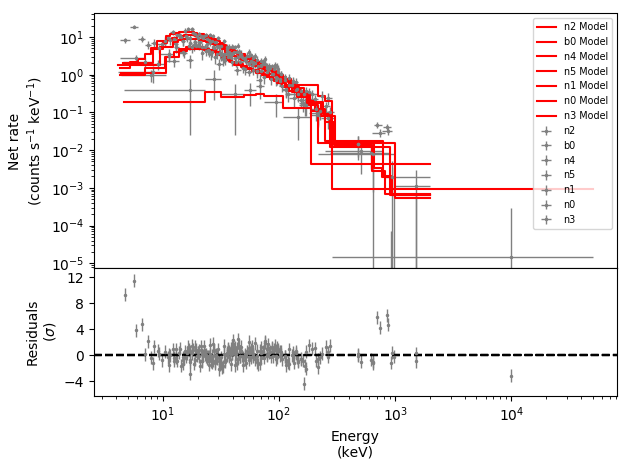

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

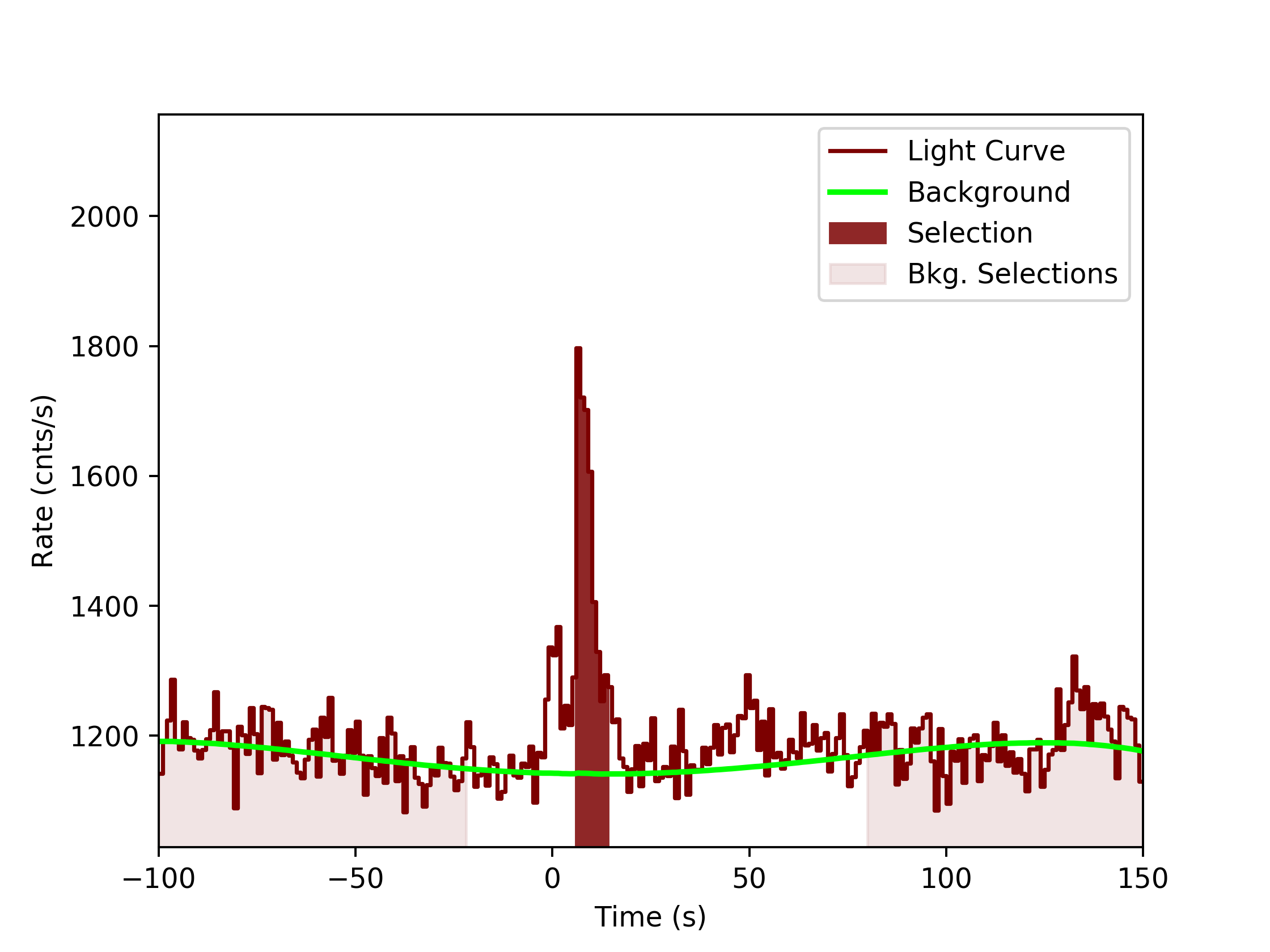

Light Curves
