GRB Properties
Parameters calculated by MPE
Property | Value | Error (1 σ statistical) |
---|---|---|
Trigger Number | 625859489 | |
Trigger Time | Oct. 31, 2020, 17:51:24 | |
Data Timestamp | Oct. 31, 2020, 18:00:44 | |
Localization Timestamp | Nov. 01, 2020, 00:26:42 | |
Balrog Ra [deg] | 48.1 | 8.6 |
Balrog Dec [deg] | 60.7 | 7.4 |
Error radius 1 σ [deg] | 11.4 | |
Error radius 2 σ [deg] | 13.3 | |
Estimated systematic error [deg] | 2 | |
Fitted Model | band_function | |
Spectral Parameter K [photons/cm^2/keV*s] | 0.004 | 0.00063 |
Spectral Parameter Alpha | -1.3 | 0.058 |
Spectral Parameter Beta | -2 | 0.33 |
Spectral Parameter XP | 8.3e+03 | 1.4e+03 |
Satellite Phi [deg] | 113.30 | |
Satellite Theta [deg] | 77.11 |
Parameters from external Source
Property | Value |
---|---|
Swift Ra [deg] | |
Swift Dec [deg] | |
Most likely | GRB 96.0% |
Second most likely | GROJ_0422_32 2.0% |
GRB Location Alert
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
625859489 at 17:51:24 on 31 Oct. 2020 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 48.1+/-8.6 deg
Decl.(2000.0) = 60.7+/-7.4 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB201031744/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB201031744/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB201031744/json
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
625859489 at 17:51:24 on 31 Oct. 2020 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 48.1+/-8.6 deg
Decl.(2000.0) = 60.7+/-7.4 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB201031744/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB201031744/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB201031744/json

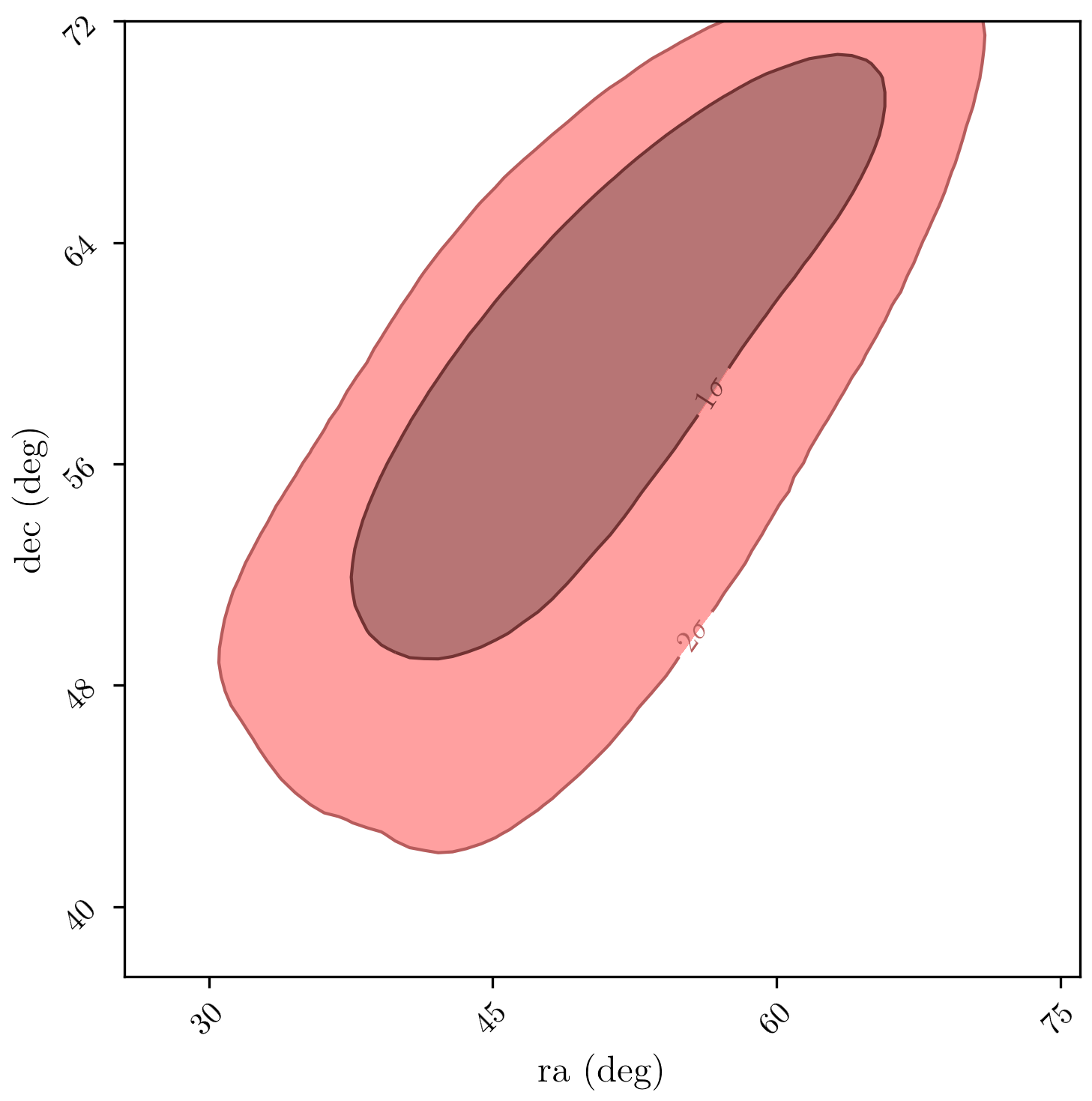

GRB Location
J2000 Coordinate Frame

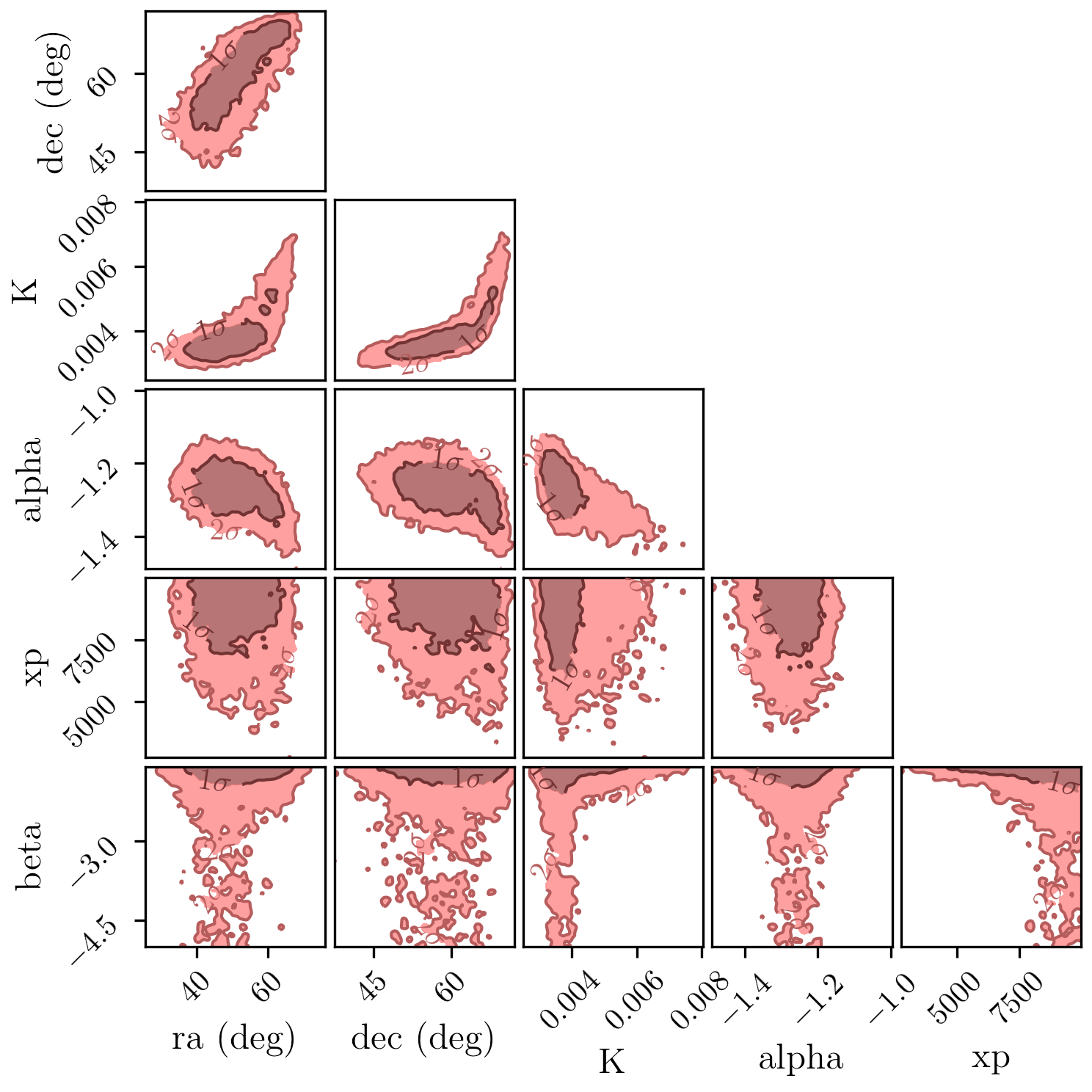

All Corner Plot
J2000 Coordinate Frame

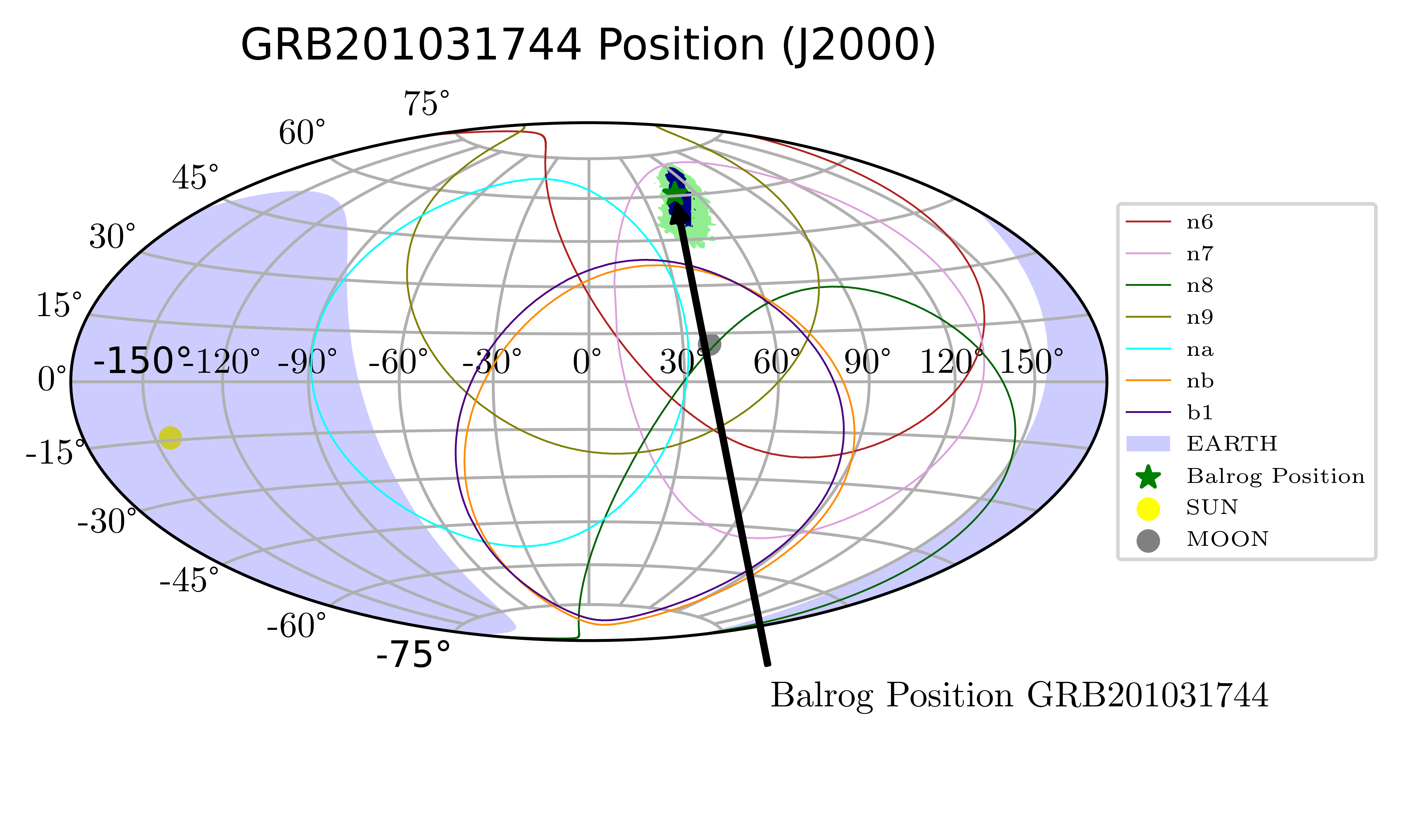

Moll Location Plot
J2000 Coordinate Frame

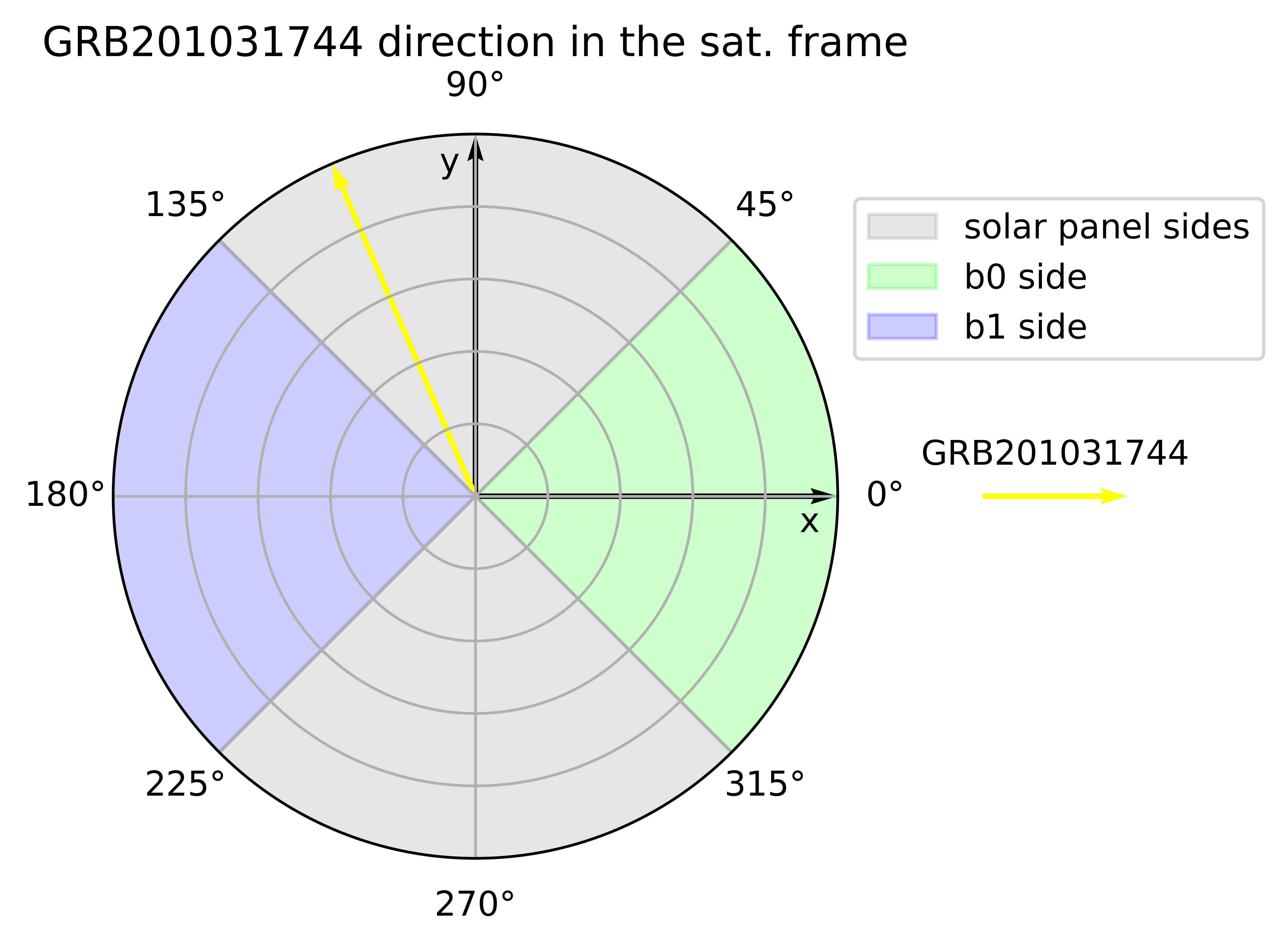

Satellite

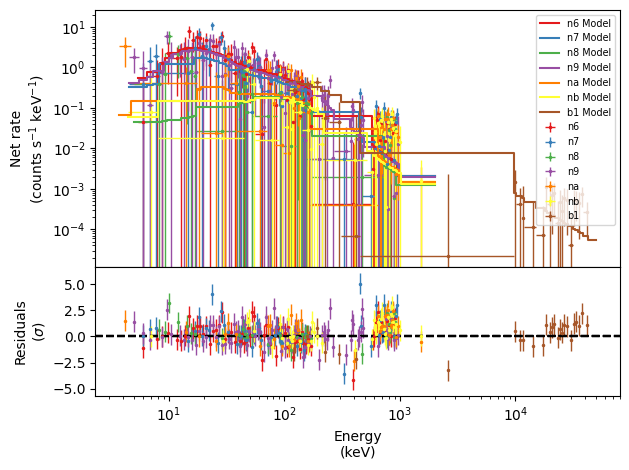

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

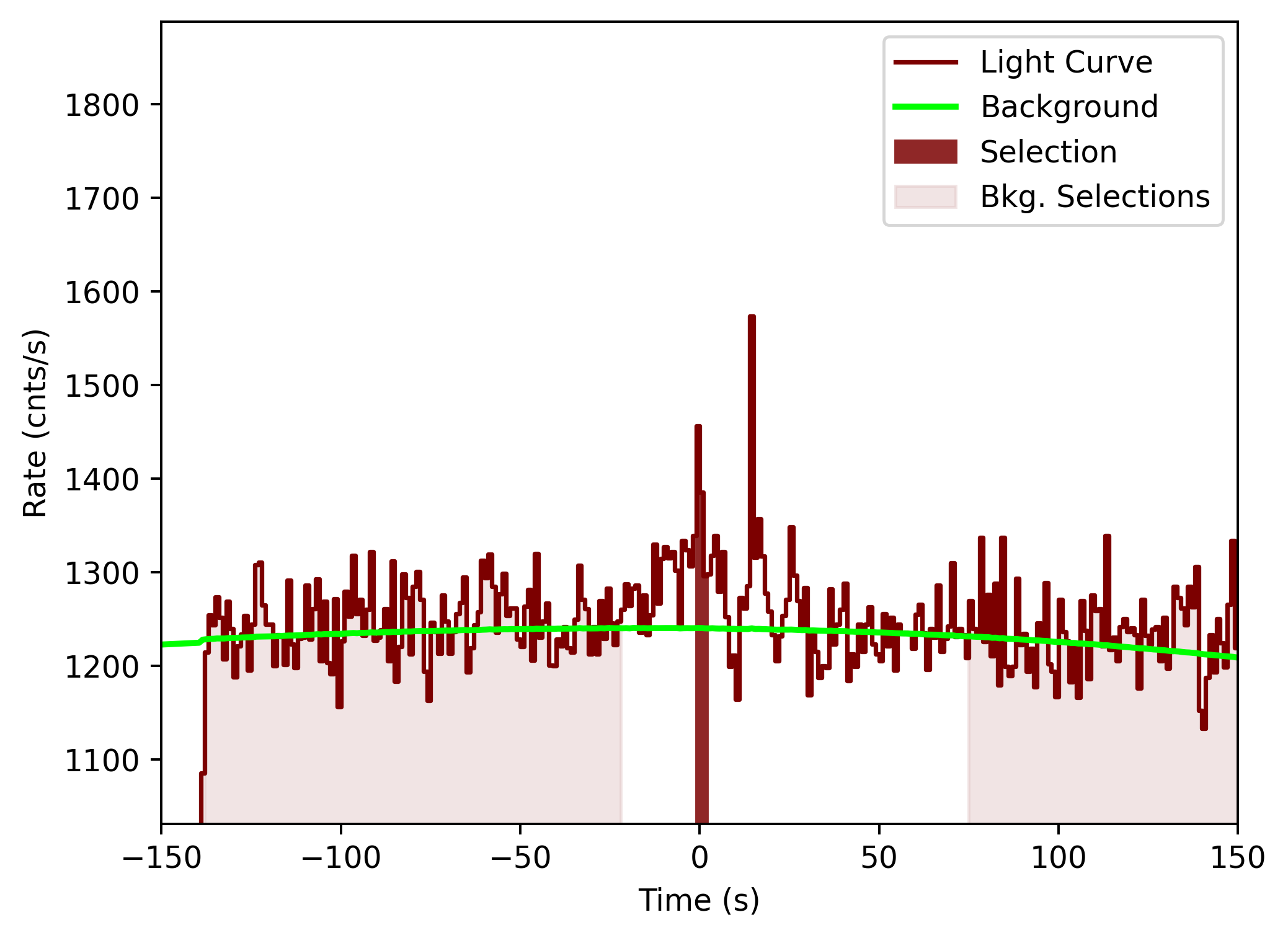

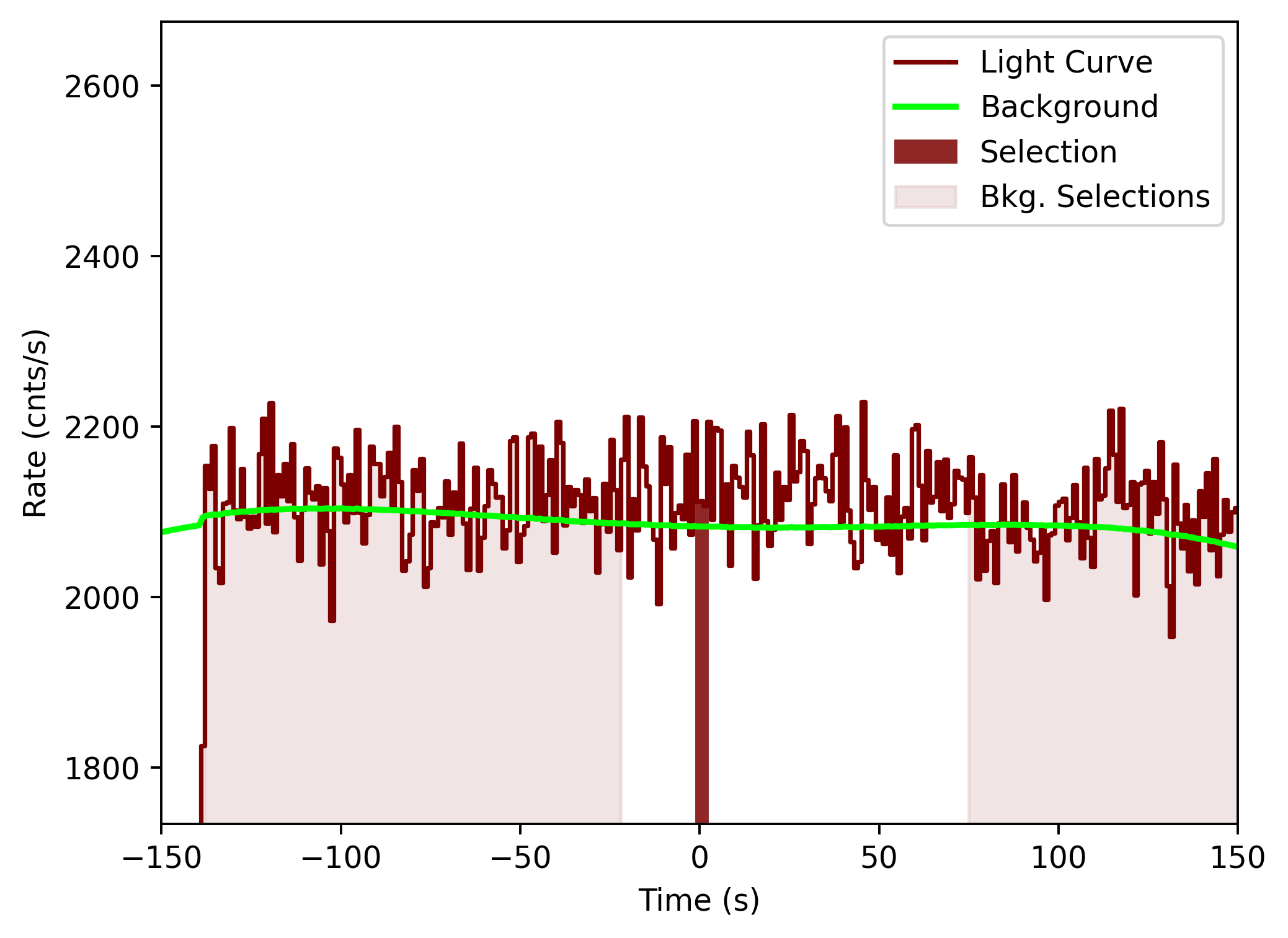

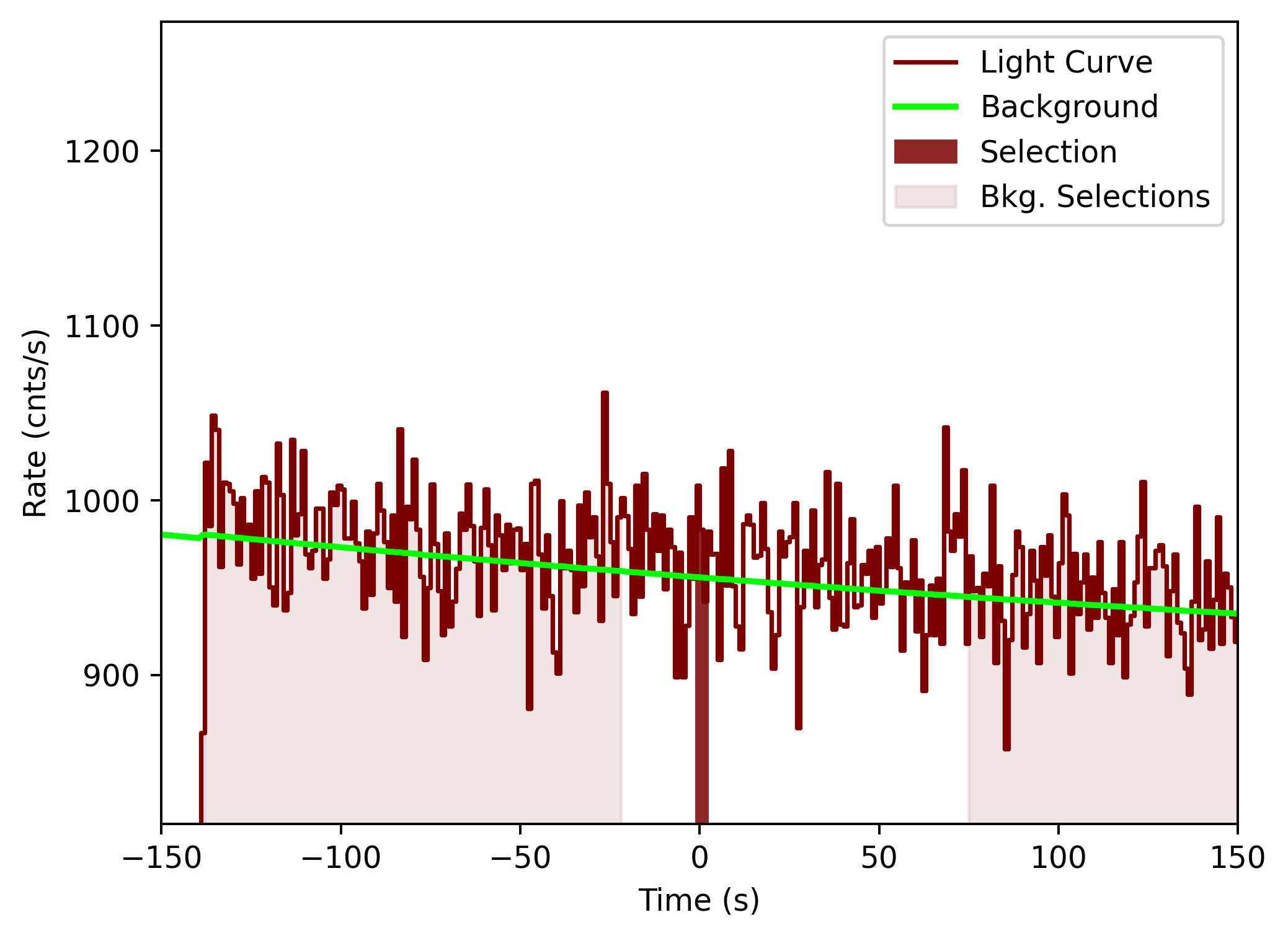

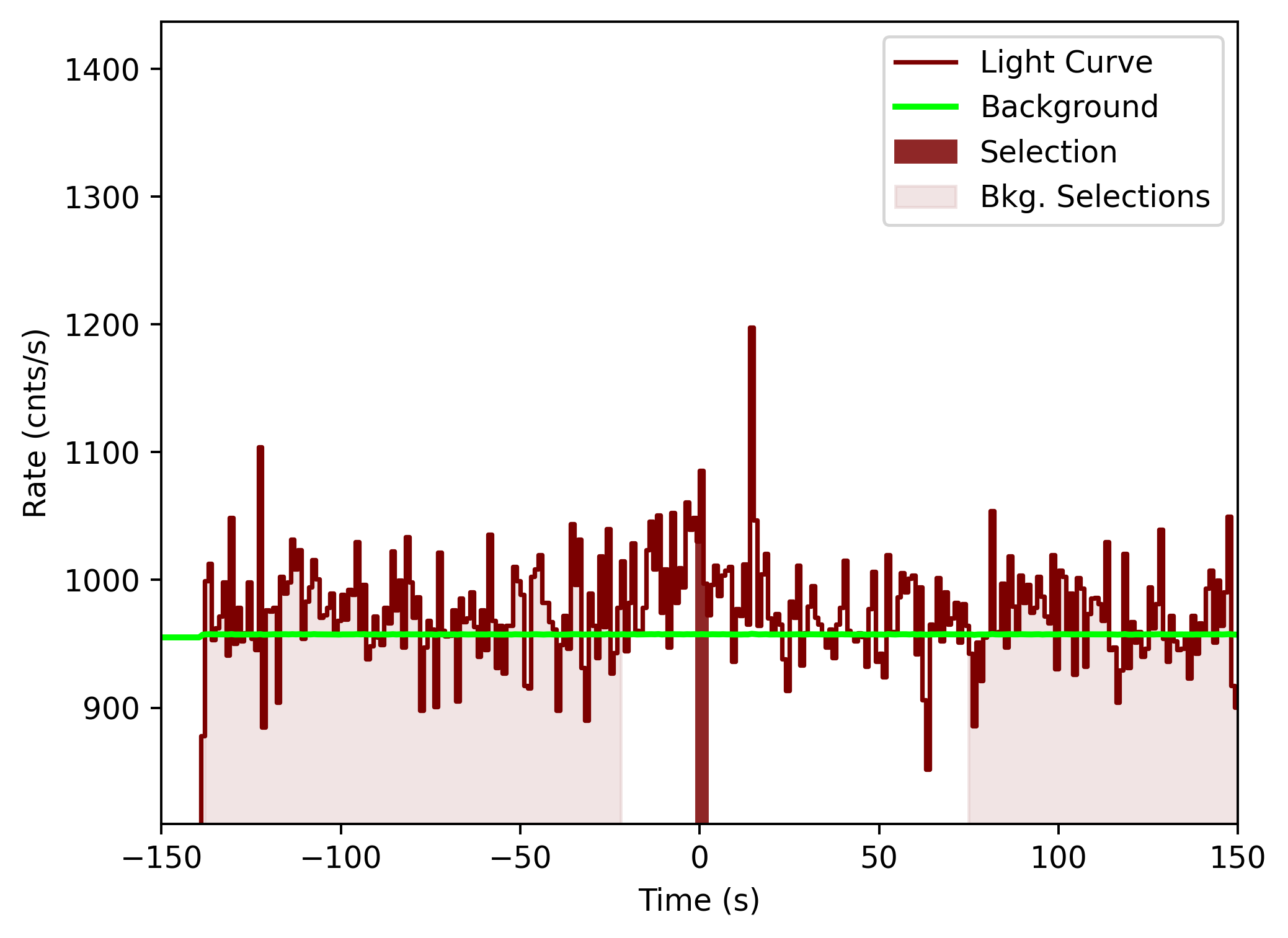

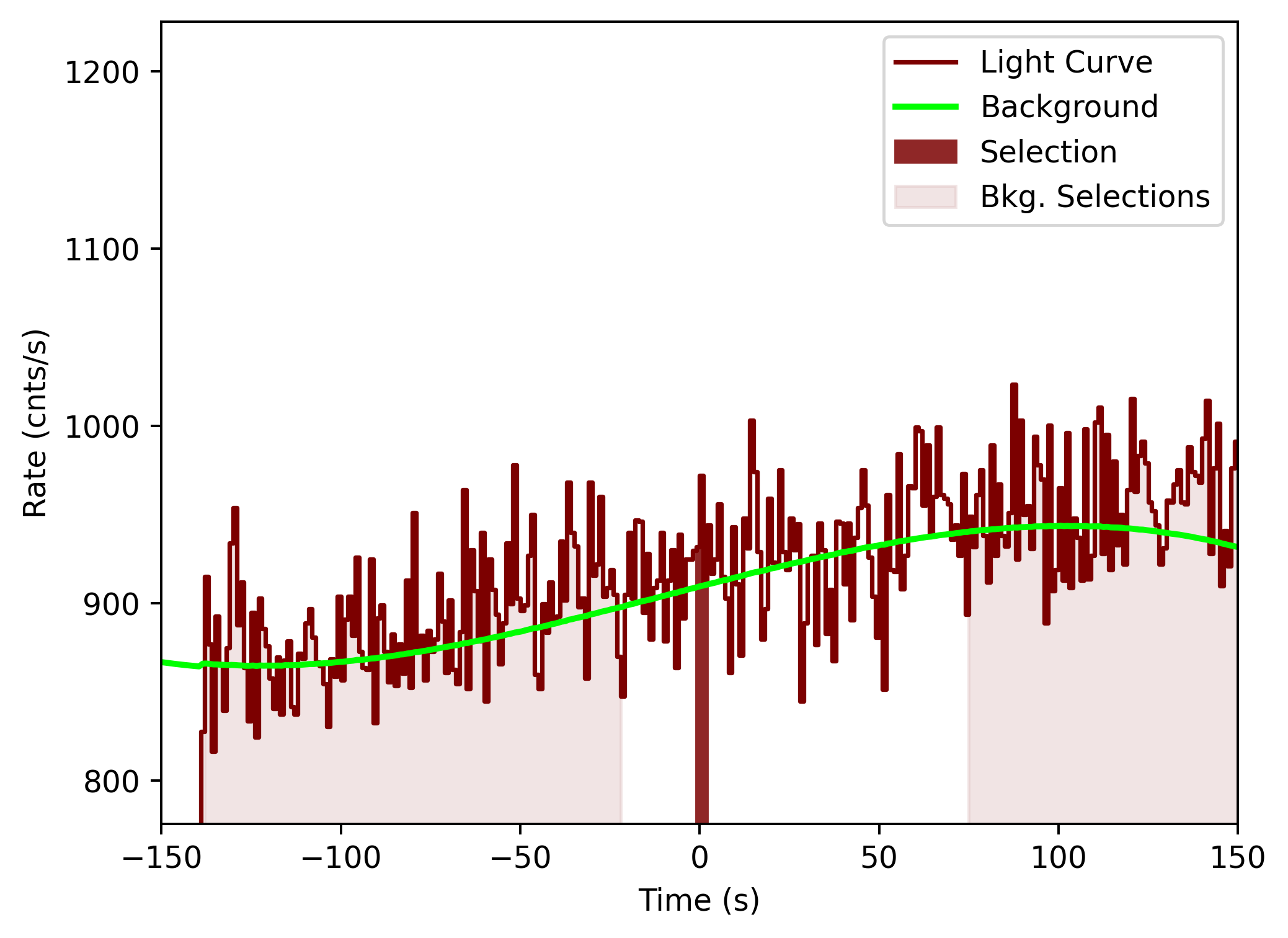

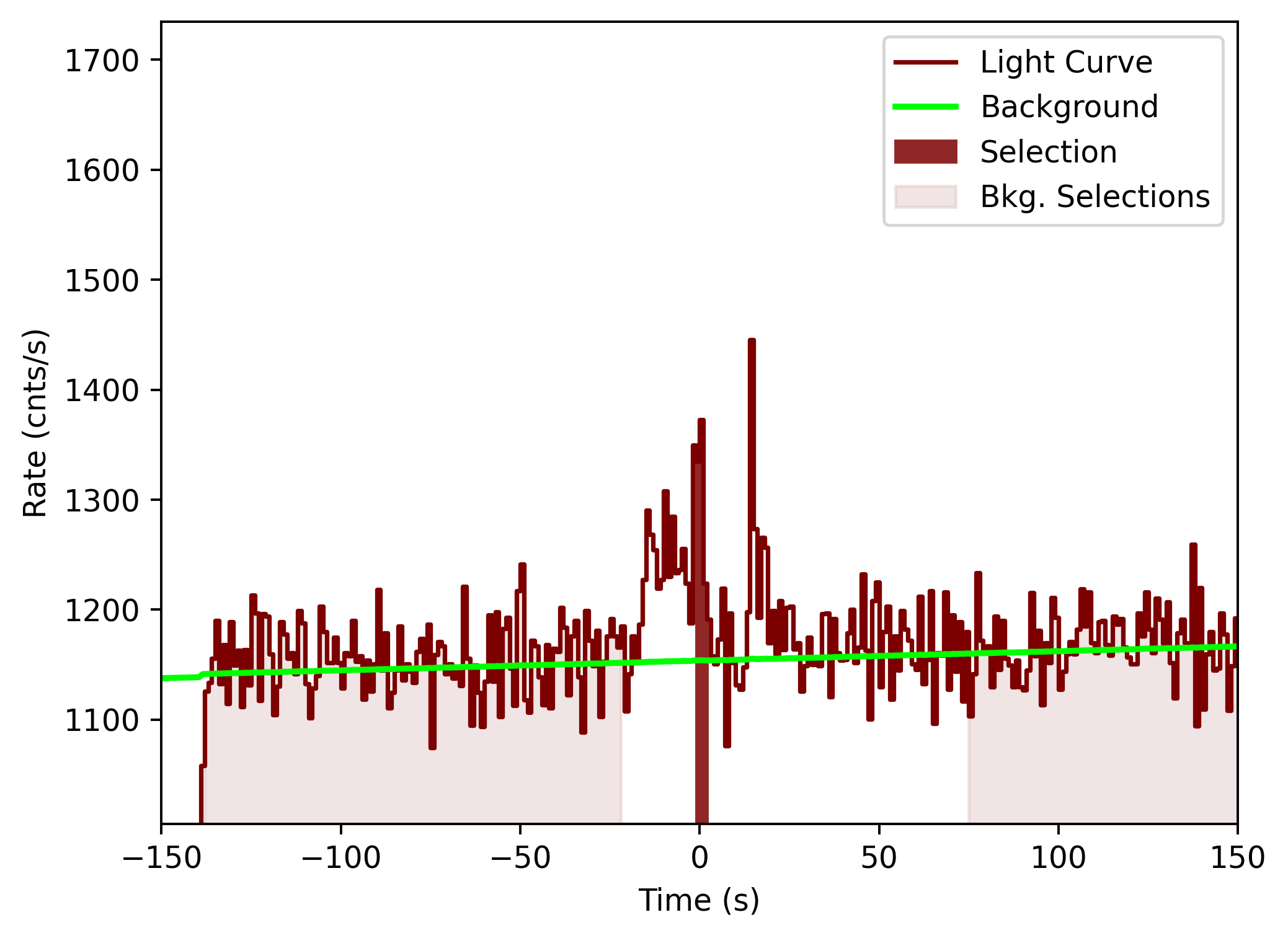

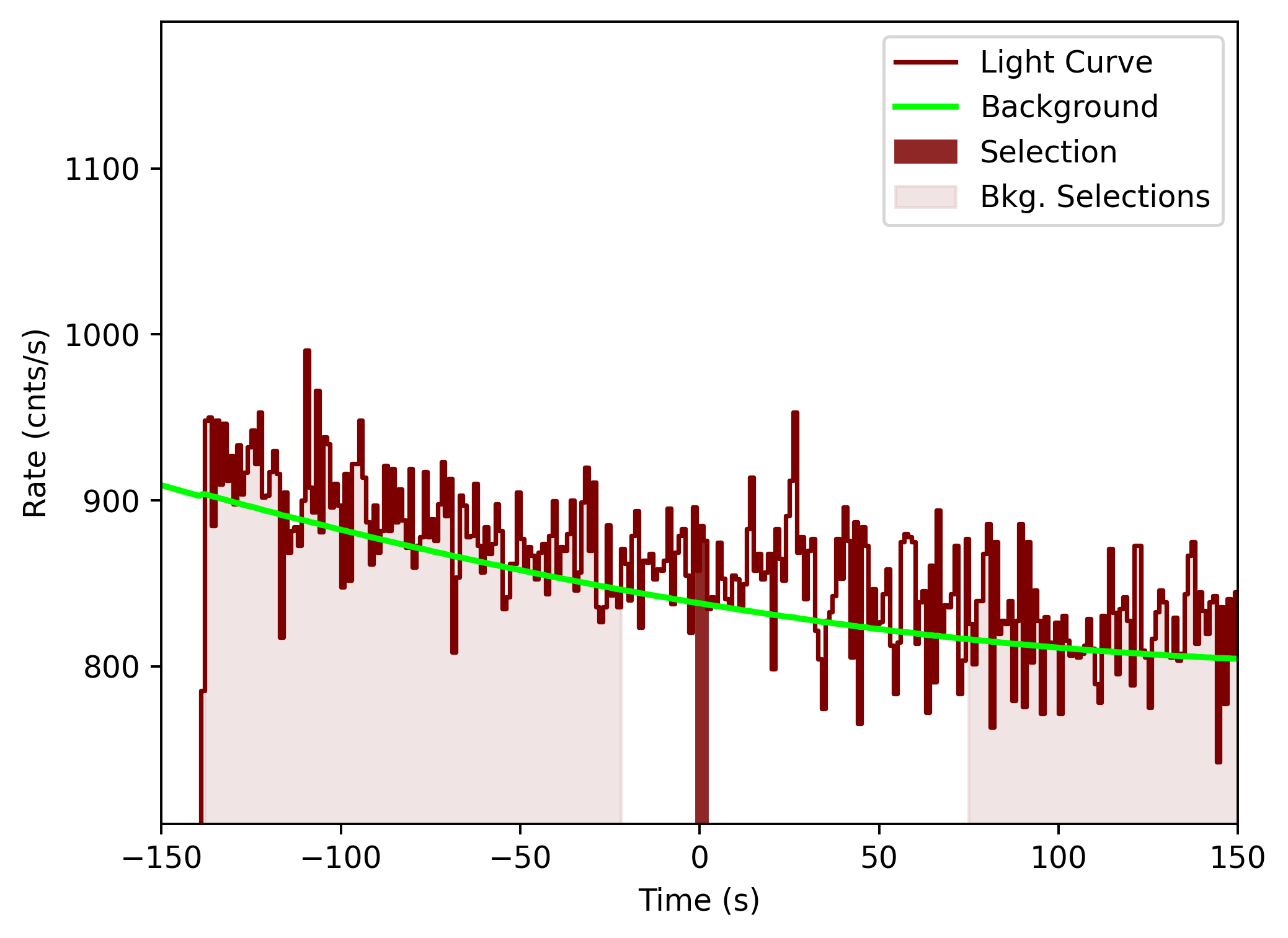

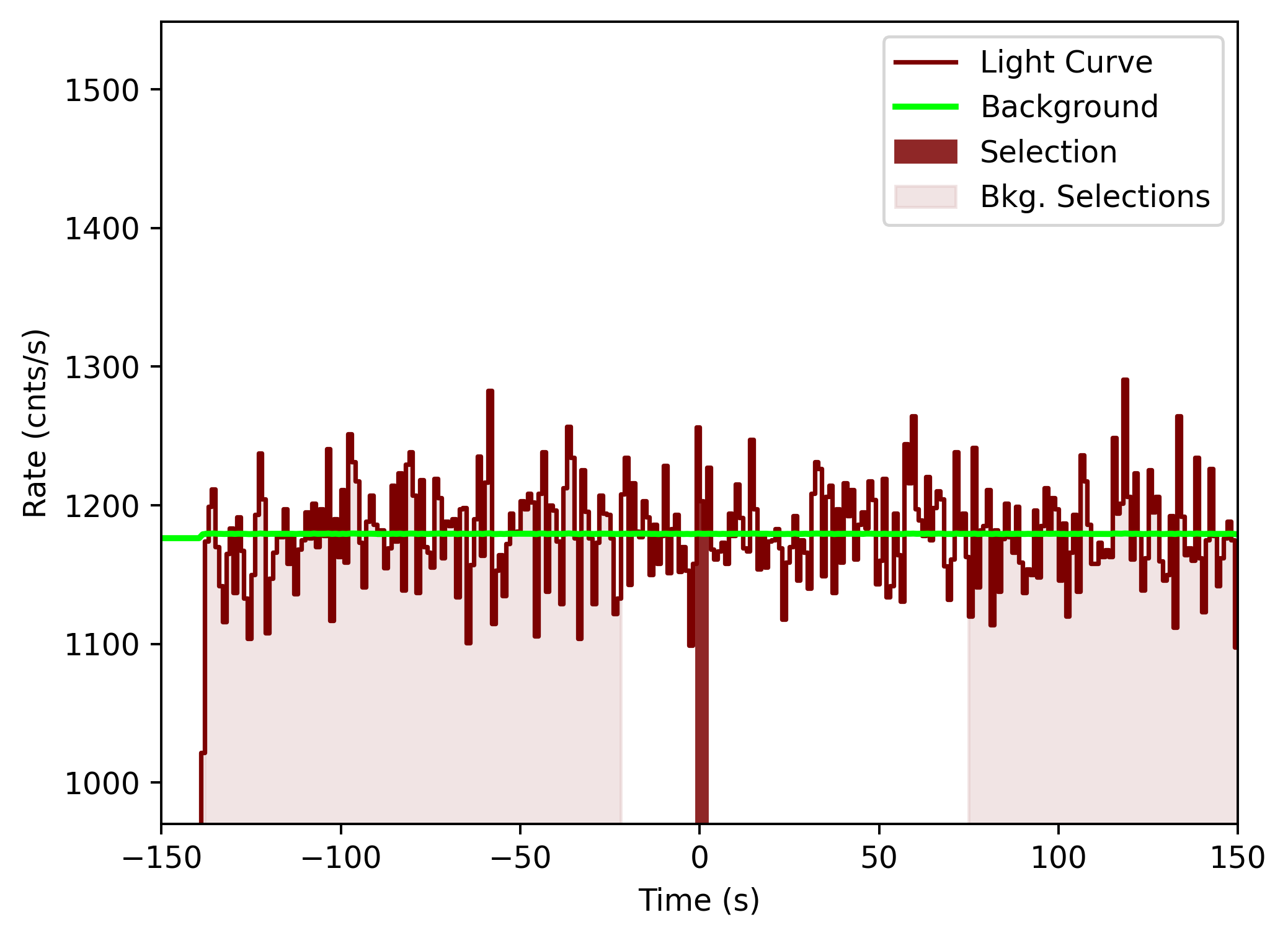

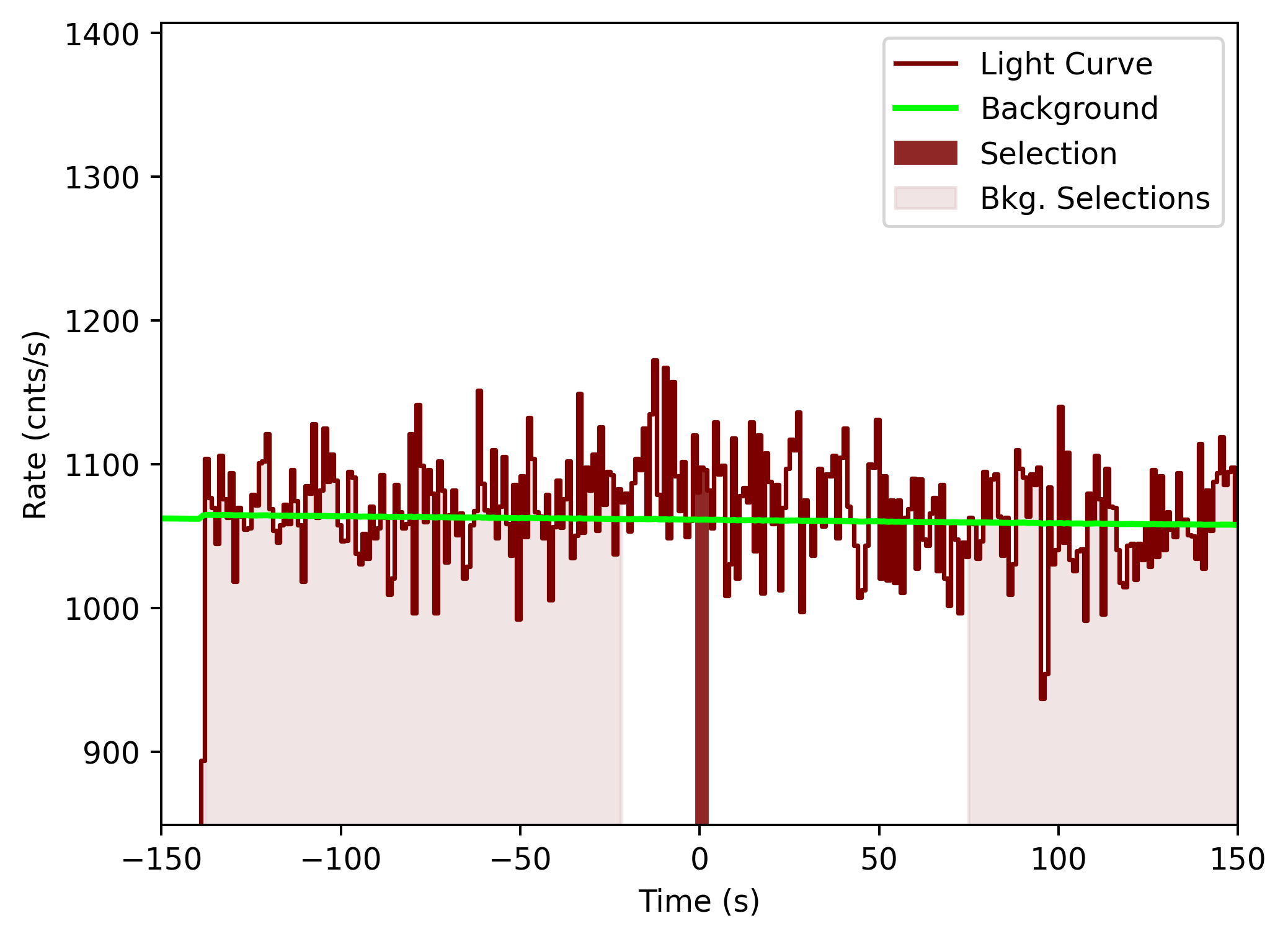

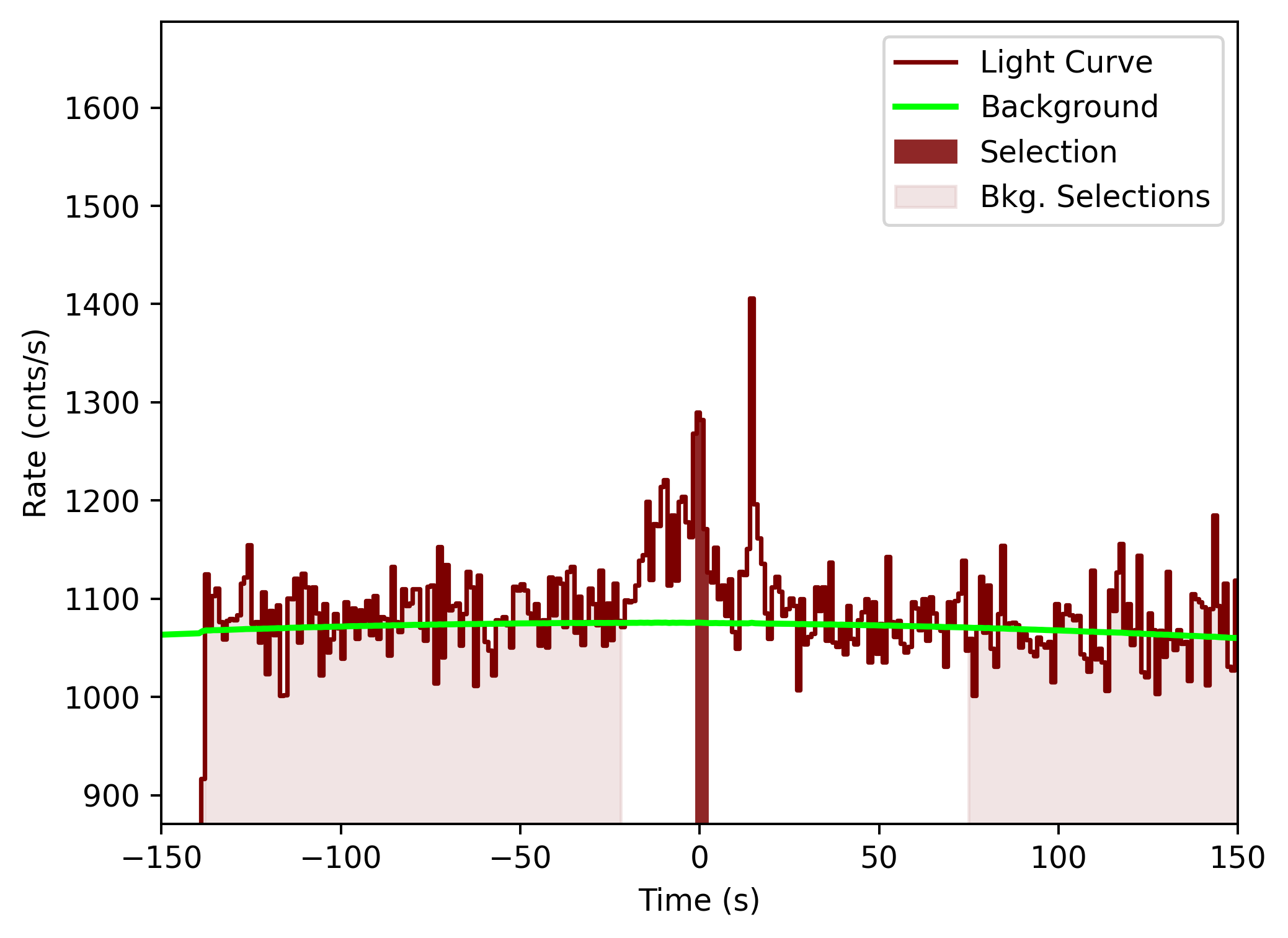

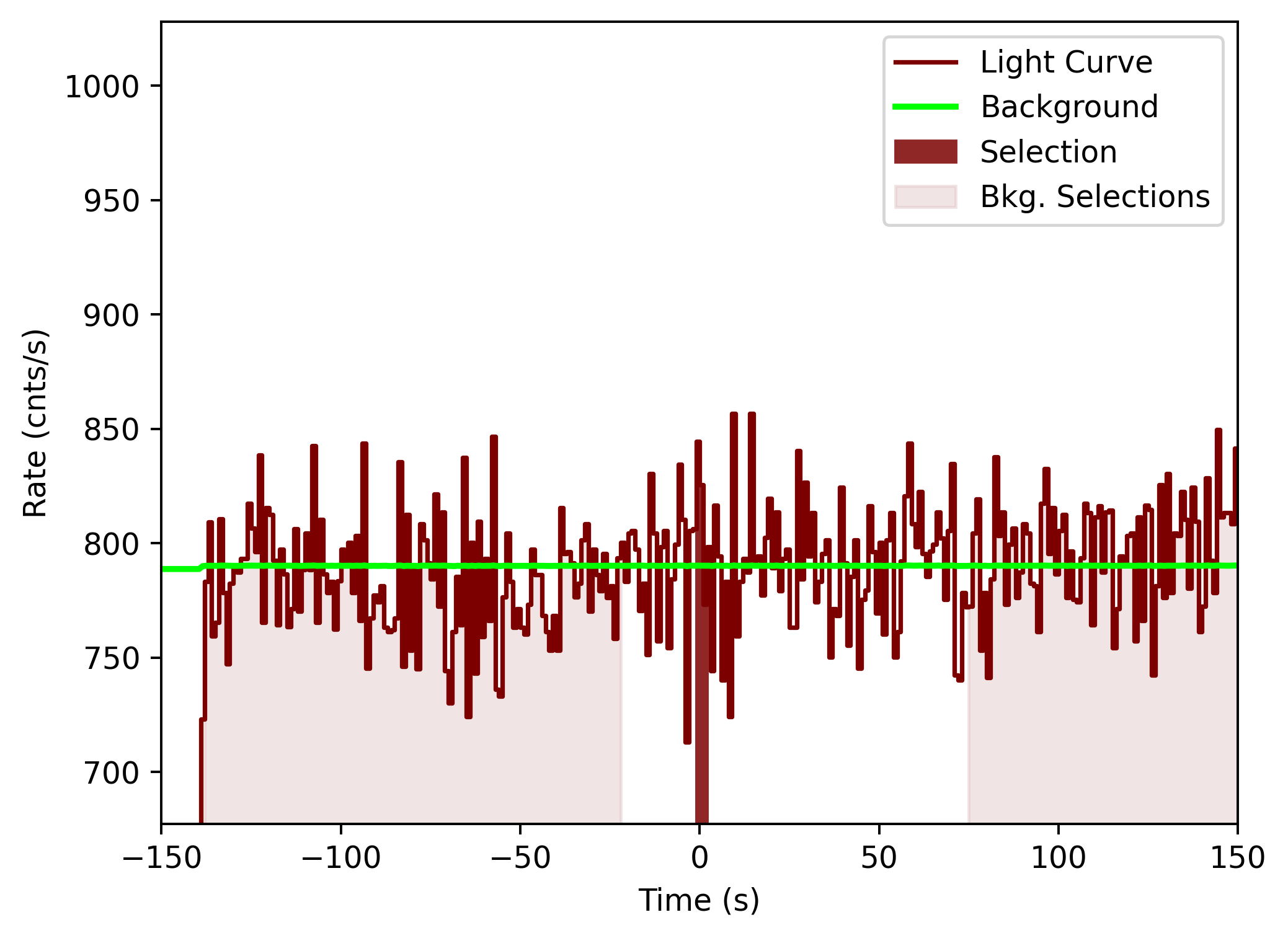

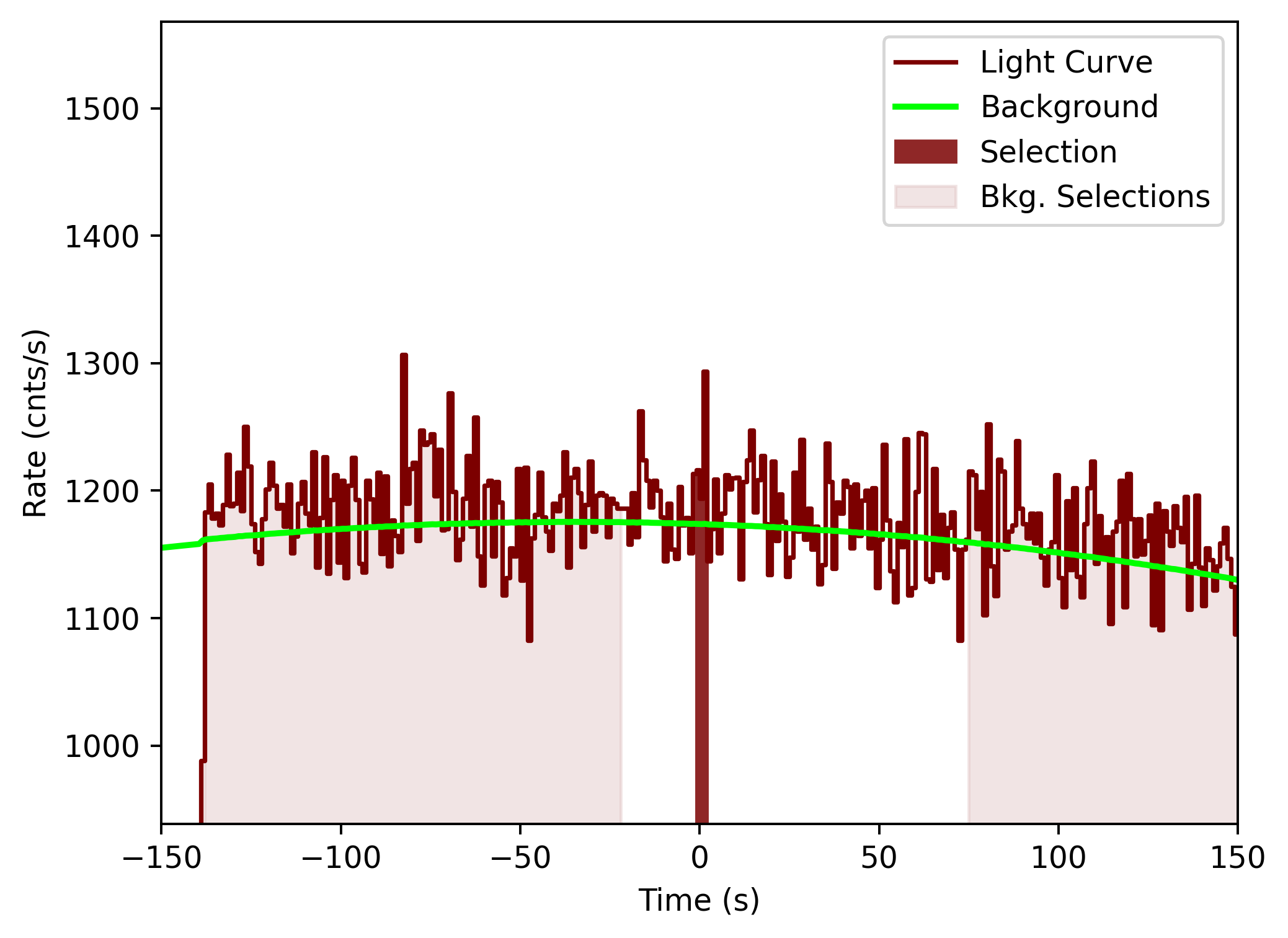

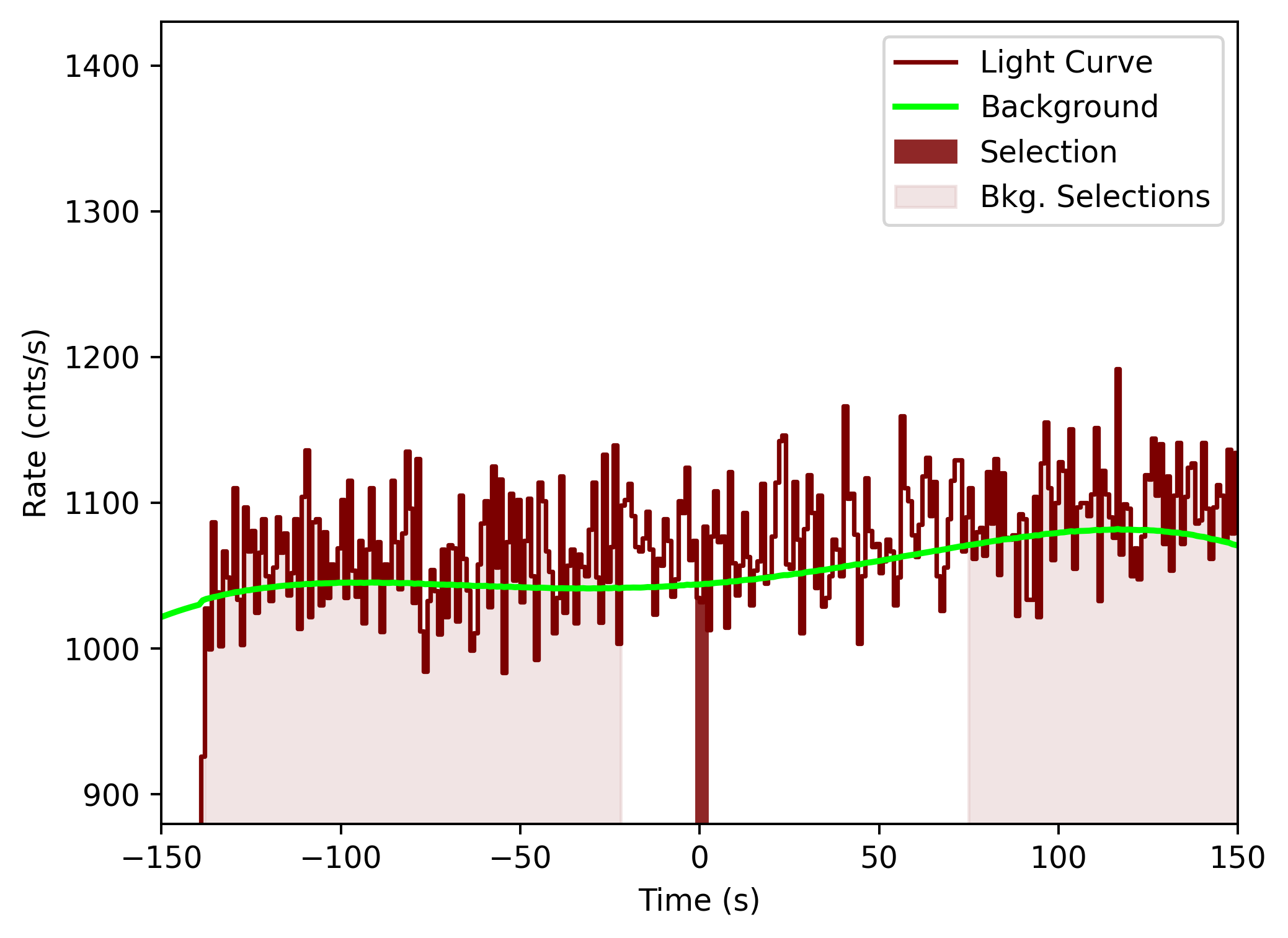

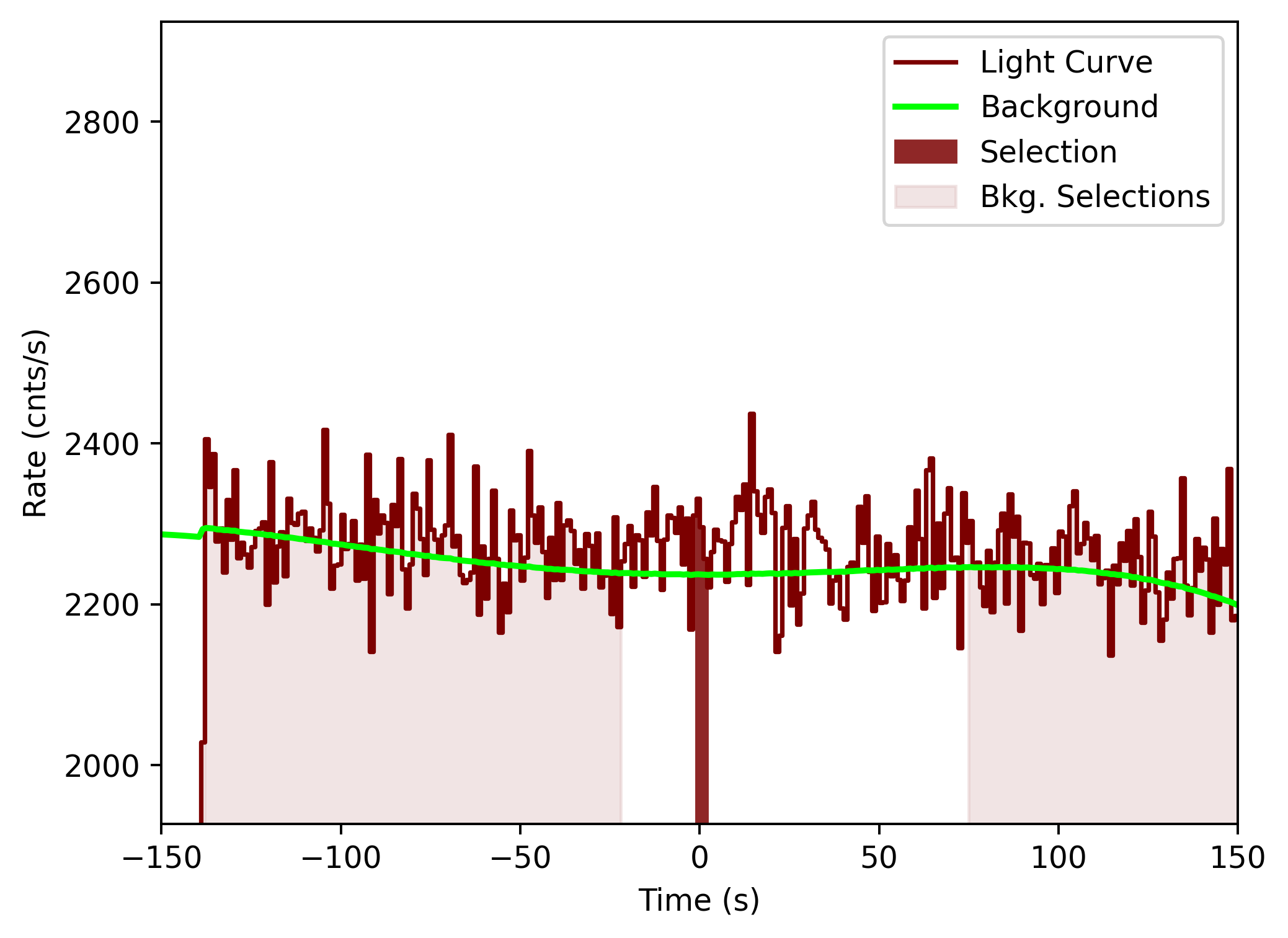

Light Curves
