GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 638308803 | |
| Trigger Time | March 24, 2021, 19:59:58 | |
| Data Timestamp | March 24, 2021, 20:09:22 | |
| Localization Timestamp | March 25, 2021, 00:14:23 | |
| Balrog Ra [deg] | 45.3 | 1.2 |
| Balrog Dec [deg] | -49.8 | 0.3 |
| Error radius 1 σ [deg] | 1.3 | |
| Error radius 2 σ [deg] | 1.6 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.13 | 0.011 |
| Spectral Parameter Alpha | -0.17 | 0.054 |
| Spectral Parameter Beta | -2.3 | 0.039 |
| Spectral Parameter XP | 1.4e+02 | 4.3 |
| Satellite Phi [deg] | -71.48 | |
| Satellite Theta [deg] | 51.69 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 97.0% |
| Second most likely | GENERIC_TRANSIENT 2.0% |
GRB Location Alert
GRB 210324C: BALROG localization (Fermi Trigger 638308803 / GRB 210324833)
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
638308803 at 19:59:58 on 24 March 2021 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 43.2+/-0.6 deg
Decl.(2000.0) = -48.1+/-0.5 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB210324833/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB210324833/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB210324833/json
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
638308803 at 19:59:58 on 24 March 2021 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 43.2+/-0.6 deg
Decl.(2000.0) = -48.1+/-0.5 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB210324833/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB210324833/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB210324833/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame

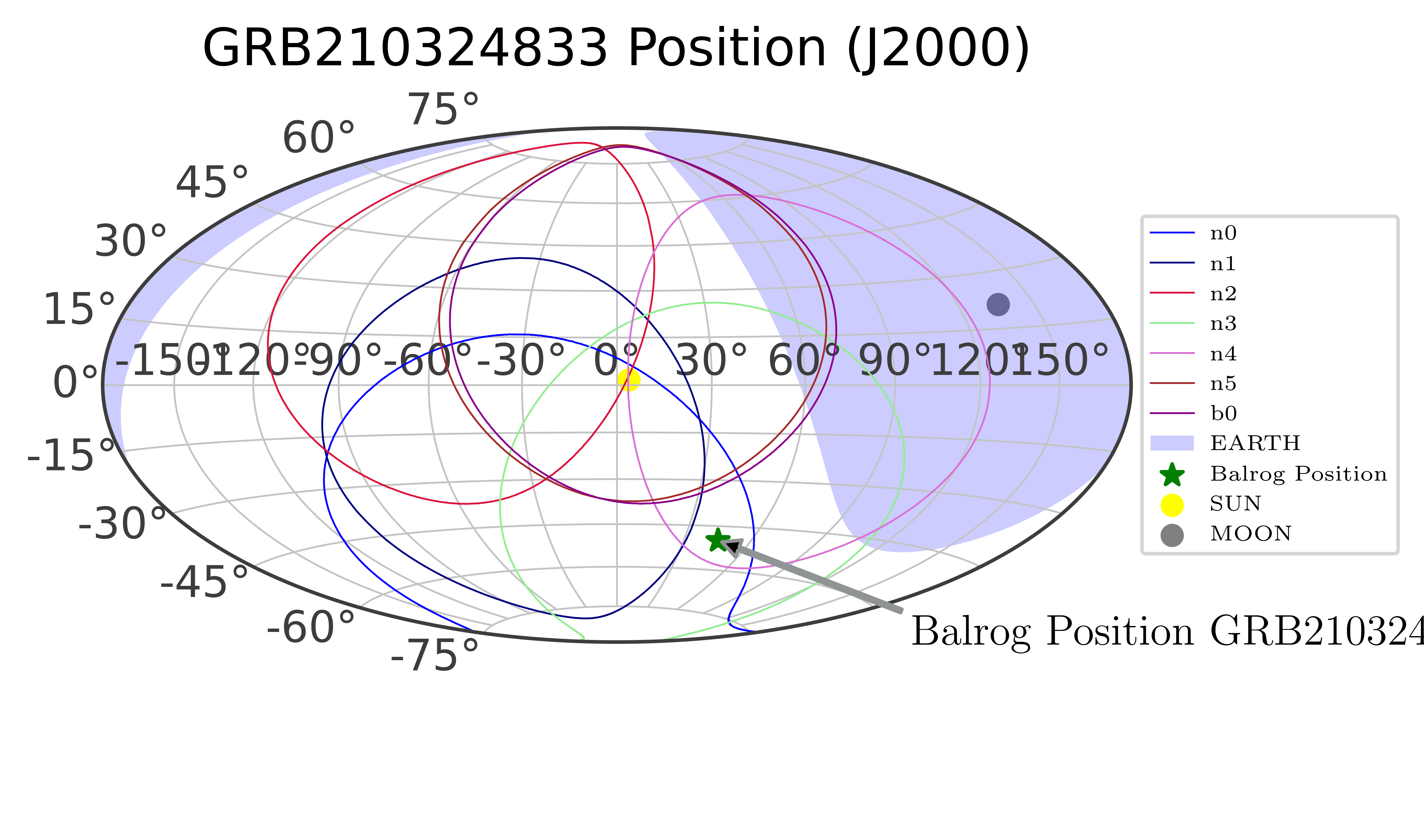

Moll Location Plot
J2000 Coordinate Frame
Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

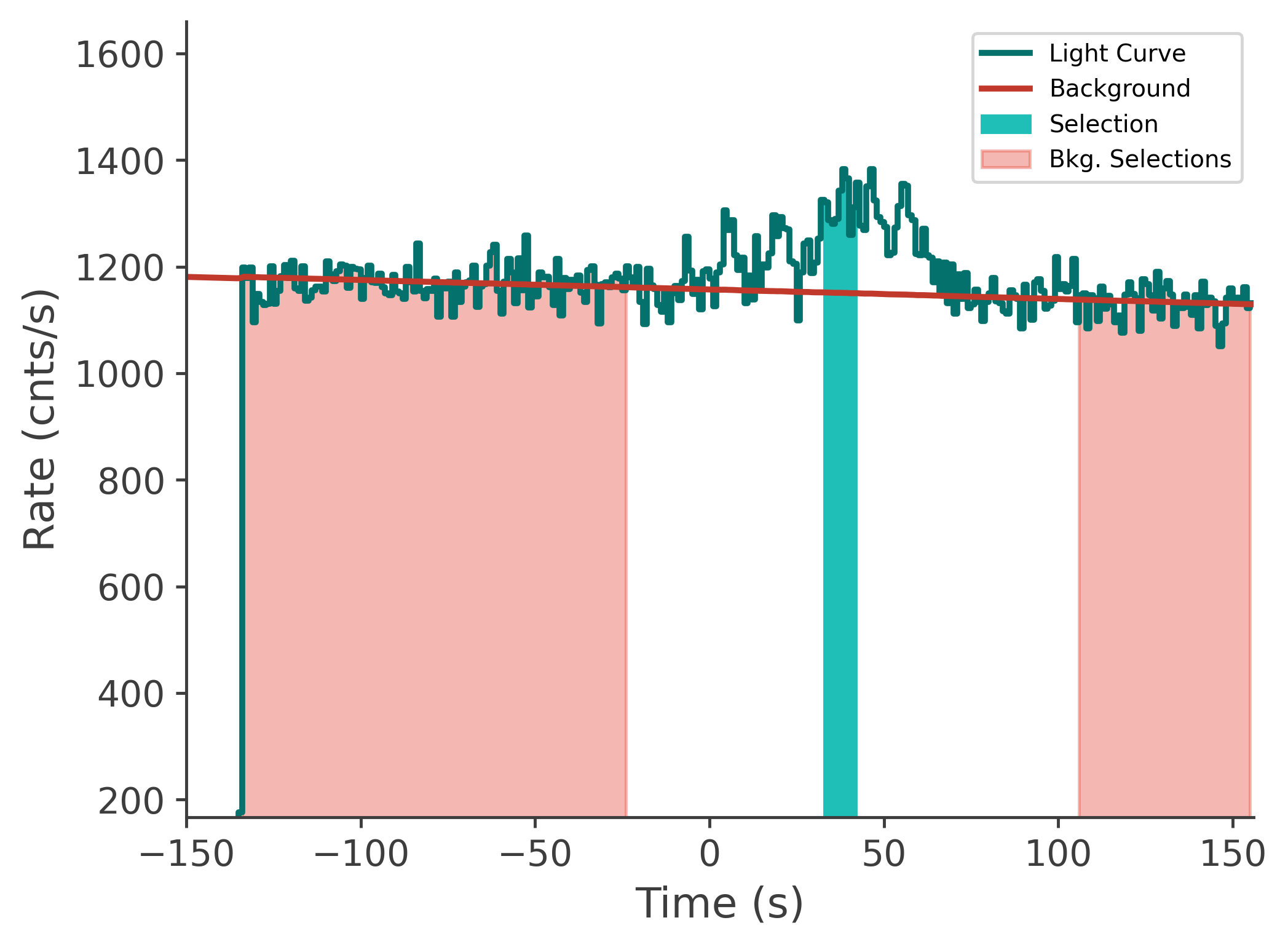

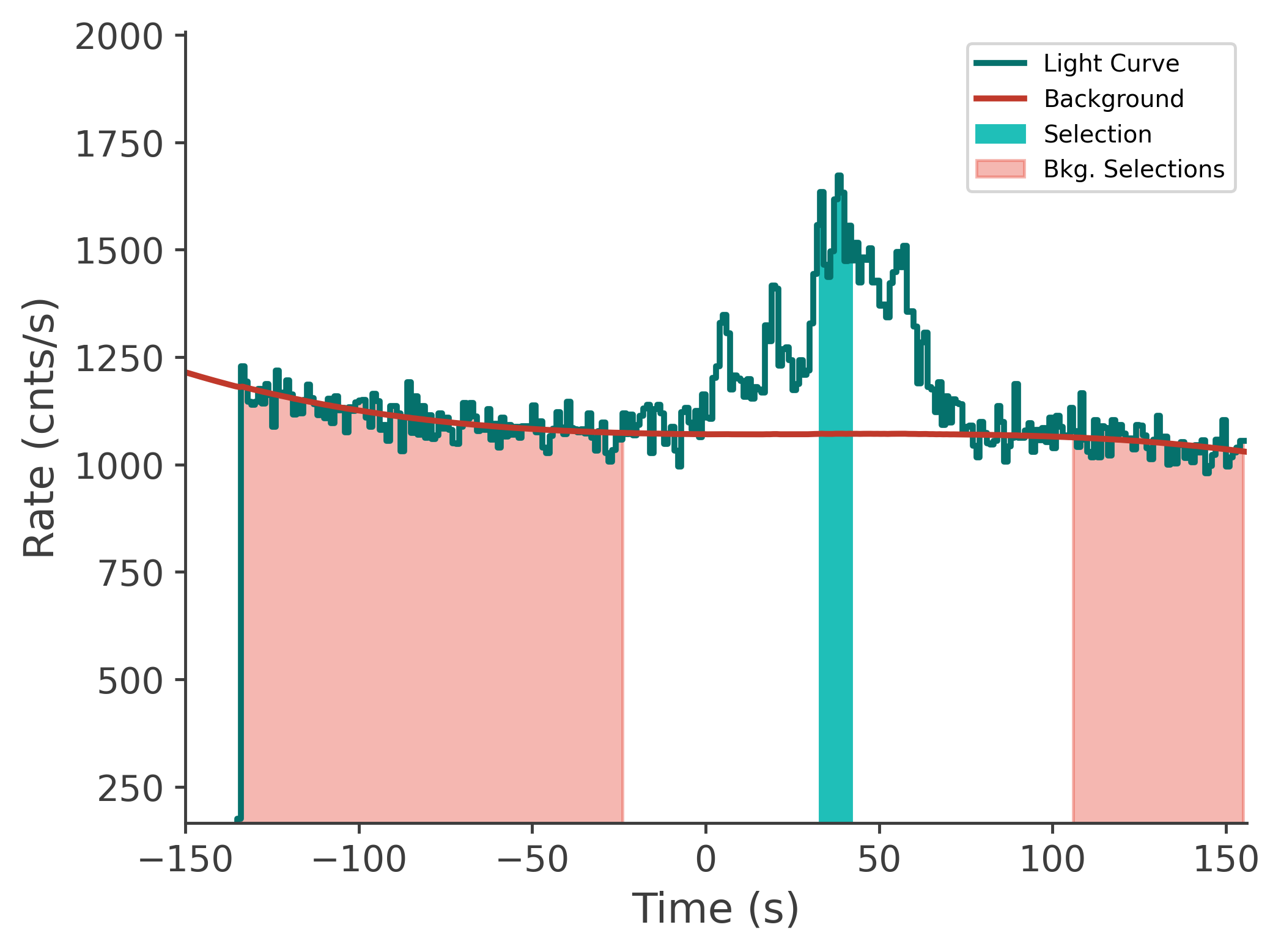

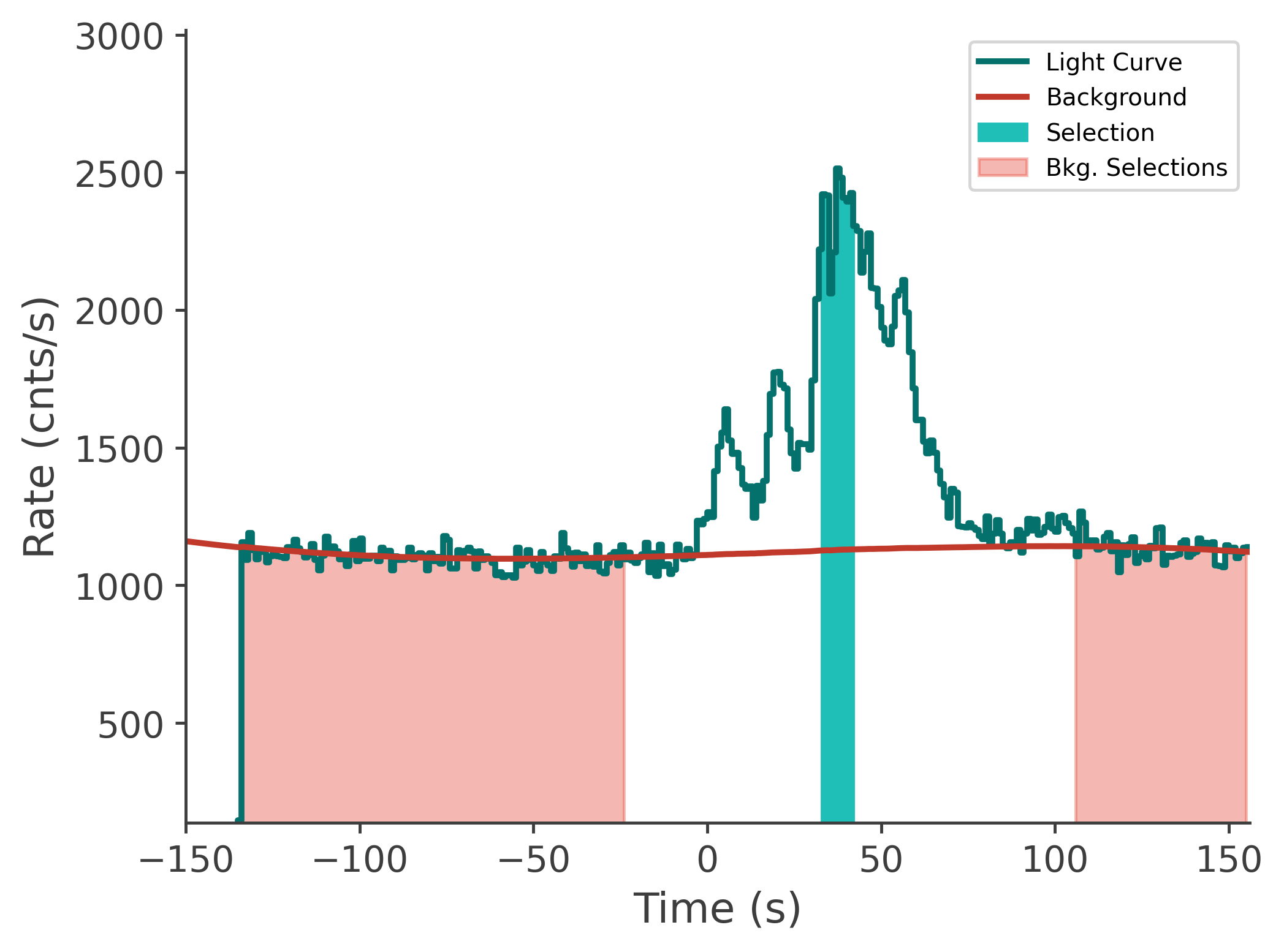

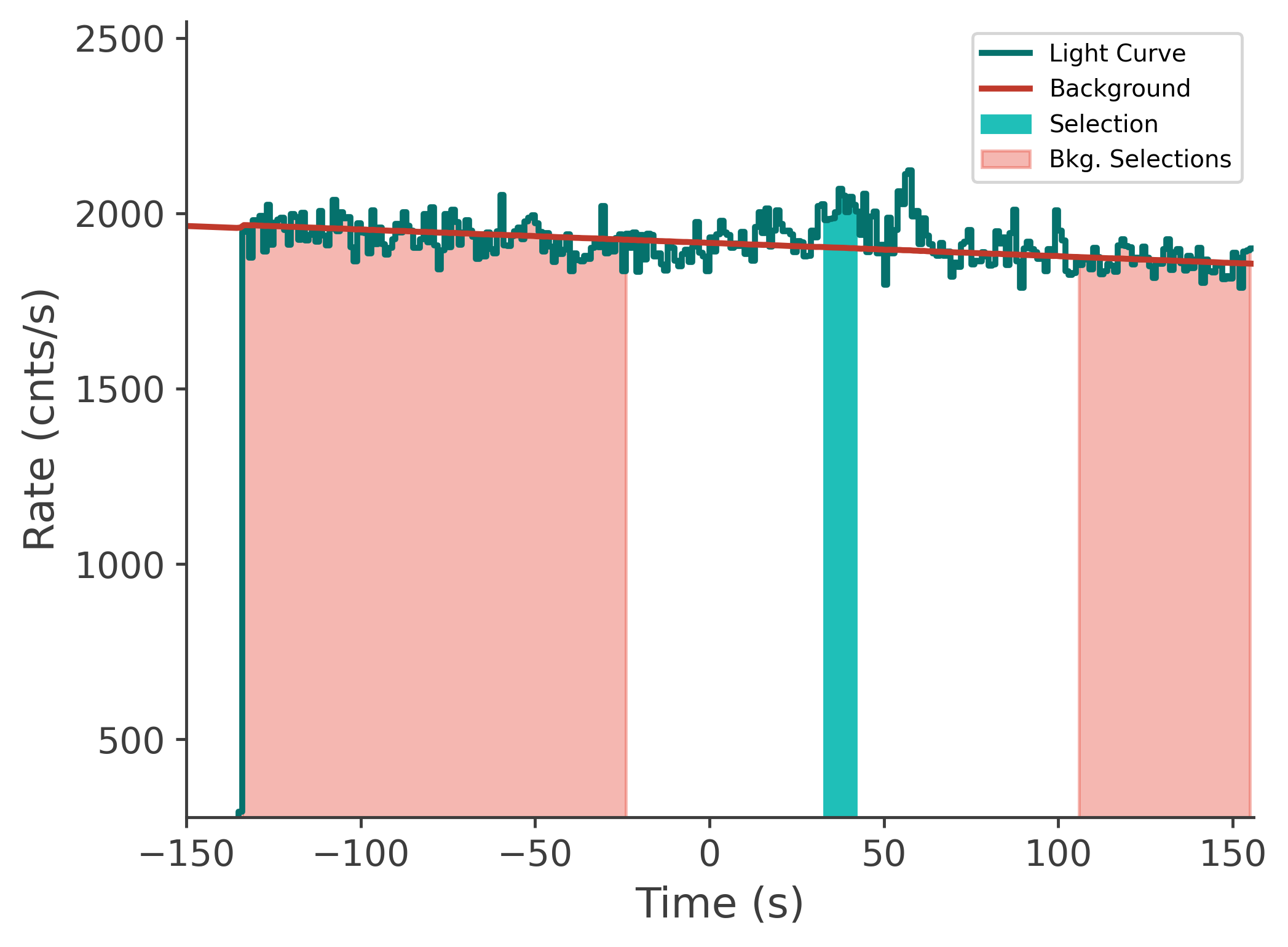

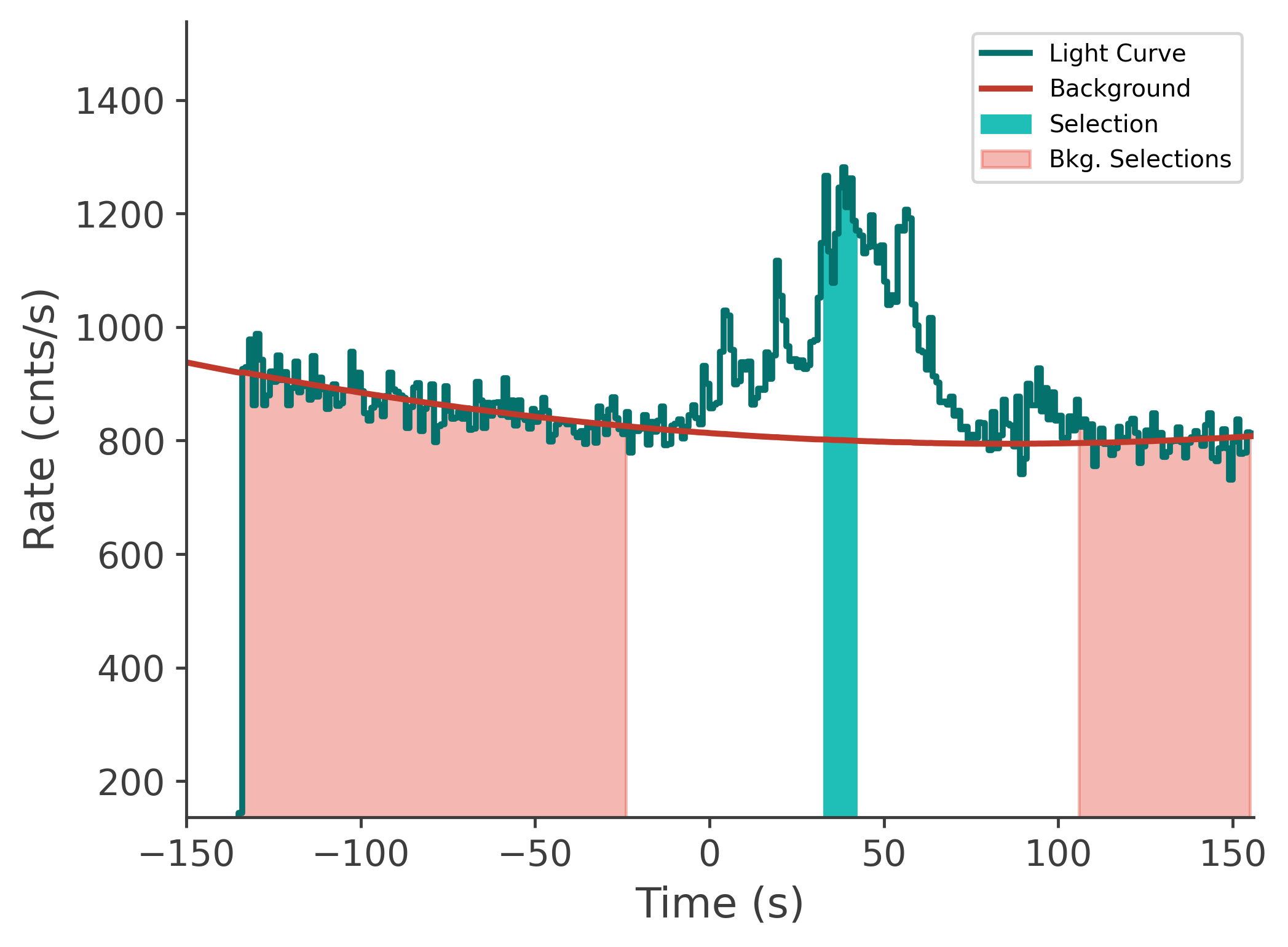

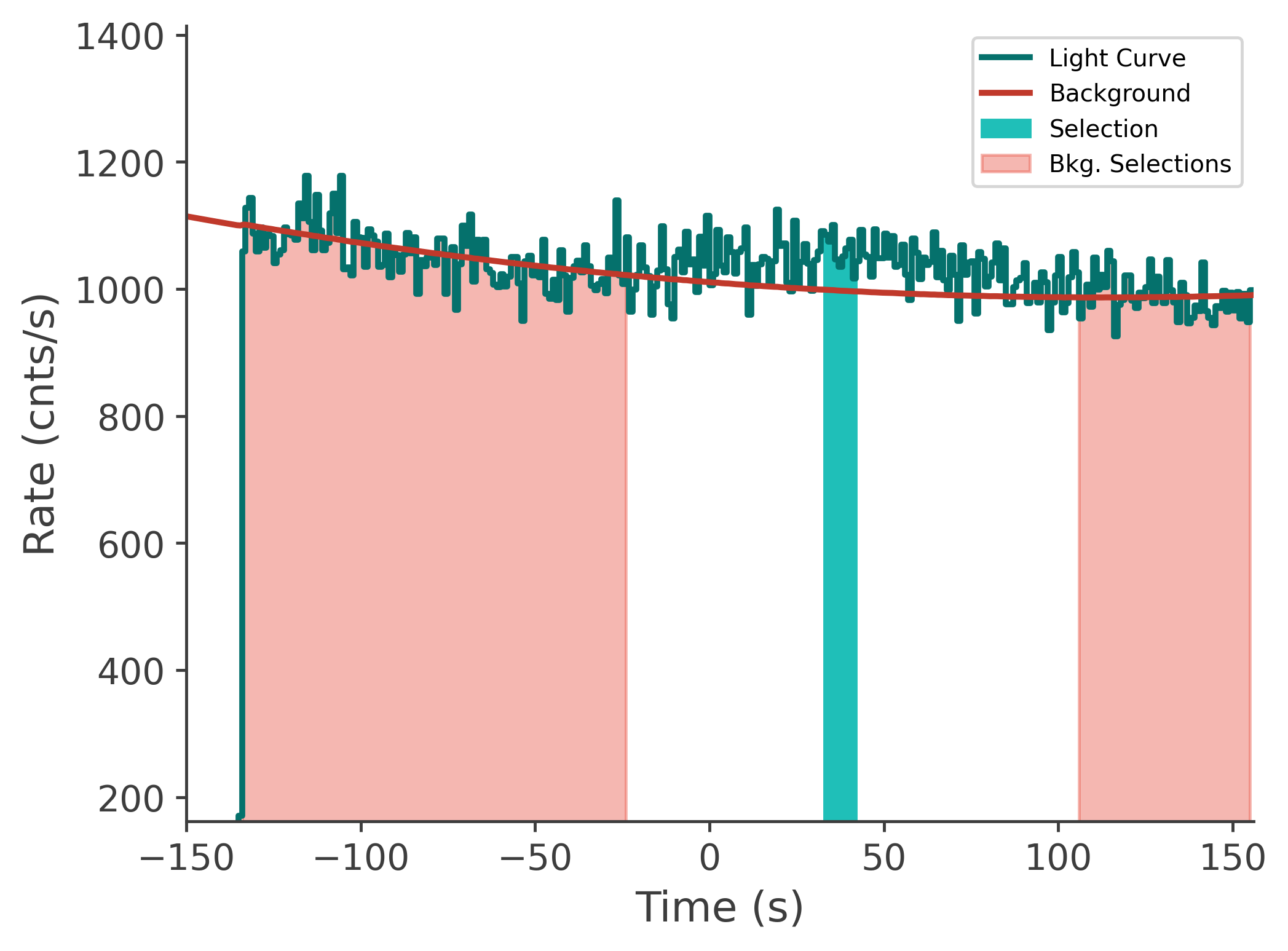

Light Curves
