GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 699975152 | |
| Trigger Time | March 08, 2023, 13:32:27 | |
| Data Timestamp | March 08, 2023, 13:41:39 | |
| Localization Timestamp | March 08, 2023, 13:55:14 | |
| Balrog Ra [deg] | 104.5 | 7.6 |
| Balrog Dec [deg] | 67.3 | 1.3 |
| Error radius 1 σ [deg] | 2.0 | |
| Error radius 2 σ [deg] | 3.9 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 1.2 | 0.17 |
| Spectral Parameter Index | -0.57 | 0.032 |
| Spectral Parameter XC [keV] | 7e+02 | 5e+01 |
| Satellite Phi [deg] | -93.62 | |
| Satellite Theta [deg] | 48.63 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 86.0% |
| Second most likely | DISTANT_PARTICLES 9.0% |
GRB Location Alert
GRB 230308A: BALROG localization (Fermi Trigger 699975152 / GRB 230308564)
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
699975152 at 13:32:27 on 08 March 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 104.5+/-7.6 deg
Decl.(2000.0) = 67.3+/-1.3 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230308564/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230308564/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230308564/json
F. Kunzweiler, B. Biltzinger, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
699975152 at 13:32:27 on 08 March 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 104.5+/-7.6 deg
Decl.(2000.0) = 67.3+/-1.3 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230308564/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230308564/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230308564/json

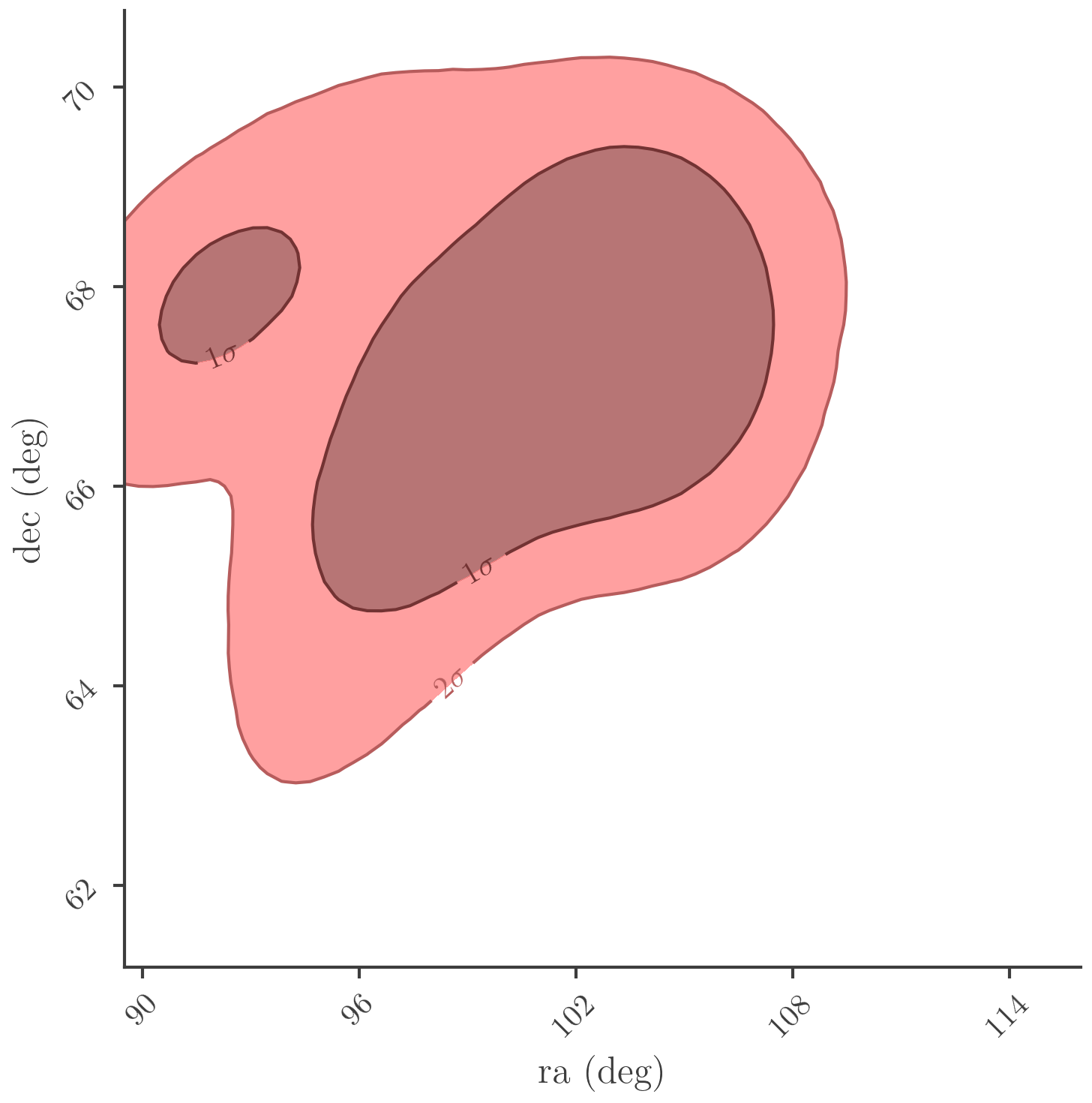

GRB Location
J2000 Coordinate Frame

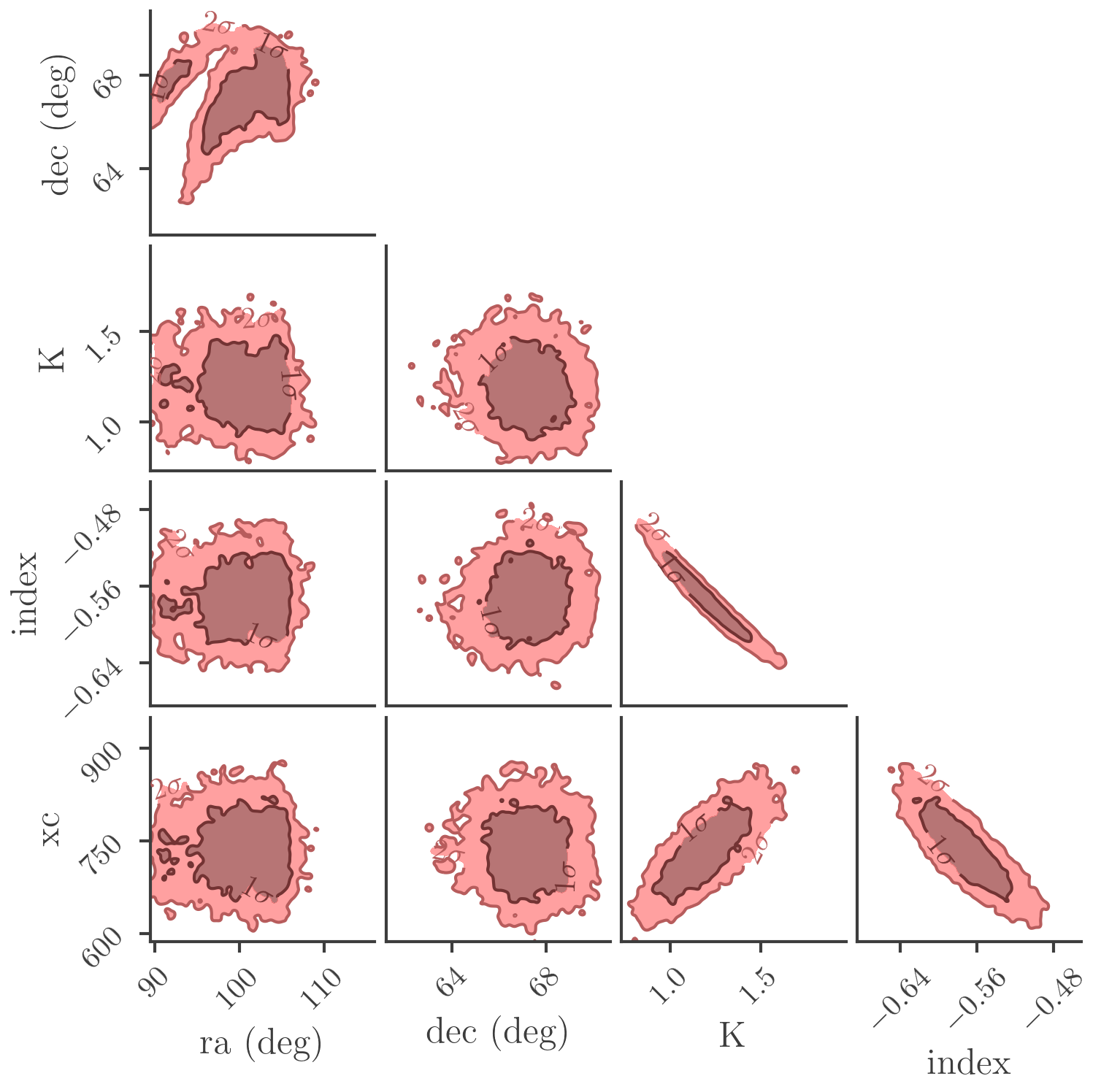

All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame

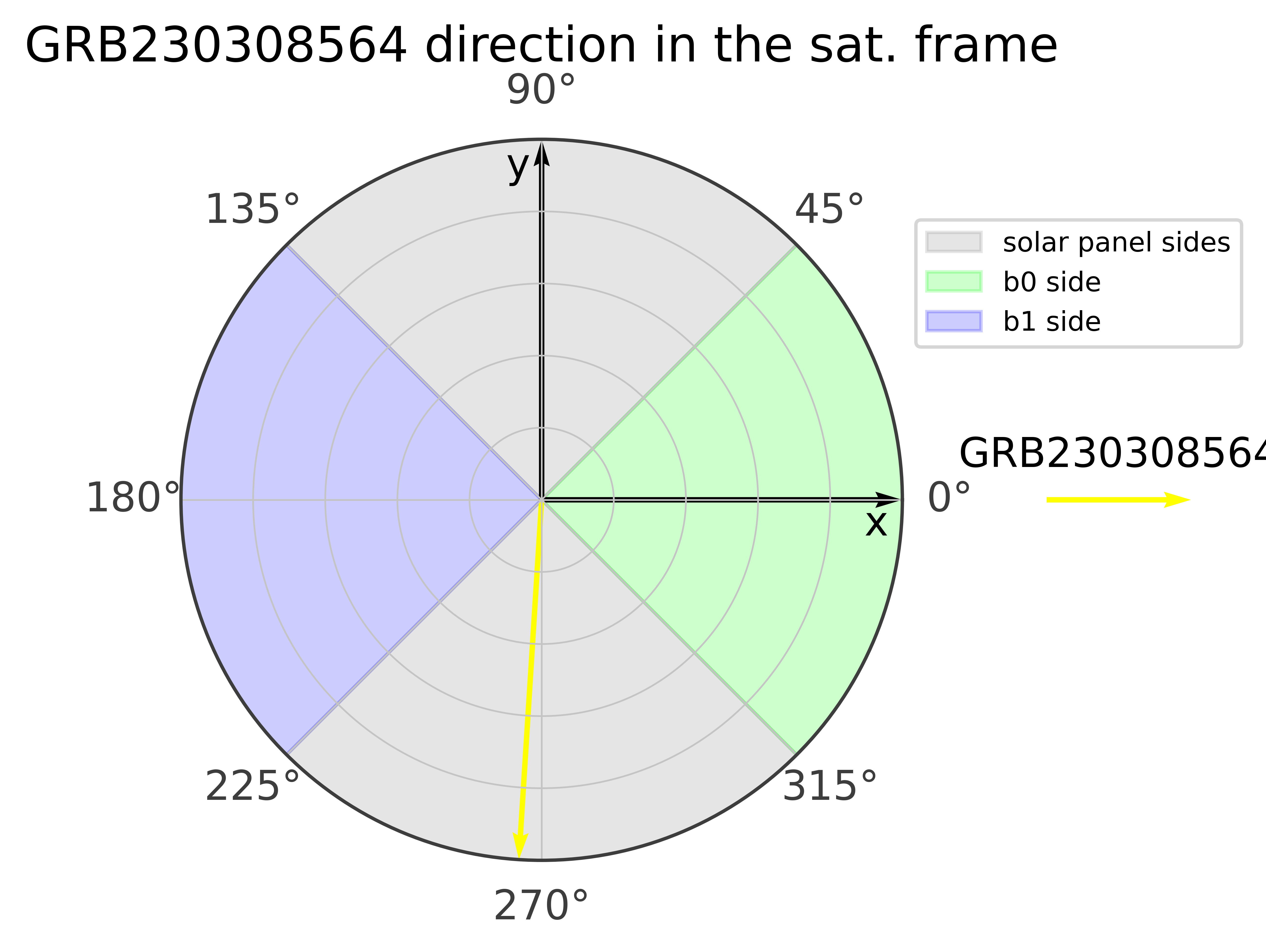

Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

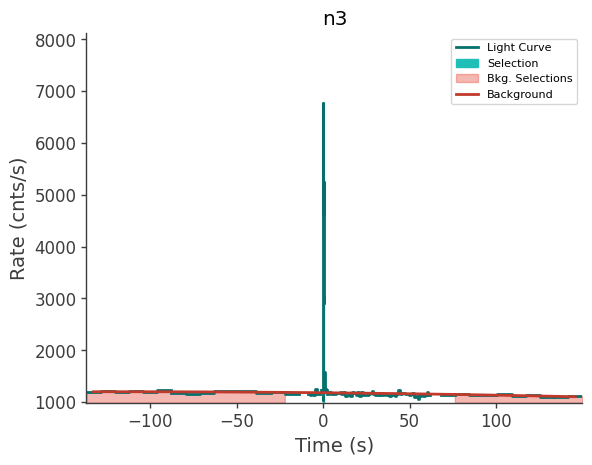

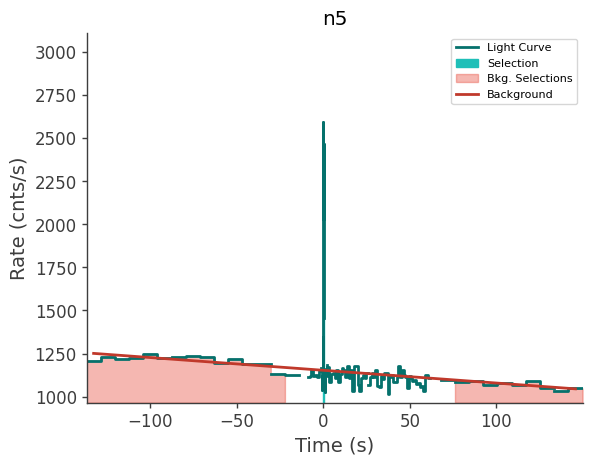

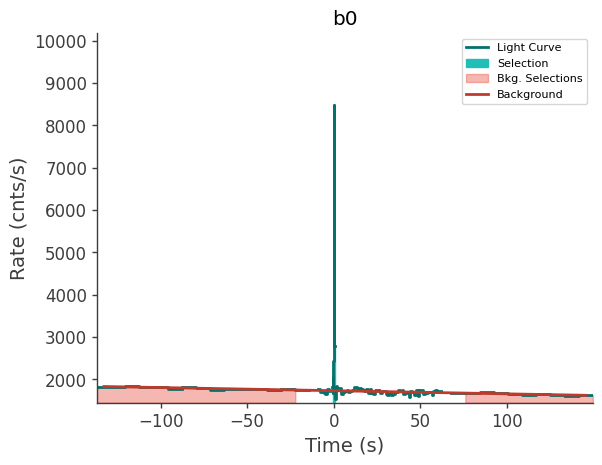

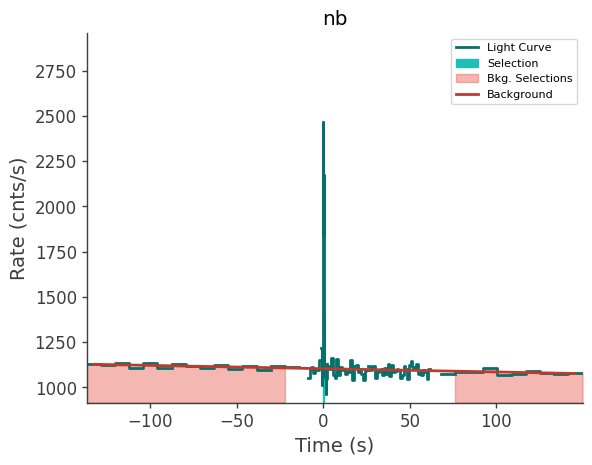

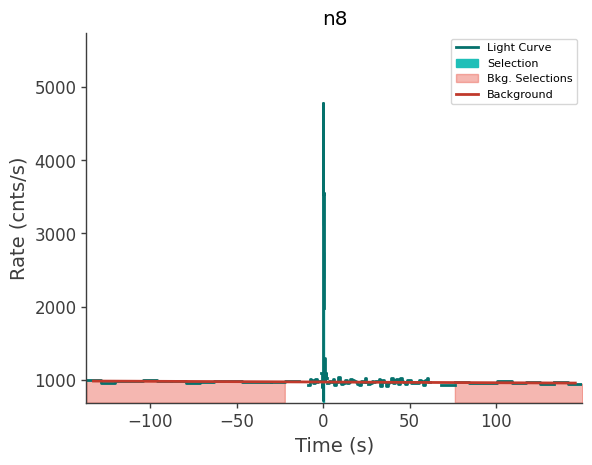

Light Curves
