GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 700400328 | |
| Trigger Time | March 13, 2023, 11:38:43 | |
| Data Timestamp | March 13, 2023, 11:45:25 | |
| Localization Timestamp | March 13, 2023, 20:20:33 | |
| Balrog Ra [deg] | 218.3 | 3.4 |
| Balrog Dec [deg] | 49.9 | 1.6 |
| Error radius 1 σ [deg] | 2.3 | |
| Error radius 2 σ [deg] | 3.5 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.05 | 0.01 |
| Spectral Parameter Alpha | -0.76 | 0.11 |
| Spectral Parameter Beta | -3.2 | 0.7 |
| Spectral Parameter XP | 98 | 8 |
| Satellite Phi [deg] | 118.54 | |
| Satellite Theta [deg] | -11.17 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 97.0% |
| Second most likely | GENERIC_SGR 1.0% |
GRB Location Alert
GRB 230313A: BALROG localization (Fermi Trigger 700400328 / GRB 230313485)
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
700400328 at 11:38:43 on 13 March 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 201.0+/-2.1 deg
Decl.(2000.0) = 52.3+/-2.3 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230313485/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230313485/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230313485/json
B. Biltzinger, F. Kunzweiler, F. Berlato, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
700400328 at 11:38:43 on 13 March 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 201.0+/-2.1 deg
Decl.(2000.0) = 52.3+/-2.3 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230313485/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230313485/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230313485/json

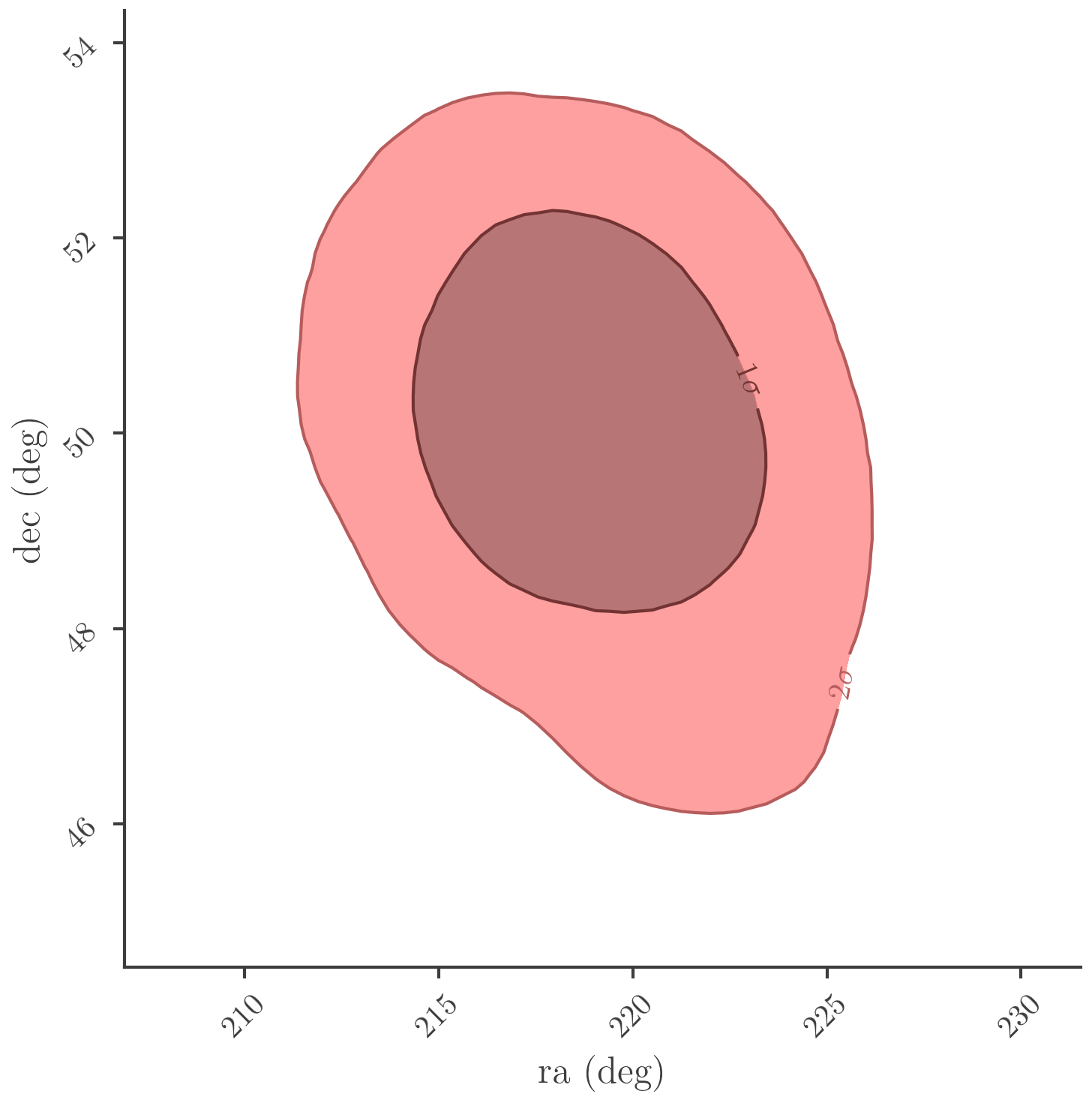

GRB Location
J2000 Coordinate Frame

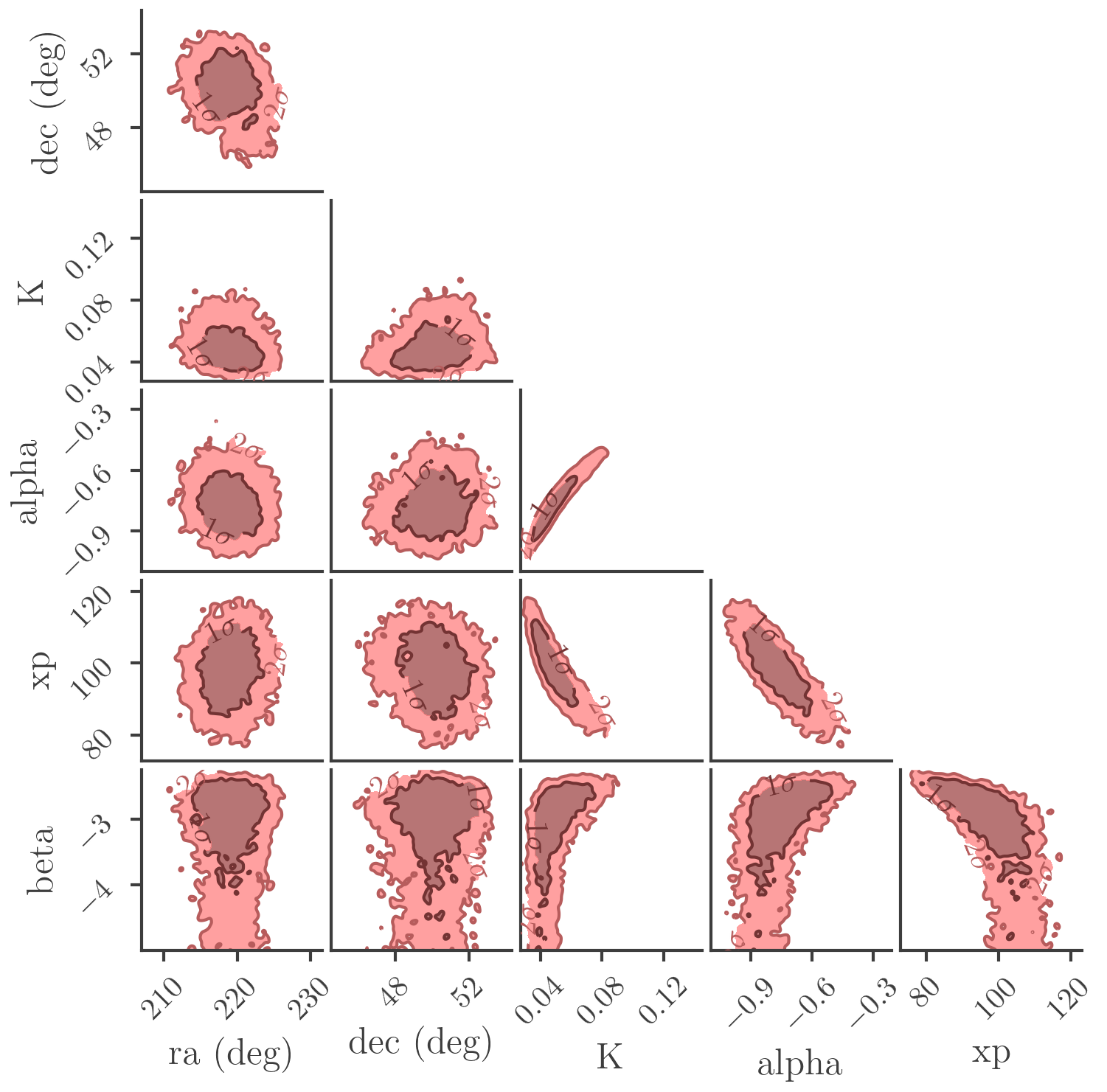

All Corner Plot
J2000 Coordinate Frame

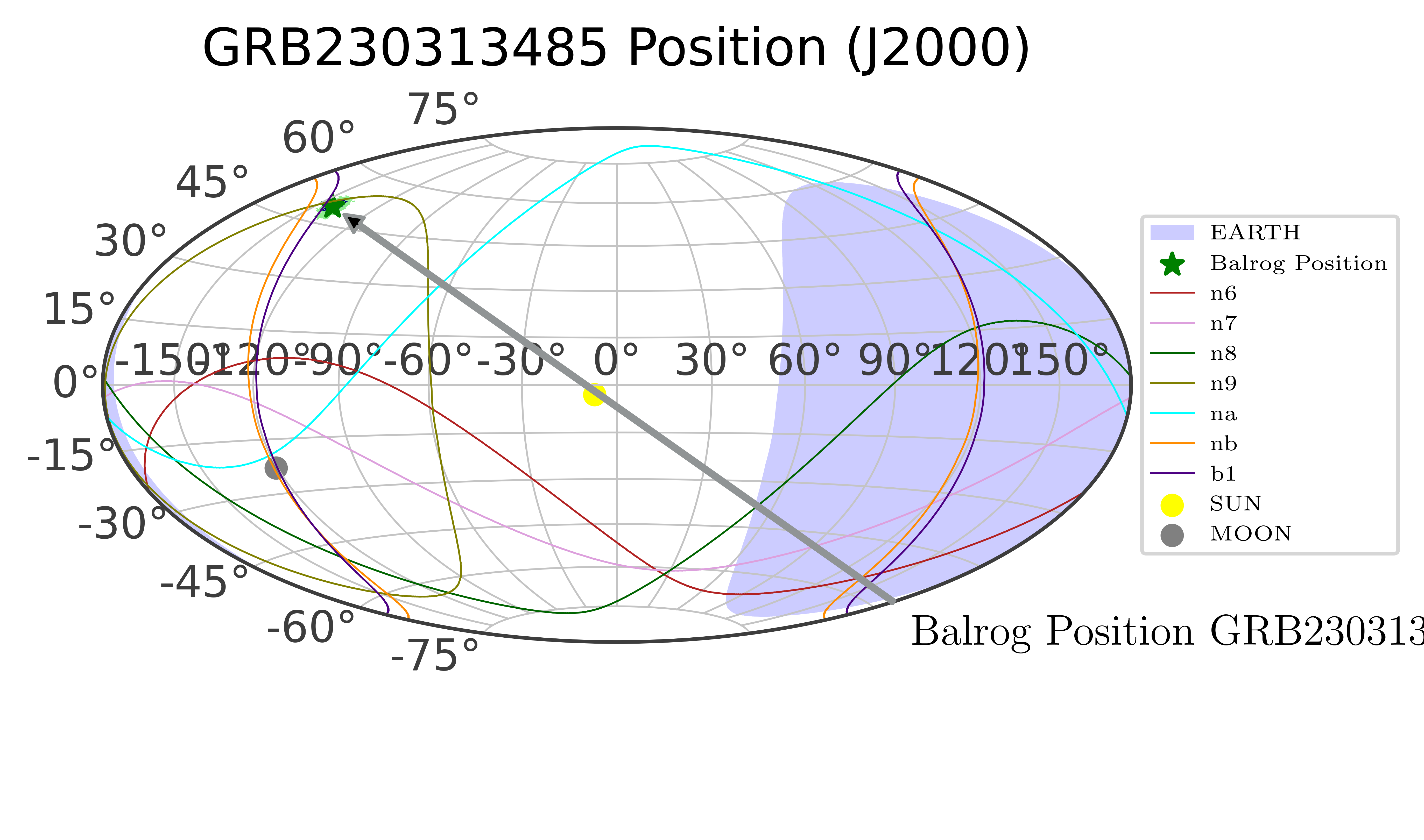

Moll Location Plot
J2000 Coordinate Frame
Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

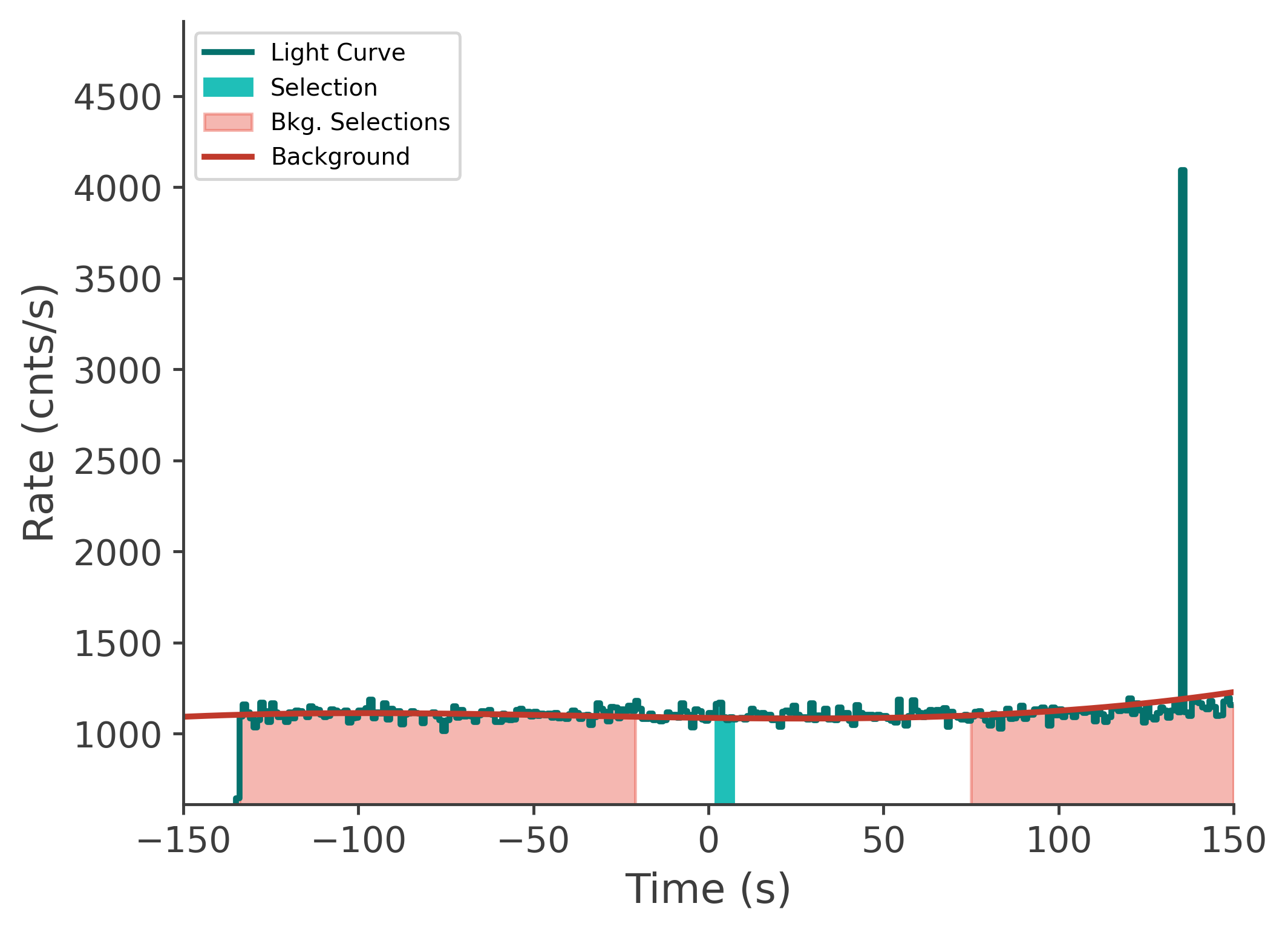

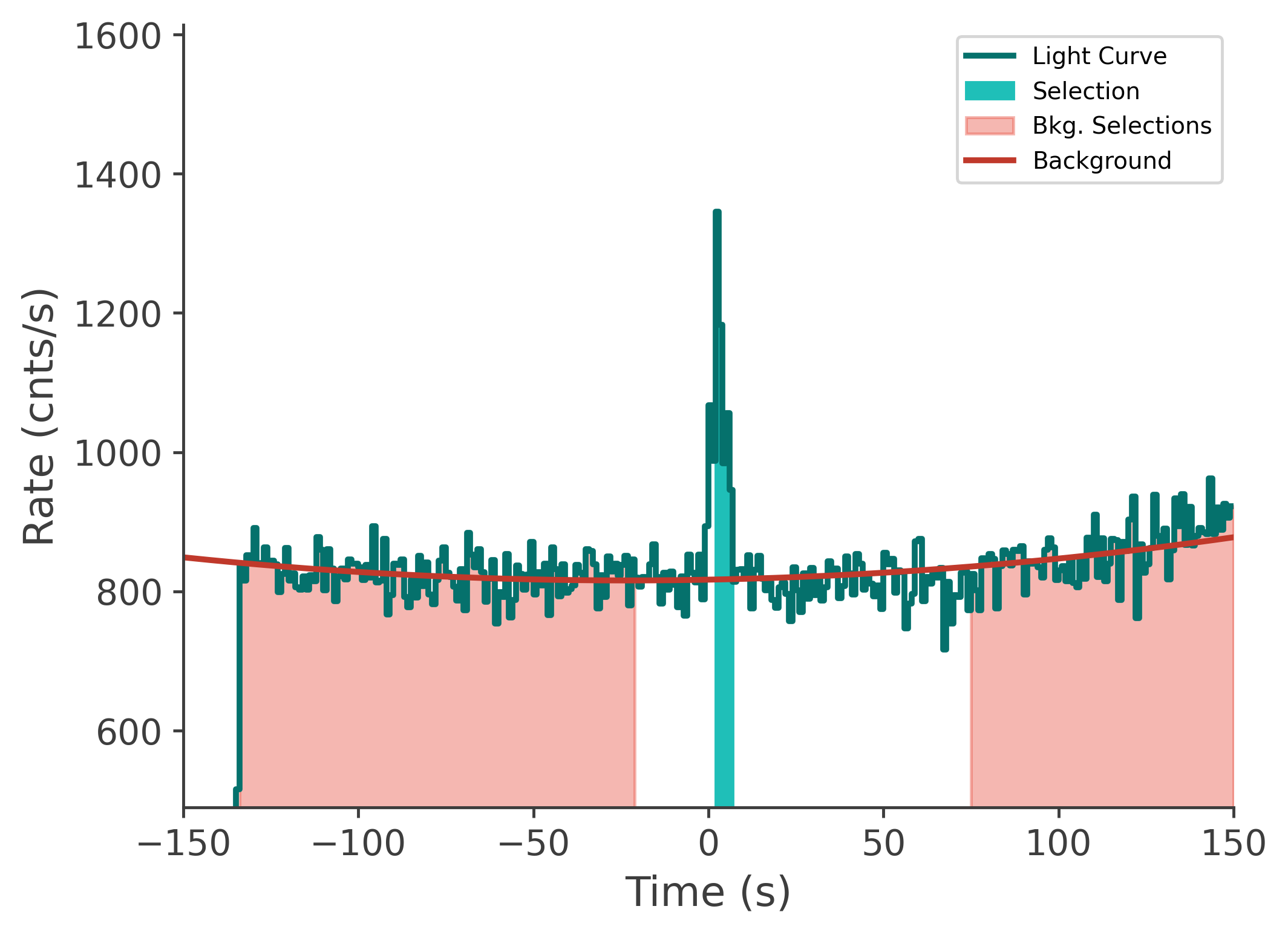

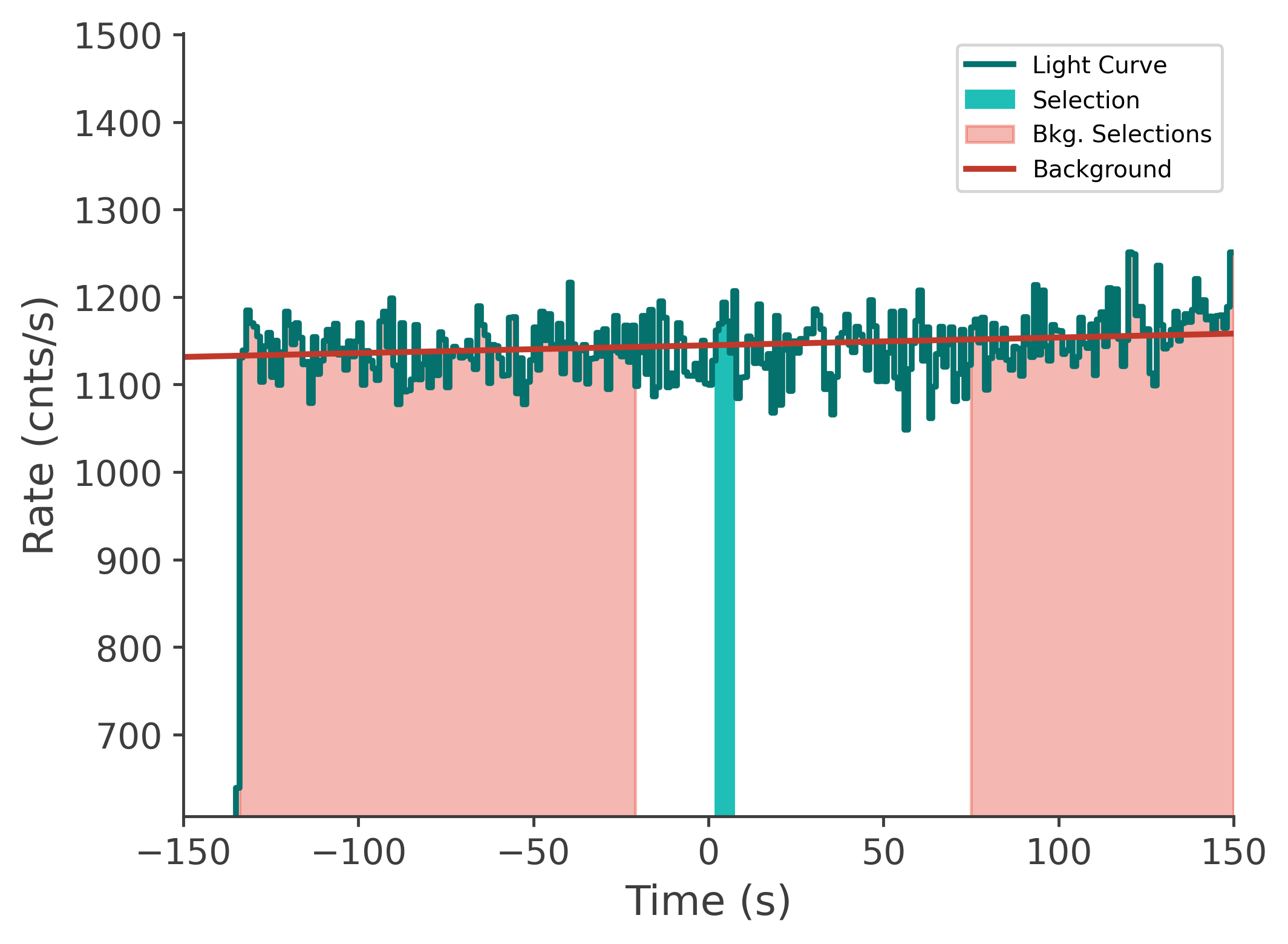

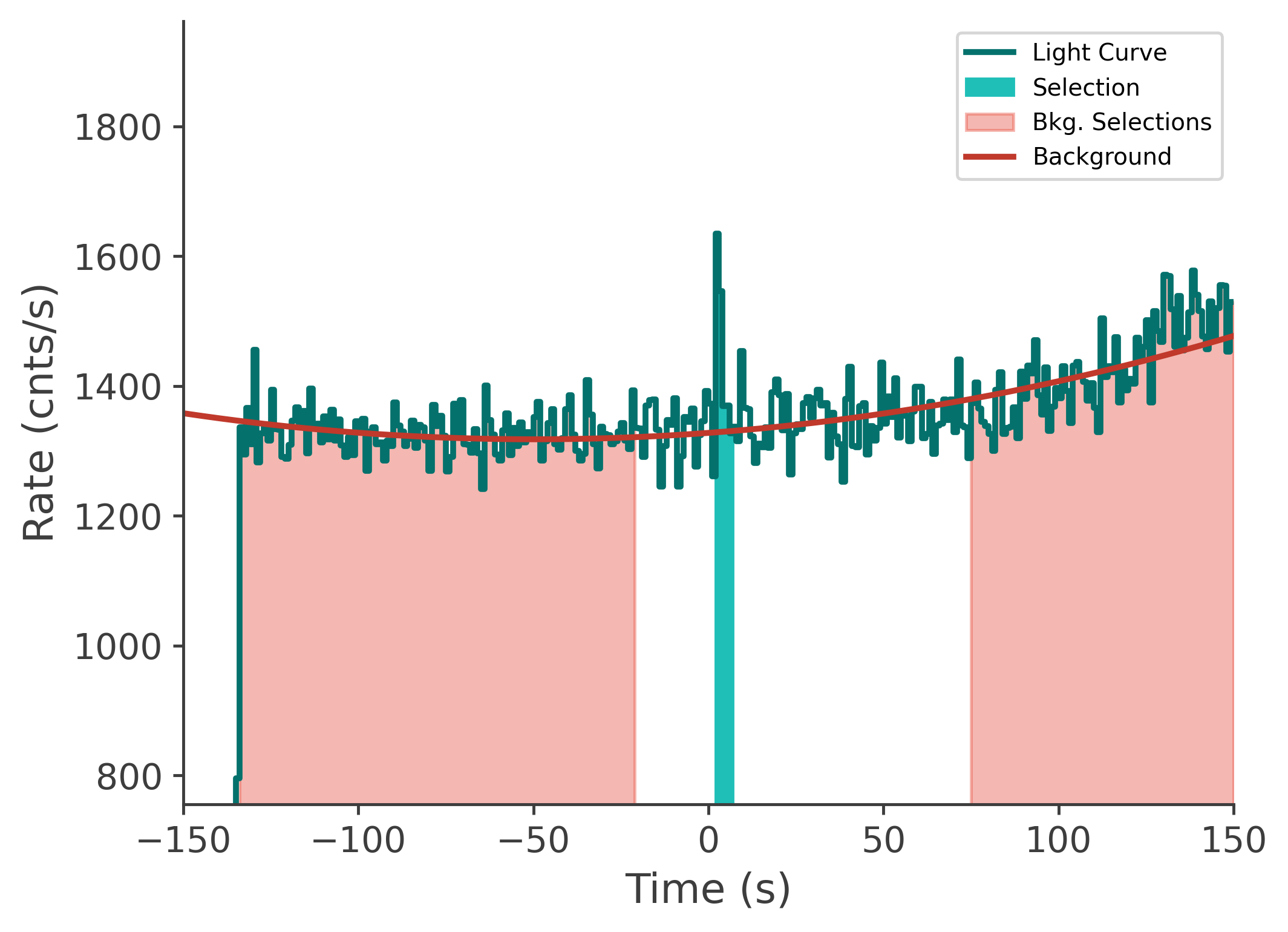

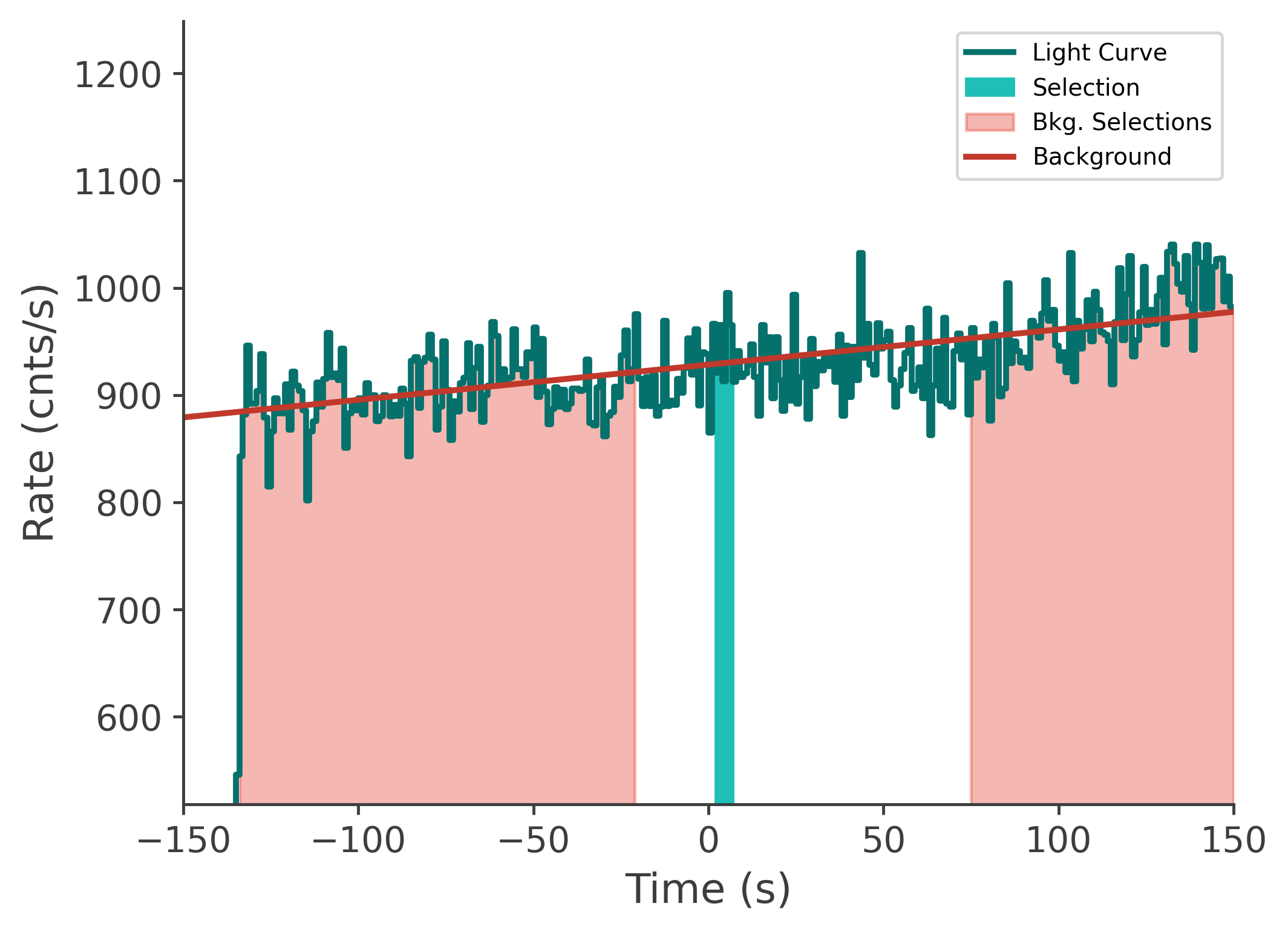

Light Curves
