GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 738511436 | |
| Trigger Time | May 27, 2024, 14:03:51 | |
| Data Timestamp | May 27, 2024, 14:14:20 | |
| Localization Timestamp | May 27, 2024, 19:11:16 | |
| Balrog Ra [deg] | 127.6 | 1.5 |
| Balrog Dec [deg] | -14.9 | 1.5 |
| Error radius 1 σ [deg] | 3.1 | |
| Error radius 2 σ [deg] | 5.2 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.023 | 0.0028 |
| Spectral Parameter Alpha | -0.98 | 0.082 |
| Spectral Parameter Beta | -2.1 | 0.99 |
| Spectral Parameter XP | 2.7e+02 | 72 |
| Satellite Phi [deg] | -76.20 | |
| Satellite Theta [deg] | 13.39 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 63.0% |
| Second most likely | DISTANT_PARTICLES 35.0% |
GRB Location Alert
To circulars@gcn.nasa.gov
GRB 240527B: BALROG localization (Fermi Trigger 738511436 / GRB 240527586)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
738511436 at 14:03:51 on 27 May 2024 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position is:
RA(2000.0) = 128.0 deg
Decl.(2000.0) = -15.2 deg
The 1 sigma statistical error radius is 3.4 deg.
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB240527586/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB240527586/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB240527586/json
GRB 240527B: BALROG localization (Fermi Trigger 738511436 / GRB 240527586)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
738511436 at 14:03:51 on 27 May 2024 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position is:
RA(2000.0) = 128.0 deg
Decl.(2000.0) = -15.2 deg
The 1 sigma statistical error radius is 3.4 deg.
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB240527586/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB240527586/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB240527586/json
GRB Location
J2000 Coordinate Frame
All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame

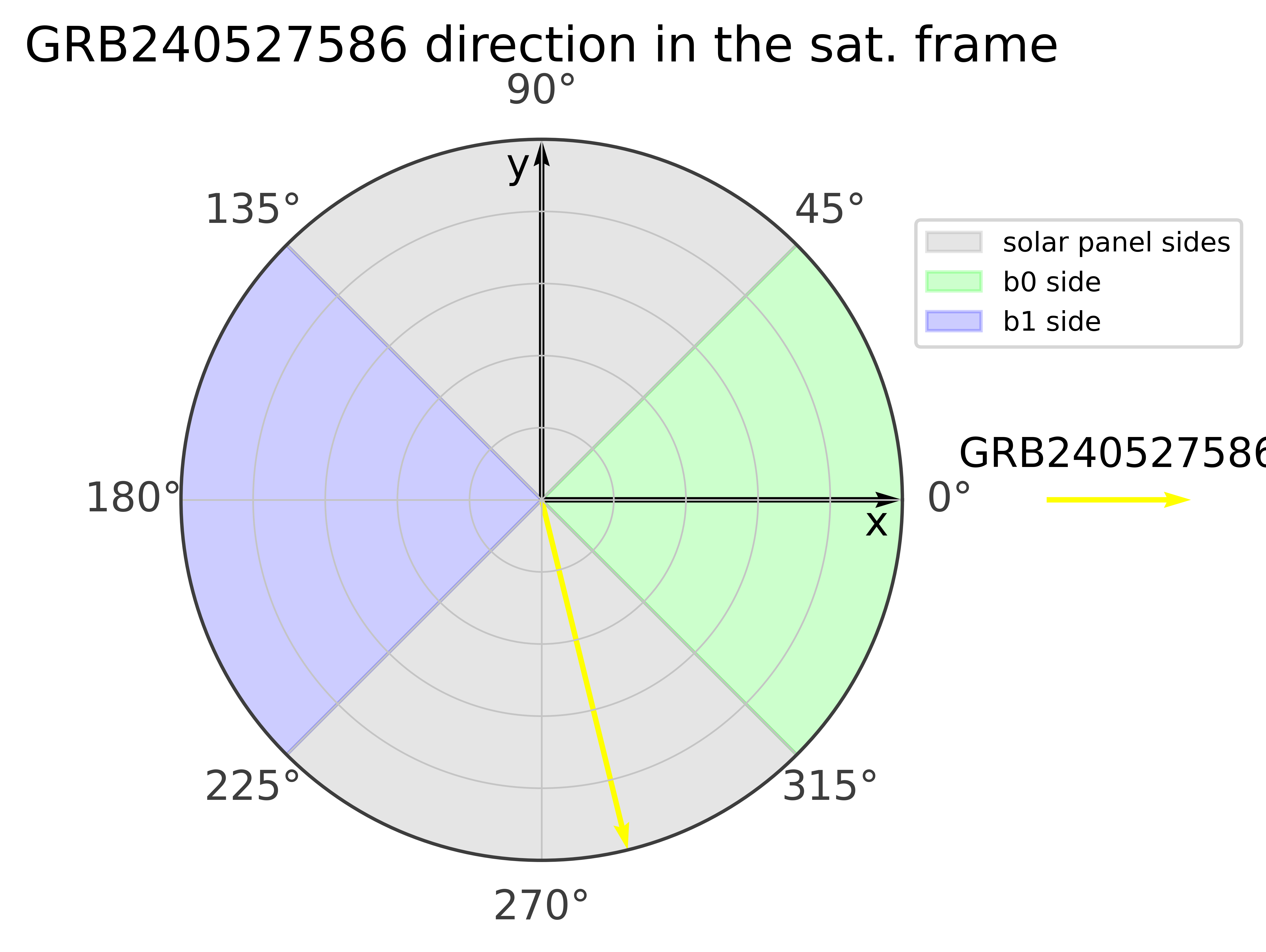

Satellite
Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

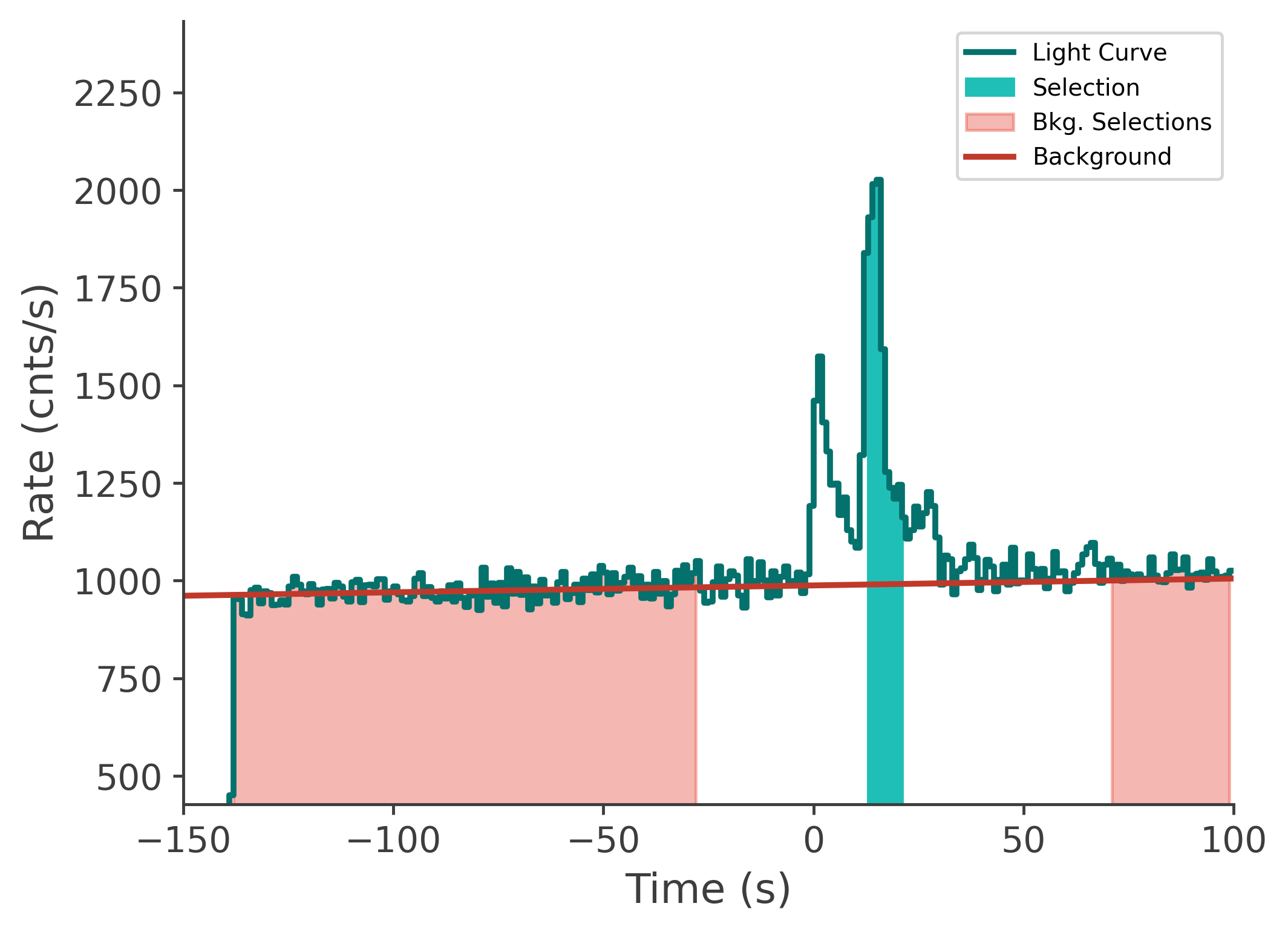

Light Curves
