GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 756648531 | |
| Trigger Time | Dec. 23, 2024, 12:08:46 | |
| Data Timestamp | Dec. 23, 2024, 12:18:16 | |
| Localization Timestamp | Dec. 24, 2024, 04:42:43 | |
| Balrog Ra [deg] | 161.8 | 0.5 |
| Balrog Dec [deg] | -33.0 | 0.3 |
| Error radius 1 σ [deg] | 1.0 | |
| Error radius 2 σ [deg] | 1.2 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.12 | 0.0031 |
| Spectral Parameter Alpha | -0.66 | 0.018 |
| Spectral Parameter Beta | -2.8 | 0.21 |
| Spectral Parameter XP | 3.1e+02 | 10 |
| Satellite Phi [deg] | 76.12 | |
| Satellite Theta [deg] | 20.30 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 96.0% |
| Second most likely | GENERIC_TRANSIENT 3.0% |
GRB Location Alert
To circulars@gcn.nasa.gov
GRB 241223A: BALROG localization (Fermi Trigger 756648531 / GRB 241223506)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
756648531 at 12:08:46 on 23 Dec. 2024 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position is:
RA(2000.0) = 160.4 deg
Decl.(2000.0) = -34.3 deg
The 1 sigma statistical error radius is 0.8 deg.
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB241223506/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB241223506/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB241223506/json
GRB 241223A: BALROG localization (Fermi Trigger 756648531 / GRB 241223506)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
756648531 at 12:08:46 on 23 Dec. 2024 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position is:
RA(2000.0) = 160.4 deg
Decl.(2000.0) = -34.3 deg
The 1 sigma statistical error radius is 0.8 deg.
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB241223506/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB241223506/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB241223506/json

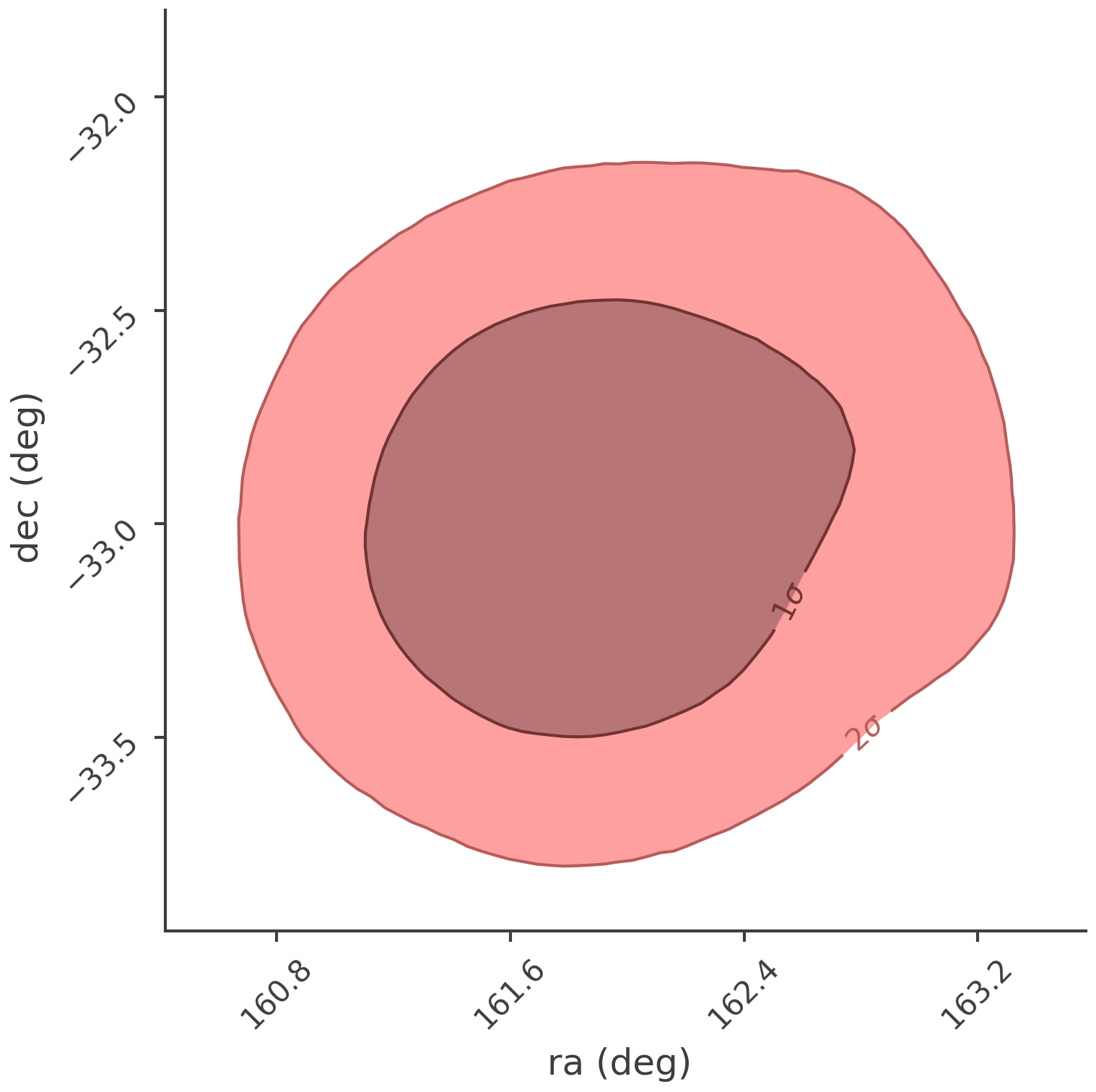

GRB Location
J2000 Coordinate Frame

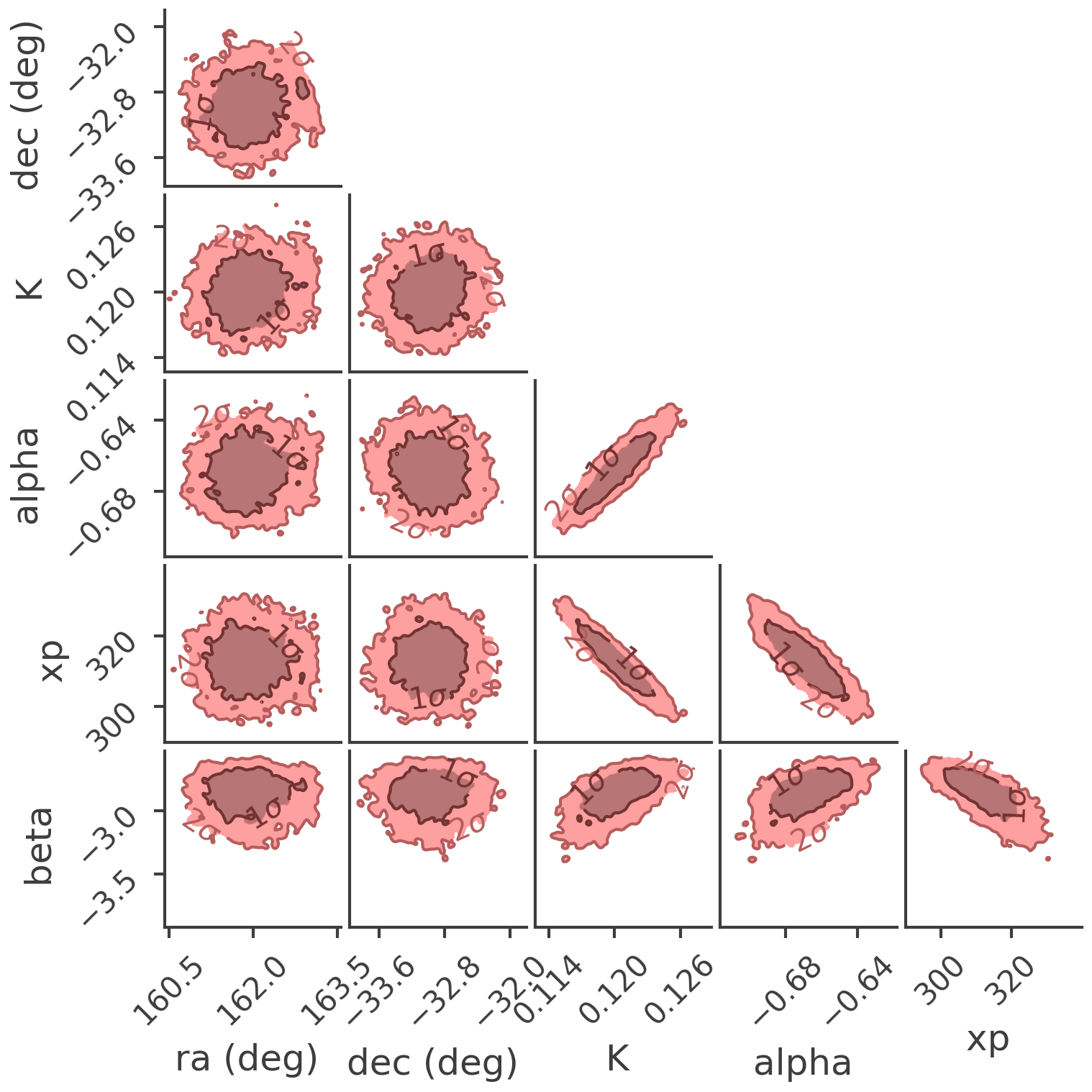

All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame
Satellite

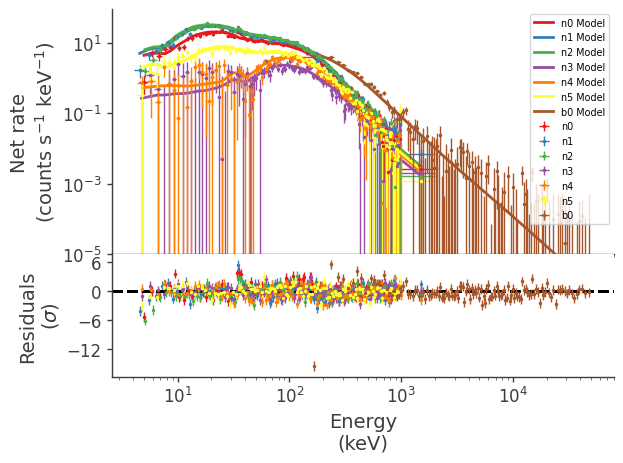

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

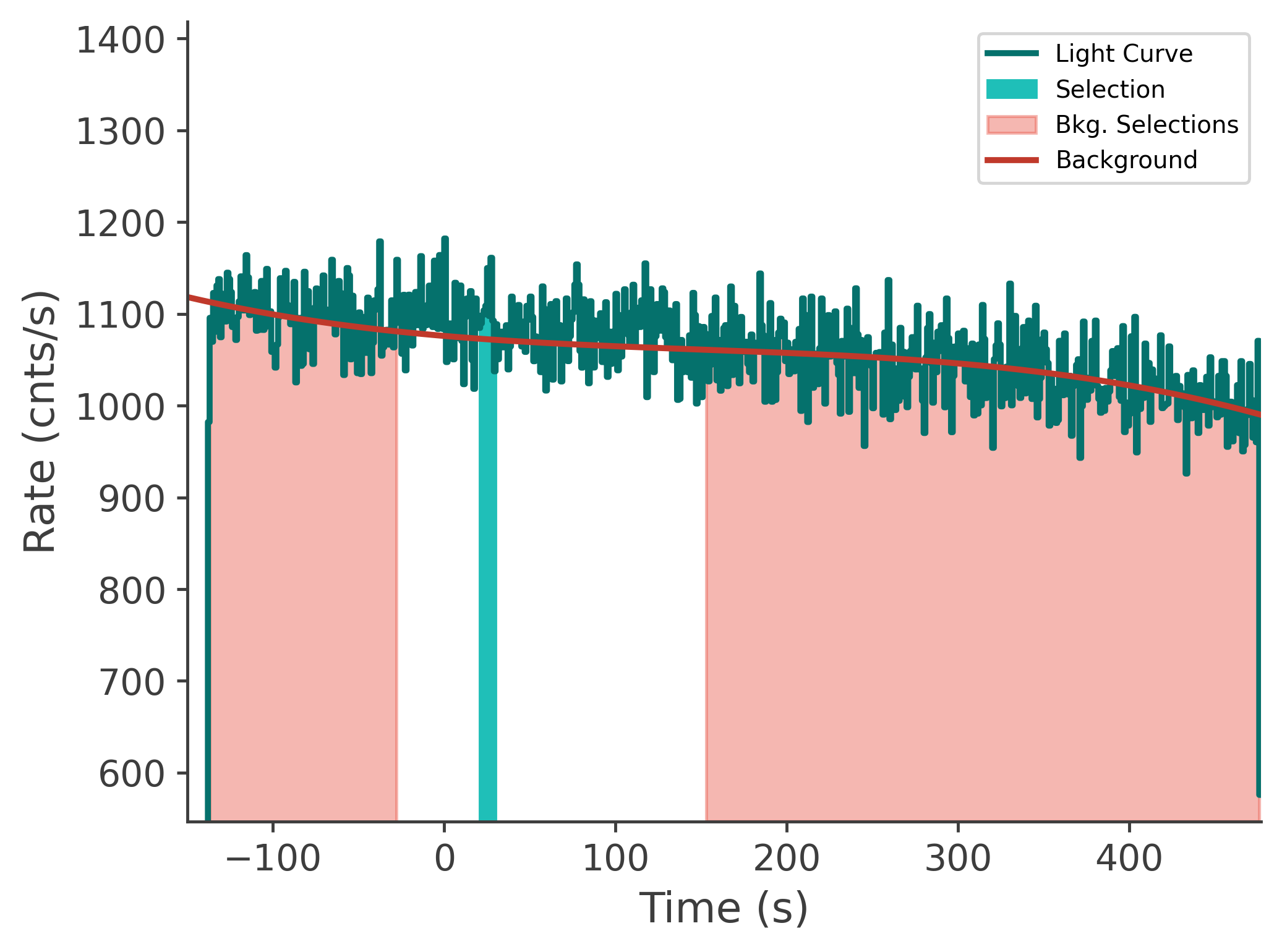

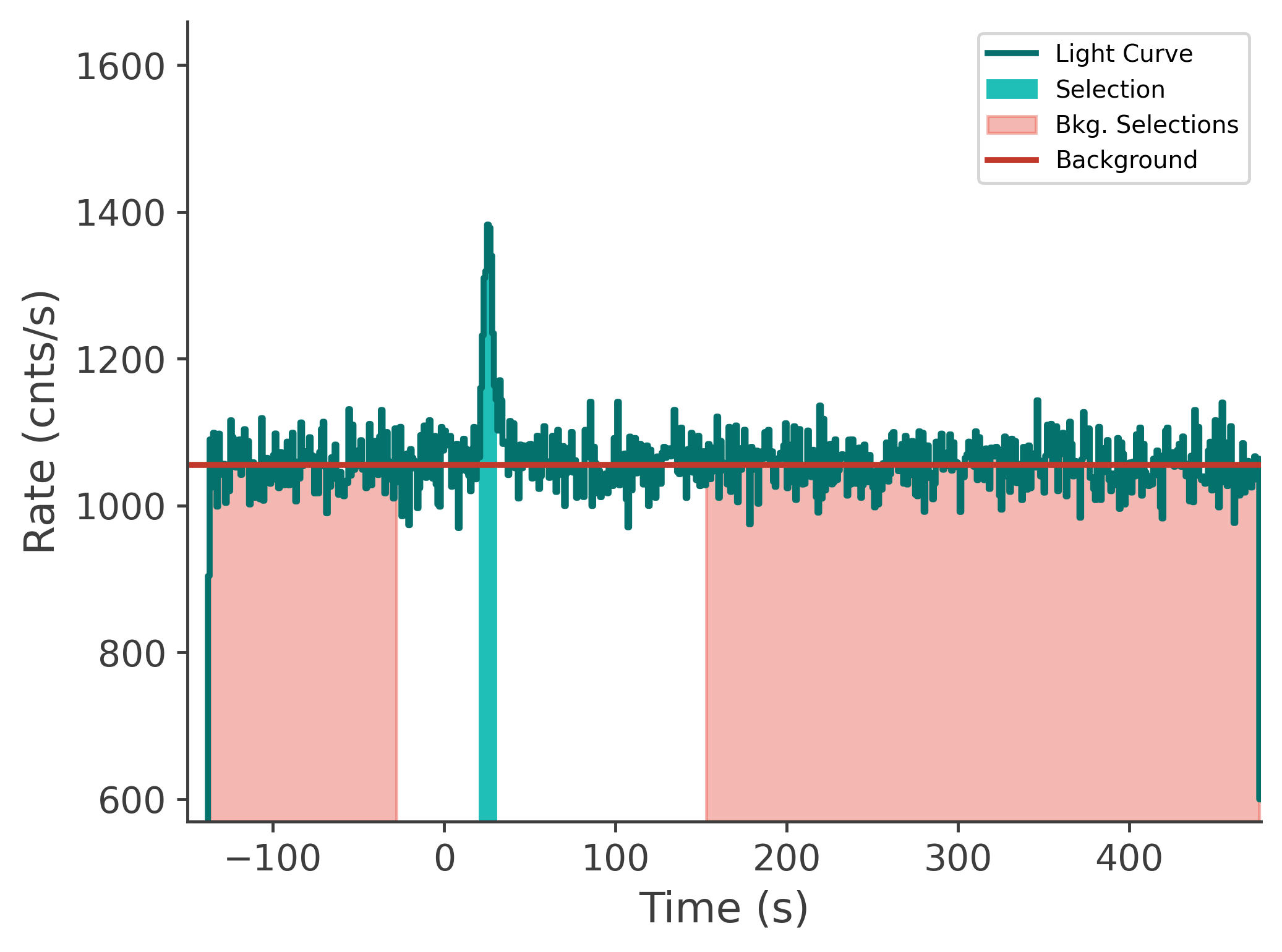

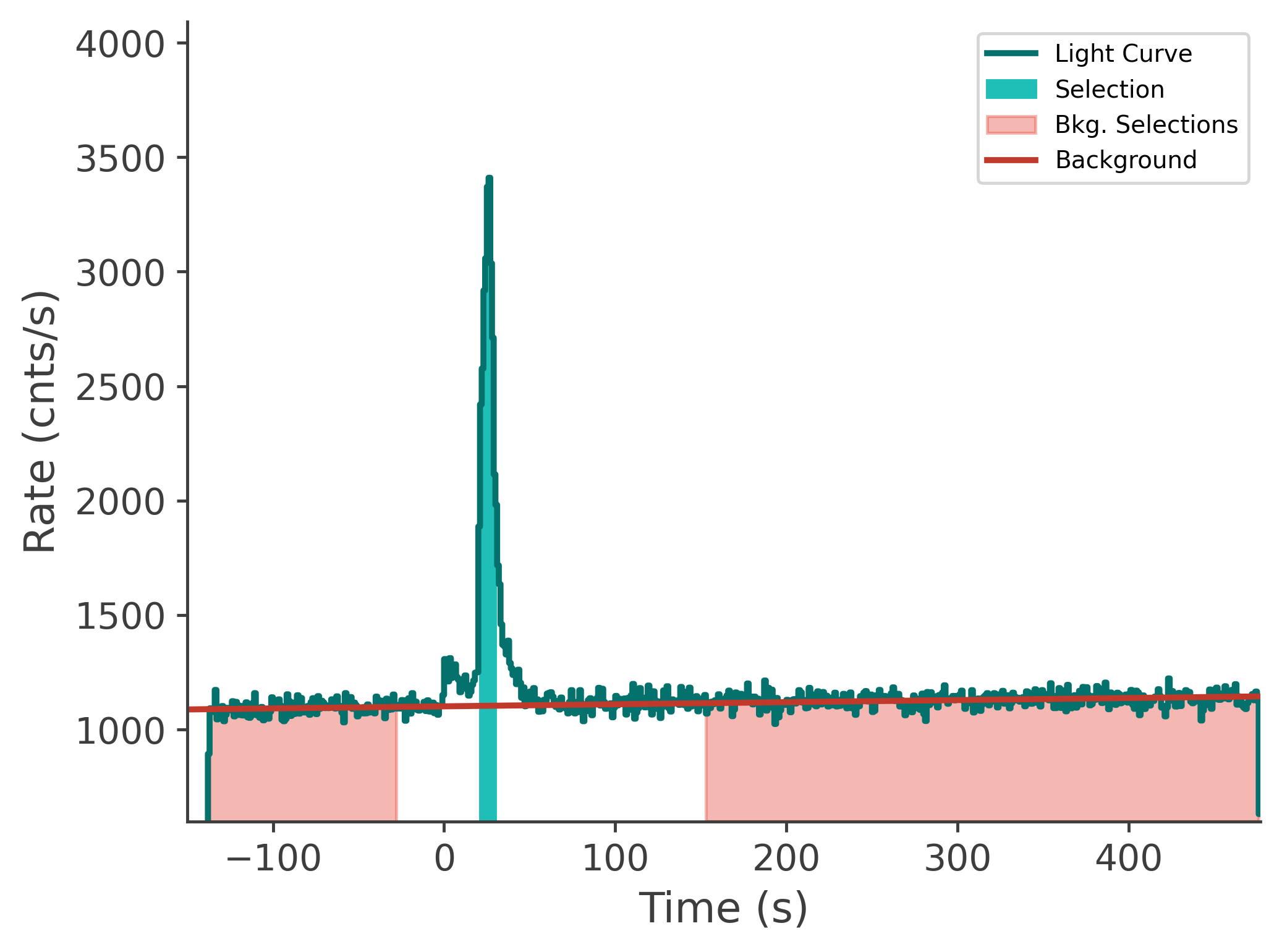

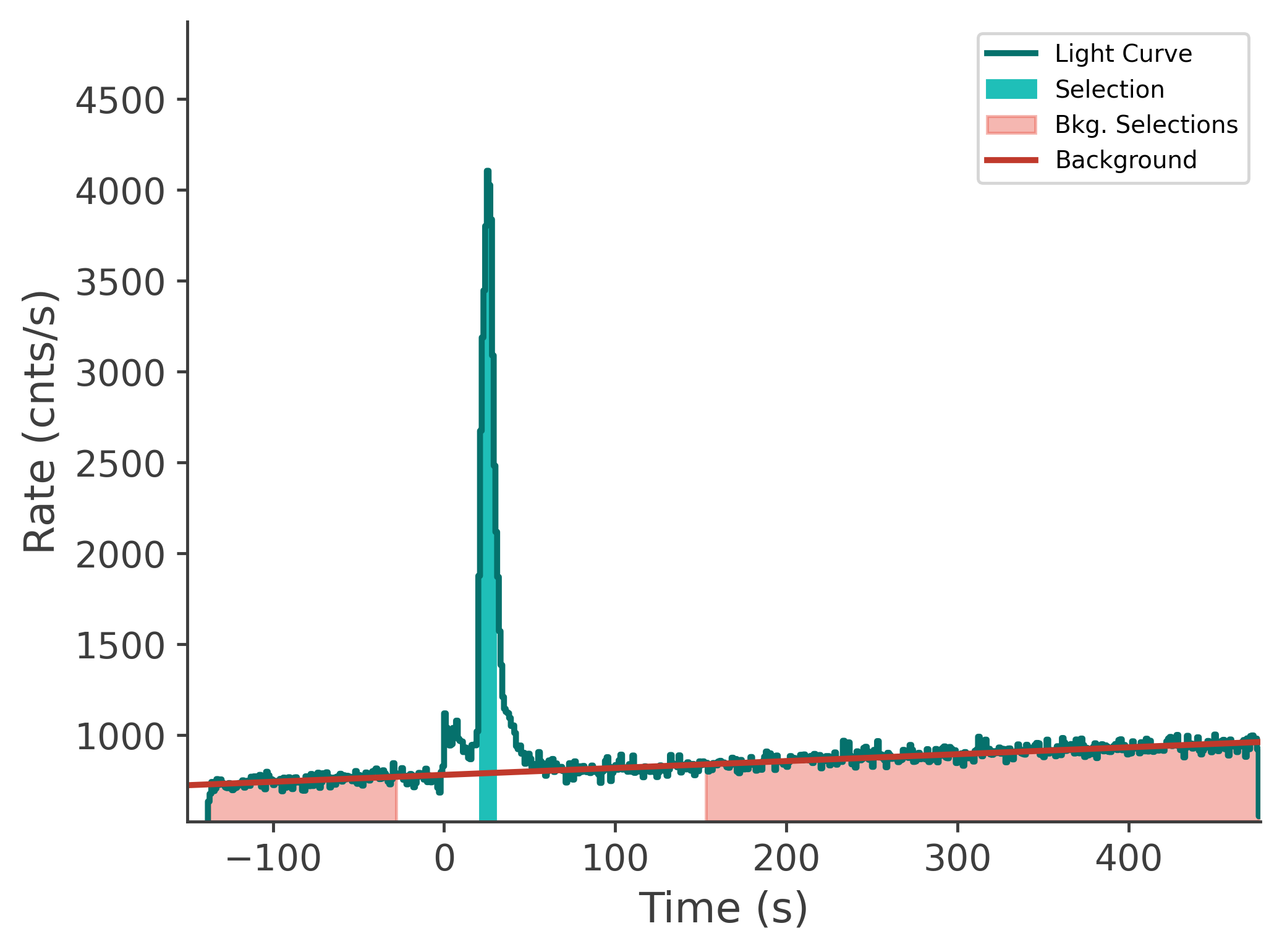

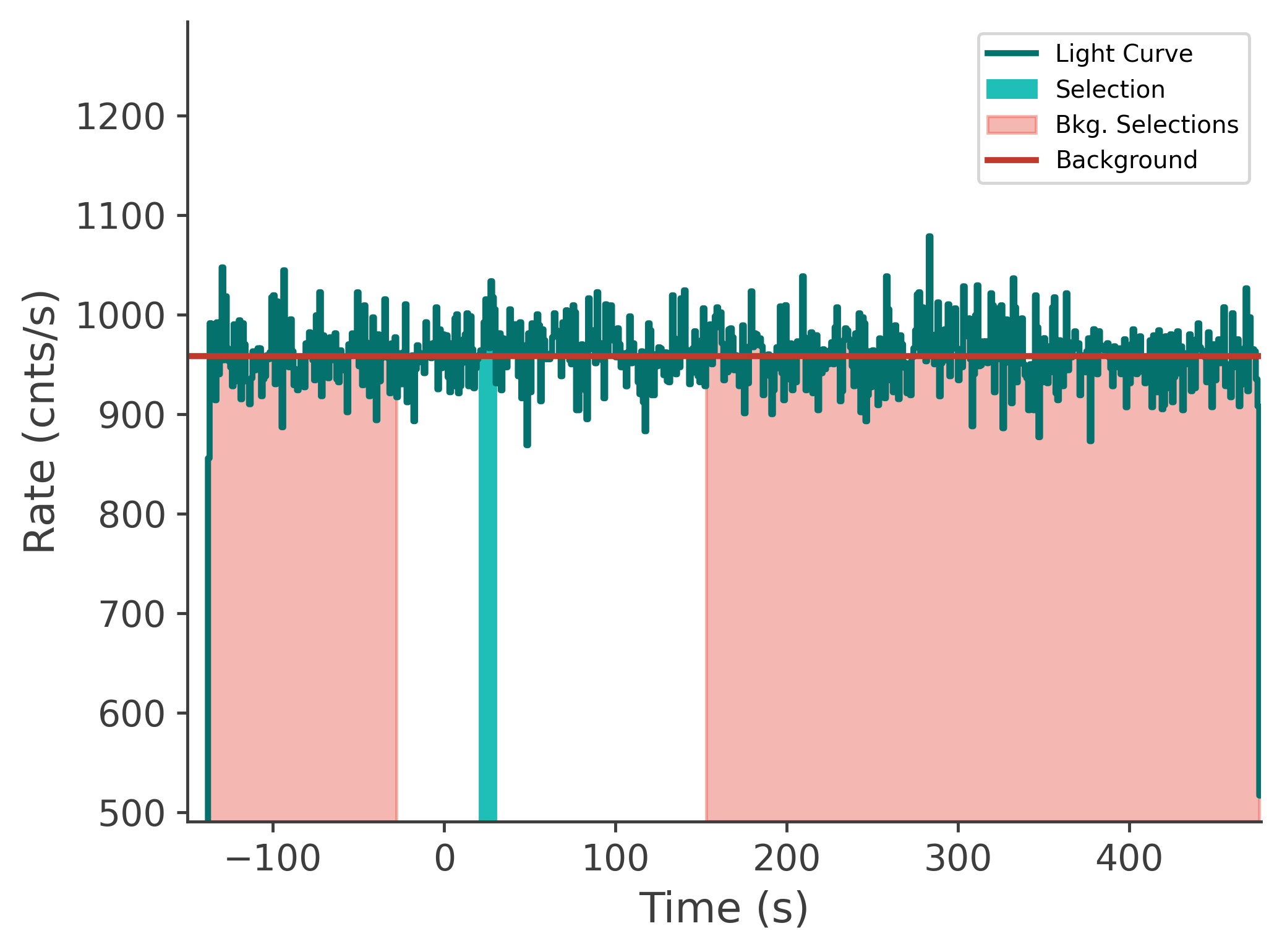

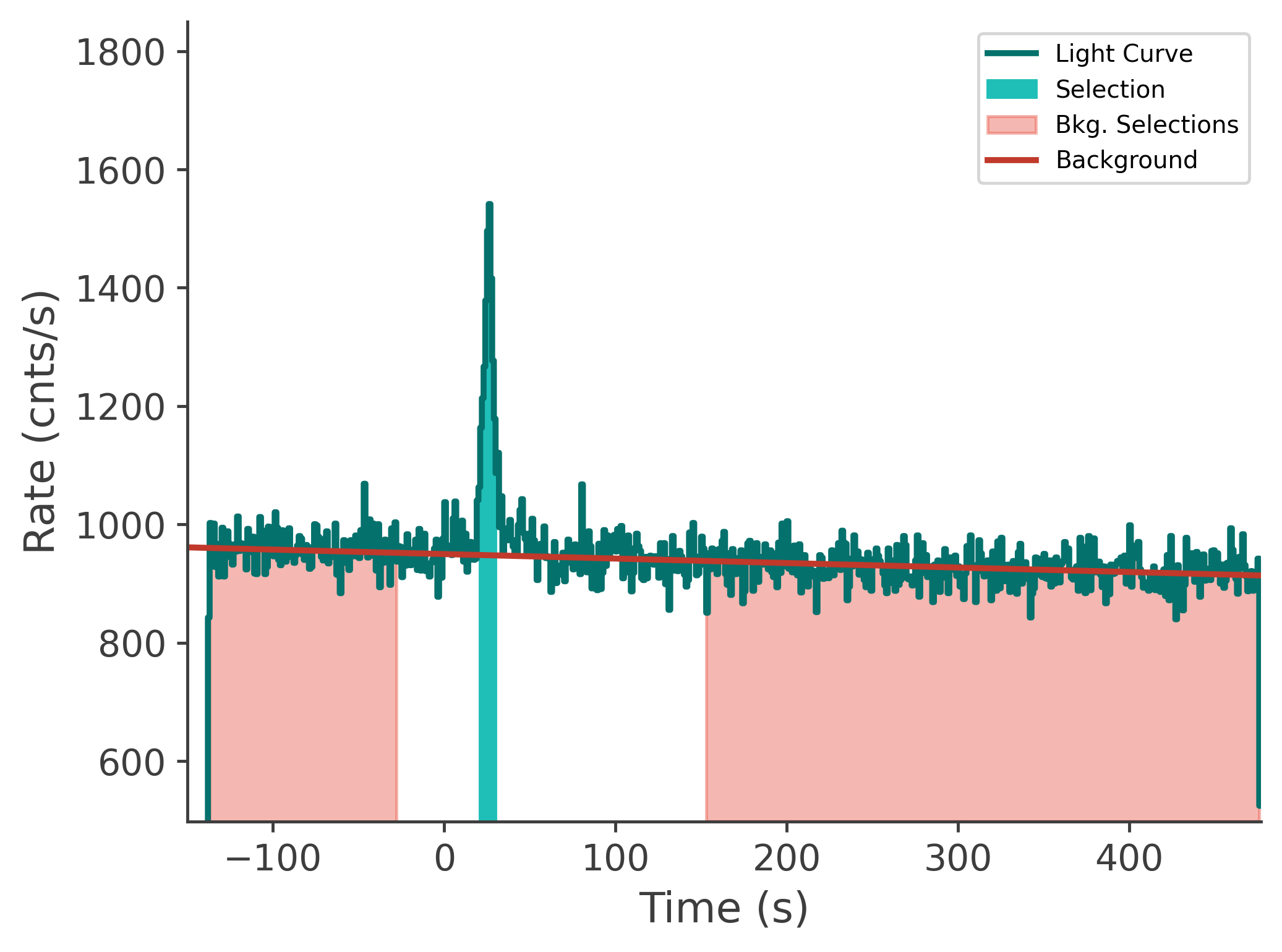

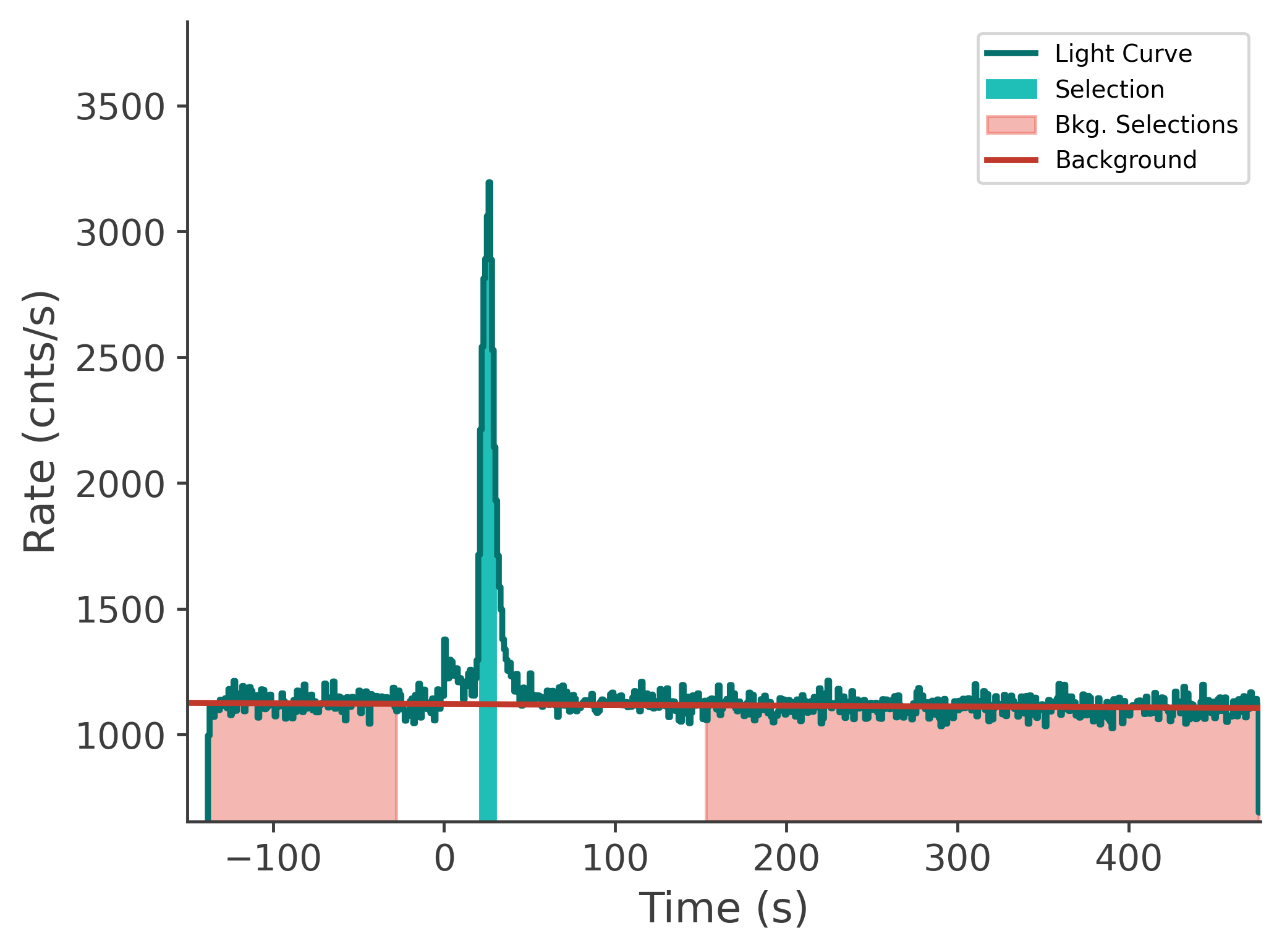

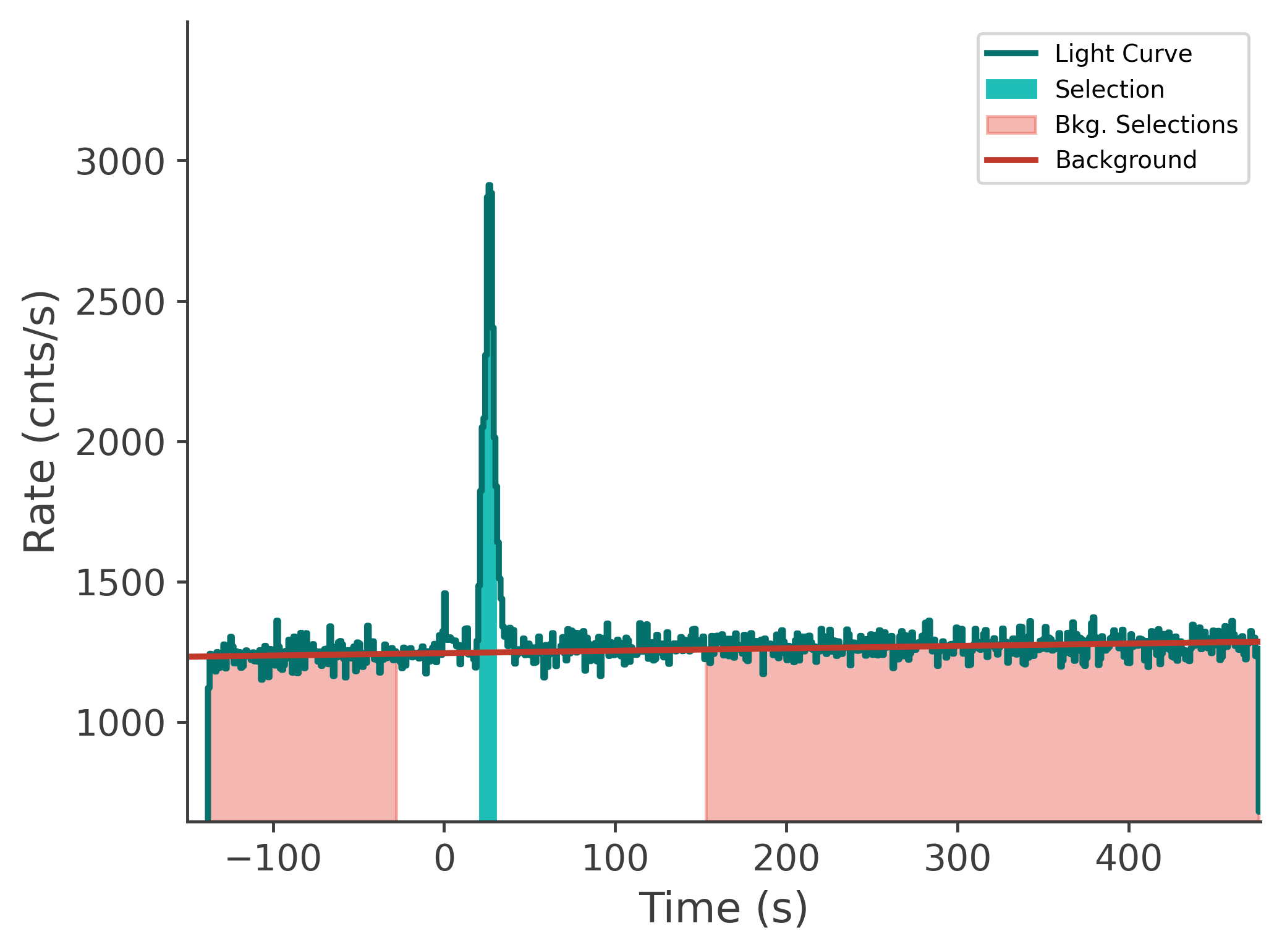

Light Curves
