GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 709676556 | |
| Trigger Time | June 28, 2023, 20:22:31 | |
| Data Timestamp | June 28, 2023, 20:31:31 | |
| Localization Timestamp | June 29, 2023, 01:53:13 | |
| Balrog Ra [deg] | 174.8 | 1.3 |
| Balrog Dec [deg] | 4.5 | 1.2 |
| Error radius 1 σ [deg] | 1.9 | |
| Error radius 2 σ [deg] | 3.5 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | band_function | |
| Spectral Parameter K [photons/cm^2/keV*s] | 0.018 | 0.0025 |
| Spectral Parameter Alpha | -1.4 | 0.068 |
| Spectral Parameter Beta | -3.6 | 1 |
| Spectral Parameter XP | 80 | 5.4 |
| Satellite Phi [deg] | 60.52 | |
| Satellite Theta [deg] | 61.04 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 85.0% |
| Second most likely | GENERIC_SGR 14.0% |
GRB Location Alert
To circulars@gcn.nasa.gov
GRB 230628D: BALROG localization (Fermi Trigger 709676556 / GRB 230628849)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
709676556 at 20:22:31 on 28 June 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 177.0+/-1.2 deg
Decl.(2000.0) = 3.0+/-1.1 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230628849/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230628849/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230628849/json
GRB 230628D: BALROG localization (Fermi Trigger 709676556 / GRB 230628849)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
709676556 at 20:22:31 on 28 June 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 177.0+/-1.2 deg
Decl.(2000.0) = 3.0+/-1.1 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230628849/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230628849/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230628849/json

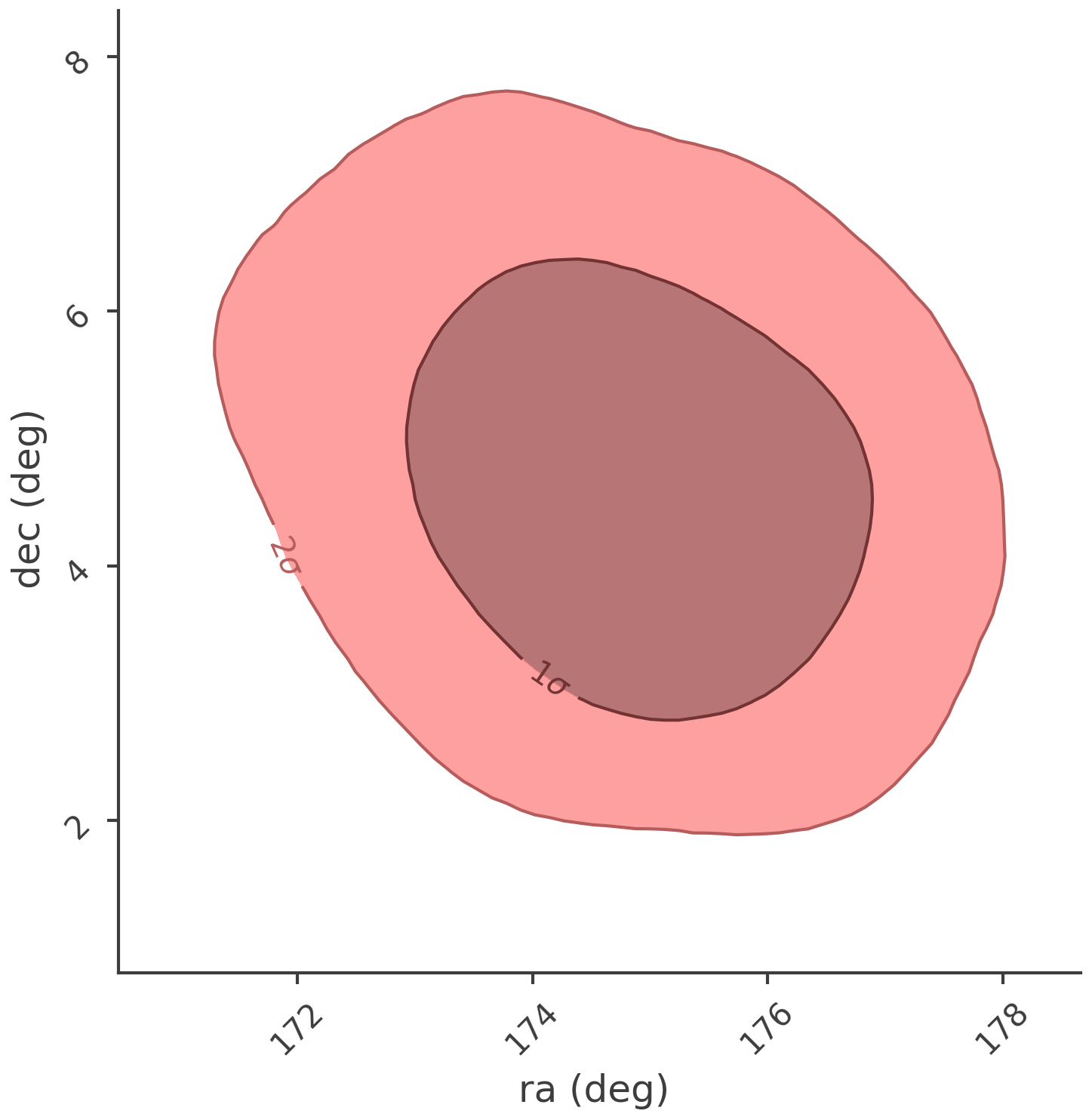

GRB Location
J2000 Coordinate Frame

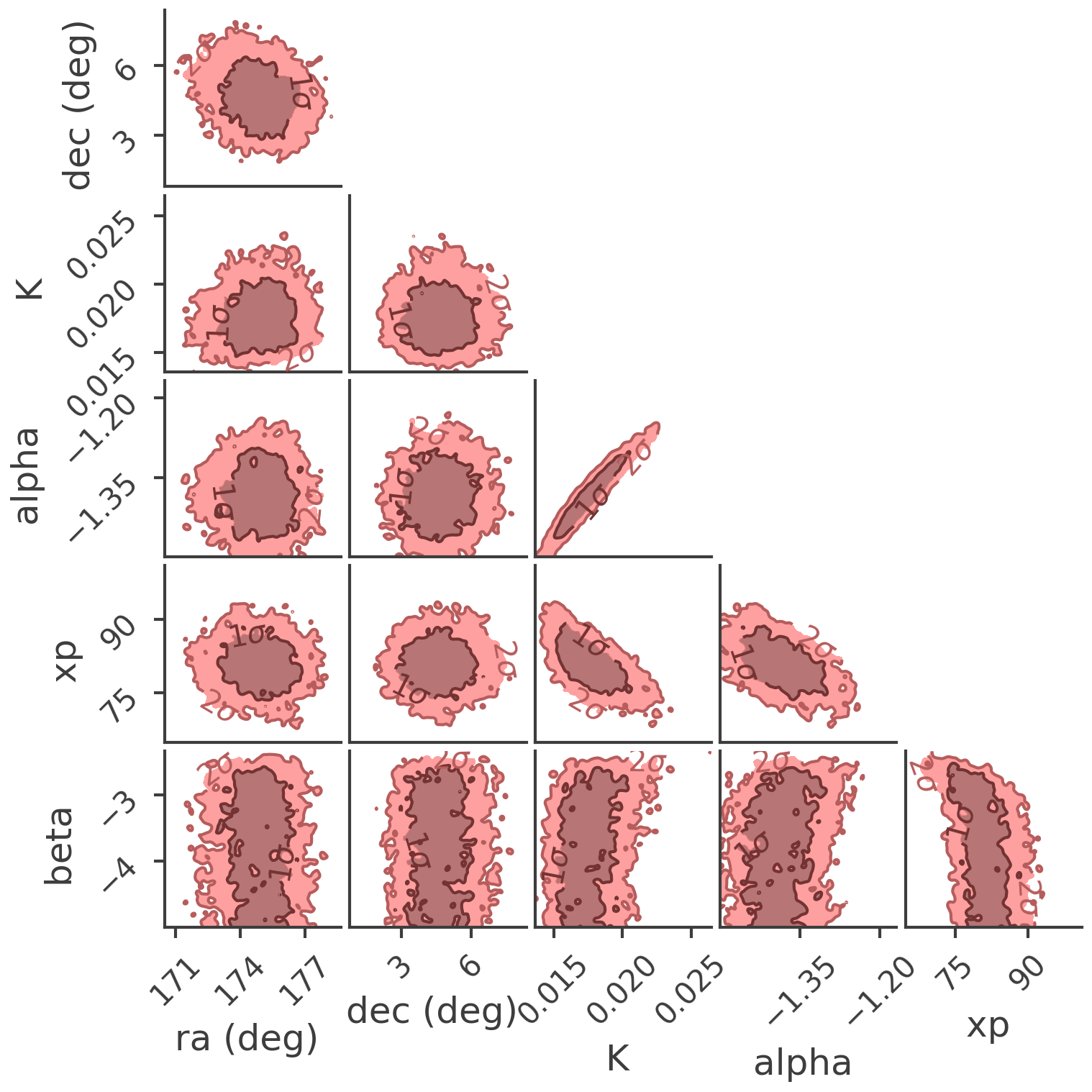

All Corner Plot
J2000 Coordinate Frame
Moll Location Plot
J2000 Coordinate Frame

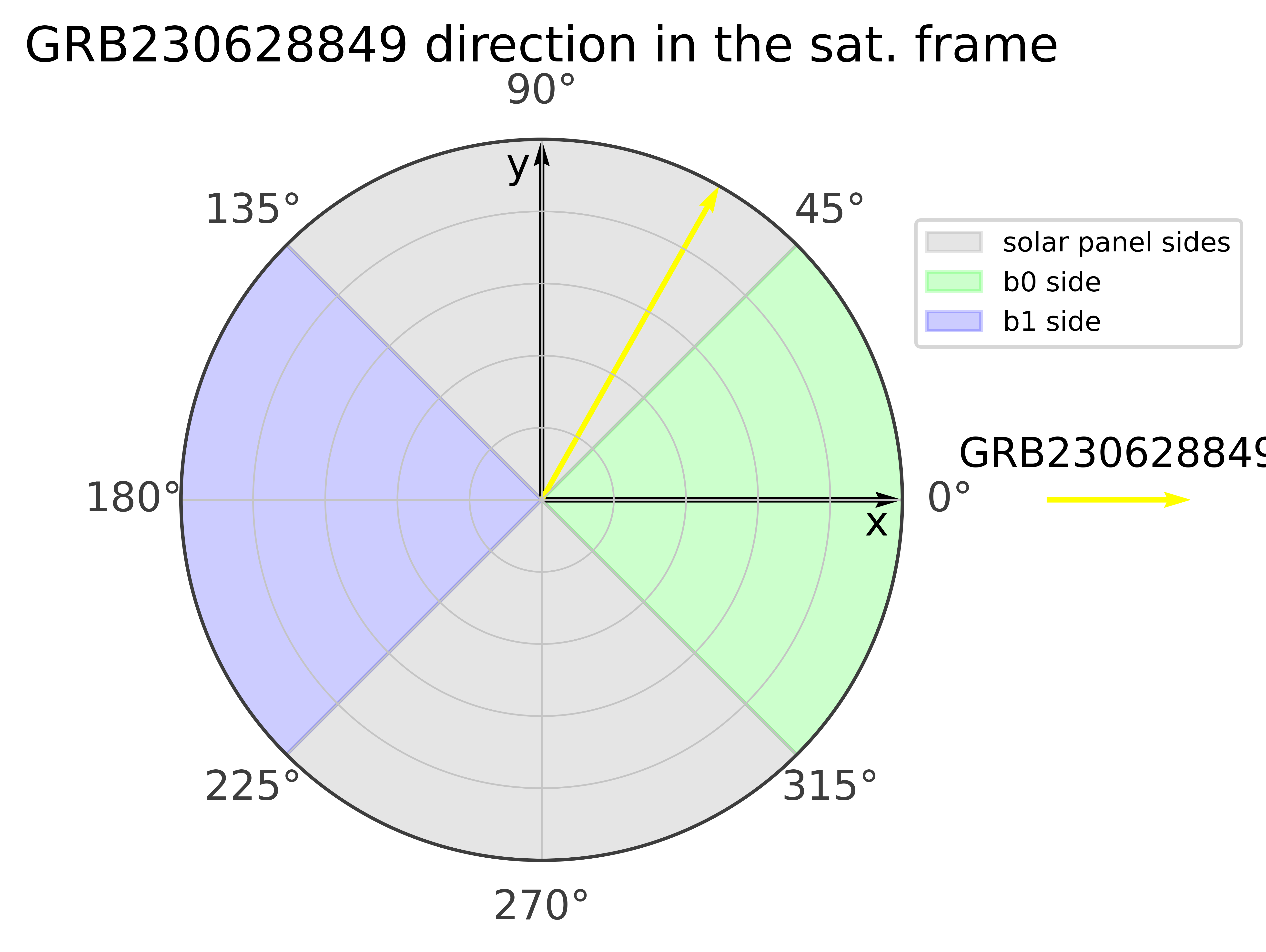

Satellite

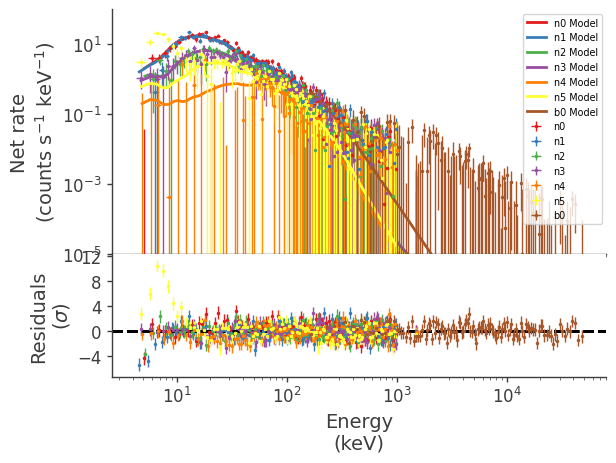

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

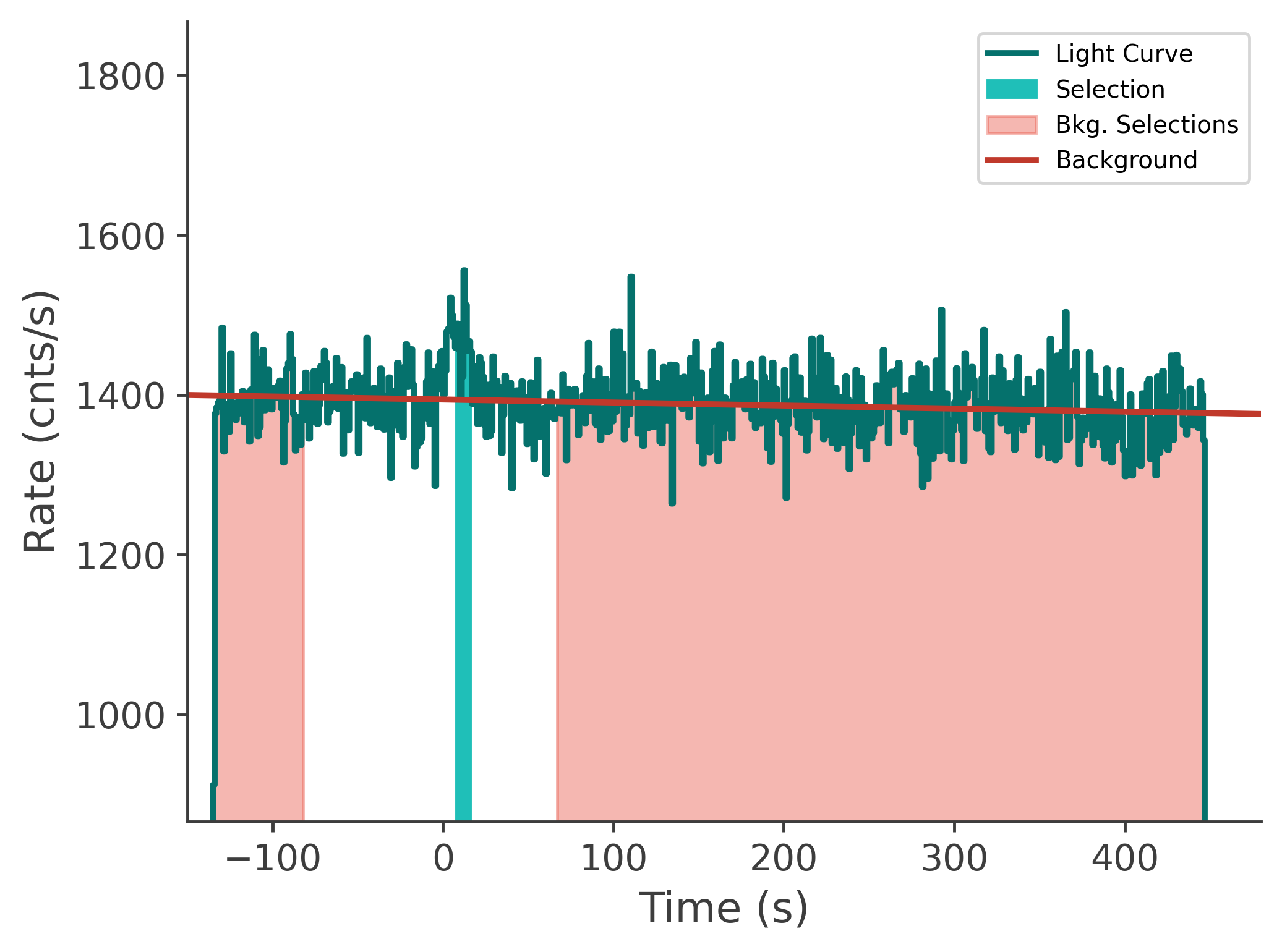

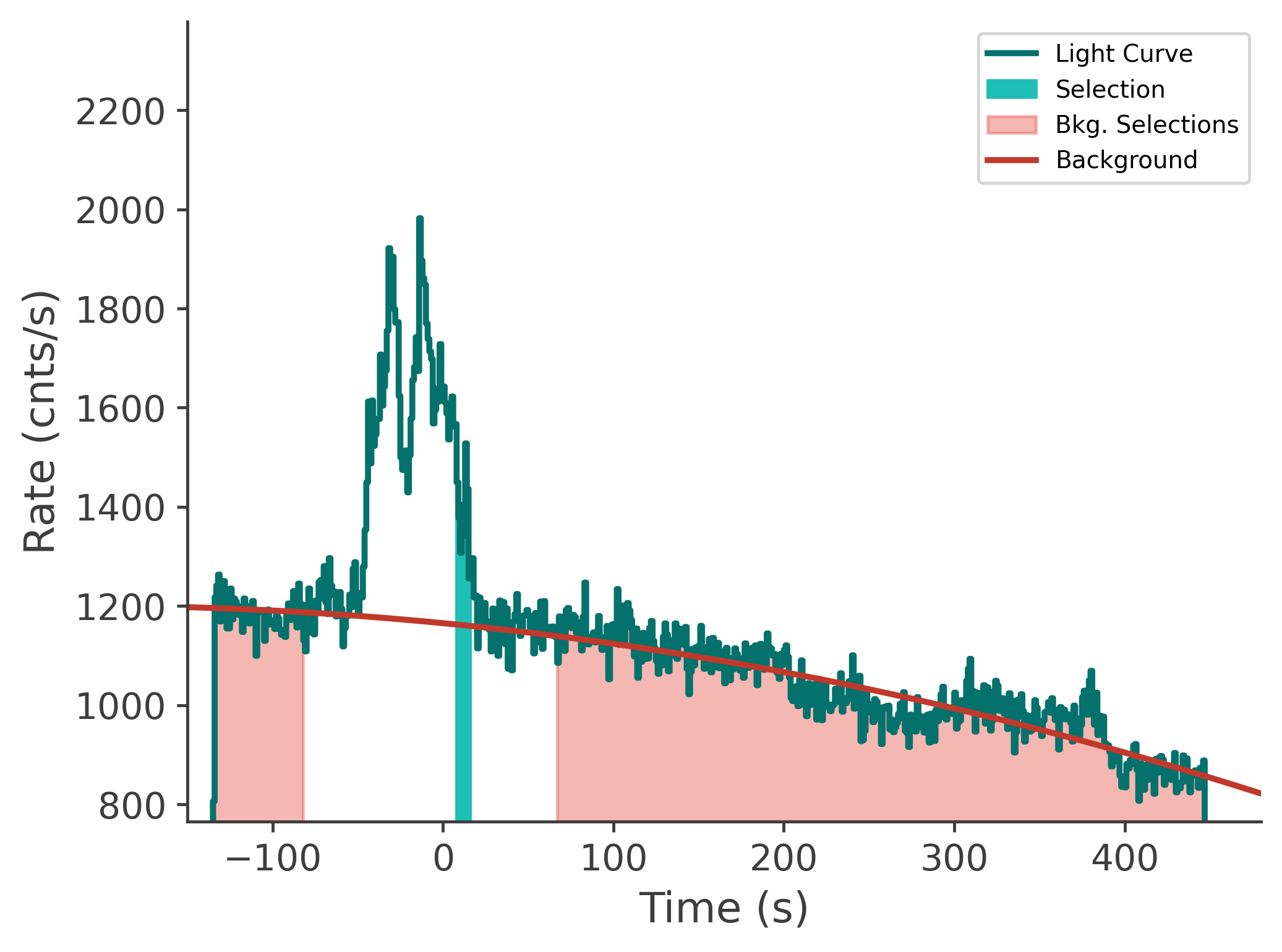

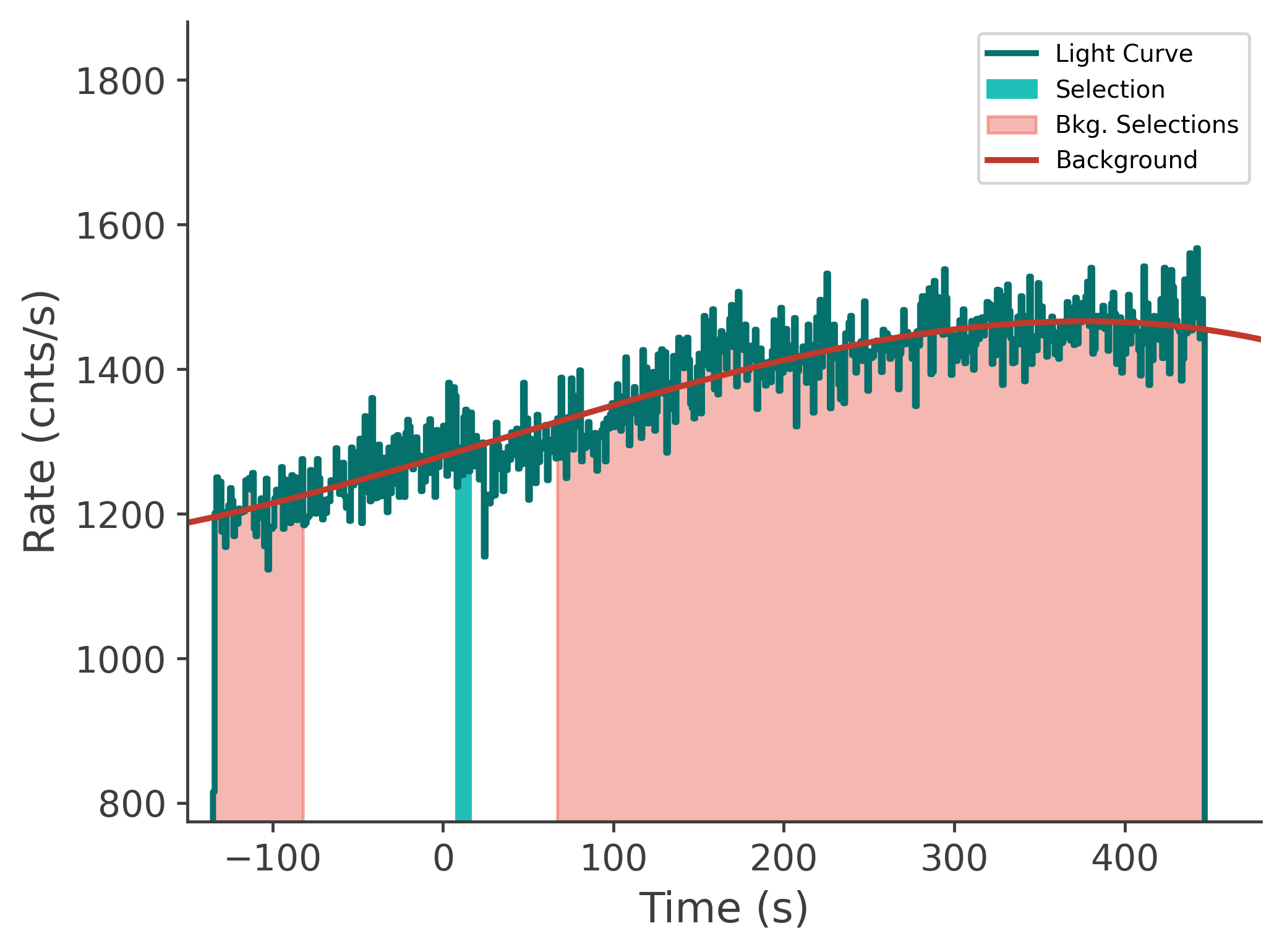

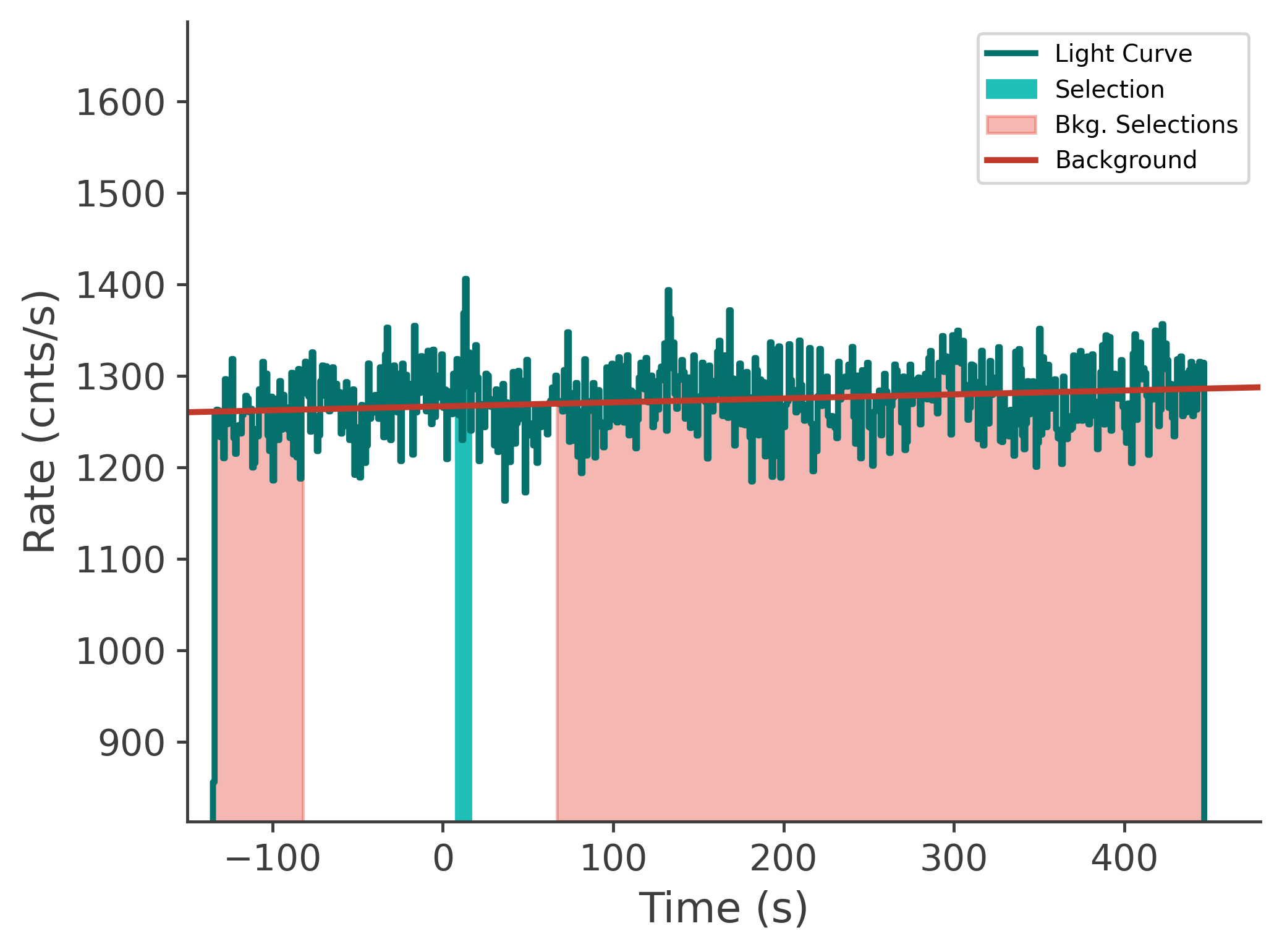

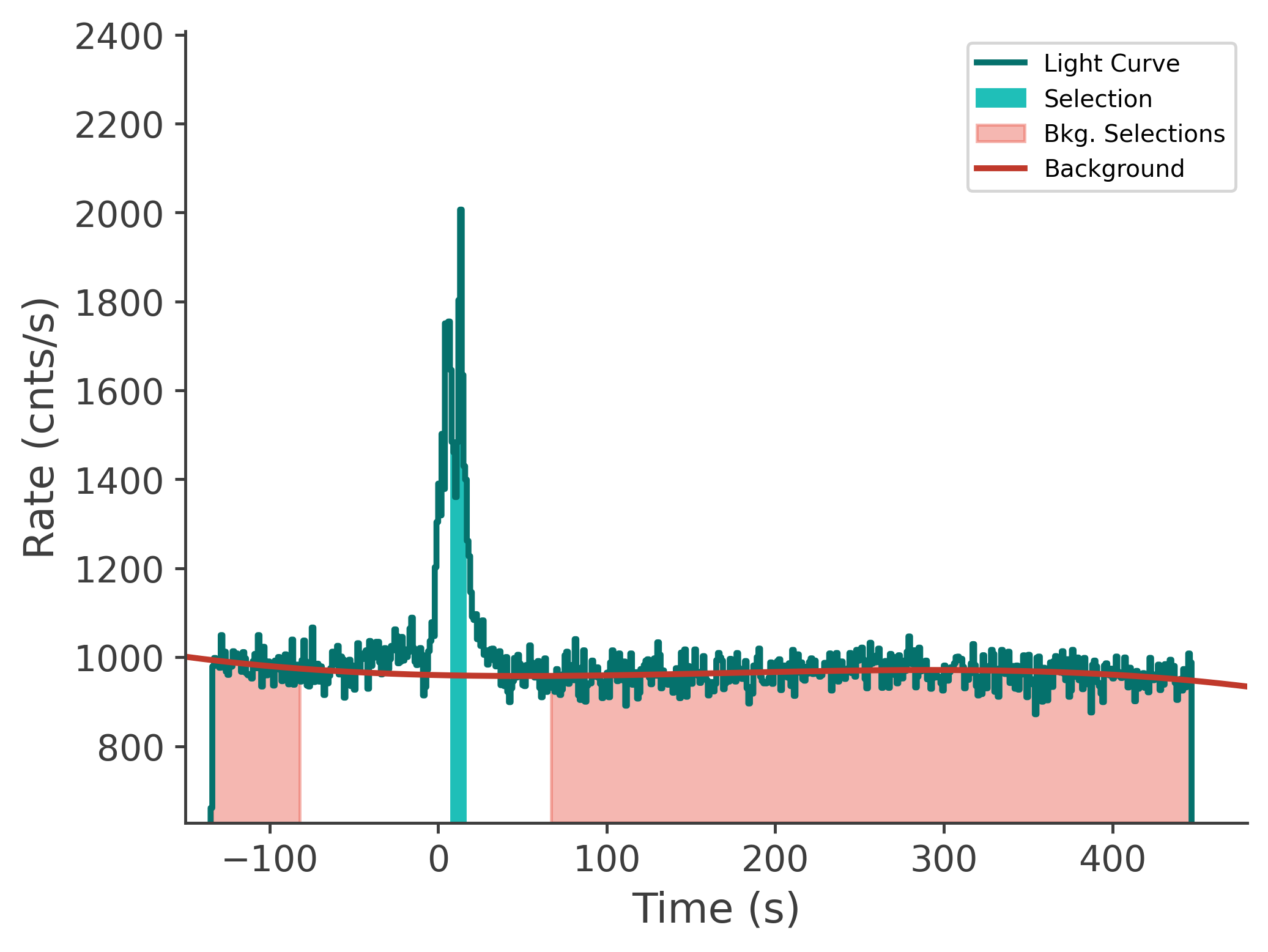

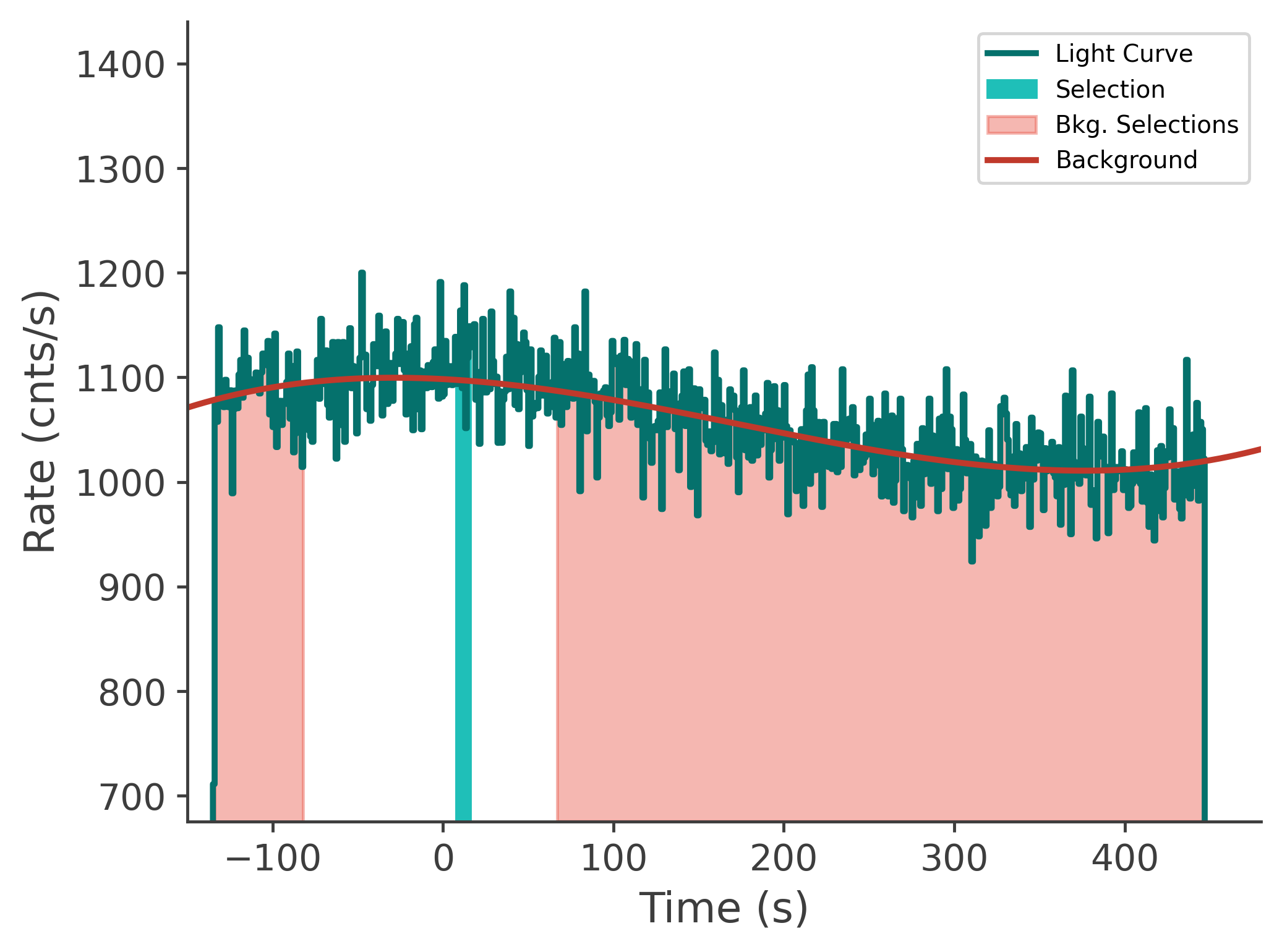

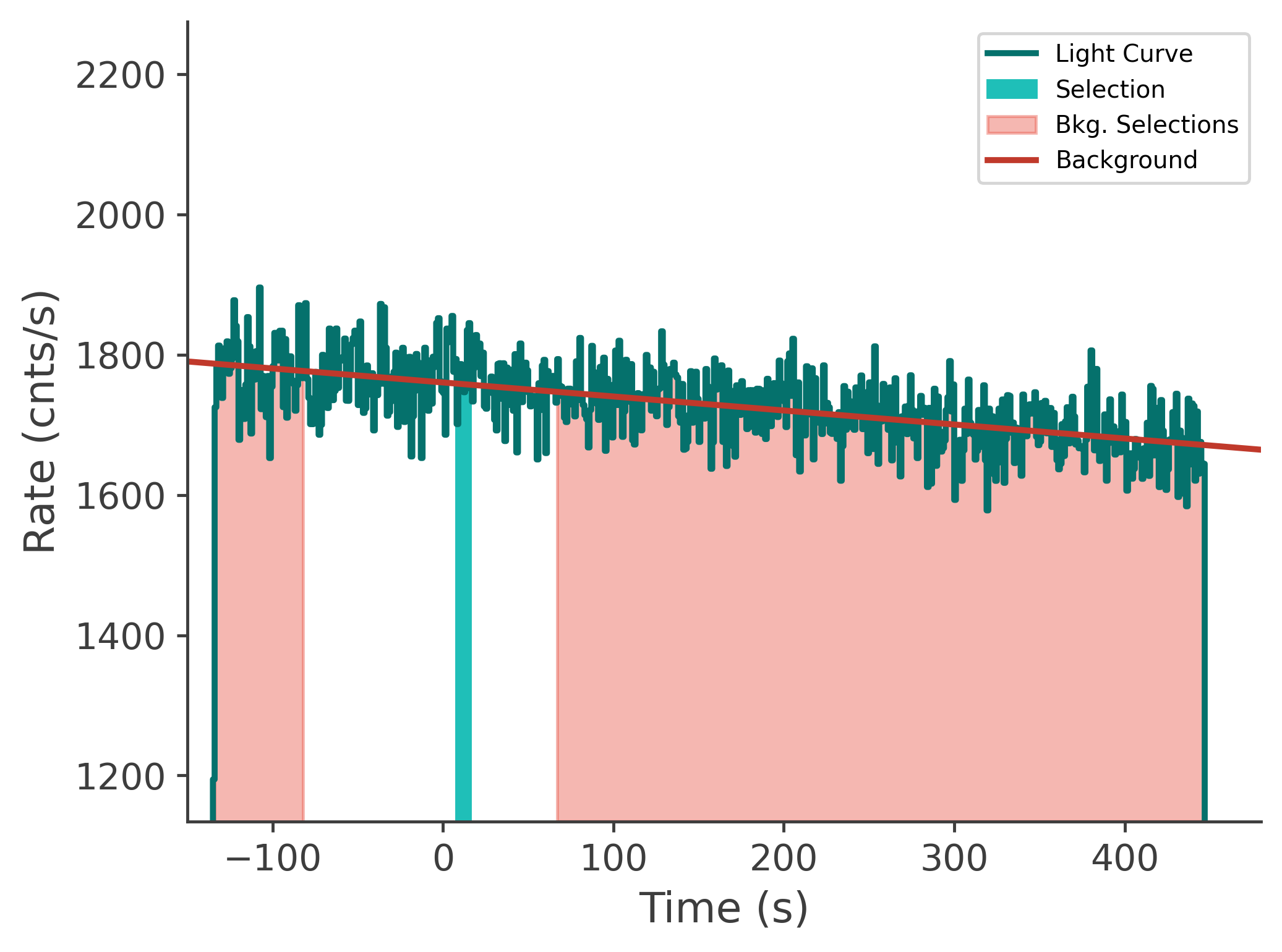

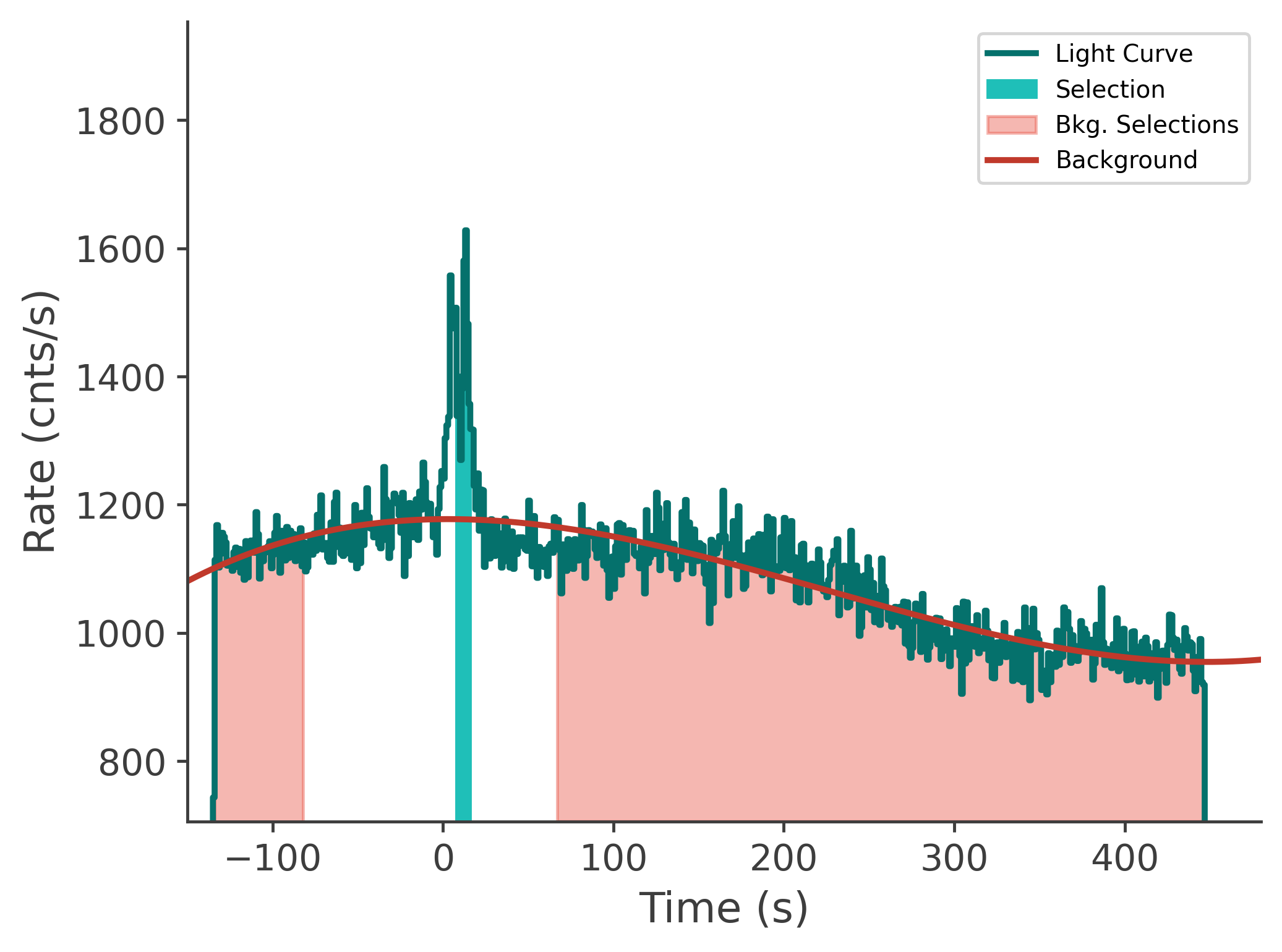

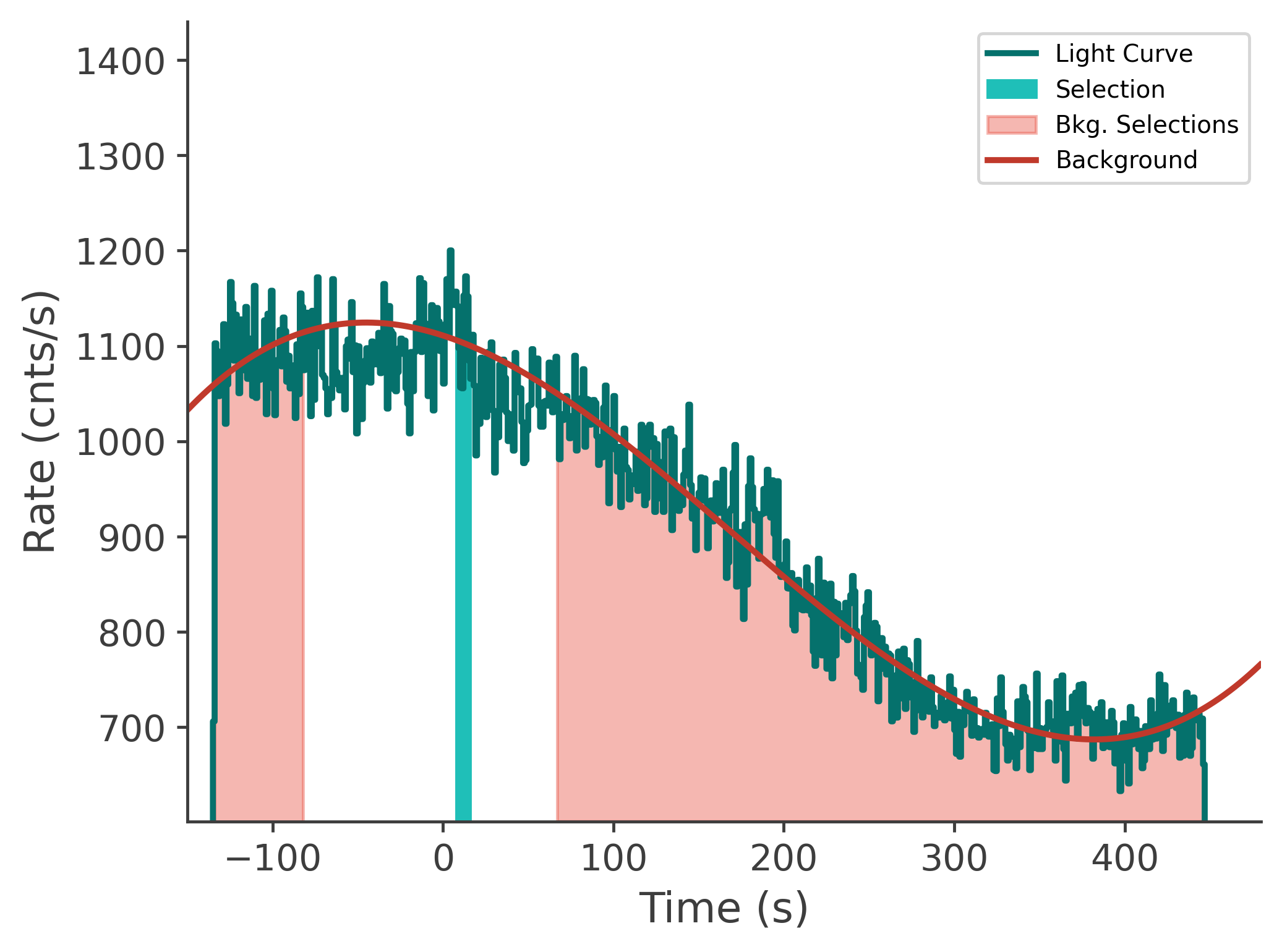

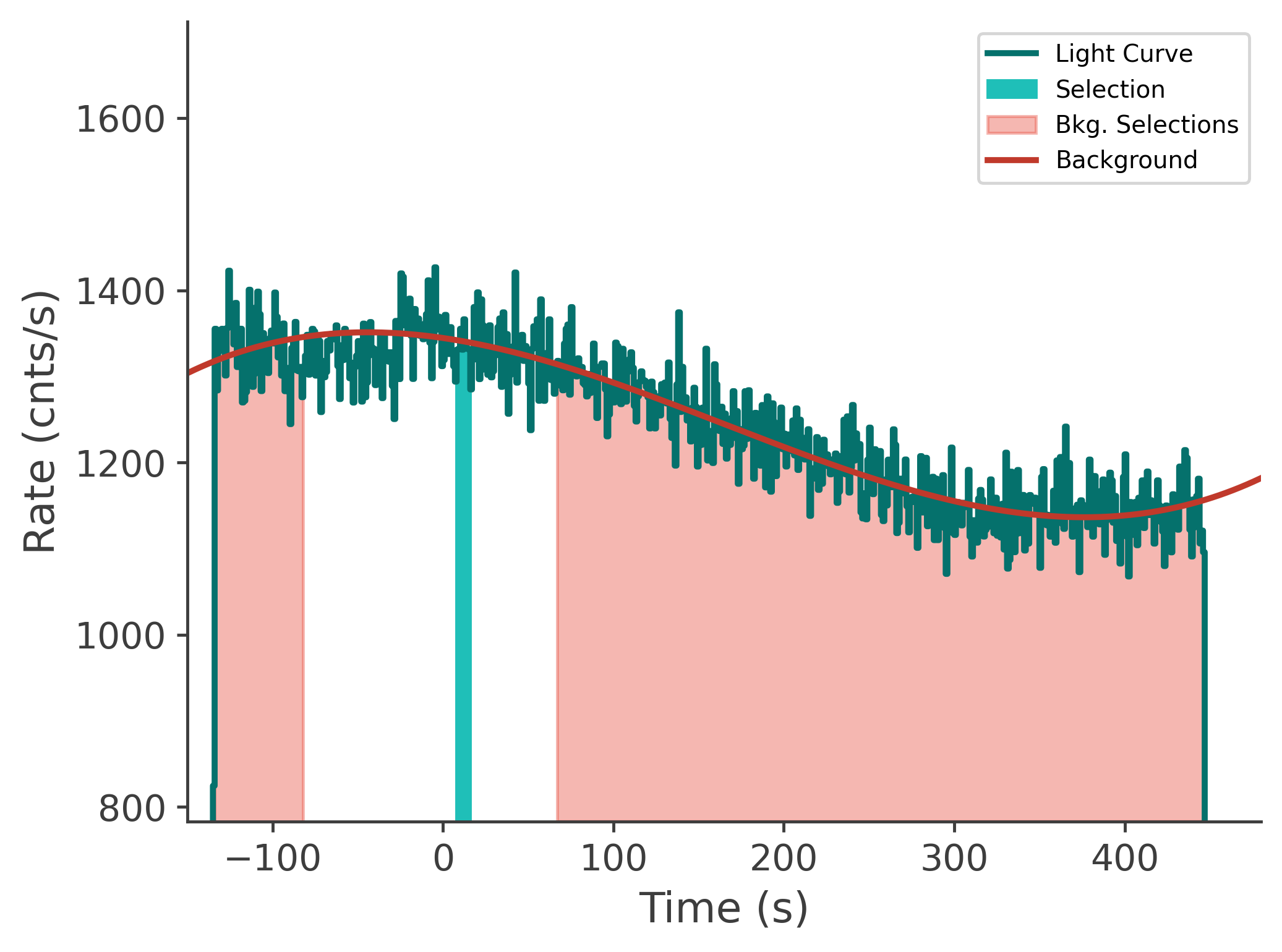

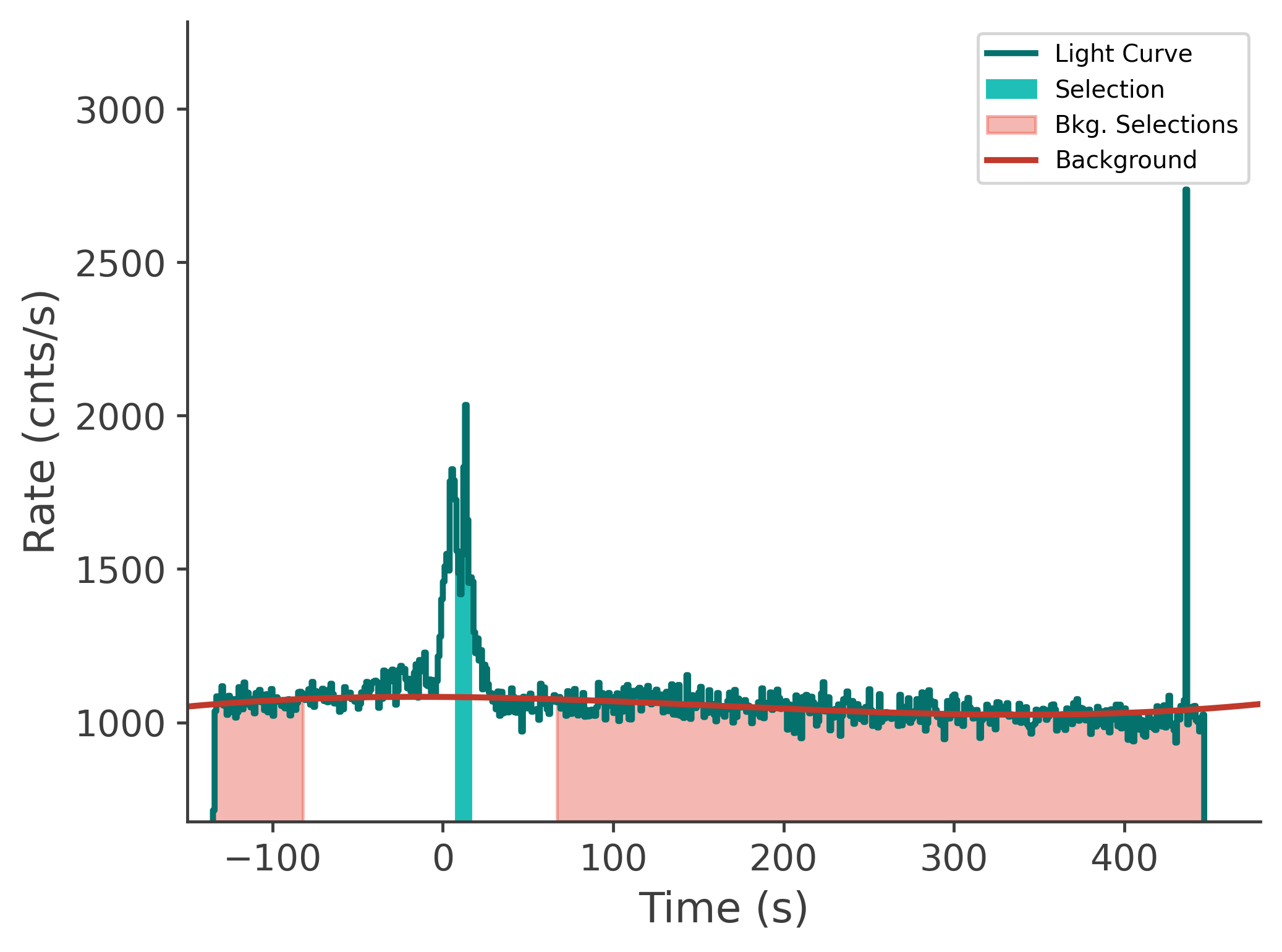

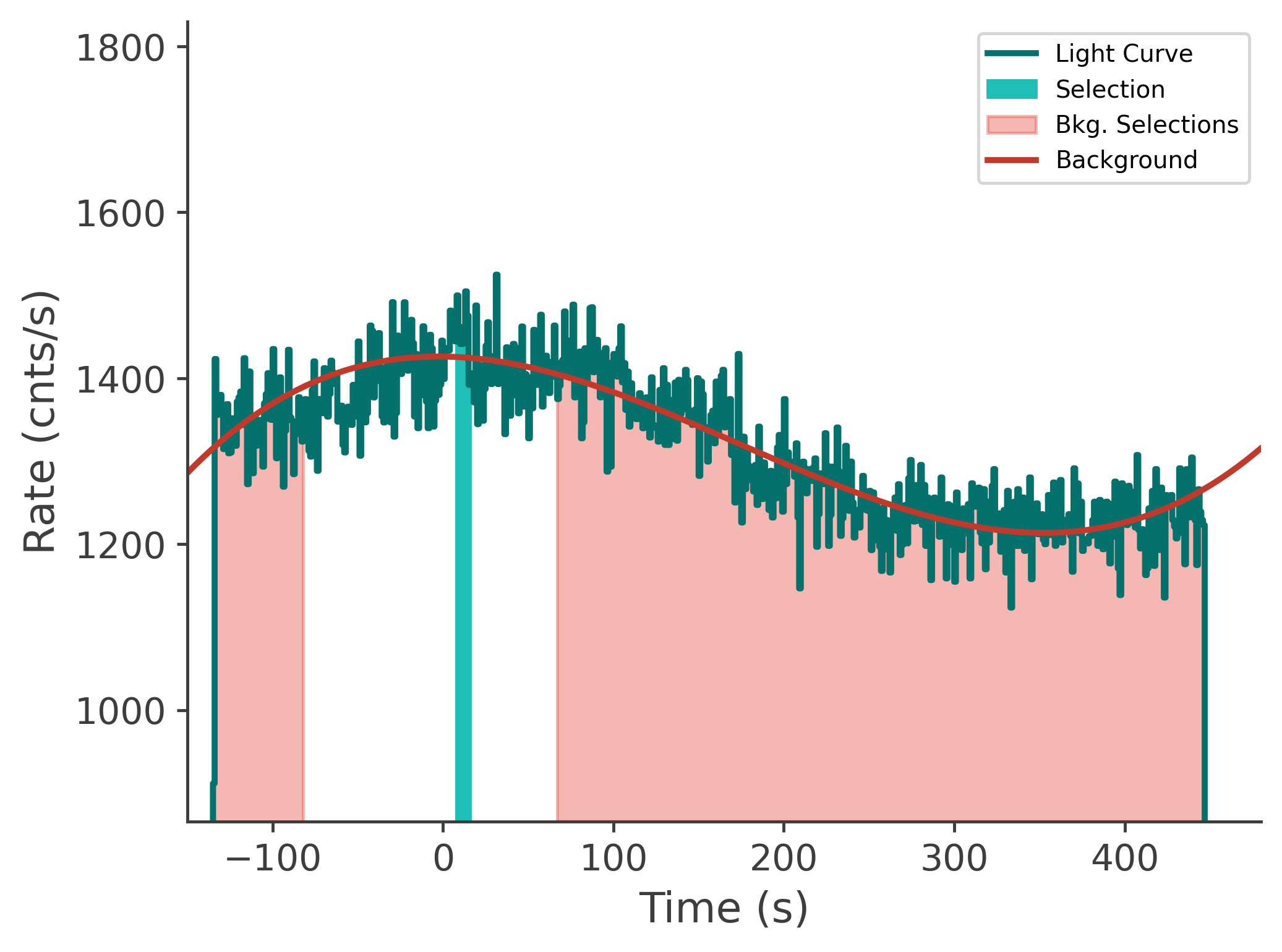

Light Curves
