GRB Properties
Parameters calculated by MPE
| Property | Value | Error (1 σ statistical) |
|---|---|---|
| Trigger Number | 709676556 | |
| Trigger Time | June 28, 2023, 20:22:31 | |
| Data Timestamp | June 28, 2023, 20:59:12 | |
| Localization Timestamp | June 28, 2023, 21:09:29 | |
| Balrog Ra [deg] | 174.0 | 1.4 |
| Balrog Dec [deg] | 4.6 | 1.2 |
| Error radius 1 σ [deg] | 2.0 | |
| Error radius 2 σ [deg] | 3.6 | |
| Estimated systematic error [deg] | 2 | |
| Fitted Model | cutoff_powerlaw | |
| Spectral Parameter K [photons/cm^2/keV*s] | 52 | 17 |
| Spectral Parameter Index | -1.9 | 0.1 |
| Spectral Parameter XC [keV] | 6e+02 | 3e+03 |
| Satellite Phi [deg] | 59.26 | |
| Satellite Theta [deg] | 60.39 |
Parameters from external Source
| Property | Value |
|---|---|
| Swift Ra [deg] | |
| Swift Dec [deg] | |
| Most likely | GRB 76.0% |
| Second most likely | GENERIC_SGR 12.0% |
GRB Location Alert
To circulars@gcn.nasa.gov
GRB 230628D: BALROG localization (Fermi Trigger 709676556 / GRB 230628849)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
709676556 at 20:22:31 on 28 June 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 177.0+/-1.2 deg
Decl.(2000.0) = 3.0+/-1.1 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230628849/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230628849/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230628849/json
GRB 230628D: BALROG localization (Fermi Trigger 709676556 / GRB 230628849)
T. Preis, B. Biltzinger, J. Burgess & J. Greiner (all MPE Garching) report:
The public trigdat data of the Fermi Gamma-ray Burst Monitor (GBM) trigger
709676556 at 20:22:31 on 28 June 2023 were automatically fitted for spectrum
and sky location with BALROG (Burgess et al. 2018, MNRAS 476, 1427;
Berlato et al. 2019, ApJ 873, 60).
The best-fit position (1 sigma statistical errors) is:
RA(2000.0) = 177.0+/-1.2 deg
Decl.(2000.0) = 3.0+/-1.1 deg
We estimate an additional systematic error of 2 deg.
Further details are available at:
https://grb.mpe.mpg.de/grb/GRB230628849/
The Healpix map can be downloaded from:
https://grb.mpe.mpg.de/grb/GRB230628849/healpix
The location parameters are available as JSON at:
https://grb.mpe.mpg.de/grb/GRB230628849/json
GRB Location
J2000 Coordinate Frame

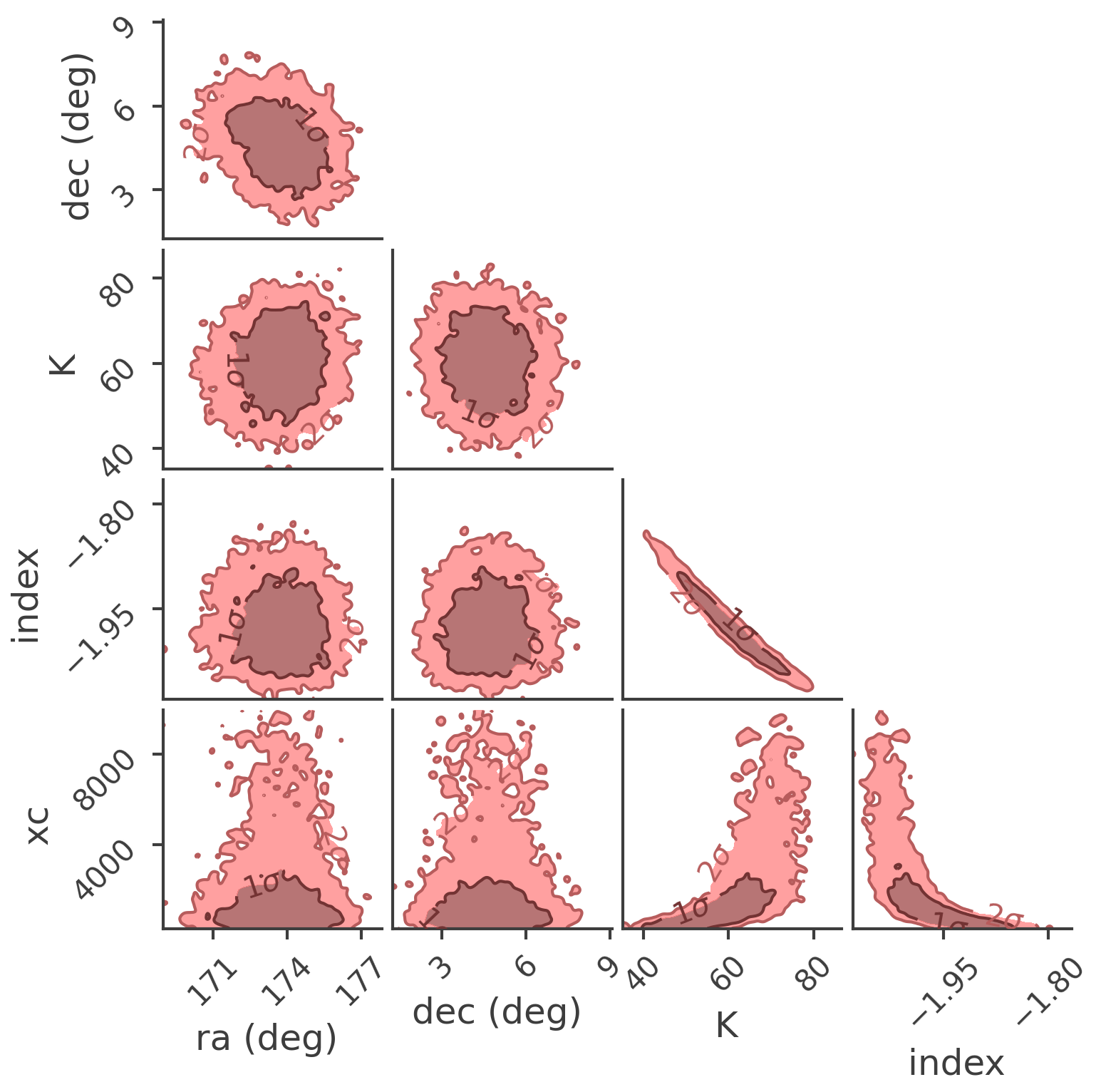

All Corner Plot
J2000 Coordinate Frame

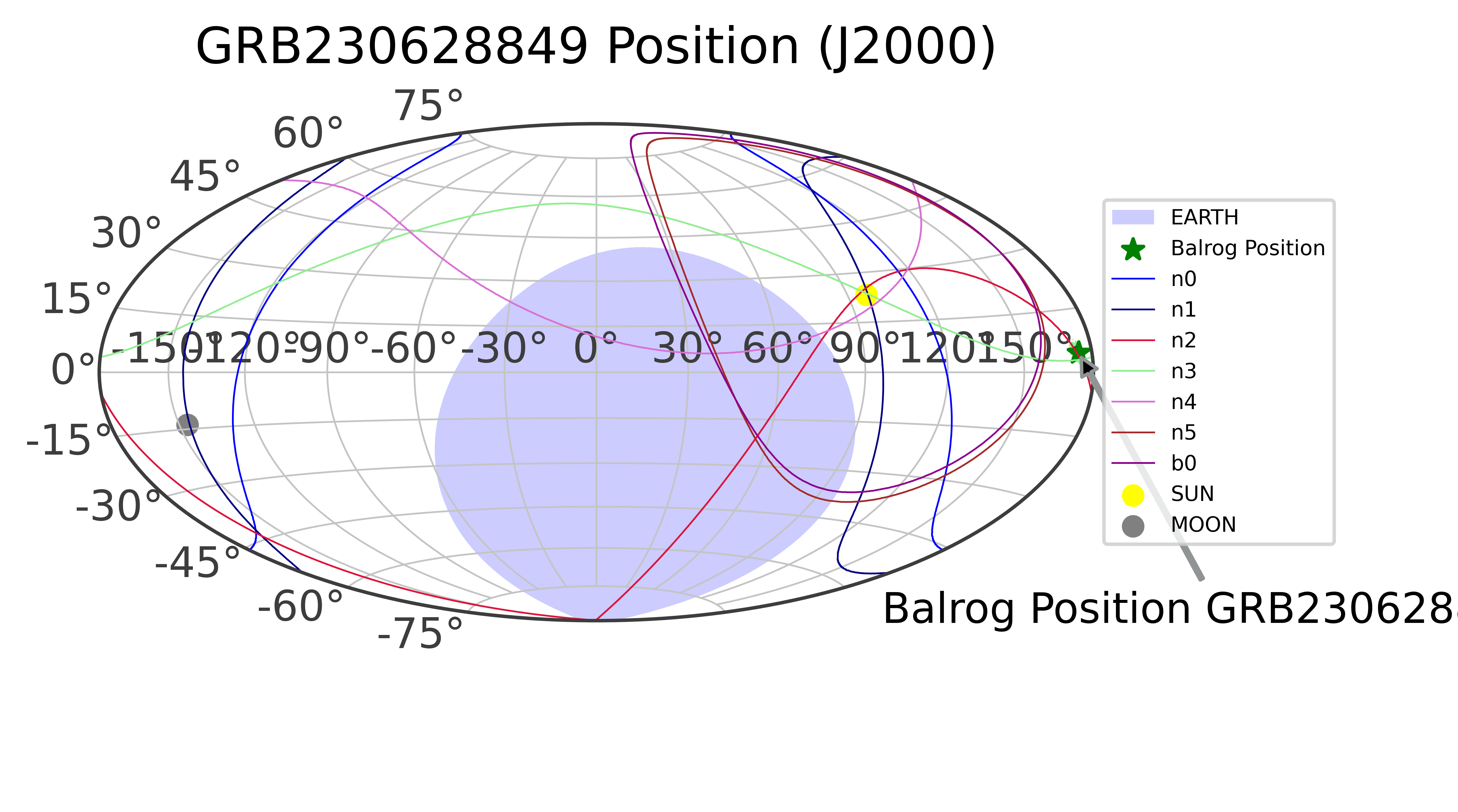

Moll Location Plot
J2000 Coordinate Frame
Satellite

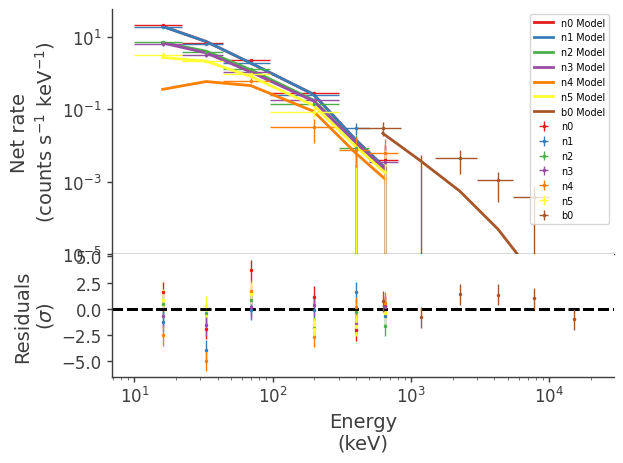

Spectrum Residuals Plot
3D - GRB Location Plot
Satellite Coordiante Frame

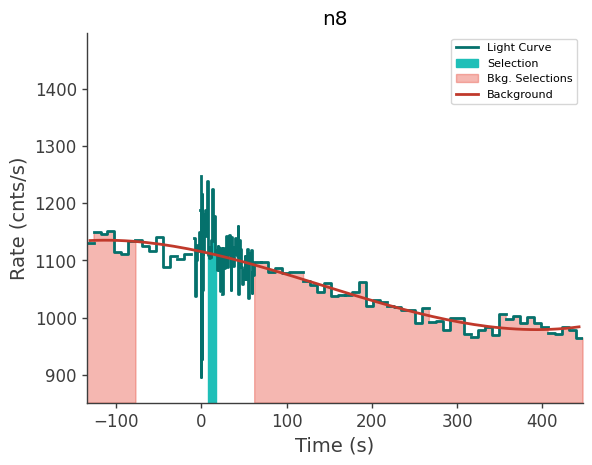

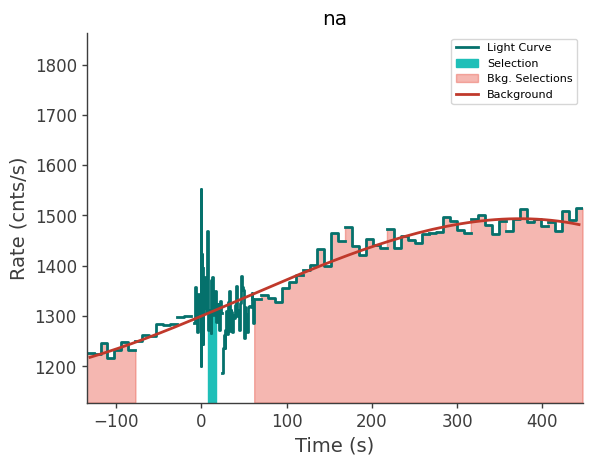

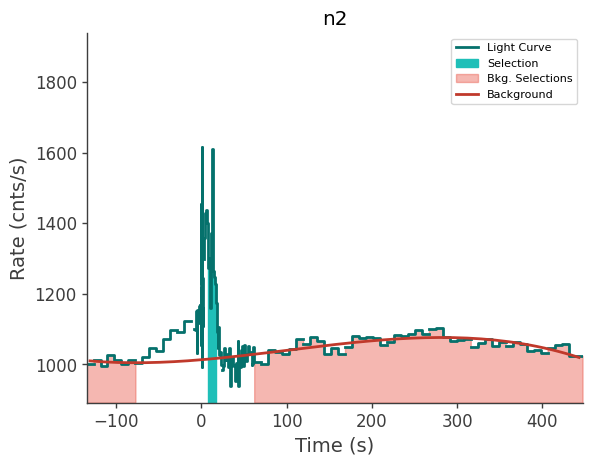

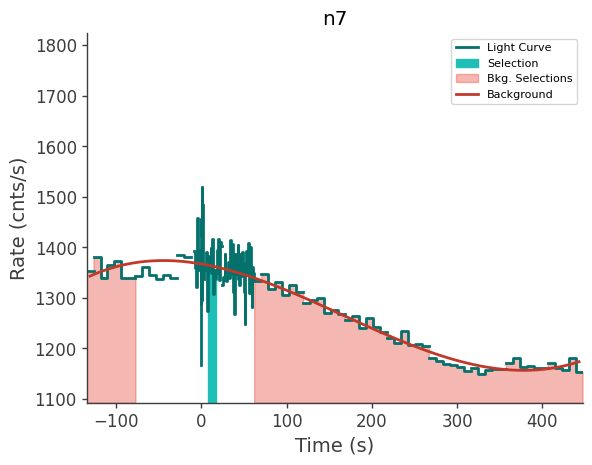

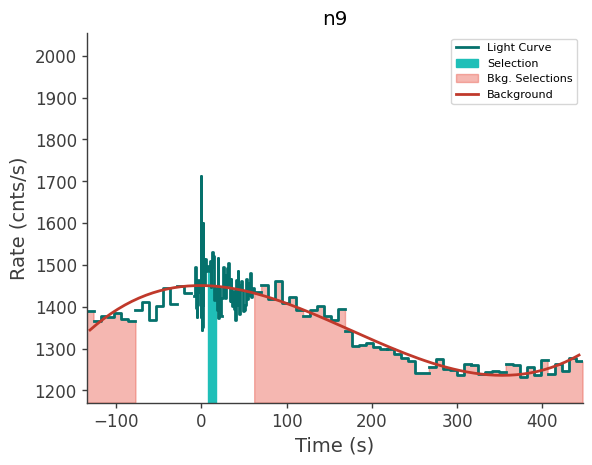

Light Curves
